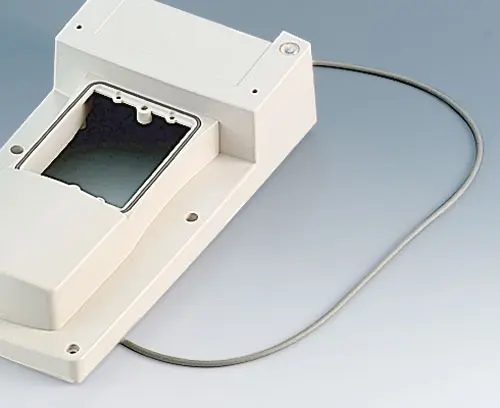

A9146106 Sealing kit M

A9146106

Sealing kit M

For the case. For a higher protection class. Attention: for HAND-TERMINAL version II with frame cover for inserting an aluminium front panel additionally sealing A9146206 for the front panel necessary.

Supply

1 sealing kit

  • 应用于
A9046107 HAND-TERMINAL M, Vers. I

A9046107

HAND-TERMINAL M, Vers. I Robust hand-held enclosure. Recessed operation area for membrane keyboards. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With closed operation area

Supply top and bottom part, battery compartment lid, assembly kit incl. PCB-screws and rubber feet

关闭

A9046107

HAND-TERMINAL M, Vers. I
产品已添加到关注清单中
PC+ABS (UL 94 V-0)
off-white RAL 9002
220x120x65mm
IP 65 opt.
A9046109 HAND-TERMINAL M, Vers. I

A9046109

HAND-TERMINAL M, Vers. I Robust hand-held enclosure. Recessed operation area for membrane keyboards. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With closed operation area

Supply Top and bottom part, battery compartment lid, assembly kit incl. PCB-screws and rubber feet

关闭

A9046109

HAND-TERMINAL M, Vers. I
产品已添加到关注清单中
PC+ABS (UL 94 V-0)
black RAL 9005
220x120x65mm
IP 65 opt.
A9046207 HAND-TERMINAL M, Vers. II

A9046207

HAND-TERMINAL M, Vers. II Robust hand-held enclosure. Assembly of the front panels (accessories) from the rear. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With frame cover for the use of an aluminium-front panel (accessories)

Supply Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet

关闭

A9046207

HAND-TERMINAL M, Vers. II
产品已添加到关注清单中
PC+ABS (UL 94 V-0)
off-white RAL 9002
220x120x65mm
IP 65 opt.
A9046209 HAND-TERMINAL M, Vers. II

A9046209

HAND-TERMINAL M, Vers. II Robust hand-held enclosure. Assembly of the front panels (accessories) from the rear. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With frame cover for the use of an aluminium-front panel (accessories)

Supply Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet

关闭

A9046209

HAND-TERMINAL M, Vers. II
产品已添加到关注清单中
PC+ABS (UL 94 V-0)
black RAL 9005
220x120x65mm
IP 65 opt.
  • 技术数据
  • 采购有关数据
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
40081900
Country of manufacture
Germany
