Hand-Terminal 手持终端盒

机械、设备控制用移动式控制盒 & 室外用

手持式界面终端盒特别适用于有坚固外壳要求的电子元组件的封装。

  • 耐火、耐冲击材料
  • 坚固及密封，防护等级至 IP 65，密封件作为附件

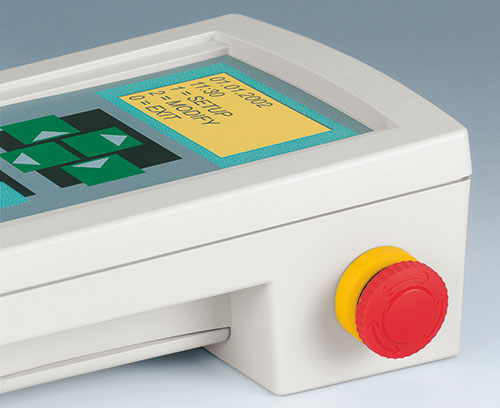

  • 充足的空间用于操作元件、显示器、电子设备、紧急停止和启用按钮

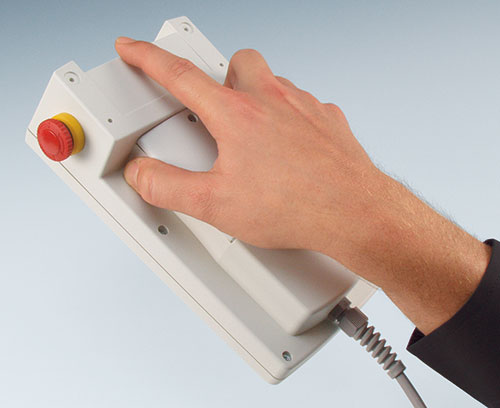

  • 符合人体工程学的手柄区使持握舒适

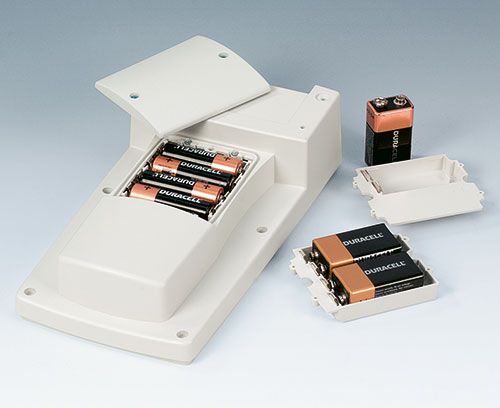

  • 带线使用或带适配 4 个 AA, 1 个 9 V 或 2 个 9 V 电池的电池仓
  • 最佳重量分布
  • 操作区域凹陷，以保护膜键盘
  • 型号 I 的上盖是封闭式
  • 型号 II 用于前面板安装式
  • 固定柱用于安装电路板和安装组件
PDF 导出

应用范围

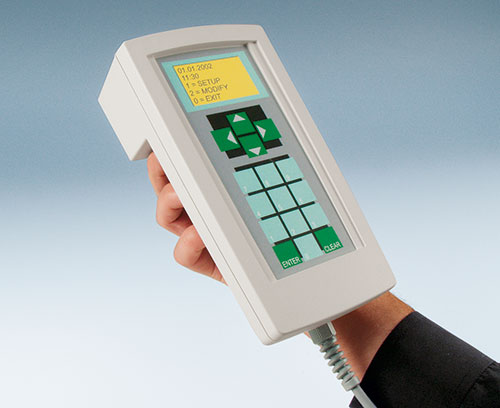

用于生产机器和组装机器的灵活控制。 界面终端盒具备示教功能。 也提供电气和电子工程领域的经典应用。 例如测量和控制领域等。

A9046107 HAND-TERMINAL M, Vers. I

A9046107

HAND-TERMINAL M, Vers. I Robust hand-held enclosure. Recessed operation area for membrane keyboards. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

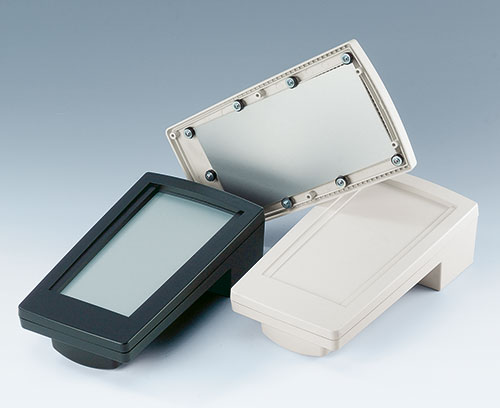

Version With closed operation area

Supply top and bottom part, battery compartment lid, assembly kit incl. PCB-screws and rubber feet

A9046107

HAND-TERMINAL M, Vers. I
产品已添加到关注清单中

off-white RAL 9002
220x120x65mm
A9046109 HAND-TERMINAL M, Vers. I

A9046109

HAND-TERMINAL M, Vers. I Robust hand-held enclosure. Recessed operation area for membrane keyboards. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With closed operation area

Supply Top and bottom part, battery compartment lid, assembly kit incl. PCB-screws and rubber feet

A9046109

HAND-TERMINAL M, Vers. I
产品已添加到关注清单中

black RAL 9005
220x120x65mm
A9046207 HAND-TERMINAL M, Vers. II

A9046207

HAND-TERMINAL M, Vers. II Robust hand-held enclosure. Assembly of the front panels (accessories) from the rear. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With frame cover for the use of an aluminium-front panel (accessories)

Supply Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet

A9046207

HAND-TERMINAL M, Vers. II
产品已添加到关注清单中

off-white RAL 9002
220x120x65mm
A9046209 HAND-TERMINAL M, Vers. II

A9046209

HAND-TERMINAL M, Vers. II Robust hand-held enclosure. Assembly of the front panels (accessories) from the rear. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With frame cover for the use of an aluminium-front panel (accessories)

Supply Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet

A9046209

HAND-TERMINAL M, Vers. II
产品已添加到关注清单中

black RAL 9005
220x120x65mm
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
产品已添加到关注清单中
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
产品已添加到关注清单中
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308132

Self-tapping screw 3 x 8 mm (T10)
产品已添加到关注清单中
A9146101 Front panel M

A9146101

Front panel M For HAND-TERMINAL version II. Front panel installation at the top part from the rear.

Supply 1 front panel (srews supplied with the case)

A9146101

Front panel M
产品已添加到关注清单中

matt anodised
179x88x2mm
A9146106 Sealing kit M

A9146106

Sealing kit M For the case. For a higher protection class. Attention: for HAND-TERMINAL version II with frame cover for inserting an aluminium front panel additionally sealing A9146206 for the front panel necessary.

Supply 1 sealing kit

A9146106

Sealing kit M
产品已添加到关注清单中
A9146206 Sealing M

A9146206

Sealing M For the front panel of HAND-TERMINAL version II. For a higher protection class.

Supply 1 sealing

A9146206

Sealing M
产品已添加到关注清单中
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
产品已添加到关注清单中
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
产品已添加到关注清单中

tin-plated
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

A9174002

Battery compartment, 2 x 9 V
产品已添加到关注清单中

off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

A9174003

Battery compartment, 1 x 9 V
产品已添加到关注清单中

off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

A9174006

Set of battery clips, 1 x 9 V
产品已添加到关注清单中

tin-plated
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

A9250250

Battery spacer
产品已添加到关注清单中

50x25x4mm
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

A9345217

Set of battery compartment, 4 x AA
产品已添加到关注清单中

off-white RAL 9002

产品类型用于 Hand-Terminal 手持终端盒

如何体现您的特殊产品？ 如有需要，我们执行所有必要的修改和精加工，提供组装完毕的机盒。
