B7040237 ERGO-CASE XS

B7040237

ERGO-CASE XS

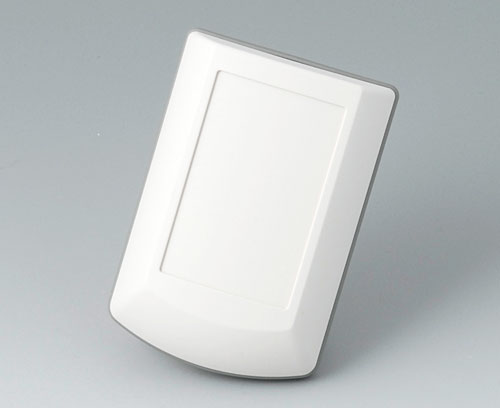

Three-part enclosure in ergonomic design. TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard.

Version

TPE ring without eyelet hole

Supply

top and bottom part, ring, assembly kit

  • 按客户要求修改加工

Customising options for B7040237

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
材料
ABS (UL 94 HB)
Bottom and top part
TPE
Intermediate ring
防护等级
颜色
Bottom and top part off-white RAL 9002,
Intermediate ring volcano
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
82 mm
Width
56 mm
Height
24 mm
电路板长度,下盒
48 mm
电路板宽度,下盒
45 mm
电路板长度,上盒
53 mm
电路板宽度,上盒
40 mm
Keypad length
52 mm
Keypad width
33.1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
26 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
