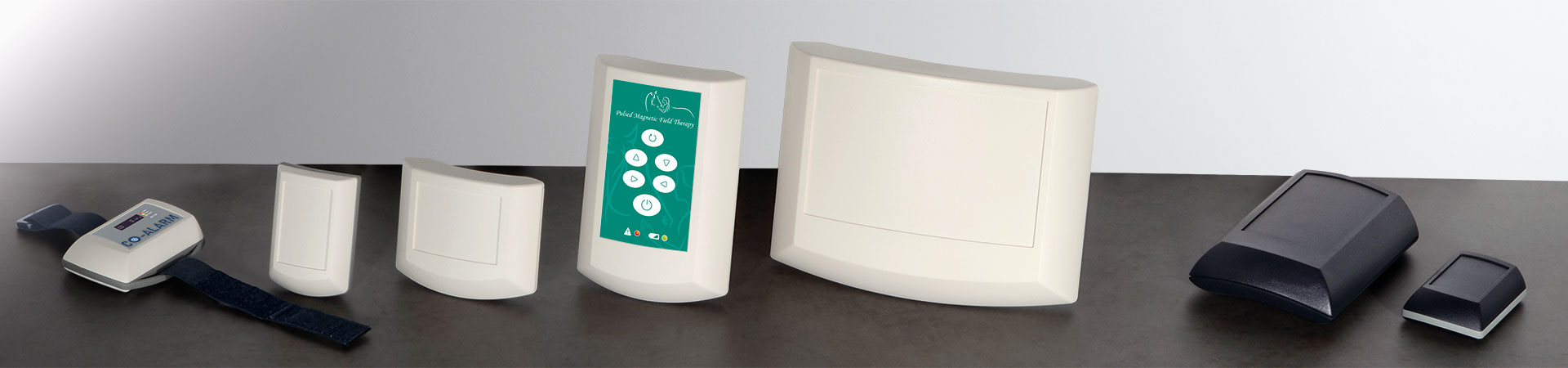

Ergo-Case 弯形盒

弯形电子元件盒

符合人体工程学的 ERGO-CASES 弯形电子元件盒首次实现了舒适佩戴在身体上的功能 – 无论是手臂、胸部或腰部。

  • 独特的设计使携带和操作具备优势

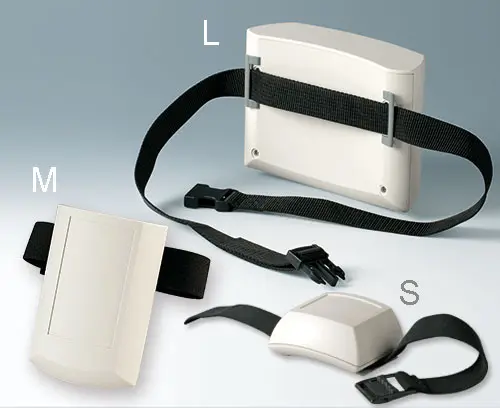

  • 嵌合佩戴的配件，例如臂带和腰带、带夹、卡夹等等

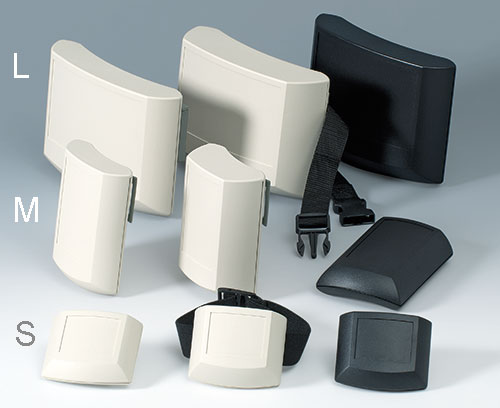

  • 4 种规格， 2 种颜色

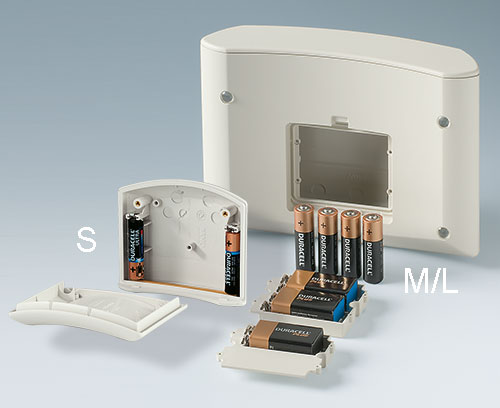

  • 可选带或不带电池：
    附加适配 4 个 AA、 1 个 9 V、 2 个 9 V (规格 M, L) 电池的电池盒，盒盖卡嵌，如有必要可通过螺钉固定; 规格 S 具备适配 2 个 AAA 电池的固定架

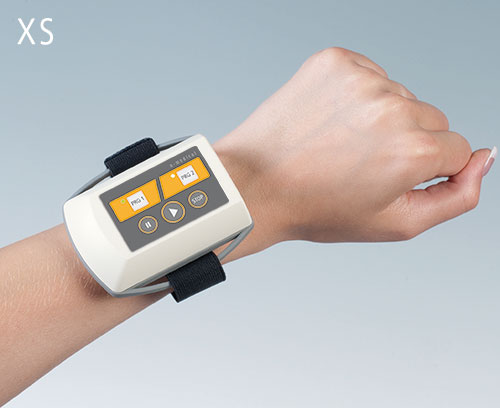

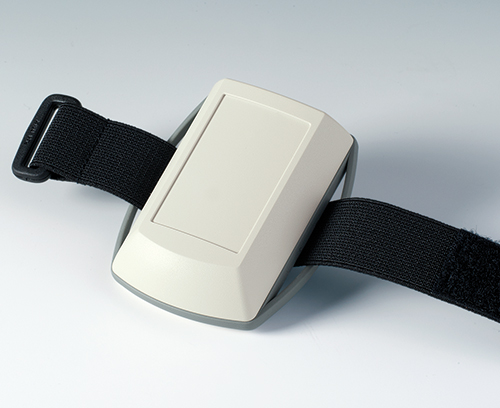

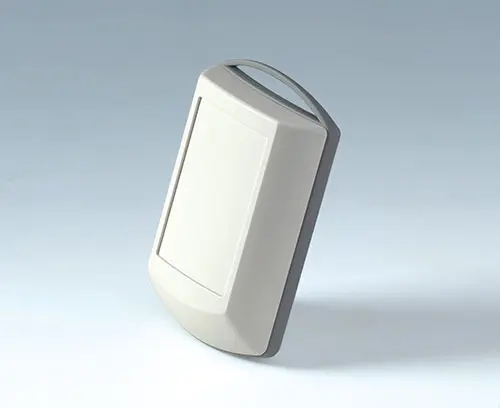

  • 带 TPE 中间环的规格 XS 可选无或带窗口用于适配配件，如手链、手带等

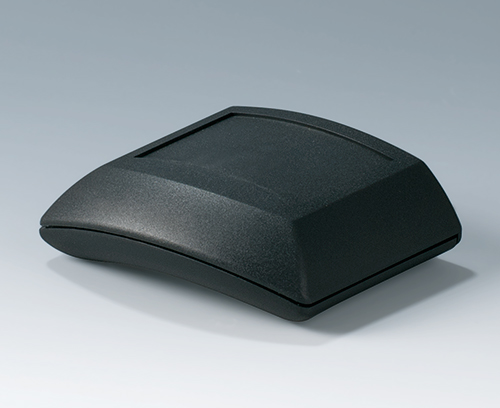

  • 可选较平或较高的上盖用于安装配置

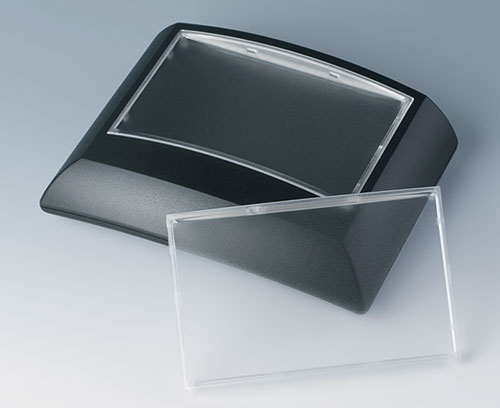

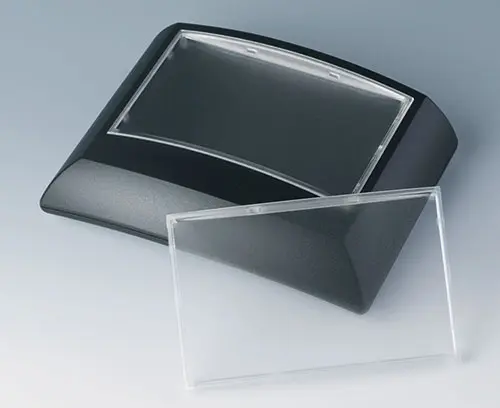

  • 规格 L 可选带半透明 PC 材质或相同主盒材质 ABS 材质的显示面板用于安装更大的具备图形处理能力的显示器

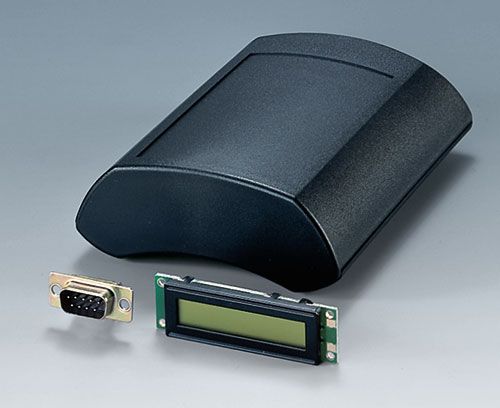

  • 端面具备较大的界面终端用表面
  • 操作区域凹陷，用于保护膜键盘

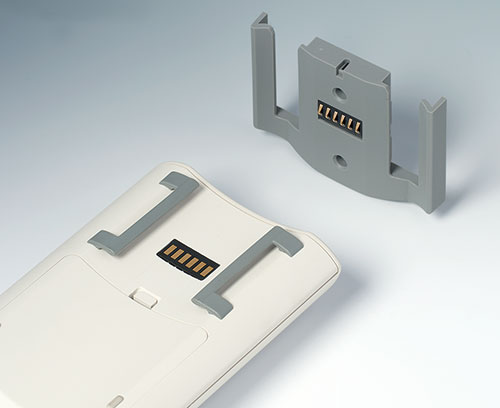

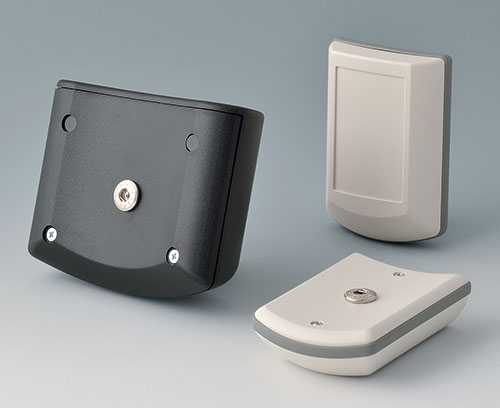

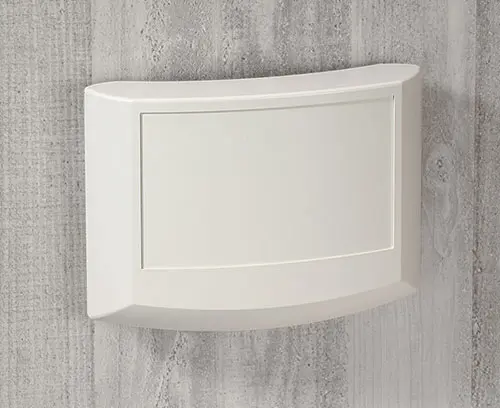

  • 带保险的隐蔽式墙壁安装; 简单的数据和充电电流传输方式; 接触件作为附件

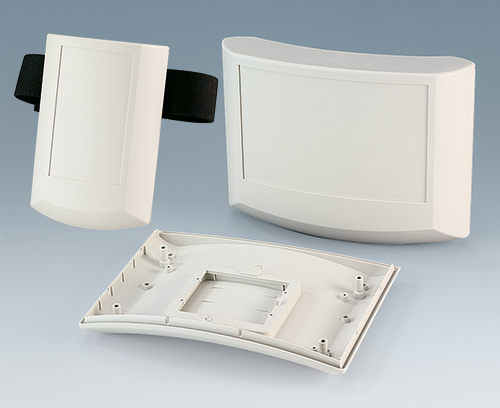

  • 固定柱用于安装电路板和安装组件
  • 保护套防冲击和保护表面（附件，规格 M，较高式）
PDF 导出

Learn more!

Read our blog posts on ergo-case View blog posts >>

应用范围

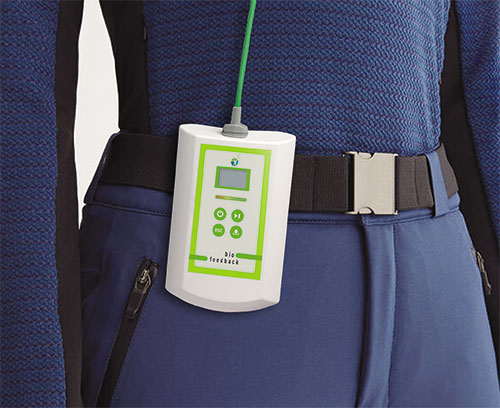

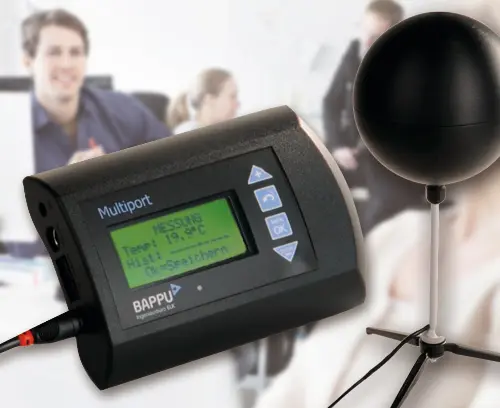

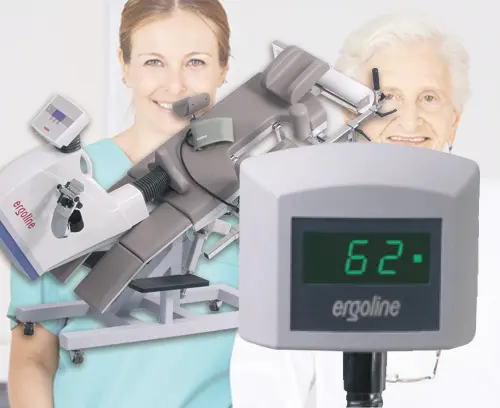

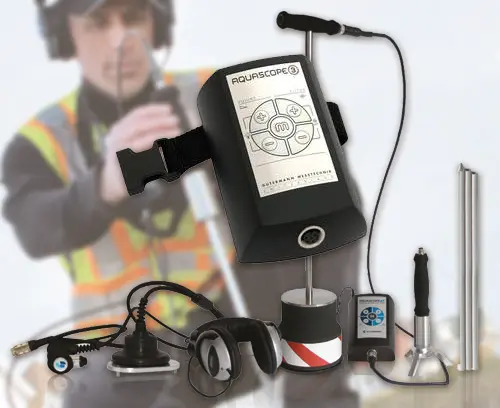

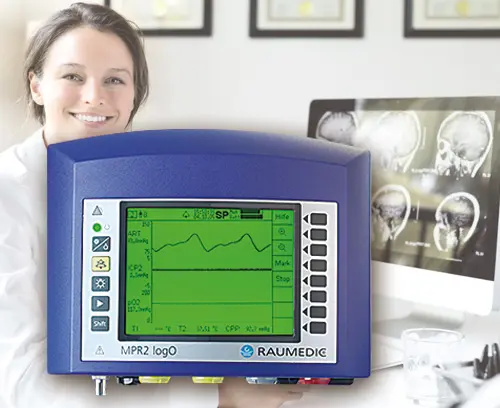

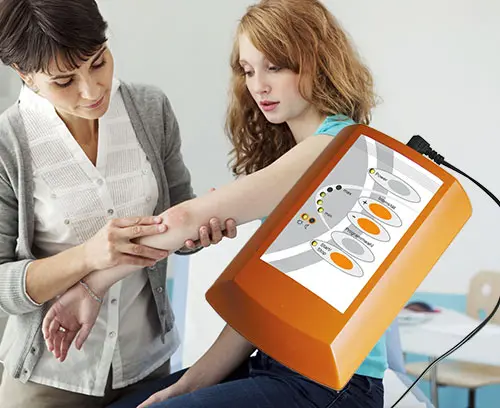

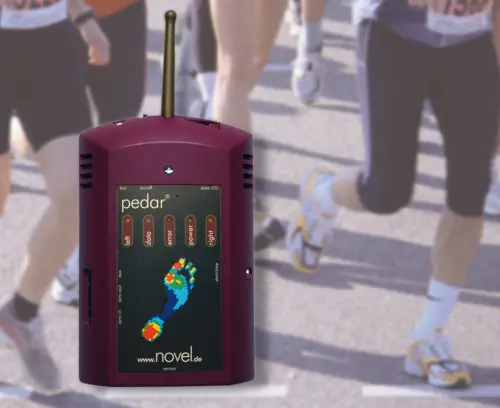

医疗和实验室设备的移动式数据采集和数据传输领域。 休闲和医疗保健领域。 数字通信技术。 存储和销售物流领域。 测量技术。 控制和调节技术。

请选择所需的产品类型或尺寸，或点击产品列表末尾的“选择所有产品”按键。

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
产品已添加到关注清单中
A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

A9100001

Ring eyelet
产品已添加到关注清单中

volcano
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
产品已添加到关注清单中
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
产品已添加到关注清单中

tin-plated
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

A9174002

Battery compartment, 2 x 9 V
产品已添加到关注清单中

off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

A9174003

Battery compartment, 1 x 9 V
产品已添加到关注清单中

off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

A9174006

Set of battery clips, 1 x 9 V
产品已添加到关注清单中

tin-plated
A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178007

Contacts, male
产品已添加到关注清单中
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178008

Contacts, female
产品已添加到关注清单中
gold-plated
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

A9345217

Set of battery compartment, 4 x AA
产品已添加到关注清单中

off-white RAL 9002
B7100002 Set of battery clips, 2 x AAA

B7100002

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 2 battery clips, 1 battery for serial connection

B7100002

Set of battery clips, 2 x AAA
产品已添加到关注清单中

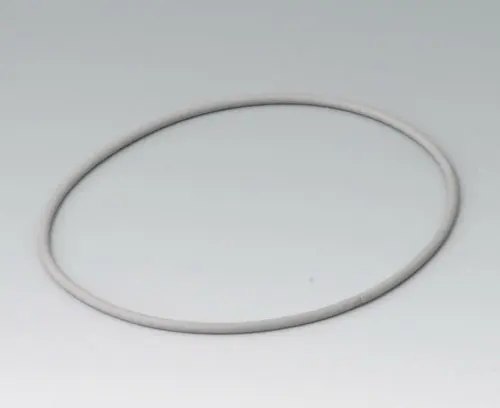

B7100005 Sealing S

B7100005

Sealing S Application: for increasing the protection class, of ERGO-CASE S.

Supply 1 sealing

B7100005

Sealing S
产品已添加到关注清单中

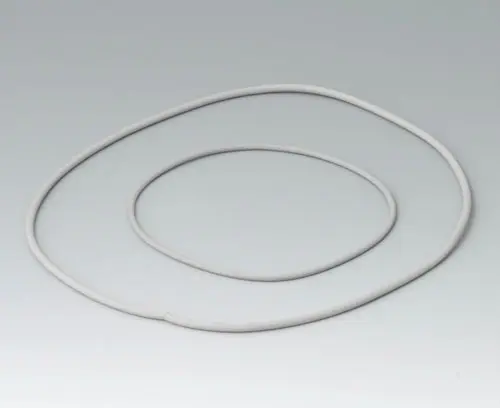

B7110001 Sealing kit M

B7110001

Sealing kit M Application: for increasing the protection class, of ERGO-CASE M.

Supply 1 sealing kit

B7110001

Sealing kit M
产品已添加到关注清单中

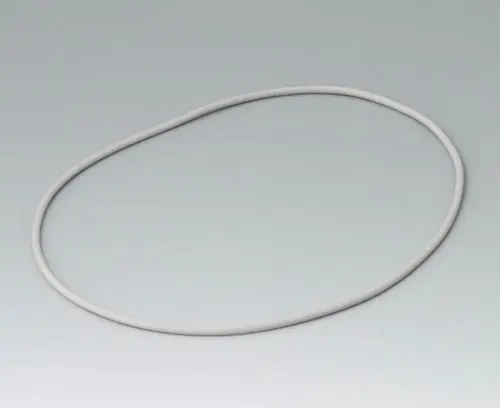

B7110005 Sealing M

B7110005

Sealing M Application: for increasing the protection class, of ERGO-CASE M.

Supply 1 sealing

B7110005

Sealing M
产品已添加到关注清单中

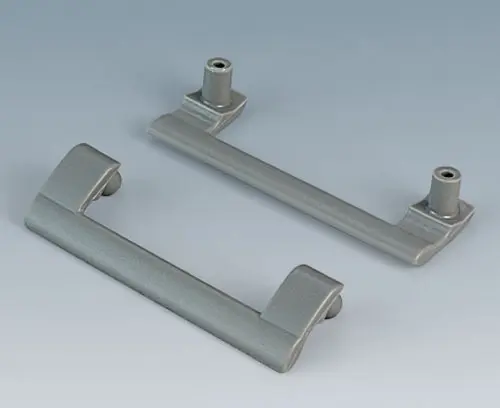

B7110028 Fastening elements L / M / S

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

B7110028

Fastening elements L / M / S
产品已添加到关注清单中

volcano

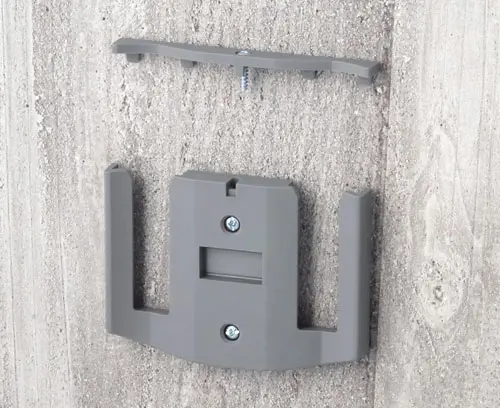

B7110048 Wall suspension elements S / M

B7110048

Wall suspension elements S / M Special wall suspension element for the ERGO-CASE S/M for wall mounting and storage, with securing clip as protection against removal. Locating unit fitted for contacts on wall suspension element (6-pin, accessory A9178007). Fastening element required for mounting on case (accessory B7110028).

Supply 2 wall suspension element, 1 securing clip, 1 screw

B7110048

Wall suspension elements S / M
产品已添加到关注清单中

volcano

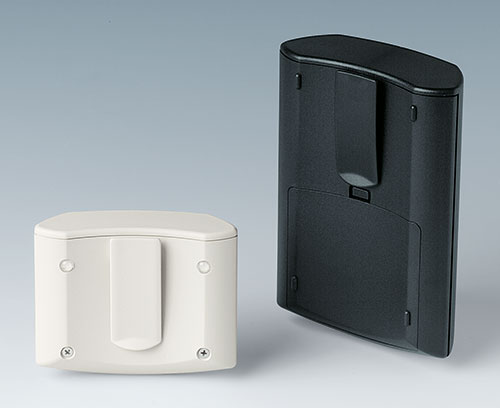

B7110107 Belt / pocket clip

B7110107

Belt / pocket clip Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 clip, assembly kit

B7110107

Belt / pocket clip
产品已添加到关注清单中

off-white RAL 9002
B7110109 Belt / pocket clip

B7110109

Belt / pocket clip Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 clip, assembly kit

B7110109

Belt / pocket clip
产品已添加到关注清单中

black RAL 9005
B7110129 Belt strap

B7110129

Belt strap Elastic strap with clamp lock.

Supply 1 belt strap

B7110129

Belt strap
产品已添加到关注清单中
black
450x35mm

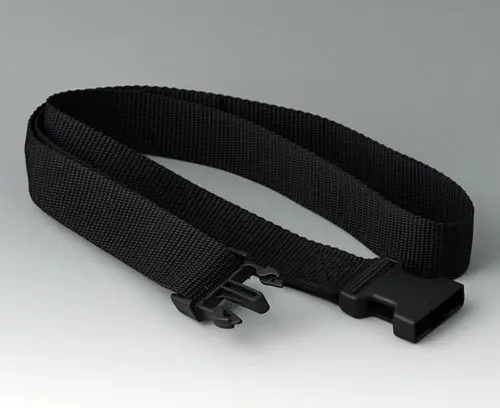

B7110139 Belt strap

B7110139

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

B7110139

Belt strap
产品已添加到关注清单中
black
1200x30mm

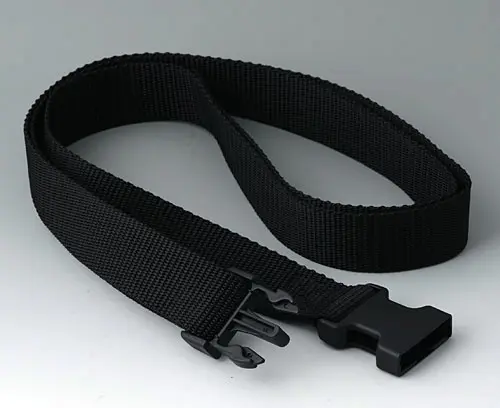

B7110149 Belt strap

B7110149

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

B7110149

Belt strap
产品已添加到关注清单中
black
1500x30mm
B7115108 Protector M, high

B7115108

Protector M, high Special protector for ERGO-CASE M, high. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

B7115108

Protector M, high
产品已添加到关注清单中

volcano

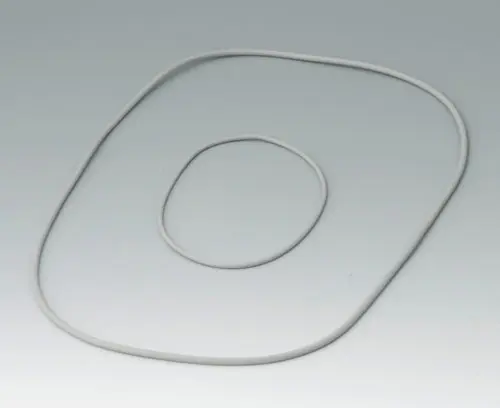

B7120001 Sealing kit L

B7120001

Sealing kit L Application: for increasing the protection class, of ERGO-CASE L.

Supply 1 sealing kit

B7120001

Sealing kit L
产品已添加到关注清单中

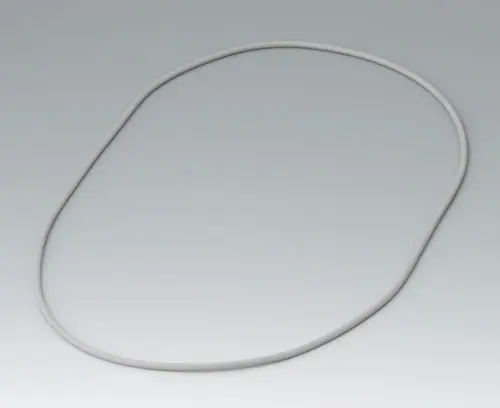

B7120005 Sealing L

B7120005

Sealing L Application: for increasing the protection class, of ERGO-CASE L.

Supply 1 sealing

B7120005

Sealing L
产品已添加到关注清单中
B7120048 Wall suspension elements L

B7120048

Wall suspension elements L Special wall suspension element for the ERGO-CASE L for wall mounting and storage, with securing clip as protection against removal. Locating unit fitted for contacts on wall suspension element (6-pin, accessory A9178007). Fastening element required for mounting on case (accessory B7110028).

Supply 2 wall suspension element, 1 securing clip, 1 assembly kit

B7120048

Wall suspension elements L
产品已添加到关注清单中

volcano
B9100033 Wrist strap

B9100033

Wrist strap Adjustable wrist strap with hook/loop fastener.

Supply 1 wrist strap

B9100033

Wrist strap
产品已添加到关注清单中
black
280mm
B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

B9100063

Carrying strap, textile lanyard
产品已添加到关注清单中
black
860mm
B9100073 Carrying strap, textile lanyard

B9100073

Carrying strap, textile lanyard Textile lanyard with snap safety clip.

Supply 1 lanyard

B9100073

Carrying strap, textile lanyard
产品已添加到关注清单中
black
914x16mm

产品类型用于 Ergo-Case 弯形盒

如何体现您的特殊产品？ 如有需要，我们执行所有必要的修改和精加工，提供组装完毕的机盒。
