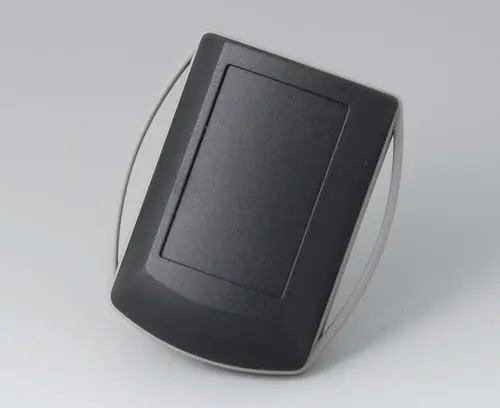

B7040229 ERGO-CASE XS

B7040229

ERGO-CASE XS

Three-part enclosure in ergonomic design to wear on the body. Wrist strap as accessories. TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard.

Version

TPE ring with two eyelet holes

Supply

top and bottom part, ring, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“手提” 盒附件

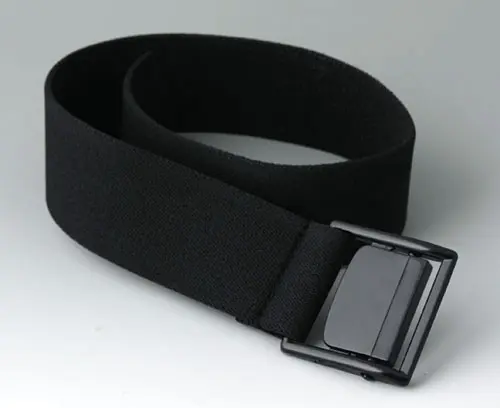

B7110129 Belt strap

B7110129

Belt strap Elastic strap with clamp lock.

Supply 1 belt strap

关闭

B7110129

Belt strap
产品已添加到关注清单中
black
450x35mm
B9100033 Wrist strap

B9100033

Wrist strap Adjustable wrist strap with hook/loop fastener.

Supply 1 wrist strap

关闭

B9100033

Wrist strap
产品已添加到关注清单中
black
280mm

Customising options for B7040229

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料

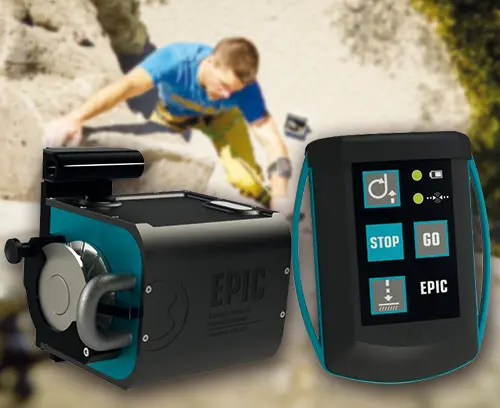

  • 应用示例
  • 采购有关数据
材料
ABS (UL 94 HB)
Bottom and top part
TPE
Intermediate ring
防护等级
颜色
Bottom and top part black RAL 9005,
Intermediate ring volcano
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
82 mm
Width
56 mm
Height
24 mm
电路板长度,下盒
48 mm
电路板宽度,下盒
45 mm
电路板长度,上盒
53 mm
电路板宽度,上盒
40 mm
Keypad length
52 mm
Keypad width
33.1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
26 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
