B7040227

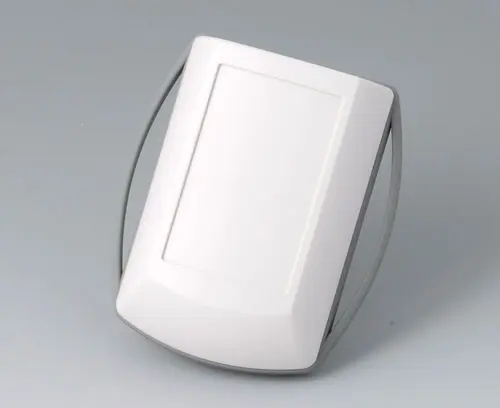

ERGO-CASE XS
Three-part enclosure in ergonomic design to wear on the body. Wrist strap as accessories. TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard.
VersionTPE ring with two eyelet holes
Supplytop and bottom part, ring, assembly kit
添加到购物车内
Customising options for B7040227
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 采购有关数据
材料
Bottom and top part
Intermediate ring
防护等级
颜色
Bottom and top part
off-white RAL 9002,
Intermediate ring volcano
Intermediate ring volcano
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
长度
82 mm
宽度
56 mm
高度
24 mm
电路板长度，下盒
48 mm
电路板宽度，下盒
45 mm
电路板长度，上盒
53 mm
电路板宽度，上盒
40 mm
Keypad length
52 mm
Keypad width
33.1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 210 KB
- AutoCAD DWG-File 444 KB
- AutoCAD DXF-File 1,502 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 2,631 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00013247.x_t 4,850 KB
- 00013247.STEP 9,363 KB
- 00013247.SAT 13,350 KB
Weight/1 part
26 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B7040227请务必索取报价！
