B7005109 ERGO-CASE S, high

B7005109

ERGO-CASE S, high

Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version

With high top part

Supply

1 top and 1 bottom part, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“电池” 配件

B7100002 Set of battery clips, 2 x AAA

B7100002

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 2 battery clips, 1 battery for serial connection

关闭

B7100002

Set of battery clips, 2 x AAA
产品已添加到关注清单中

“保护等级” 附件

B7100005 Sealing S

B7100005

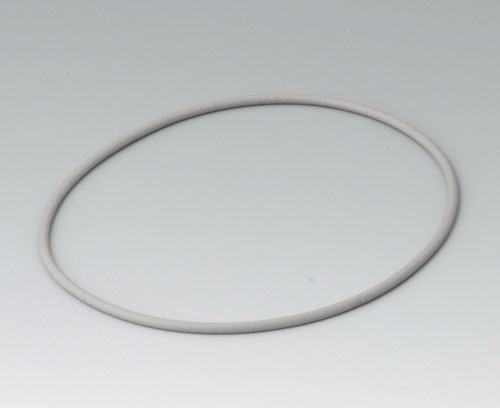

Sealing S Application: for increasing the protection class, of ERGO-CASE S.

Supply 1 sealing

关闭

B7100005

Sealing S
产品已添加到关注清单中

“挂墙支架” 配件

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

关闭

A9178007

Contacts, male
产品已添加到关注清单中
gold-plated
B7110028 Fastening elements L / M / S

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

关闭

B7110028

Fastening elements L / M / S
产品已添加到关注清单中
PA 6
volcano
B7110048 Wall suspension elements S / M

B7110048

Wall suspension elements S / M Special wall suspension element for the ERGO-CASE S/M for wall mounting and storage, with securing clip as protection against removal. Locating unit fitted for contacts on wall suspension element (6-pin, accessory A9178007). Fastening element required for mounting on case (accessory B7110028).

Supply 2 wall suspension element, 1 securing clip, 1 screw

关闭

B7110048

Wall suspension elements S / M
产品已添加到关注清单中
PA 6
volcano

“手提” 盒附件

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

关闭

A9100001

Ring eyelet
产品已添加到关注清单中
PA 6
volcano
B7110028 Fastening elements L / M / S

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

关闭

B7110028

Fastening elements L / M / S
产品已添加到关注清单中
PA 6
volcano
B7110109 Belt / pocket clip

B7110109

Belt / pocket clip Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 clip, assembly kit

关闭

B7110109

Belt / pocket clip
产品已添加到关注清单中
PA 6
black RAL 9005
B7110129 Belt strap

B7110129

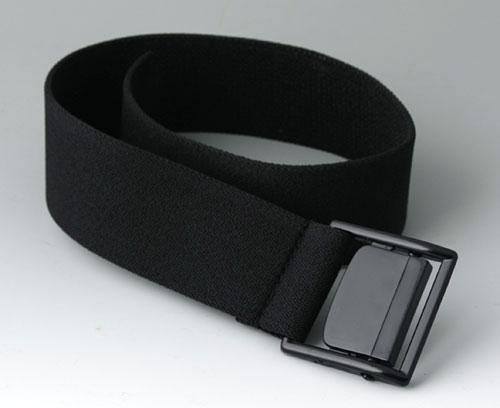

Belt strap Elastic strap with clamp lock.

Supply 1 belt strap

关闭

B7110129

Belt strap
产品已添加到关注清单中
black
450x35mm
B7110139 Belt strap

B7110139

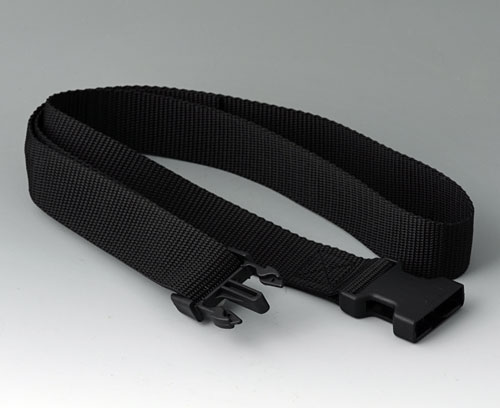

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

关闭

B7110139

Belt strap
产品已添加到关注清单中
black
1200x30mm
B7110149 Belt strap

B7110149

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

关闭

B7110149

Belt strap
产品已添加到关注清单中
black
1500x30mm

“螺钉” 附件

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
产品已添加到关注清单中

附件

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

关闭

A9178007

Contacts, male
产品已添加到关注清单中
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

关闭

A9178008

Contacts, female
产品已添加到关注清单中
gold-plated

Customising options for B7005109

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
防护等级
IP 54 opt.
Necessary accessories: sealing
颜色
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
80 mm
Width
96 mm
Height
44 mm
电路板长度,上盒
61 mm
电路板宽度,上盒
56 mm
Keypad length
43.8 mm
Keypad width
58.25 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
75 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
