Synergy 谐料机盒
合谐材料组合机盒

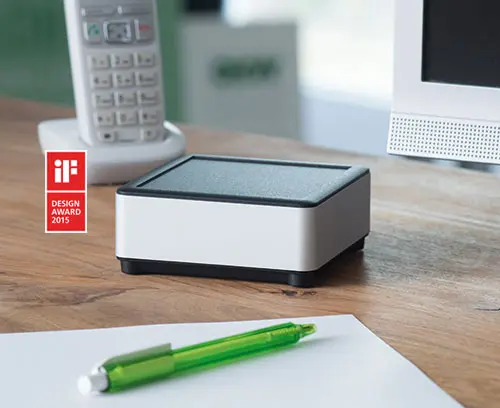

新型 SYNERGY 谐料机盒将塑料和铝材质的优势结合在一个机盒中：

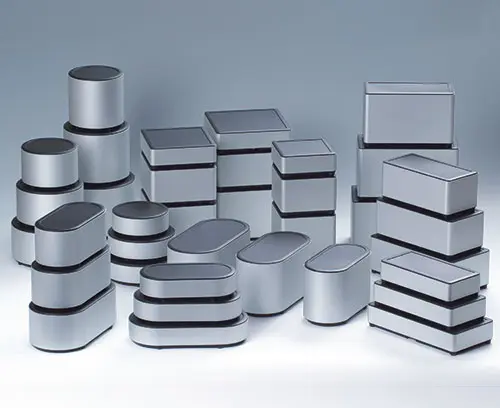

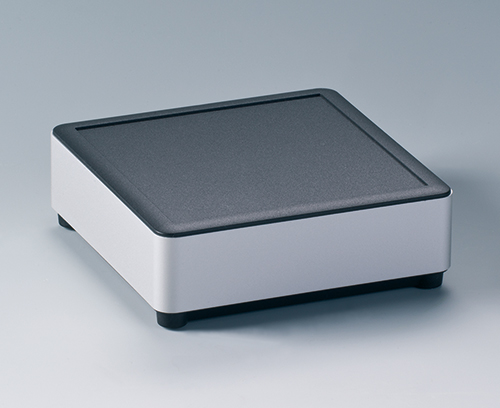

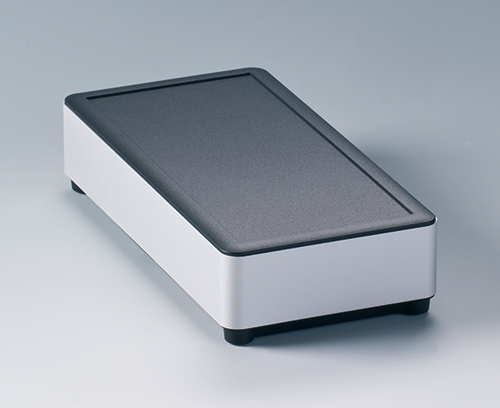

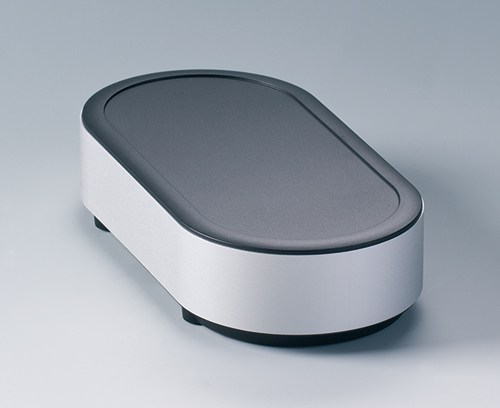

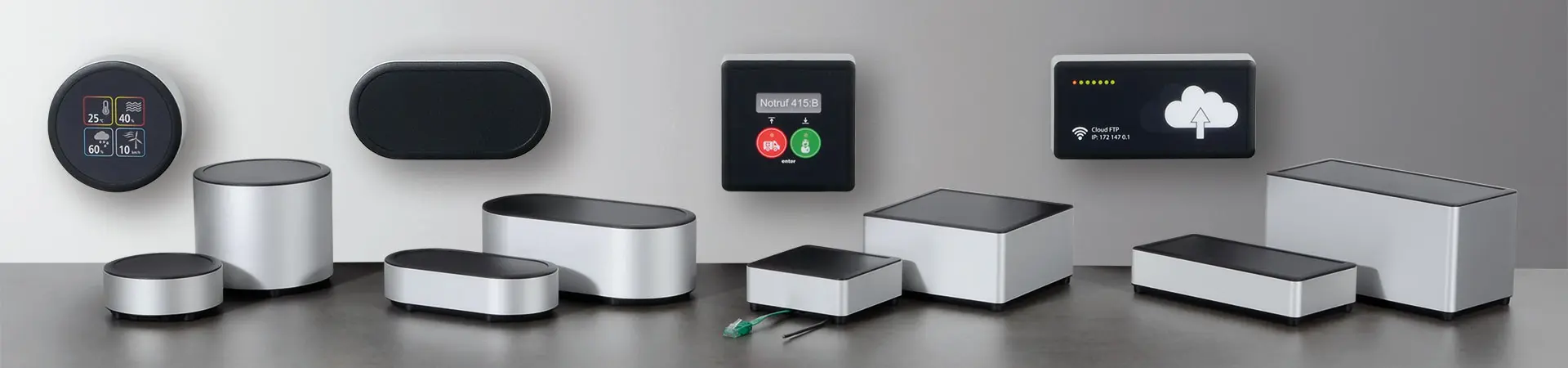

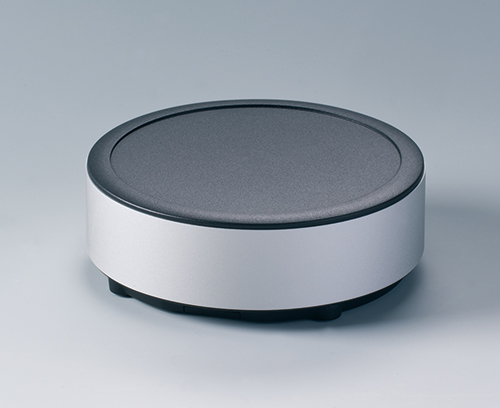

- 现代设计式机盒产品系列提供 4 个基本形状 - 正方形，矩形，圆形和椭圆形 *** iF 产品设计奖 ***
- 36 种规格的机盒为电子元件和操作件提供充足的空间

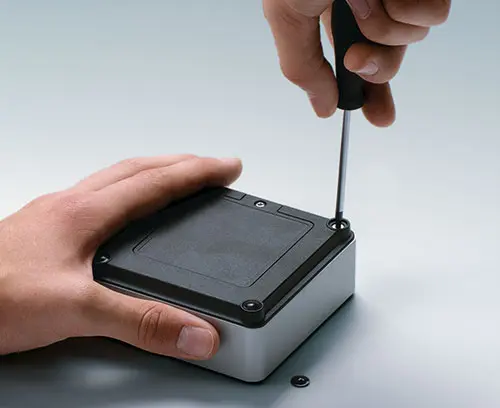

- 提供梅花头不锈钢螺钉

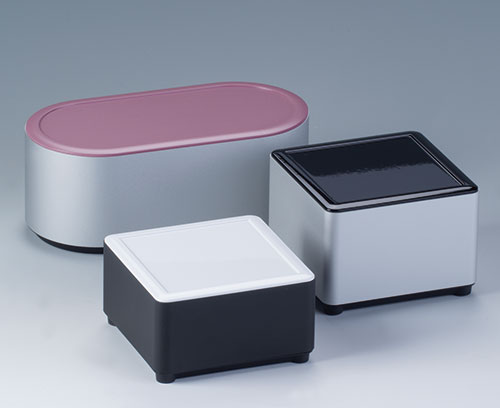

- 颜色组合： 氧化铝银色或塑料件黑色
- 接口空间大、没有塑形斜边、简易安装

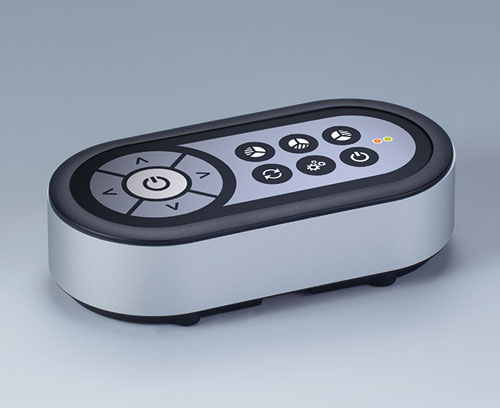

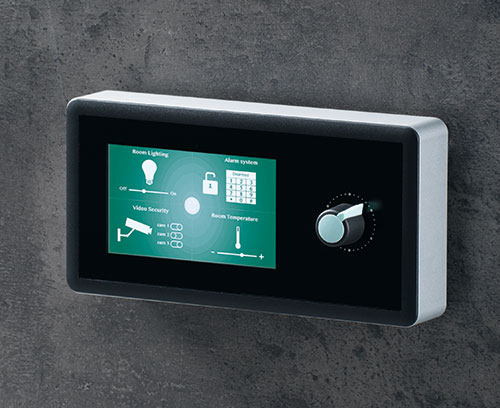

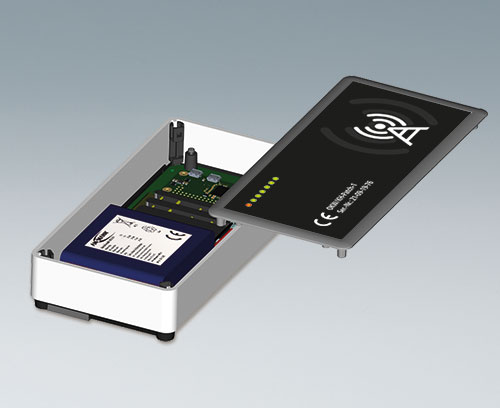

- 上盒带凹陷表面利于配装装饰膜或膜键盘

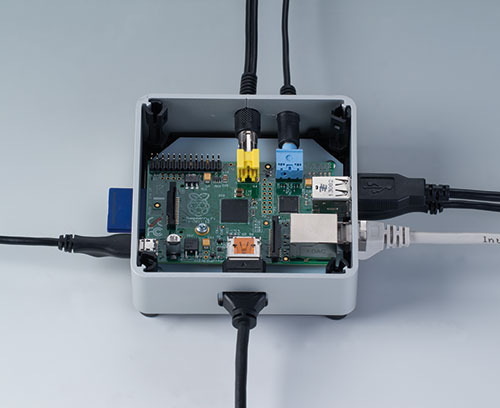

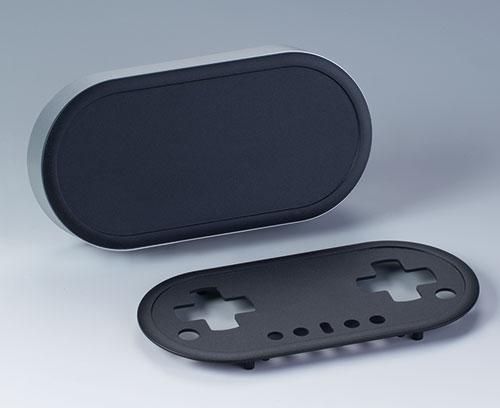

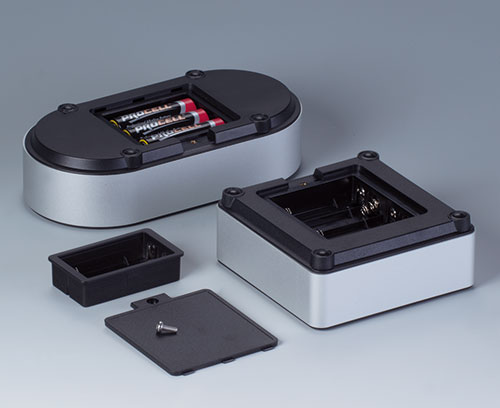

- 带开口和盖子的下盒适合螺钉固定： 特别适配安装电池仓或方便进入内部，例如用于安装存储卡或直接连接到电路板上的电池; 电池仓套件，电池夹环和钮扣电池座作为附件

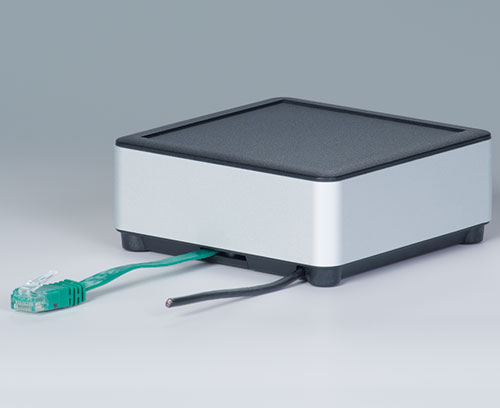

- 电缆出口位于下盒（特扁平网线，圆形电缆直径至 ø4 mm）

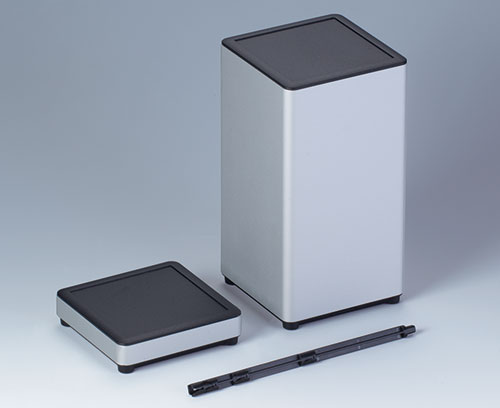

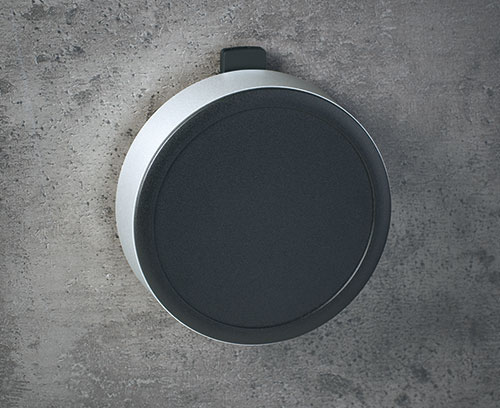

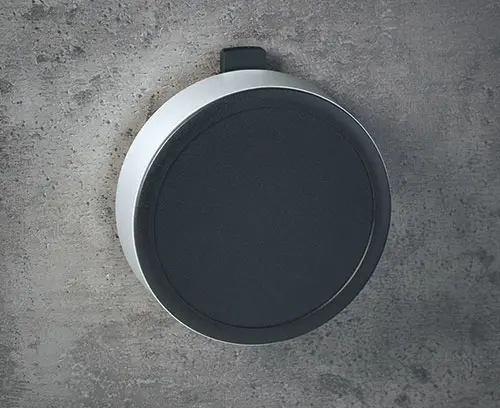

- 延长件（固定柱延长）和挂墙支架作为附件

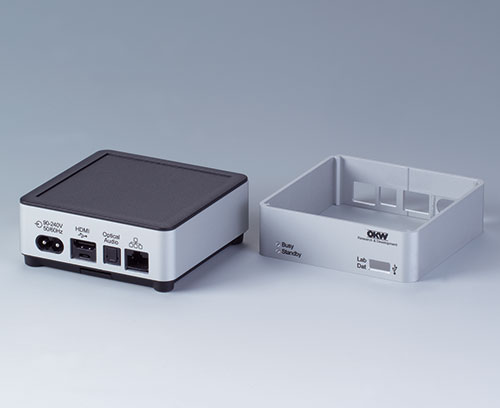

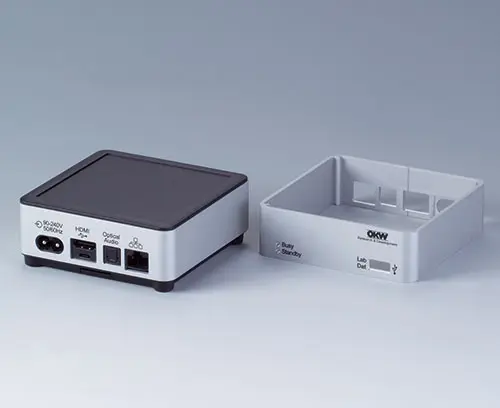

- 客户要求定制解决方案可询问
设计师声明

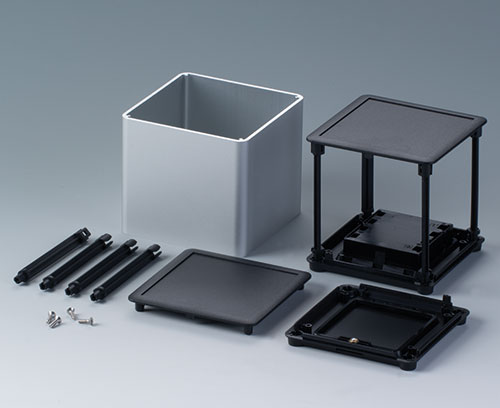

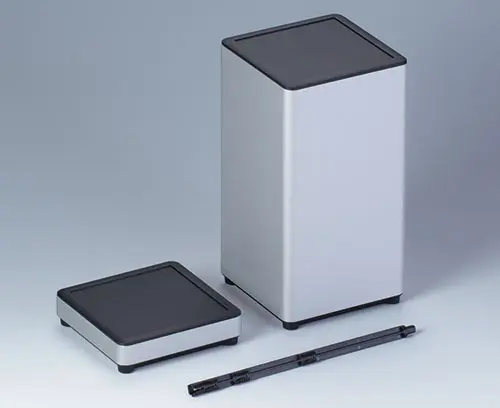

“SYNERGY 谐料机盒的特别之处在于其体现高贵品质的外观款形。 从第一个设想起，首先考虑到，塑料和铝材质的质量是开发的重点。 永恒和对称的基本几何形状、大方花纹和精巧的控制表面以及智能装配技术配合统一的机盒，达到符合客户的严厉审美要求。 由于每个单件可以进行长度的单独加工，因此在多种形状、各种尺寸和功能变体方面可以提供多样的组装可能性： 全面挑战问题的解决方案。”
摘自Martin Nußberger, polyform Industrie Design
Learn more!
Read our blog posts on synergy View blog posts >>
应用范围

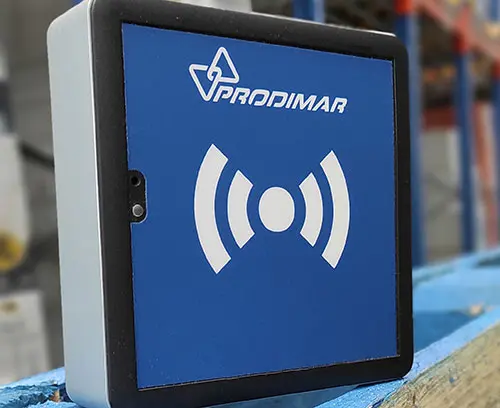

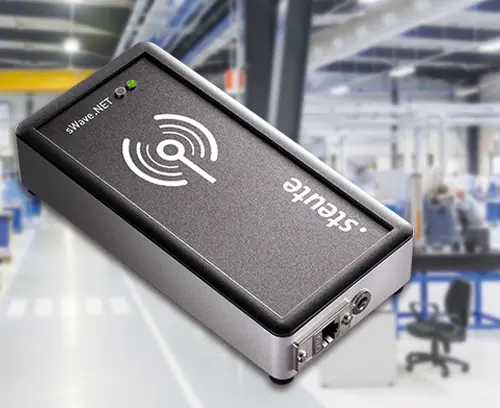

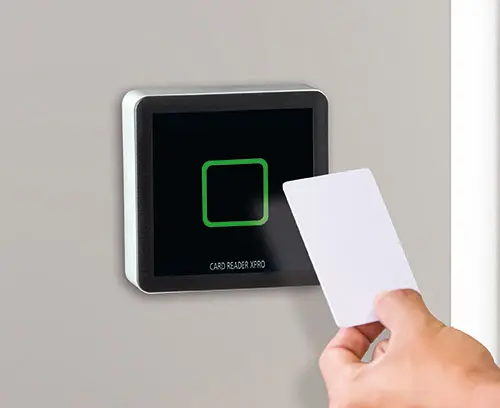

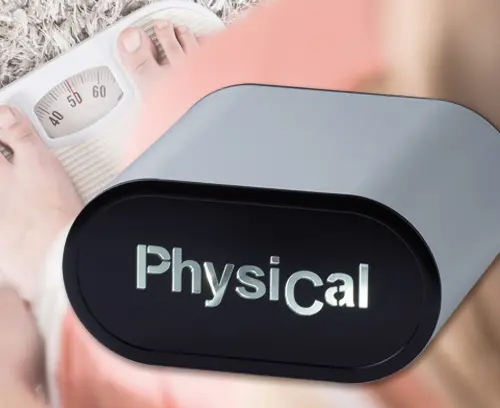

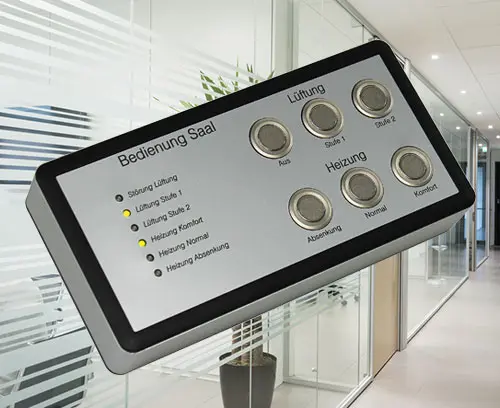

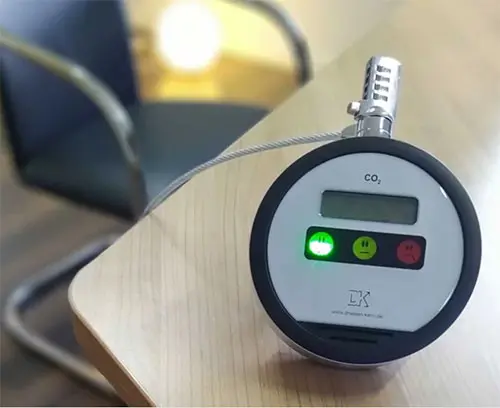

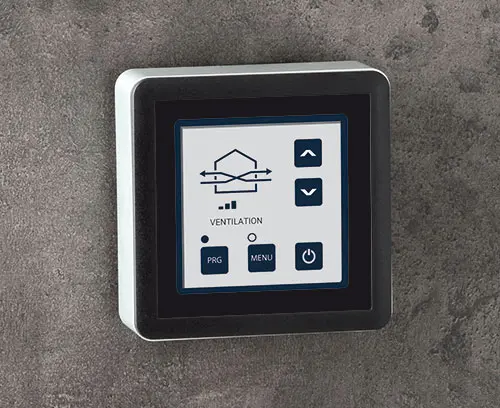

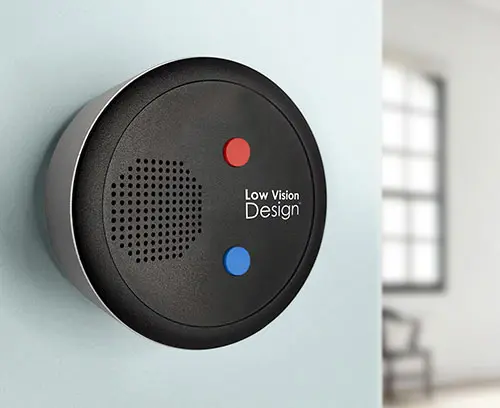

计算机外围设备。 网络技术。 建筑技术。 安全技术。 医疗技术和治疗应用。测量控制技术等等。 IoT/IIoT。
请选择所需的产品类型或尺寸，或点击产品列表末尾的“选择所有产品”按键。
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)产品已添加到关注清单中
A9193033
Polarity reversal protection device, positive terminal AA
For AA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.
Supply Polarity reversal protection device
A9193033
Polarity reversal protection device, positive terminal AA产品已添加到关注清单中
off-white RAL 9002
A9193034

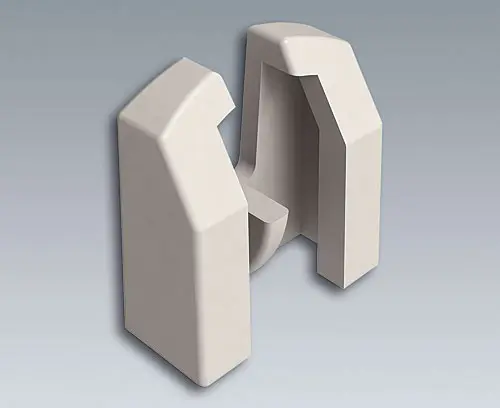

Polarity reversal protection device, positive terminal AAA
For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.
Supply Polarity reversal protection device
A9193034
Polarity reversal protection device, positive terminal AAA产品已添加到关注清单中
off-white RAL 9002
A9193035

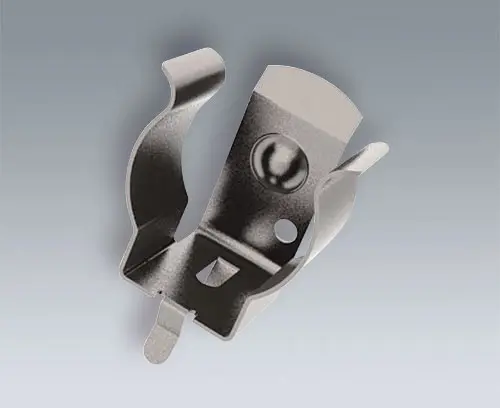

Battery clip, AA
For AA round cells. For installation on PCBs. 2 pcs required per round cell.
Supply 1 battery clip
A9193035
Battery clip, AA产品已添加到关注清单中
nickel-plated
A9193036

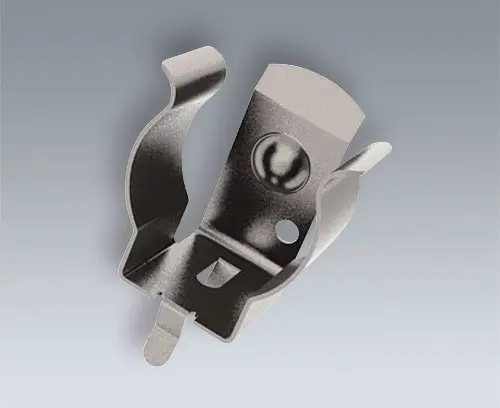

Battery clip, AAA
For AAA round cells. For installation on PCBs. 2 pcs required per round cell.
Supply 1 battery clip
A9193036
Battery clip, AAA产品已添加到关注清单中
nickel-plated
A9193037

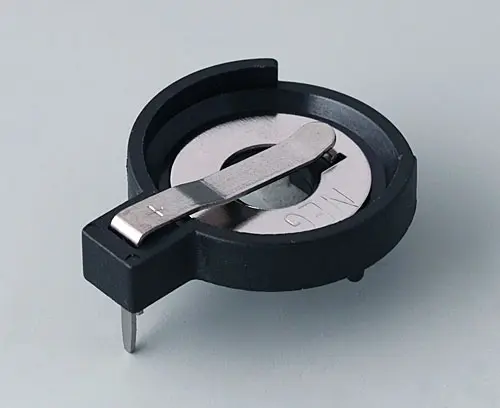

Button cell holder, Ø 20 mm
For button cells with Ø 20 mm, e.g. CR2016, CR2025, CR2032. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193037
Button cell holder, Ø 20 mm产品已添加到关注清单中

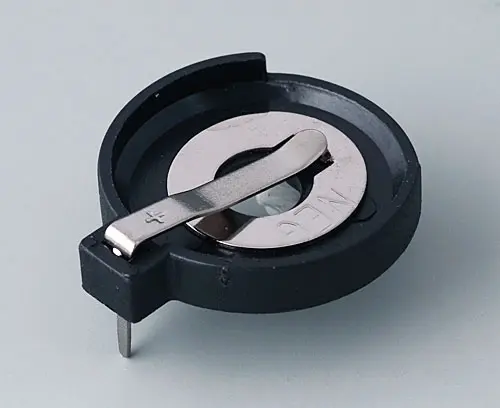

A9193038
Button cell holder, Ø 23 mm
For button cells with Ø 23 mm, e.g. CR2320, CR2325, CR2354. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193038
Button cell holder, Ø 23 mm产品已添加到关注清单中

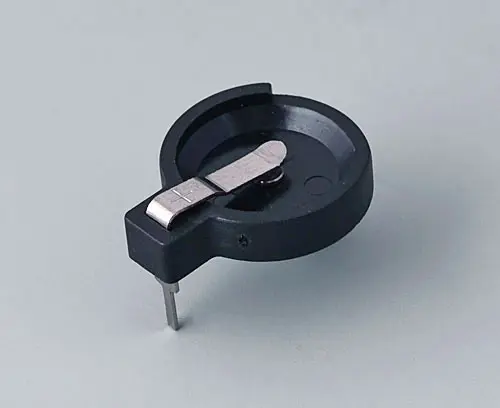

A9193039
Button cell holder, Ø 12 mm
For button cells with Ø 12 mm, e.g. CR1216, CR1220. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193039
Button cell holder, Ø 12 mm产品已添加到关注清单中
A9193040
Button cell holder, Ø 16 mm
For button cells with Ø 16 mm, e.g. CR1612, CR1620. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193040
Button cell holder, Ø 16 mm产品已添加到关注清单中
EZ030109

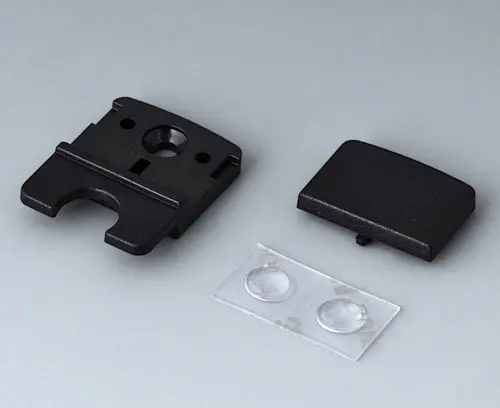

Wall suspension element
Optional wall mounting with only one screw.
Supply 1 holder and cover plate, 2 anti-slide feet
EZ030109
Wall suspension element产品已添加到关注清单中
black RAL 9005

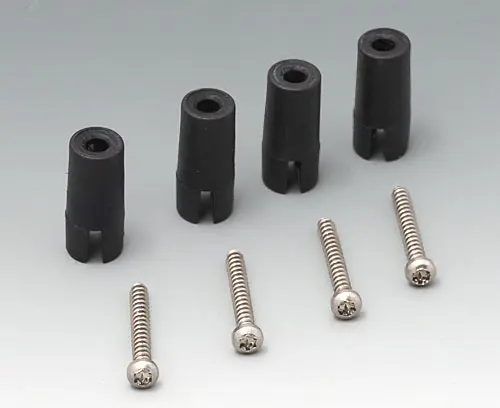

EZ031209
Extender kit
For increasing the height of the attachment domes for PCBs. Required when installing a PCB above the battery compartment (acc.) in the bottom part.
Supply 4 extender, 4 screws (Torx 8)
EZ031209
Extender kit产品已添加到关注清单中
black RAL 9005

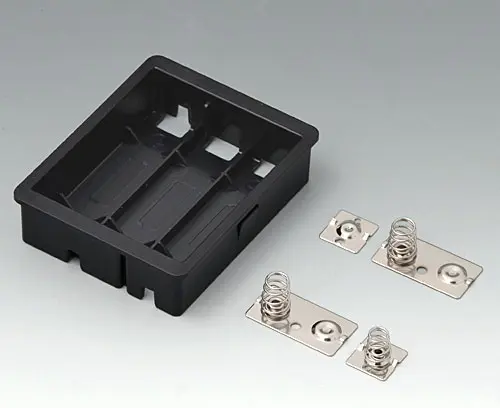

EZ040609
Battery compartment, 3 x AA
For 3 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.
Supply 1 battery compartment, set of battery clips
EZ040609
Battery compartment, 3 x AA产品已添加到关注清单中
black RAL 9005
EZ050609

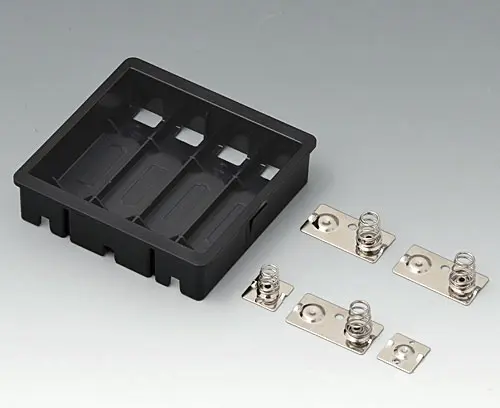

Battery compartment, 4 x AA
For 4 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.
Supply 1 battery compartment, set of battery clips
EZ050609
Battery compartment, 4 x AA产品已添加到关注清单中
black RAL 9005

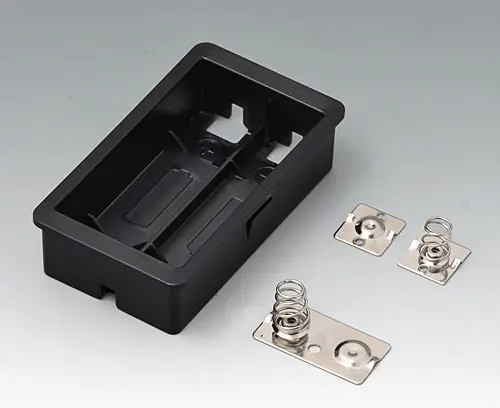

EZ060609
Battery compartment, 2 x AA
For 2 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.
Supply 1 battery compartment, set of battery clips
EZ060609
Battery compartment, 2 x AA产品已添加到关注清单中
black RAL 9005
