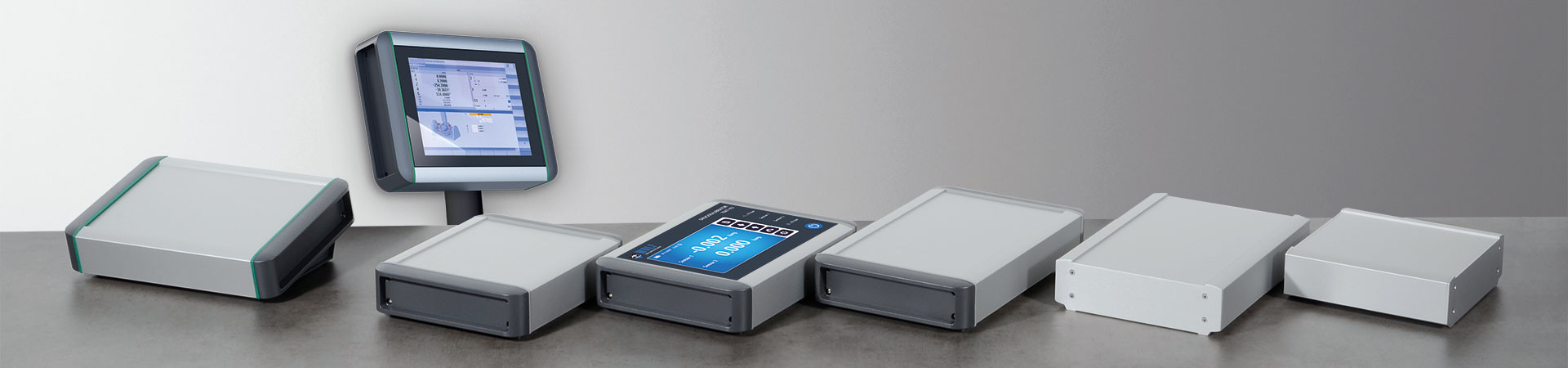

Smart-Terminal 智能终端盒

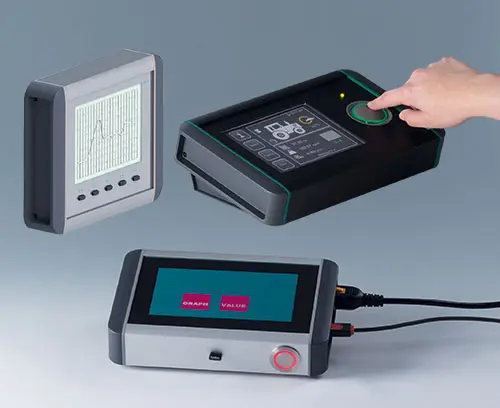

要求苛刻的控制中心用铝制机盒

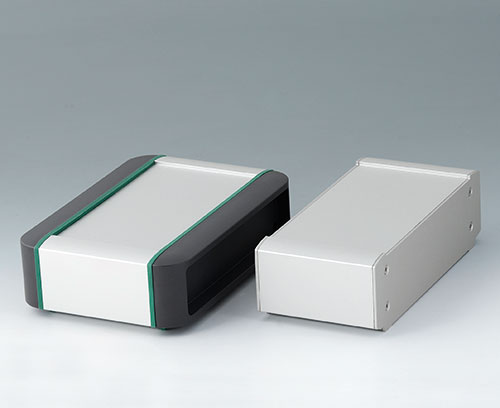

新型铝材质 SMART-TERMINAL 智能终端盒提供坚固性并通过阳极氧化达成的亚光效果呈现优雅的外观。吸引视觉的美观显示、适配大型组件装配的大空间、多项技术优势、铝型材长度随意选择性和创意设计性使 SMART-TERMINAL 智能终端盒成为视屏盒中“要求苛刻”的无法超越的机盒。

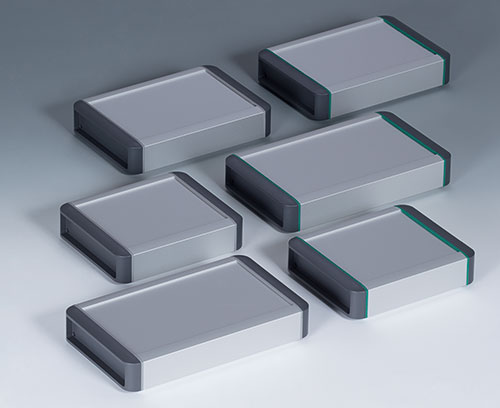

  • 3 种型材基础长度为 160 mm、200 mm 和 240 mm (带盖总长度为 + 42 mm), 宽度 170 mm, 高度 50 mm

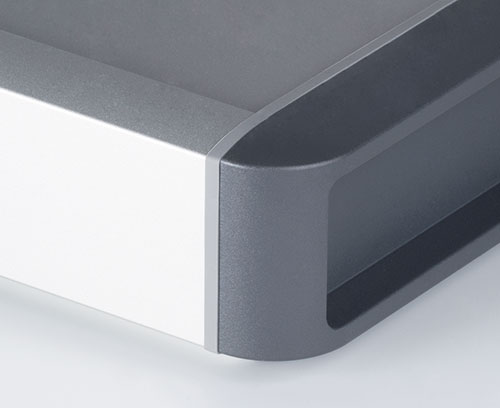

  • 高质塑料 ASA+PC-FR 熔岩色（类似深灰色）侧盖
  • TPV 材料制成的熔浆色或绿色特款垫圈

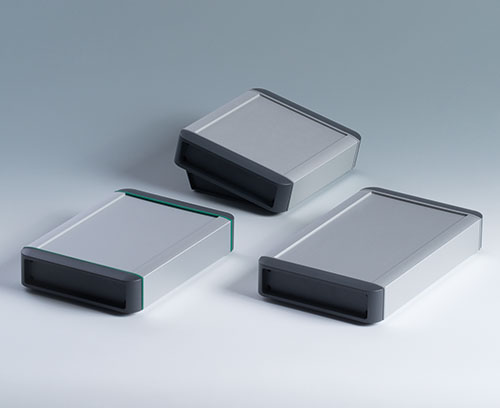

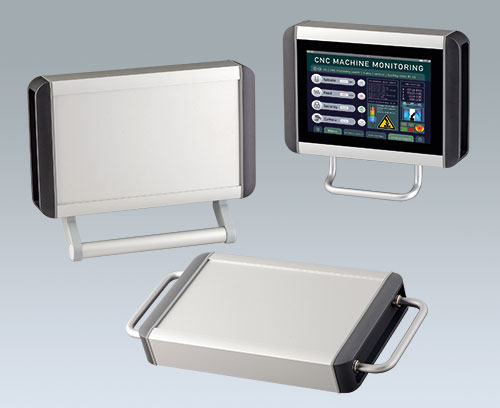

  • 多功能应用于桌式、倾斜式和墙挂式机盒

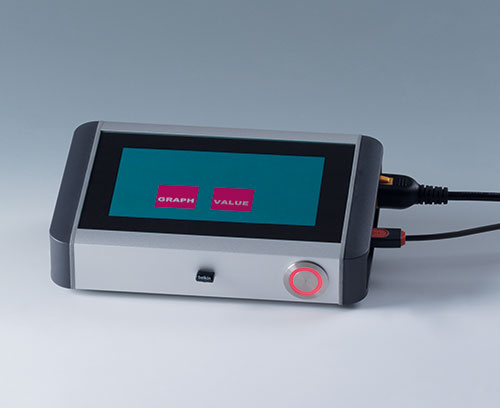

  • 凹陷式操作面板便于安装和保护显示屏、薄膜键盘和操作元件
    (SMART-TERMINAL 160: 5,7"/14 cm; SMART-TERMINAL 200 和 240: 7"/17,8 cm)

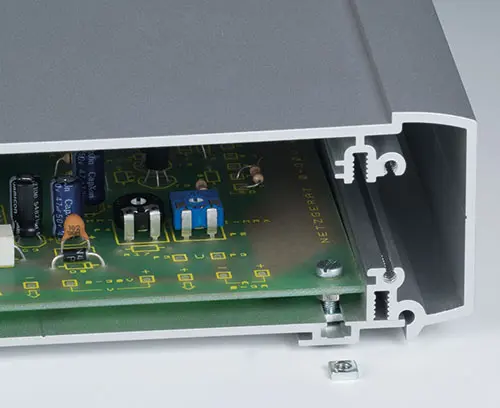

  • 机盒内部设有水平安装电路板导轨和连接固定槽

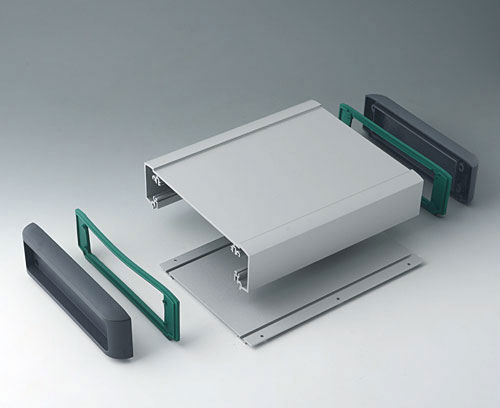

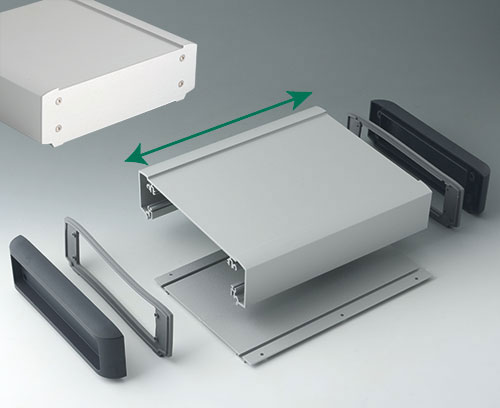

  • 两部分的铝型材简化了机盒的组装和部件的安装; 螺钉连接位于视野之外
  • 平表面使接口的连接安装简单
  • 具备凹陷区域的侧盖可保护电缆和插头

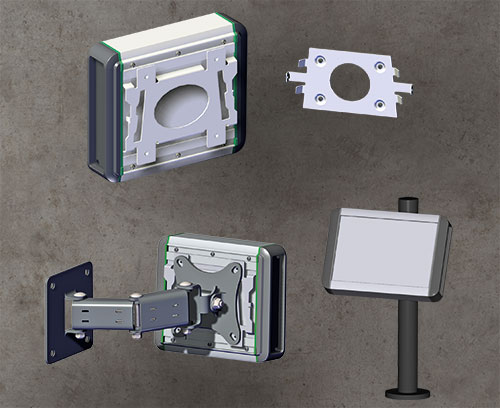

  • 可选附件：挂墙支架套件、利于读值的符合人体工程学的 12° 倾斜支架套件、安装固定电路板用正方形螺母组件
    特殊规格和型式

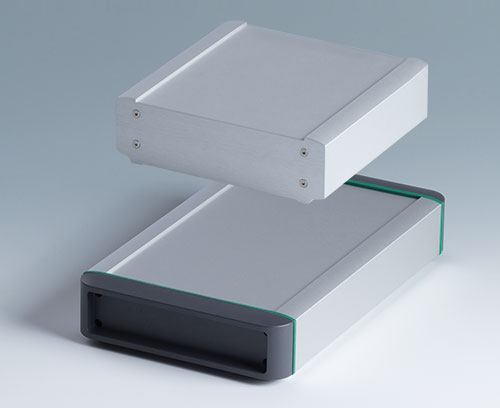

  • 按客户要求定制的型材长度
  • 200 订件以上时，可选其它颜色的作为创新并带视觉特色的特款设计垫圈和侧盖，请联系询问
PDF 导出

我们需要得到您的同意之后, 才能加载视频服务（Vimeo）。

我们使用第三方服务功能，以嵌入视频内容。此服务有收集您的活动数据的可能性。请查看我司的隐私政策，并同意使用此服务功能，以观看此视频。

应用范围

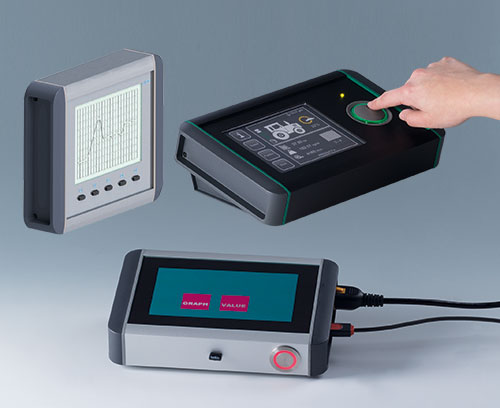

外设和接口设备。 办公室应用。 通信技术。 安全技术。 生物识别技术。  医疗和实验室技术。 保健领域。 自动化技术。 Smart Factory。 Industry 4.0 。测量和控制技术。

请选择所需的产品类型或尺寸，或点击产品列表末尾的“选择所有产品”按键。

A0330080 Screw M3 x 8 mm (T10)

A0330080

Screw M3 x 8 mm (T10) For fastening PCBs and board assemblies on the top profile of the SMART-TERMINAL enclosures.

Supply 1 screw

A0330080

Screw M3 x 8 mm (T10)
产品已添加到关注清单中
A9209229 Anti-slide feet 8.5 x 2.2 mm

A9209229

Anti-slide feet 8.5 x 2.2 mm For SMART-TERMINAL enclosures fitted with the aluminium end plates.
These self-adhesive rubber feet ensure stable positioning and/or make sure the enclosure does not slip.
4 rubber feet required per enclosure.

Supply 2 rubber feet

A9209229

Anti-slide feet 8.5 x 2.2 mm
产品已添加到关注清单中
black
A9325018 Pole/mast mounting bracket

A9325018

Pole/mast mounting bracket

For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.

Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.

Supply 1 pole/mast mounting bracket

A9325018

Pole/mast mounting bracket
产品已添加到关注清单中

anthracite grey RAL 7016
100x100x20mm
B3500001 Set of M3 square-head nuts

B3500001

Set of M3 square-head nuts For mounting a PCB or mounting plate on the base profile of the SMART-TERMINAL enclosure. The square-head nuts can be positioned anywhere within the T-grooves in the base profile, depending on the installation configuration.

Supply 4 M3 square-head nuts

B3500001

Set of M3 square-head nuts
产品已添加到关注清单中

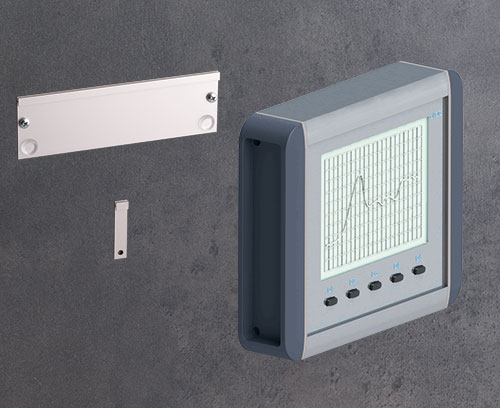

B3507020 Wall suspension element

B3507020

Wall suspension element Two-piece design for secure and flush mounting of the SMART-TERMINAL enclosure.
Installation: Fix the anti-slip pads supplied (to prevent the enclosure from being pushed to the side) on the wall suspension element, and then screw the wall suspension element to the wall, or a flat machine front panel. Insert the tongue on the back of the enclosure, in the centre, and hang the enclosure onto the wall suspension element and mount on the wall or similar with a screw (not supplied).

Supply 1 wall suspension element, 1 wall suspension tongue, 2 anti-slip pads (self-adhesive)

B3507020

Wall suspension element
产品已添加到关注清单中
B3507030 Case canting kit

B3507030

Case canting kit Cants the enclosure by 12° to provide an ergonomic angle for reading displays and operating the device on a table. The rubber feet included in the supply ensure that the desk-top enclosure does not slip.
Rational assembly – no additional screw connection needed: when the enclosure is being assembled, the case canting mouldings are pushed into the base profile and automatically fixed by the side covers.

Supply 2 canting stands, 4 rubber feet

B3507030

Case canting kit
产品已添加到关注清单中

lava

产品类型用于 Smart-Terminal 智能终端盒

如何体现您的特殊产品？ 如有需要，我们执行所有必要的修改和精加工，提供组装完毕的机盒。
