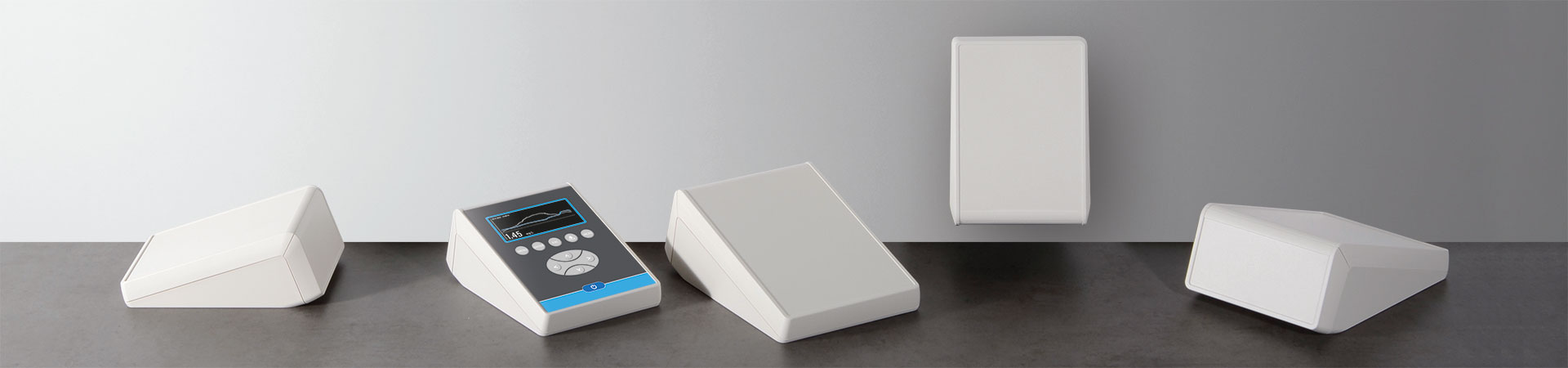

Unitec 通用机盒

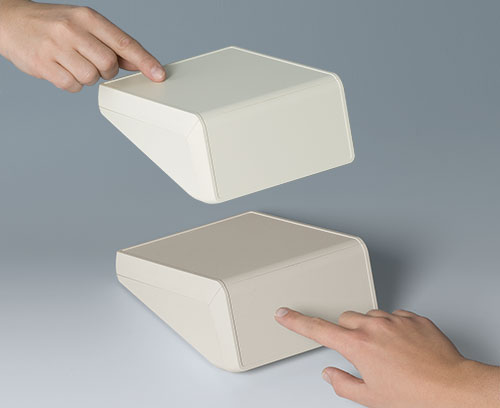

双向使用机盒

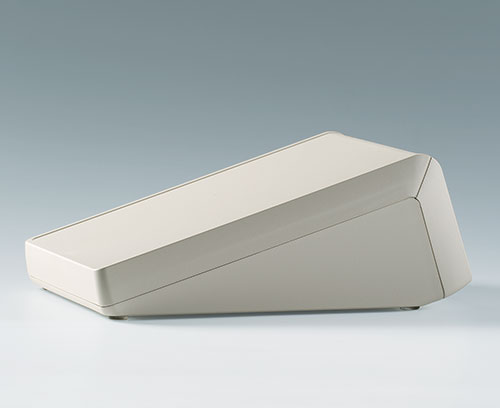

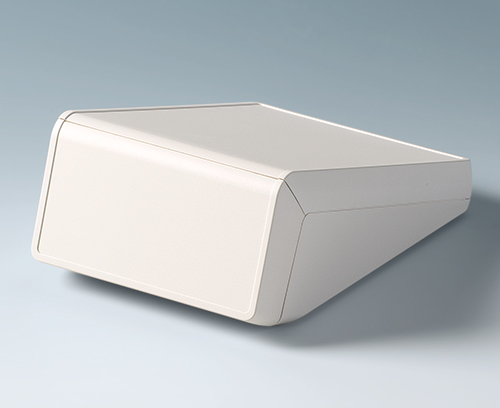

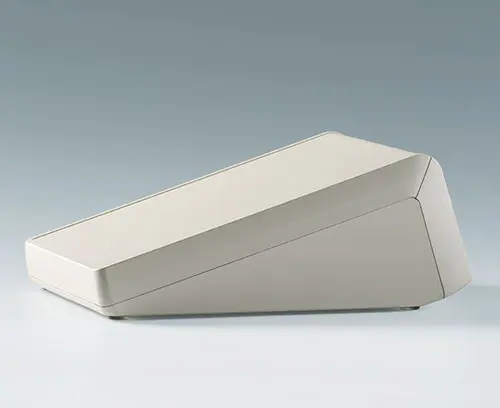

机盒系列 UNITEC 通用机盒的特点是具备两个不同倾斜度的操作面。

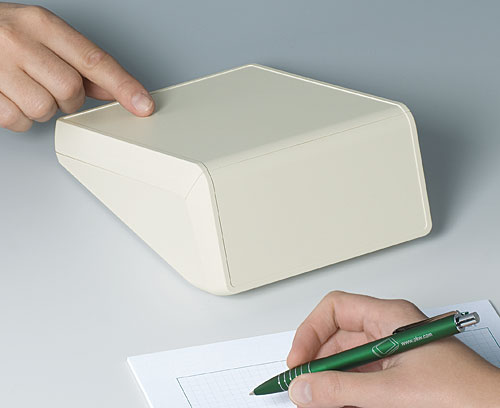

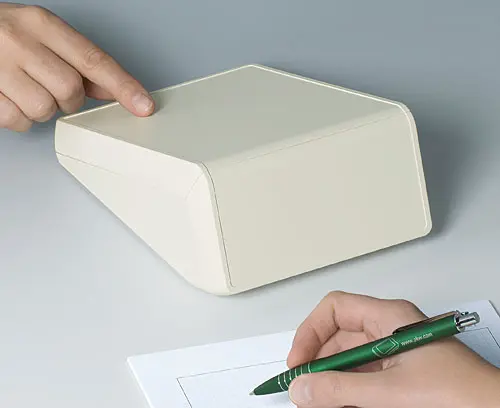

  • 具备 72° 和 18° 倾斜度的大面积对话区域,用于双方向的同时应用,例如医生 - 病人对话
  • 提供桌面和墙壁应用的美学设计款式

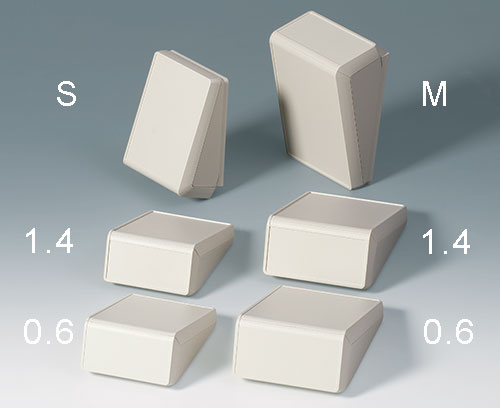

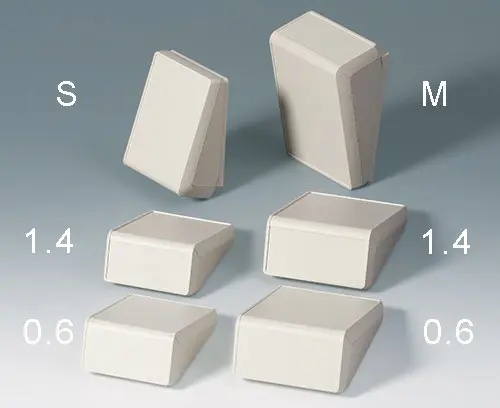

  • 2 种规格,各具备 12 种实施类型

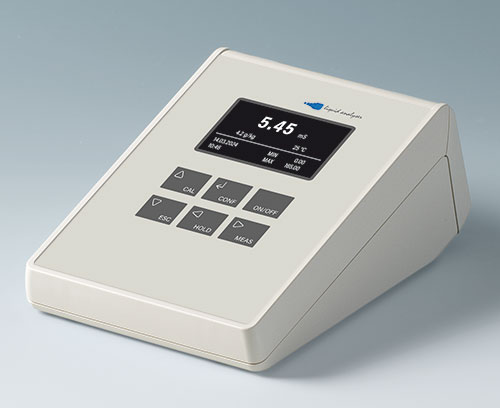

  • 凹陷的操作面 0,6 mm (装饰膜) 或 1,4 mm 厚 (膜键盘),适配前面和顶面

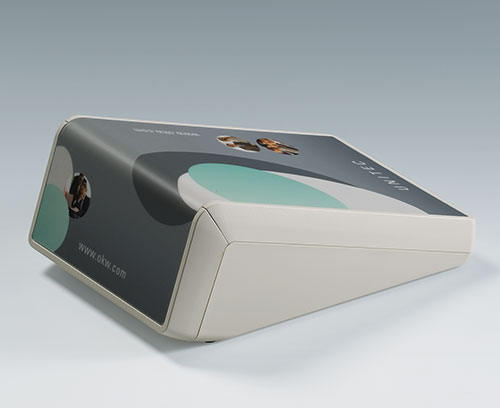

  • 独特的环绕式数字印刷膜的安装可能性

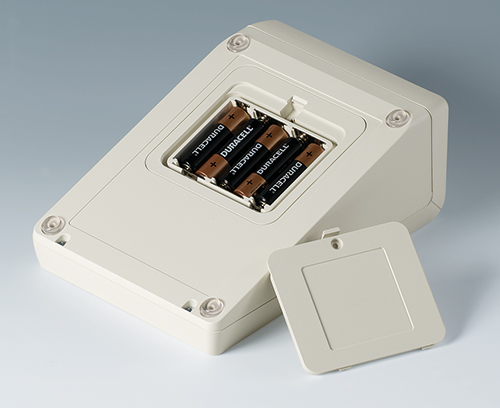

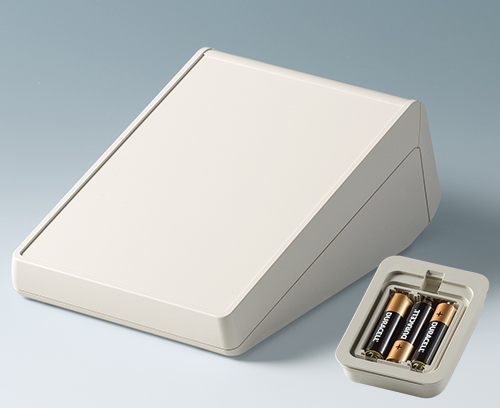

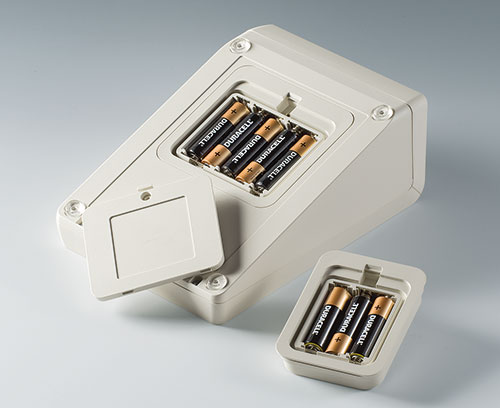

  • 适配 3 或 5 个 AA 电池的电池仓的实施类型

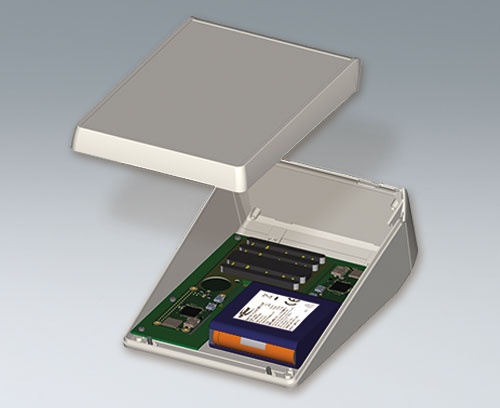

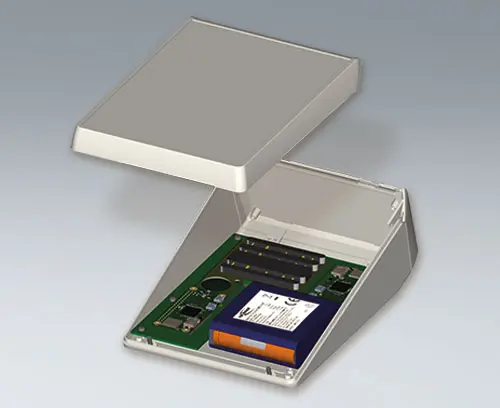

  • 组装灵活; 印刷电路板可装置于下部、上部和前部的位置; 具备集成固定柱

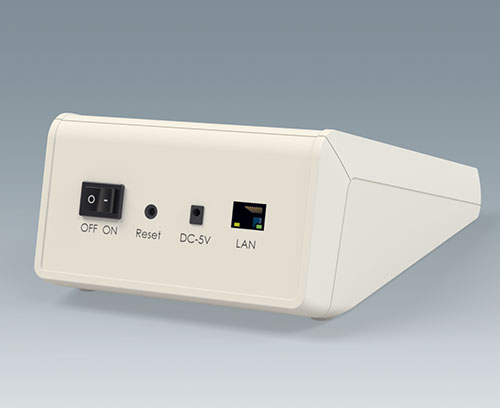

  • 电子元器件和接口可以作为一个整件装入,因顶面和前面组成直角
  • 防护等级 IP 40

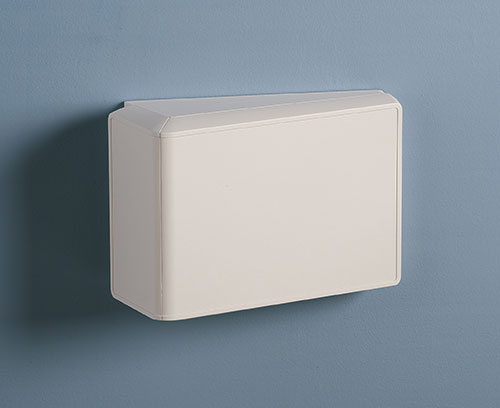

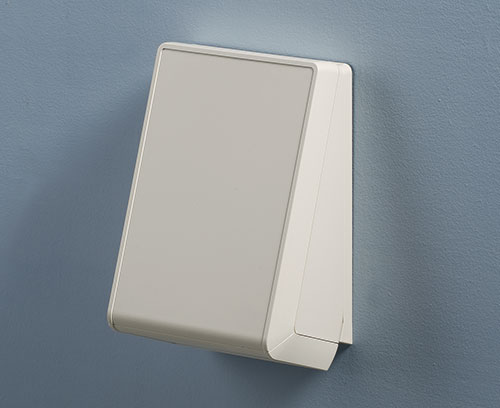

  • 隐蔽式的墙壁安装(附件),可安装于不同的方向
  • 应用示例

应用范围

  • 数据采集系统

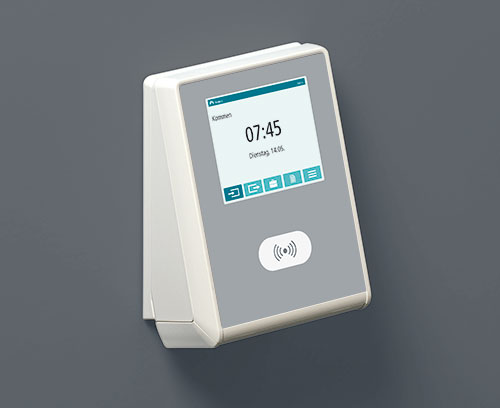

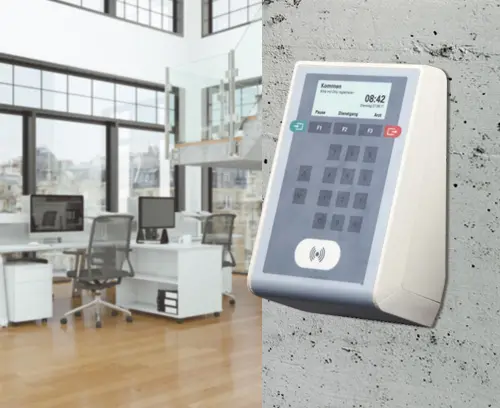

  • 门卫控制和信息终端
  • 建筑的自动控制服务
  • 电脑外围设备
  • 通信
  • 化学分析

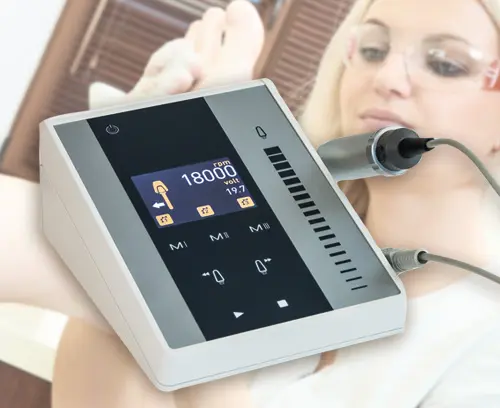

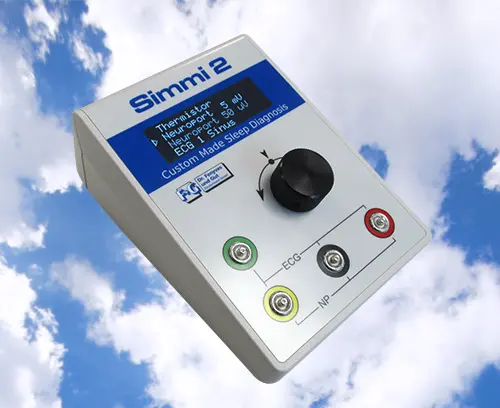

  • 诊断和治疗应用
  • 测量控制技术
  • 工业用自动控制
  • 类型
  • 配件
  • 按客户要求修改加工

请选择所需的产品类型或尺寸,或点击产品列表末尾的“选择所有产品”按键。

AltText

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
产品已添加到关注清单中
AltText

A9212330

Anti-slide feet 12 x 3.5 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

关闭

A9212330

Anti-slide feet 12 x 3.5 mm
产品已添加到关注清单中
transparent
AltText

B4154307

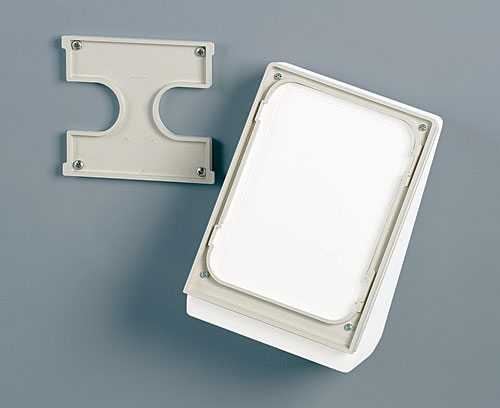

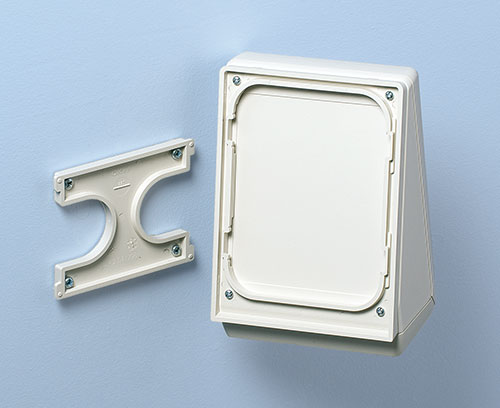

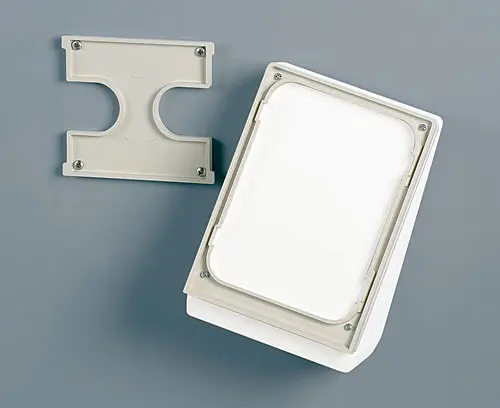

Wall suspension element S Covered wall-fixing. Having a functional and an optically elegant design, the wall-suspension kit offers a sophisticated appearance. Two part construction. The adapter will be fixed to the case and then locked onto the wall-holder.

Supply 1 wall suspension element, 1 adapter with assembly kit

关闭

B4154307

Wall suspension element S
产品已添加到关注清单中
off-white RAL 9002
AltText

B4156307

Wall suspension element M Covered wall-fixing. Having a functional and an optically elegant design, the wall-suspension kit offers a sophisticated appearance. Two part construction. The adapter will be fixed to the case and then locked onto the wall-holder.

Supply 1 wall suspension element, 1 adapter with assembly kit

关闭

B4156307

Wall suspension element M
产品已添加到关注清单中
off-white RAL 9002

产品类型用于 Unitec 通用机盒

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
