Connect 接线盒

最佳的连接盒

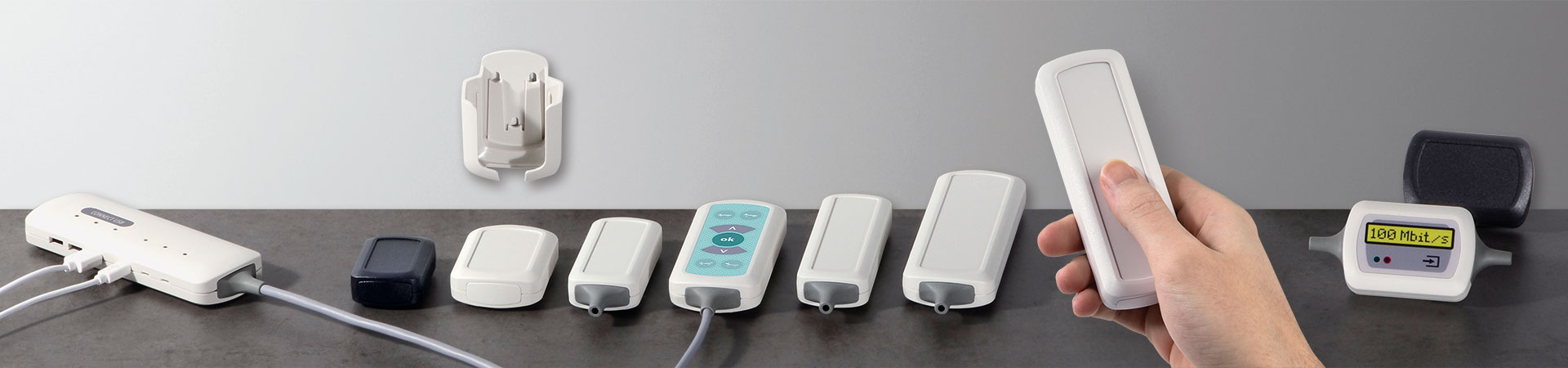

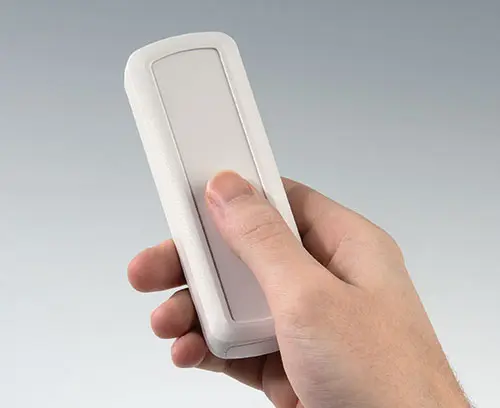

CONNECT 接线盒产品系列是专门为带线应用和带电池供电的移动式应用而开发设计。

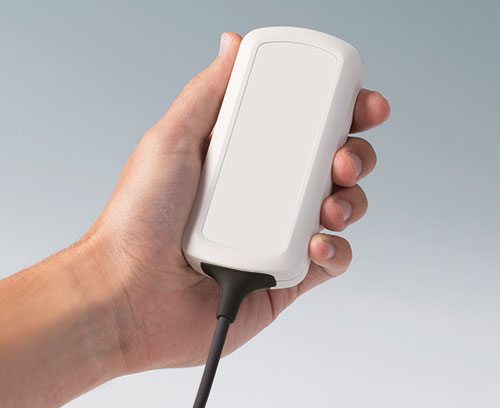

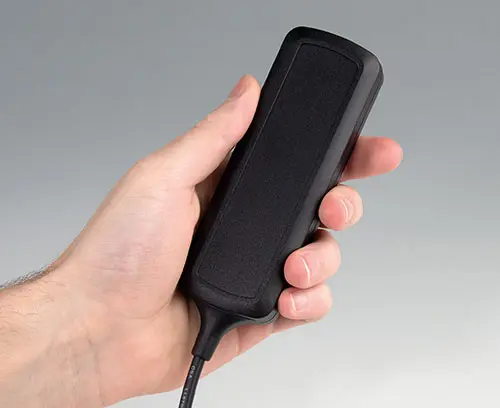

  • 新款:CONNECT S 型接线盒,机盒宽度仅为 42 mm,由此特别方便持握,特别适合用于遥控器、测量设备、测试仪器及类似产品等,可选择带或不带电缆型式
  • 机盒由两个盒体组成,精密配合、盒体扁平并带凹陷区域

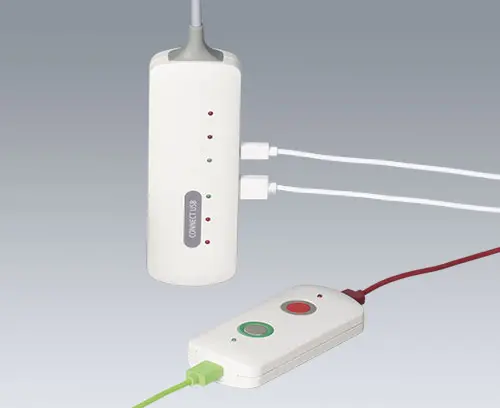

  • 二个盒体彼此锁定,不需螺钉,节省安装时间,视面并可以自由选择

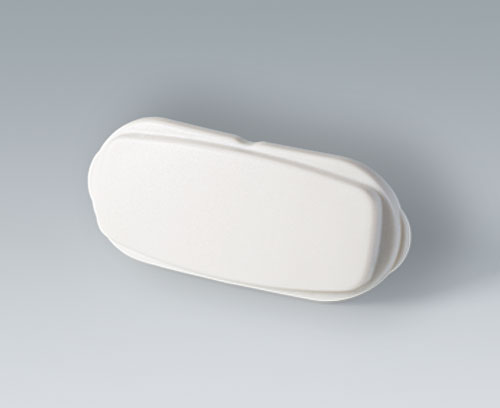

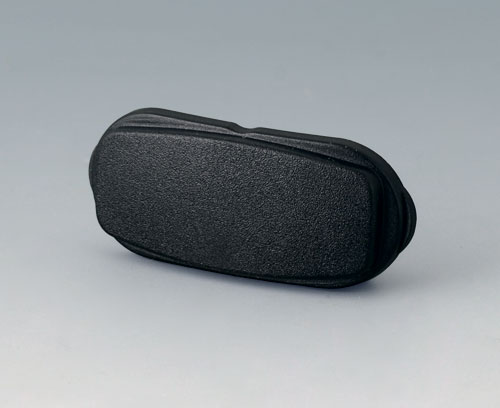

  • 盒体两端设有开口;使 机盒用途完整,适配件可选端件和 / 或电缆套

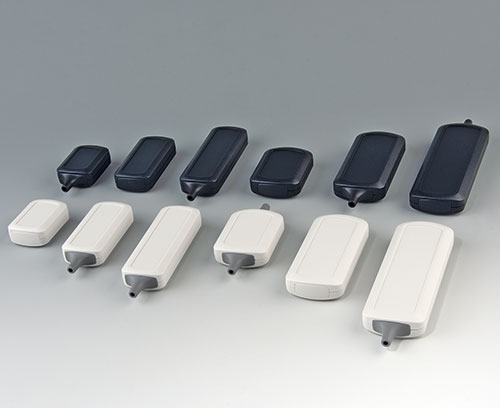

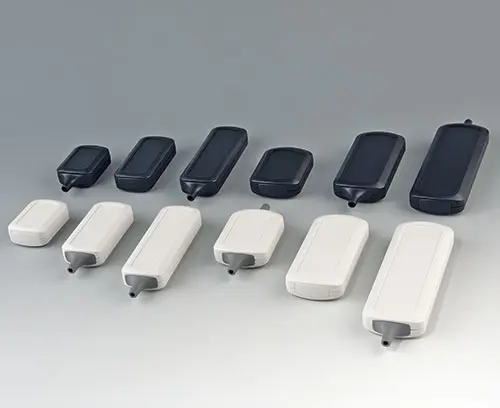

  • CONNECT S 和 M 型接线盒,可各提供三种机盒长度,可根据应用进行选择
  • 盒体和端件均采用紫外线稳定化 V-0 材料
  • 防护等级 IP 40 (同 端件)

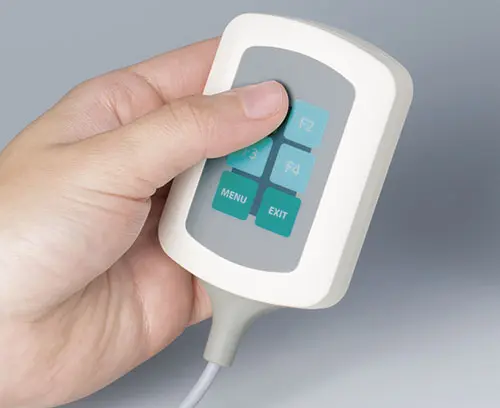

  • 电缆套件具备拉线保护

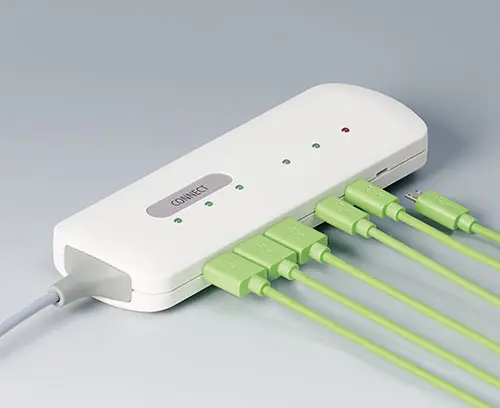

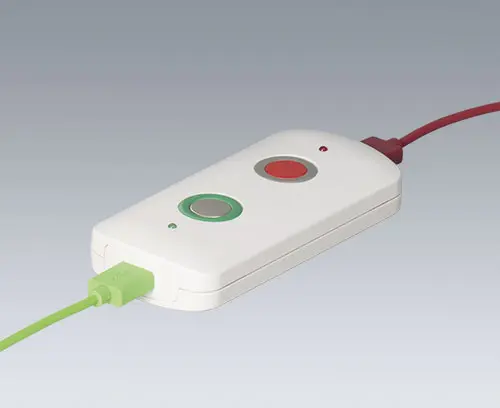

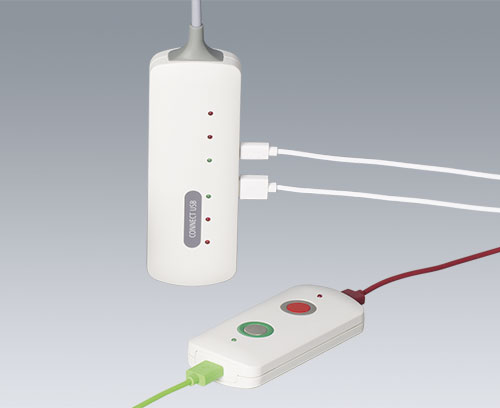

  • 具备足够的空间用于安装紧凑显示器、LED 和 USB 插头及传感器

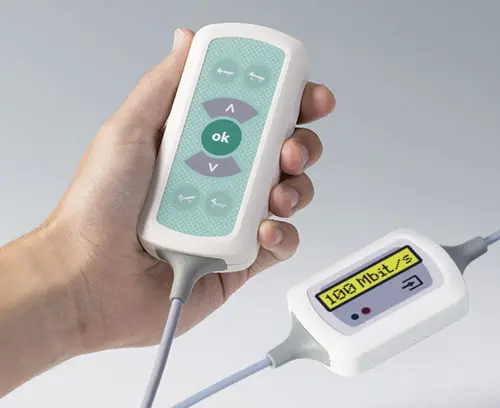

  • 具备凹陷区域,以保护膜键盘、装饰膜或标签

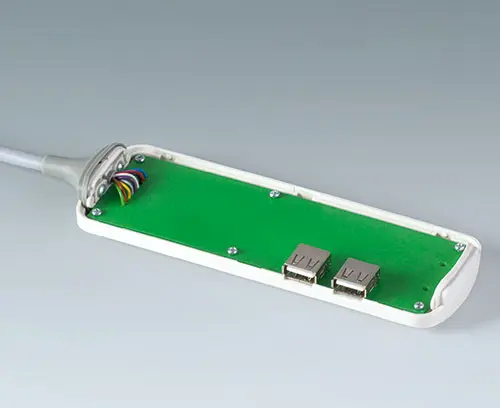

  • 扁平盒体内设有固定柱用于固定电路板和元器件

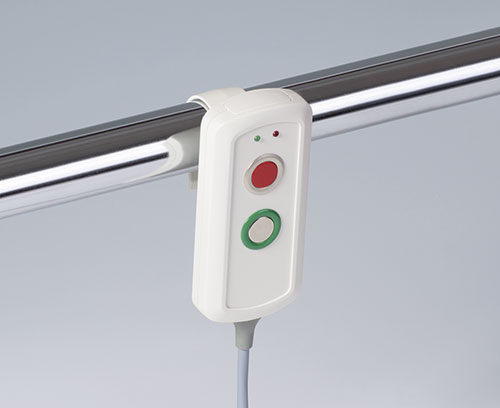

  • 用于直径至 32 mm 的圆管的卡夹作为附件(CONNECT S 型:适配机盒长度为 90mm 和 120 mm, CONNECT M 型:适配机盒长度为 116 mm 和 156 mm)

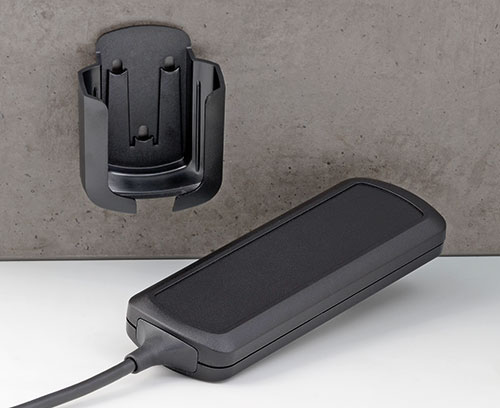

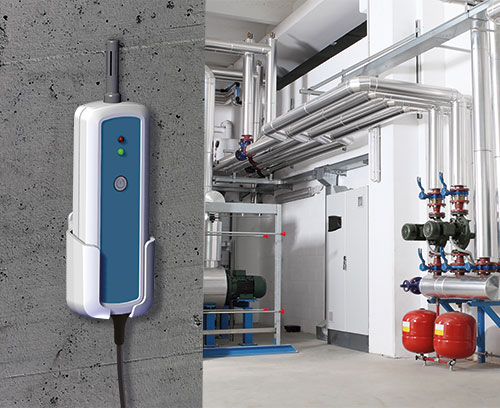

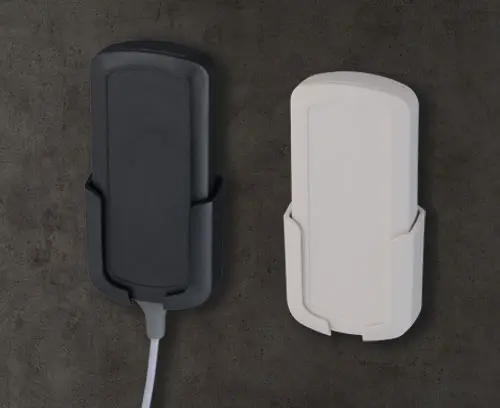

  • 用于在墙壁上或类似物件上安全放置的支架,作为附件
  • 录像

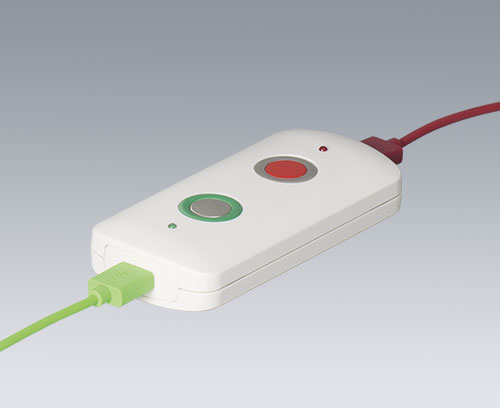

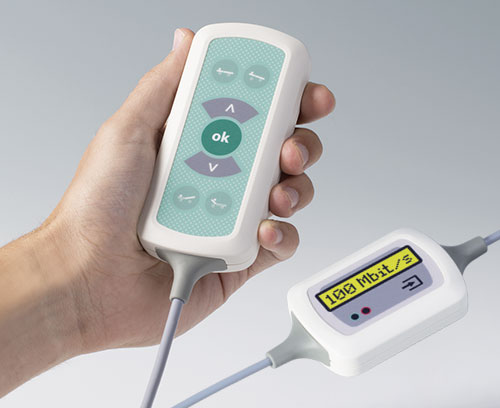

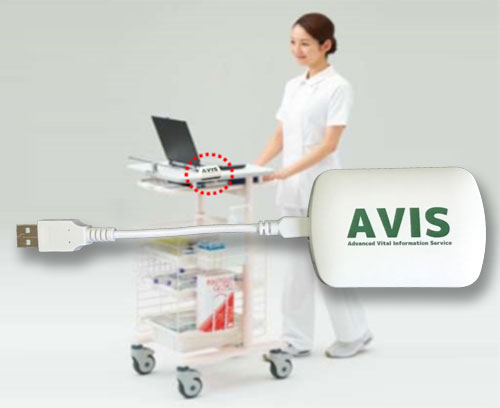

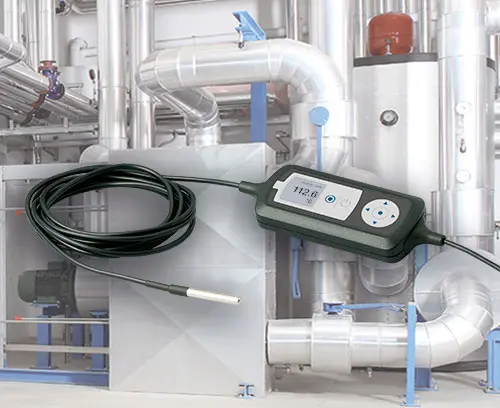

  • 应用示例

应用范围

  • 电脑配件
  • 网络技术
  • 建筑技术
  • 安全技术
  • IoT/ IIoT

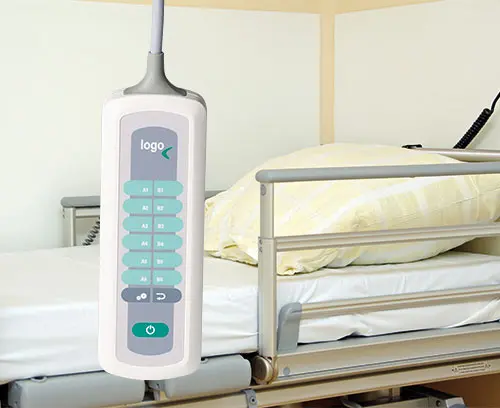

  • 医学和治疗应用
  • 实验室用分析仪器

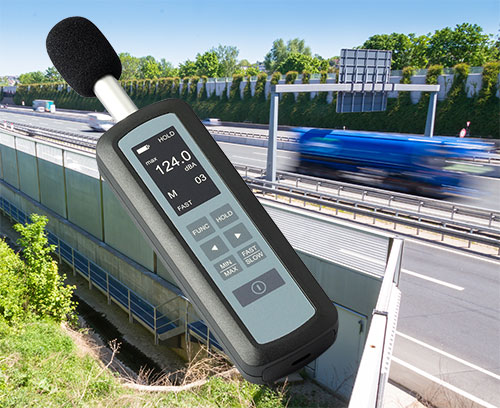

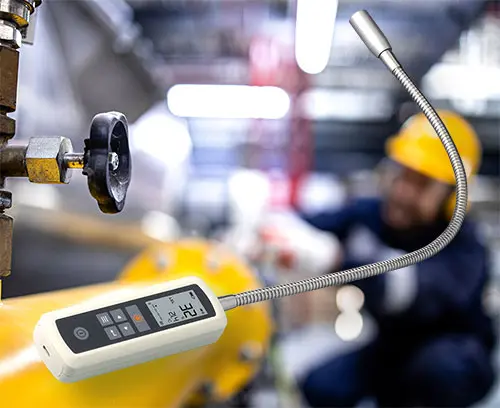

  • 用于测量技术,包括带有检测探头的探测器、测试系统和测试仪器
  • 环保技术用数据记录器
  • 传感器技术
  • 选择所有项目
  • 配件
  • 按客户要求修改加工
AltText

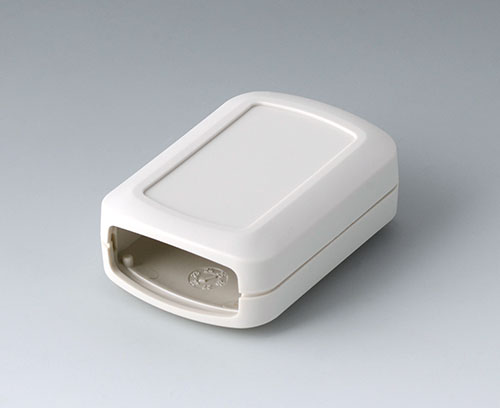

B2822107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

关闭

B2822107

CONNECT S
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
60x42x22mm

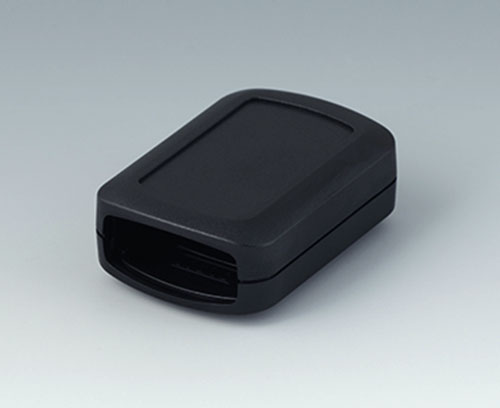

AltText

B2822109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

关闭

B2822109

CONNECT S
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
black RAL 9005
60x42x22mm
AltText

B2823107

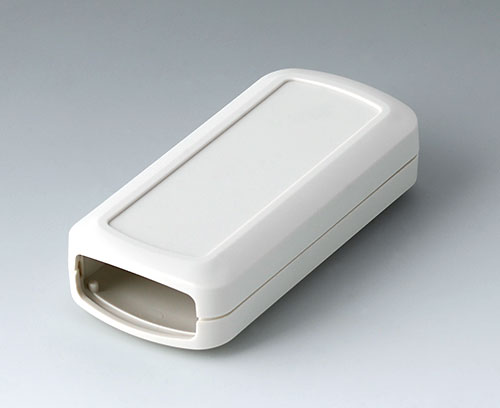

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

关闭

B2823107

CONNECT S
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
90x42x22mm

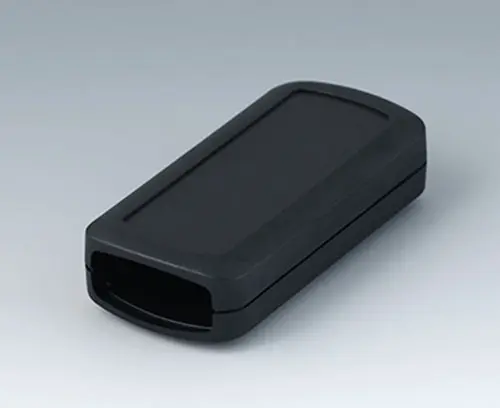

AltText

B2823109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

关闭

B2823109

CONNECT S
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
black RAL 9005
90x42x22mm
AltText

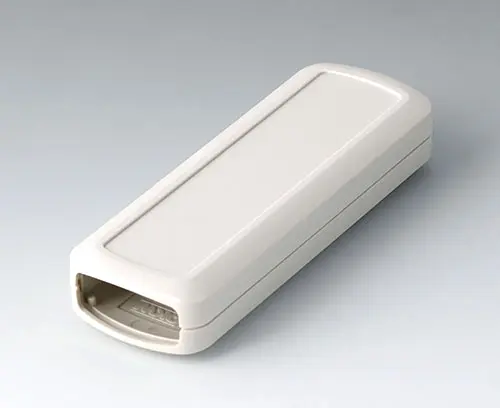

B2824107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

关闭

B2824107

CONNECT S
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
120x42x22mm
AltText

B2824109

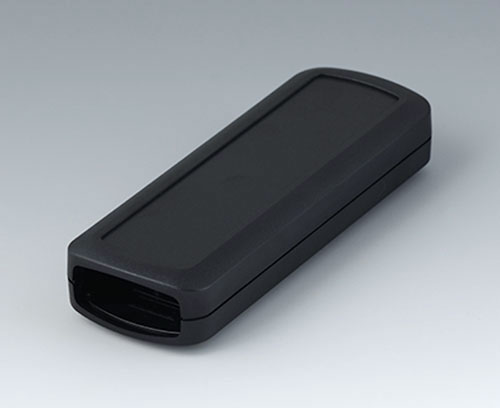

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

关闭

B2824109

CONNECT S
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
black RAL 9005
120x42x22mm
AltText

B2832107

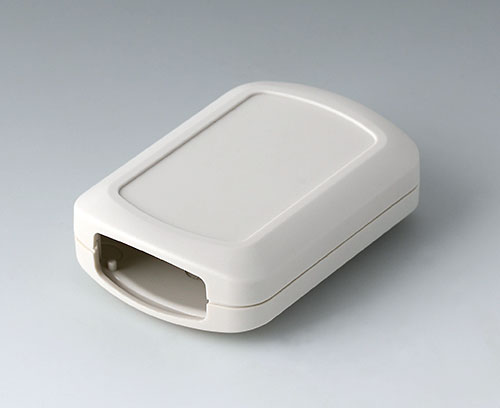

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

关闭

B2832107

CONNECT M
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
76x54x22mm
AltText

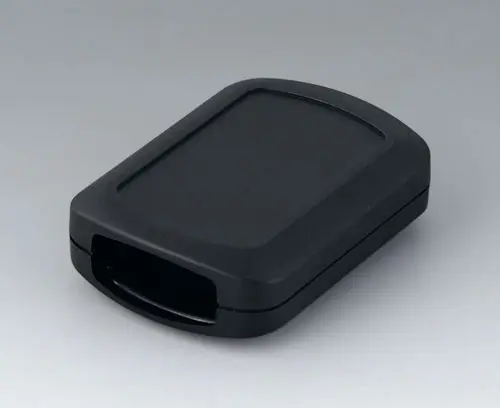

B2832109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

关闭

B2832109

CONNECT M
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
black RAL 9005
76x54x22mm
AltText

B2833107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

关闭

B2833107

CONNECT M
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
116x54x22mm
AltText

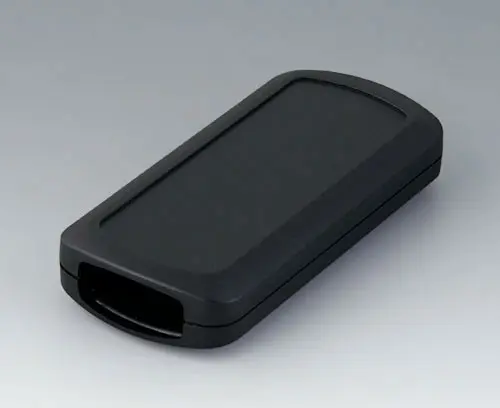

B2833109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

关闭

B2833109

CONNECT M
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
black RAL 9005
116x54x22mm
AltText

B2834107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

关闭

B2834107

CONNECT M
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
156x54x22mm
AltText

B2834109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

关闭

B2834109

CONNECT M
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
black RAL 9005
156x54x22mm
AltText

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
产品已添加到关注清单中
AltText

A9167027

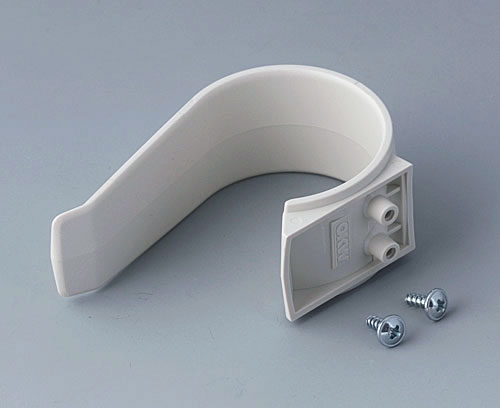

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

关闭

A9167027

Holding clamp
产品已添加到关注清单中
PA 6 (UL 94 HB)
off-white RAL 9002
AltText

A9167029

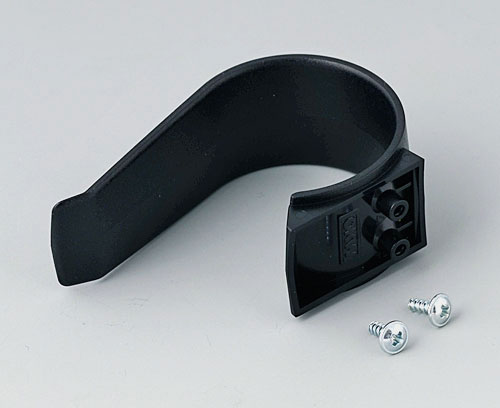

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

关闭

A9167029

Holding clamp
产品已添加到关注清单中
PA 6 (UL 94 HB)
black RAL 9005
AltText

B2911308

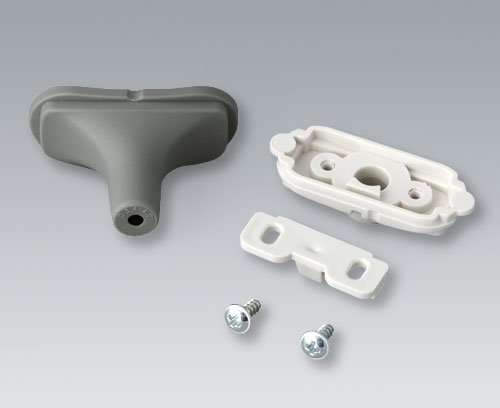

Cable gland kit, 3.4 - 4.2 For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

关闭

B2911308

Cable gland kit, 3.4 - 4.2
产品已添加到关注清单中
TPE
volcano
AltText

B2911309

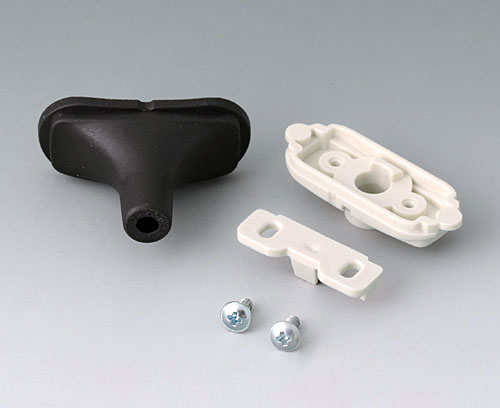

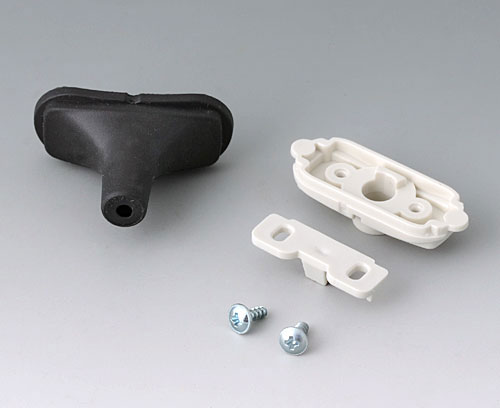

Cable gland kit, 3.4 - 4.2 For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

关闭

B2911309

Cable gland kit, 3.4 - 4.2
产品已添加到关注清单中
TPE
black RAL 9005
AltText

B2911318

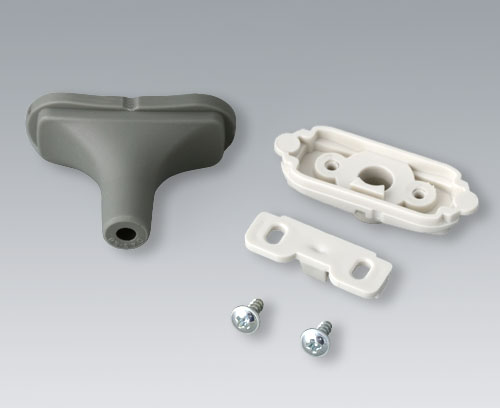

Cable gland kit, 4.2 - 5.0 For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

关闭

B2911318

Cable gland kit, 4.2 - 5.0
产品已添加到关注清单中
TPE
volcano
AltText

B2911319

Cable gland kit, 4.2 - 5.0 For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

关闭

B2911319

Cable gland kit, 4.2 - 5.0
产品已添加到关注清单中
TPE
black RAL 9005
AltText

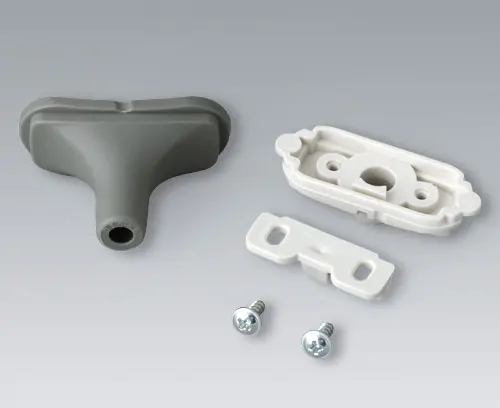

B2911328

Cable gland kit, 5.0 - 5.9 For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

关闭

B2911328

Cable gland kit, 5.0 - 5.9
产品已添加到关注清单中
TPE
volcano
AltText

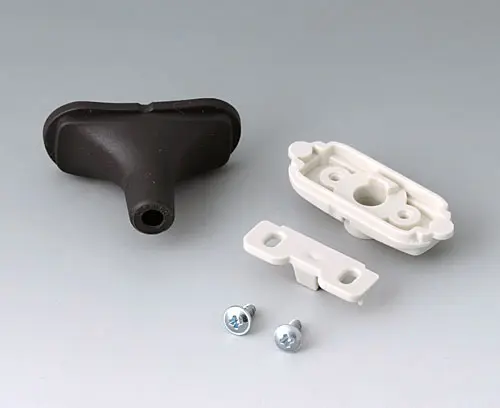

B2911329

Cable gland kit, 5.0 - 5.9 For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

关闭

B2911329

Cable gland kit, 5.0 - 5.9
产品已添加到关注清单中
TPE
black RAL 9005
AltText

B2921507

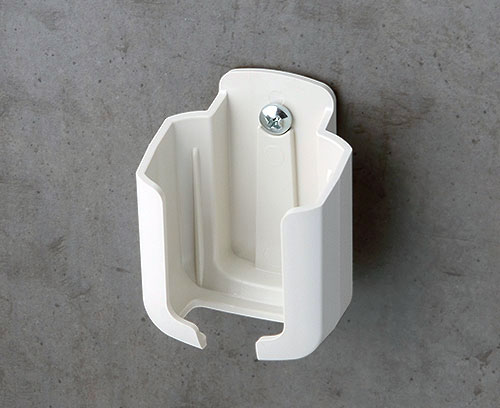

Holder S Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

关闭

B2921507

Holder S
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

B2921509

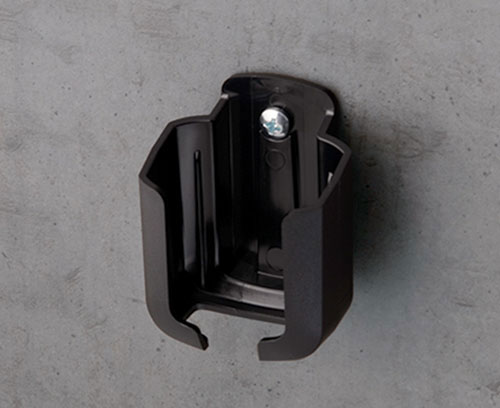

Holder S Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

关闭

B2921509

Holder S
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
black RAL 9005
AltText

B2931507

Holder M Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

关闭

B2931507

Holder M
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
AltText

B2931509

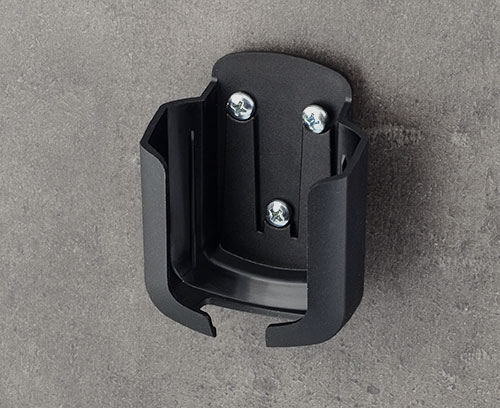

Holder M Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

关闭

B2931509

Holder M
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
black RAL 9005

产品类型用于 Connect 接线盒

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
