Comtec 电讯盒
"圆软"设计款式的机盒

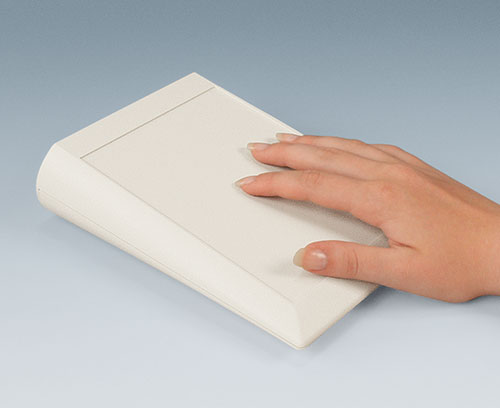

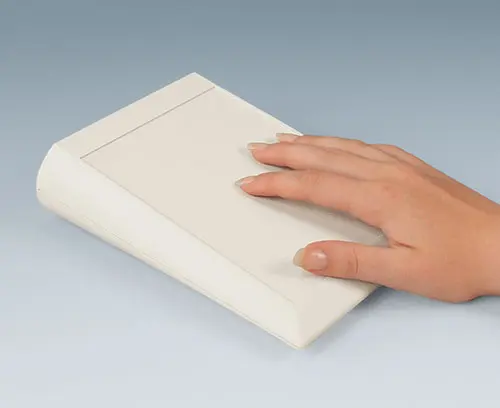

现代式舒适平坦的造型是 COMTEC 电讯盒系列的特征。圆润的表面给用户一种温柔的感觉,强度表现高的操作舒适度。

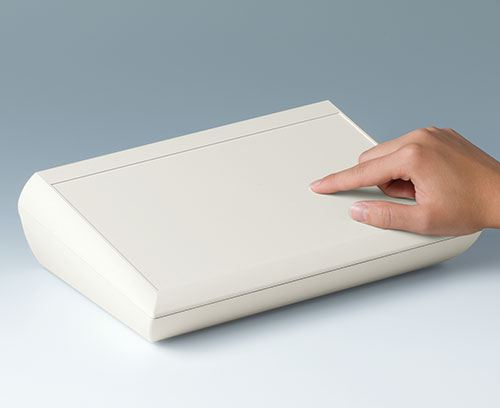

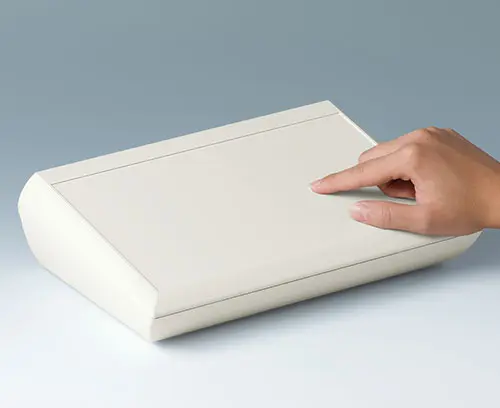

- 具备符合人体工程学的 10° 倾斜操作面,利于操作和阅读

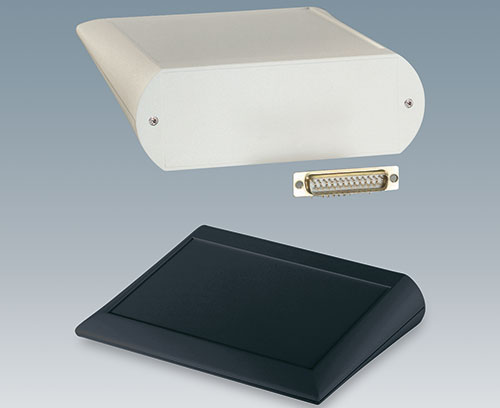

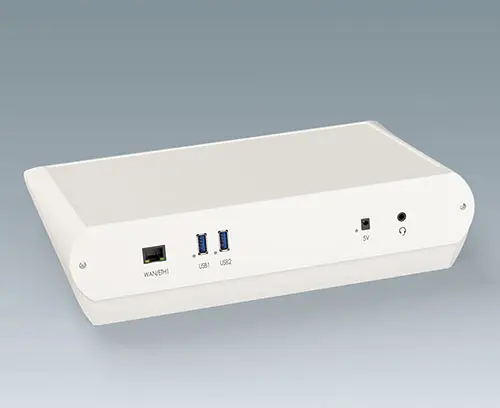

- 上盒端面设有界面连接口,特别适配 D-SUB 连接器、圆形连接器等; 连接口可以预固在电路板上
- 特别适合桌面或墙壁应用

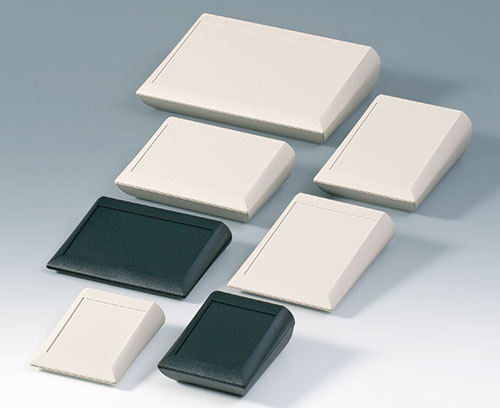

- 7 种规格,2 种颜色

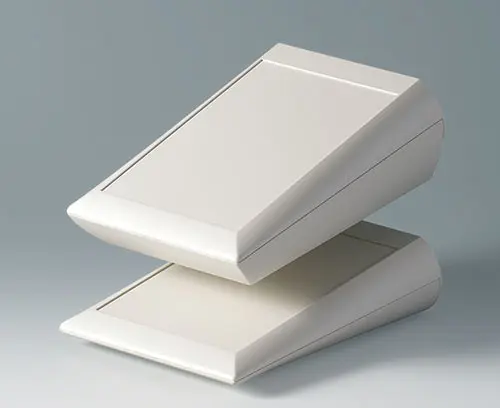

- 平底盒或加高底盒可选

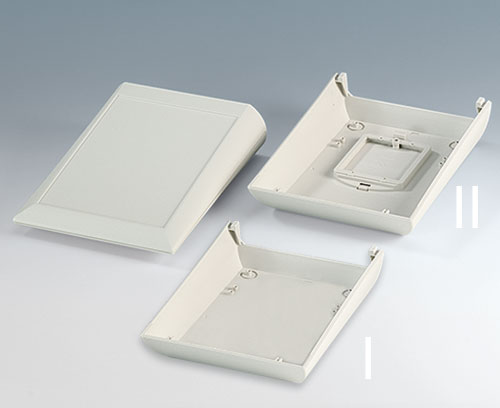

- 型号 I 无电池仓盖

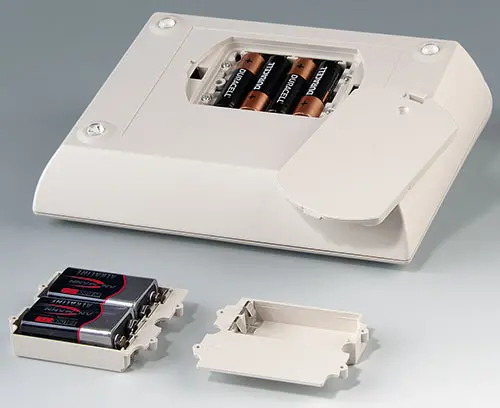

- 型号 II 带电池仓盖
- 适配 4 个 AA、1 个 9 V 或 2 个 9 V 电池的电池仓作为型号 II 的配件

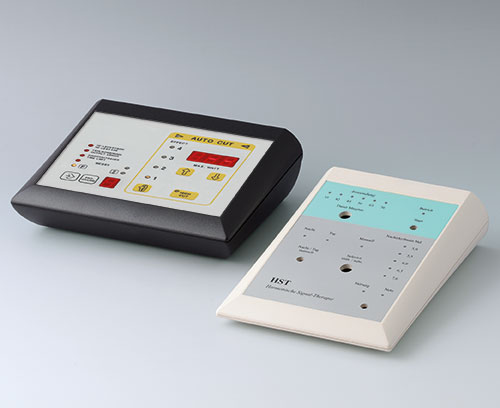

- 操作区域凹陷,以保护膜键盘
- 防护等级 IP 40
- 自粘橡胶脚确保桌面应用的安全稳定性

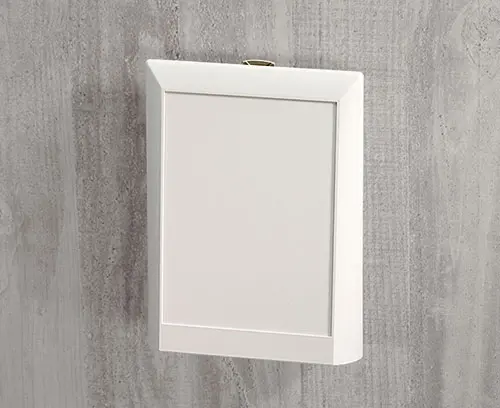

- 墙挂固定套件作为附件

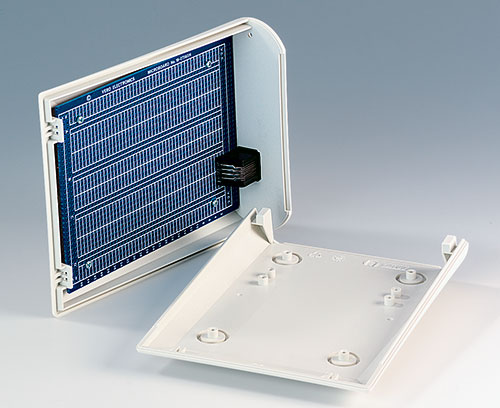

- 固定柱用于固定电路板和元器件
应用范围

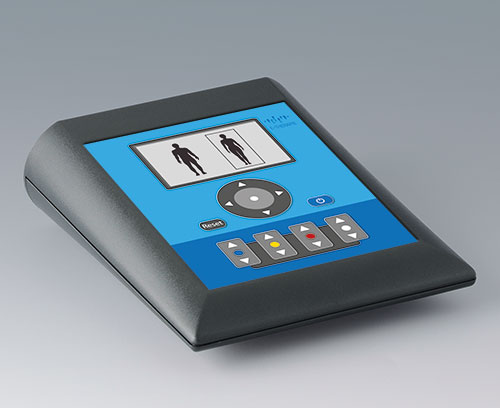

工作场所和机器的数据采集系统。 对讲机。 门禁控制和电脑周边设备。 实验室和医疗技术。 医疗保健领域。 测量和控制技术。 工业用自动控制系统。
请选择所需的产品类型或尺寸,或点击产品列表末尾的“选择所有产品”按键。
A9160003
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)
A9161002
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.
Supply 4 single contacts
A9161002
Set of battery clips, 2 x 9 V or 4 x AAtin-plated
A9174002
Supply 1 battery compartment, assembly kit
A9174002
Battery compartment, 2 x 9 Voff-white RAL 9002
A9174003
Supply 1 battery compartment, assembly kit
A9174003
Battery compartment, 1 x 9 Voff-white RAL 9002
A9174006
Supply 2 single contacts
A9174006
Set of battery clips, 1 x 9 Vtin-plated
A9199008
Supply 4 screws
A9199008
Set of screws
A9345217
Supply 1 battery compartment, battery clips nickel-plated, assembly kit
A9345217
Set of battery compartment, 4 x AAoff-white RAL 9002
B1350048
Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit
B1350048
Wall suspension elementspebble grey RAL 7032
B1360048
Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit
B1360048
Wall suspension elementspebble grey RAL 7032
