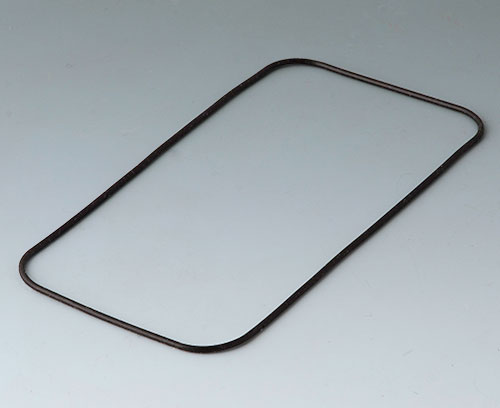

B5503039

Seal M

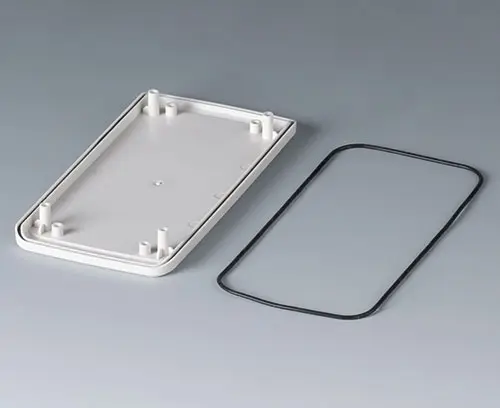

To increase the protection class of SLIM-CASE M enclosures without TPE intermediate ring (versions I-III).

Supply

1 seal

Gerar seu Datasheet em PDF para B5503039

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
B5403107 SLIM-CASE M, Vers. I

B5403107

SLIM-CASE M, Vers. I 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Flat operating panel for individual design and arrangement of operating and display elements of all kinds. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Flat operating panel

Supply Top and bottom part, assembly kit

B5403107

SLIM-CASE M, Vers. I
Produto adicionado a sua lista

off-white RAL 9002
148x74x19mm
,

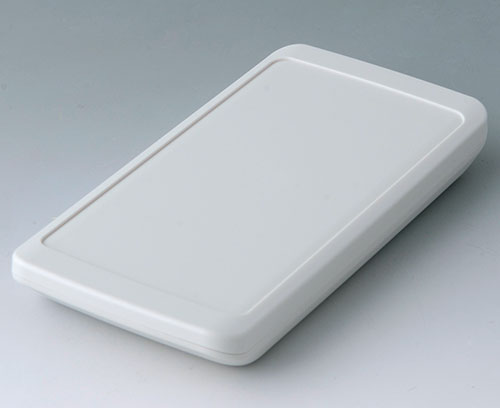

B5403207 SLIM-CASE M, Vers. II

B5403207

SLIM-CASE M, Vers. II 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for applications with decorative product labels. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Operating panel recessed 1 mm

Supply Top and bottom part, assembly kit

B5403207

SLIM-CASE M, Vers. II
Produto adicionado a sua lista

off-white RAL 9002
148x74x19mm
,

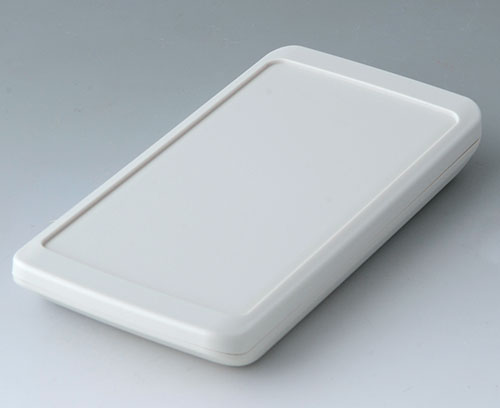

B5403307 SLIM-CASE M, Vers. III

B5403307

SLIM-CASE M, Vers. III 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Operating panel recessed 1.6 mm

Supply Top and bottom part, assembly kit

B5403307

SLIM-CASE M, Vers. III
Produto adicionado a sua lista

off-white RAL 9002
148x74x19mm
,
Material

Colour
black
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
2 g
Customs tariff number
(OKW product)
40169300
Country of manufacture
Alemanha
