Slim-Case

Gabinetes portáteis com design elegante

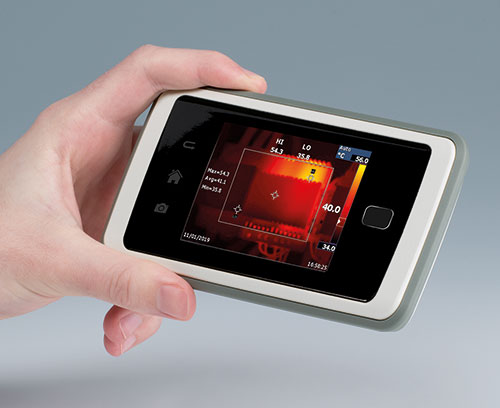

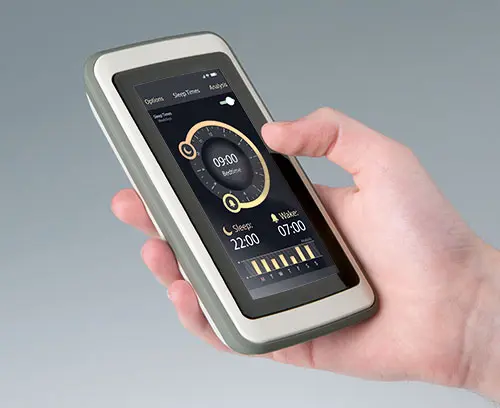

SLIM-CASE mostra o que atualmente é possível realizar em gabinetes portáteis, tanto óptica como funcionalmente. O design quase sem moldura permite a incorporação de componentes e grupos, bem como de displays de grandes dimensões e de aplicações táteis até 4" (10 cm) em dimensões compactas de dispositivos. Apesar de dimensões reduzidas e de boa manejabilidade, a inovadora série de gabinetes oferece muito volume para a montagem universal de peças e para modernos padrões de rádio.

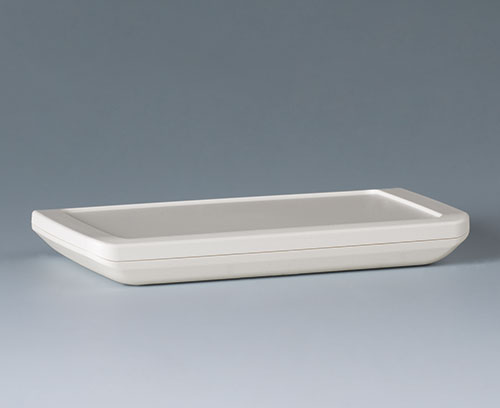

  • Com as laterais arredondas e de estrutura compacta, os gabinetes possuem um aspecto extremamente elegante. Além disso, possuem uma sensação háptica muito agradável e permitem funções que tiram partido do design.

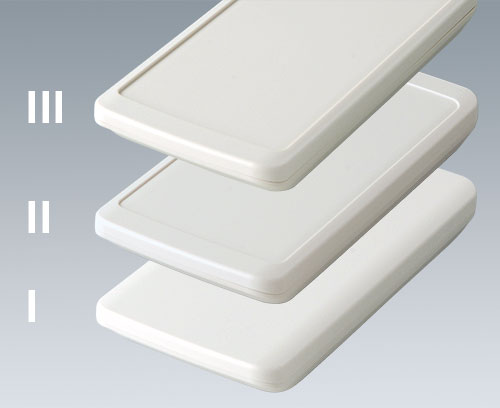

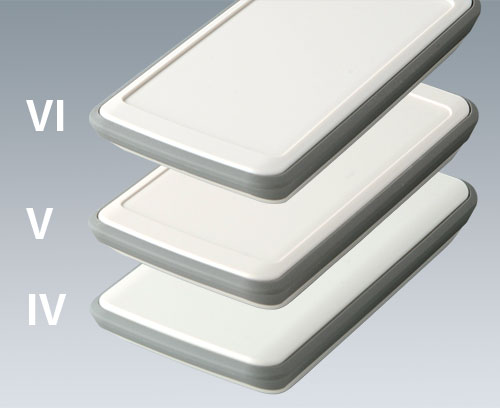

  • Três frentes de comando diferentes conferem flexibilidade à configuração de montagem e respectivo conceito de comando:

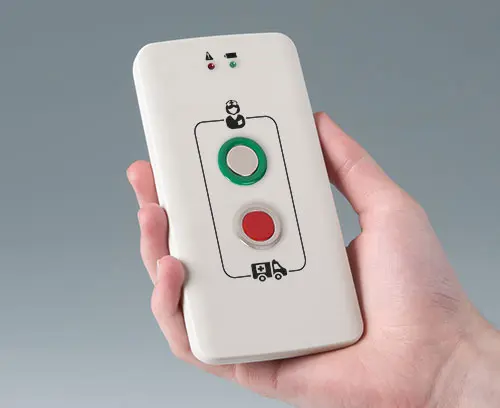

    Painel de comando plano
    Para configuração e disposição individuais de elementos de comando e exibição de todo o tipo.
    Rebaixado 1 mm
    Ideal para aplicações com películas decorativas.
    Rebaixado 1,6 mm

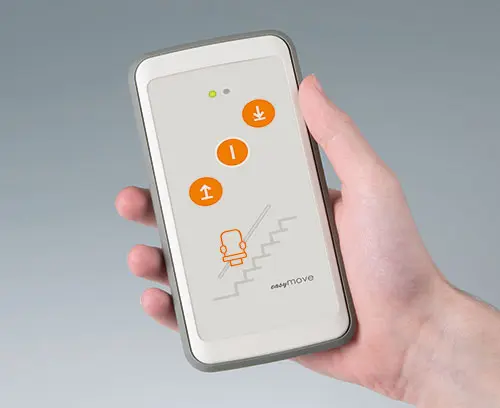

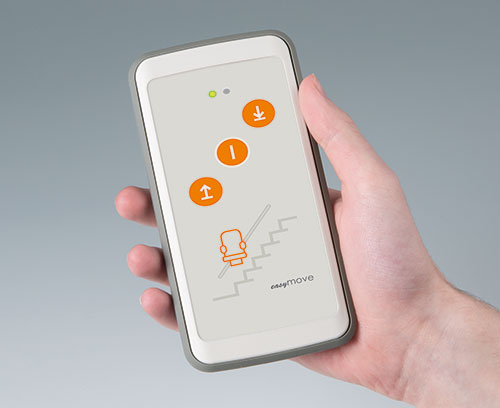

    Para utilização de um painel frontal fiel aos contornos e transparente, ou de um teclado de membrana.

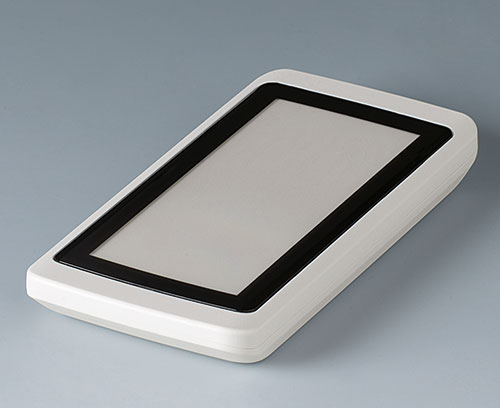

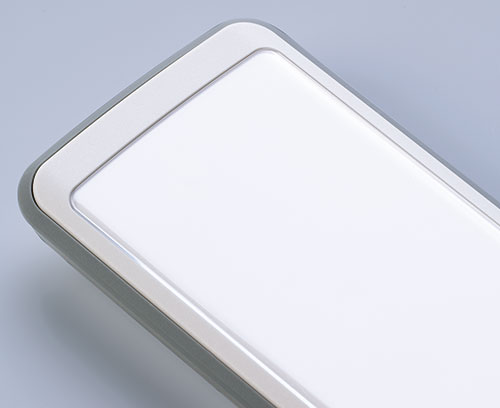

  • O painel frontal fiel aos contornos (acessório) protege os displays que se encontrem abaixo. Com os lados longitudinais arredondados fica garantida a forma hapticamente agradável. Fixação com película adesiva (acessório). Sob consulta, impressão personalizada a partir de trás adaptada ao seu recorte de display visível, bem como para cobertura da película adesiva.
  • De carregamento indutivo com bobina correspondente, a curta distância com carregadores QI. Eventualmente suprimento interno de corrente com pilha plana na platina.

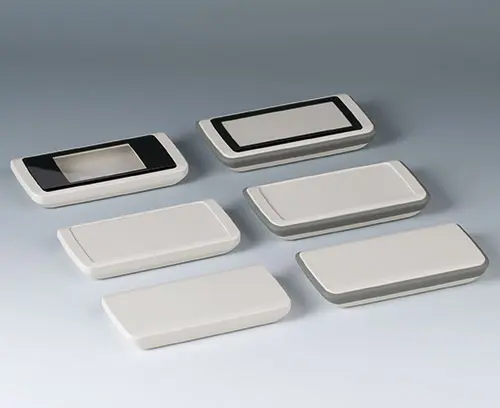

  • Com e sem anel intermediário TPE

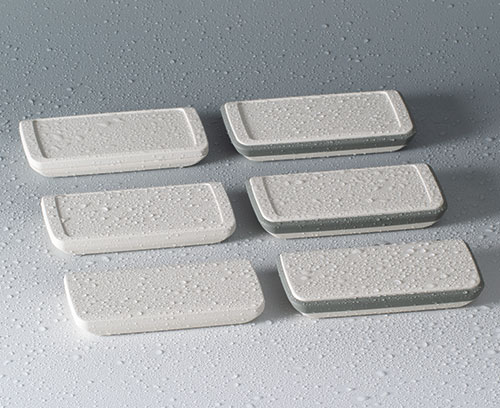

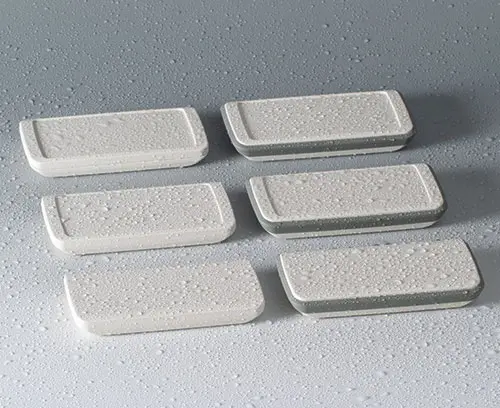

  • Classe de proteção IP 54: SLIM-CASE IV-VI com anel intermediário TPE;
    classe de proteção até IP 65: SLIM-CASE I-III com vedação opcional
  • O anel intermediário TPE aumenta o volume de montagem, serve de anel de vedação para a classe de proteção IP 54 e de proteção contra impactos. Modelos especiais dos anéis intermediários de TPE em cor especial sob consulta.
  • Peças do gabinete em ASA+PC-FR (UL 94 V-0) em branco acinzentado (RAL 9002)
  • União roscada com parafusos de aço inoxidável e acionamento Torx (T8)

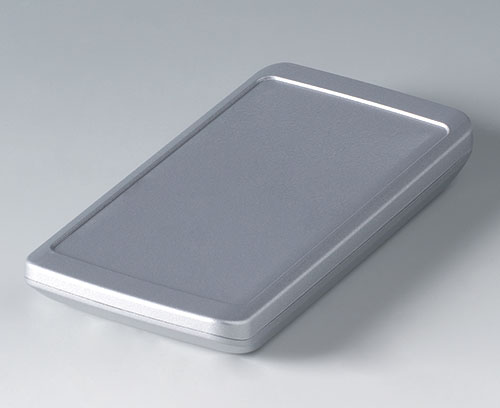

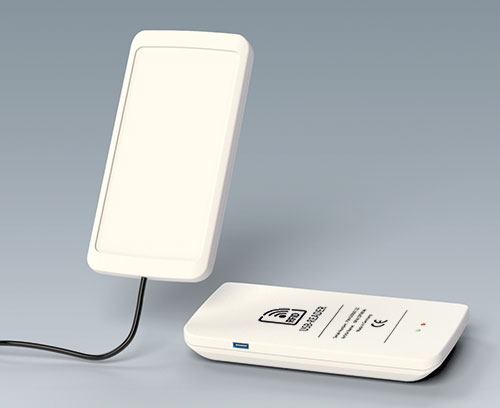

  • Usinagens personalizadas, p. ex. recortes para elementos de comando e exibição, interfaces, letragem, vaporização de alumínio EMC etc., sob consulta.
  • Video
  • Exemplos de Aplicação

Application fields

Ideal para aplicações eletrônicas móveis em espaços interiores e exteriores.

  • Tecnologia de medição e regulação
  • Comunicações sem fios
  • IoT/IIoT
  • Engenharia médica e técnica de laboratório
  • Health Care
  • Office
  • Técnica de segurança
  • Tecnologia ambiental
  • Navegue na Lista Completa
  • Acessórios
  • Customizadas
AltText

B5403107

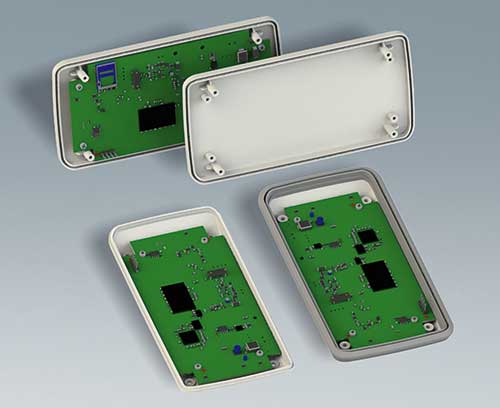

SLIM-CASE M, Vers. I 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Flat operating panel for individual design and arrangement of operating and display elements of all kinds. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Flat operating panel

Supply Top and bottom part, assembly kit

Fechar

B5403107

SLIM-CASE M, Vers. I
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x19mm
IP 65 opt., IP 40
AltText

B5403117

SLIM-CASE M, Vers. IV 3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Flat operating panel for individual design and arrangement of operating and display elements of all kinds. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version With TPE intermediate ring and flat operating panel

Supply Top and bottom part, TPE intermediate ring, assembly kit

Fechar

B5403117

SLIM-CASE M, Vers. IV
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x22mm
IP 54
AltText

B5403207

SLIM-CASE M, Vers. II 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for applications with decorative product labels. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Operating panel recessed 1 mm

Supply Top and bottom part, assembly kit

Fechar

B5403207

SLIM-CASE M, Vers. II
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x19mm
IP 65 opt., IP 40
AltText

B5403217

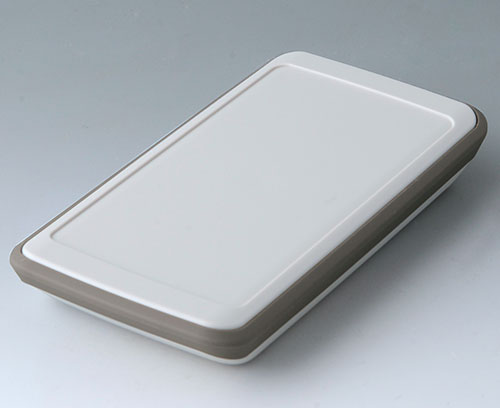

SLIM-CASE M, Vers. V 3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for applications with decorative product label. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version With TPE intermediate ring and operating panel recessed 1 mm

Supply Top and bottom part, TPE intermediate ring, assembly kit

Fechar

B5403217

SLIM-CASE M, Vers. V
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x22mm
IP 54
AltText

B5403307

SLIM-CASE M, Vers. III 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Operating panel recessed 1.6 mm

Supply Top and bottom part, assembly kit

Fechar

B5403307

SLIM-CASE M, Vers. III
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x19mm
IP 65 opt., IP 40
AltText

B5403317

SLIM-CASE M, Vers. VI 3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version With TPE intermediate ring and operating panel recessed 1.6 mm

Supply Top and bottom part, TPE intermediate ring, assembly kit

Fechar

B5403317

SLIM-CASE M, Vers. VI
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x22mm
IP 54
AltText

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produto adicionado a sua lista
AltText

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Produto adicionado a sua lista
Stainless steel
AltText

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Fechar

A0399T08

Torx T8 screwdriver
Produto adicionado a sua lista
AltText

B5503039

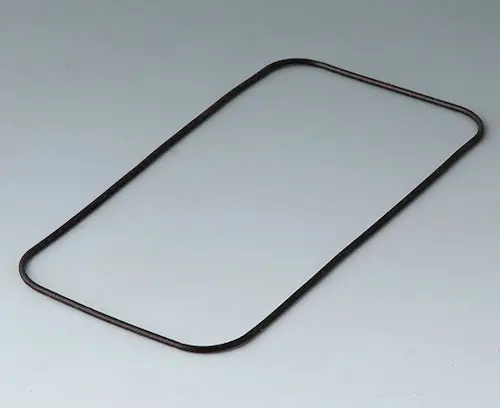

Seal M To increase the protection class of SLIM-CASE M enclosures without TPE intermediate ring (versions I-III).

Supply 1 seal

Fechar

B5503039

Seal M
Produto adicionado a sua lista
Silicone
black
AltText

B5503201

Front screen M The contoured transparent front screen (accessory) protects the displays underneath. It is rounded on the long edges to follow the ergonomic shape of the case. Suitable for SLIM-CASE M with operating panel recessed 1.6 mm (versions III and VI). Mounted with a double-sided adhesive film (accessories).
On request, supplied individually printed from behind to match your visible display as well as masking the adhesive film.

Supply 1 front screenm

Fechar

B5503201

Front screen M
Produto adicionado a sua lista
PC
transparent
125,3x63,5x1,3mm
AltText

B5503300

Adhesive foil M For secure mounting of the front screen on the top part.

Supply 1 adhesive foil

Fechar

B5503300

Adhesive foil M
Produto adicionado a sua lista

Opções para customizadas Slim-Case
