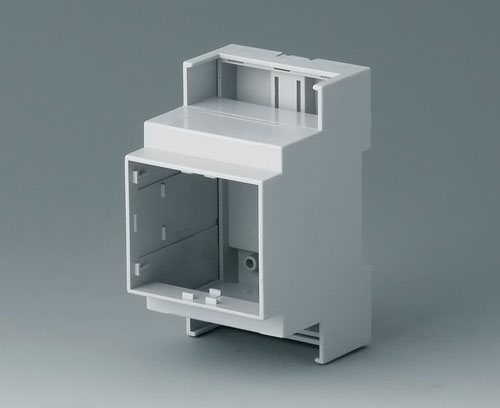

B6702104 RAILTEC C, 3 modules, Vers. III

B6702104

RAILTEC C, 3 modules, Vers. III

Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version

Front open, connection side with extended case wall

Supply

1 bottom part, 2 clips, 1 top part

  • Componentes adequados
  • Veja Opções de personalização

Accessory "wall/holder"

B6811542 Adapter

B6811542

Adapter Suitable for DIN EN 60715 (TH35), EN 60715 (G32) and EN 60715 (TH15).

Supply 1 piece

Fechar

B6811542

Adapter
Produto adicionado a sua lista
PA 6 (UL 94 V-0)
green

Accessory "terminals"

B6601222 Plug header, block 5.08

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

Fechar

B6601222

Plug header, block 5.08
Produto adicionado a sua lista
PA 6 (UL 94 V-0)
B6601223 Plug header, block 5.08

B6601223

Plug header, block 5.08 Female terminal block, 5.08. 5-pin.

Supply 1 piece

Fechar

B6601223

Plug header, block 5.08
Produto adicionado a sua lista
PA 6 (UL 94 V-0)
B6602222 Plug header, block 5.08

B6602222

Plug header, block 5.08 Male terminal block, 5.08. 9-pin.

Supply 1 piece

Fechar

B6602222

Plug header, block 5.08
Produto adicionado a sua lista
PA 6 (UL 94 V-0)
B6602223 Plug header, block 5.08

B6602223

Plug header, block 5.08 Female terminal block, 5.08. 9-pin.

Supply 1 piece

Fechar

B6602223

Plug header, block 5.08
Produto adicionado a sua lista
PA 6 (UL 94 V-0)
B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

Fechar

B6606222

Plug header, block 5.08
Produto adicionado a sua lista
PA 6 (UL 94 V-0)
B6606223 Plug header, block 5.08

B6606223

Plug header, block 5.08 Female terminal block, 5.08. 2-pin.

Supply 1 piece

Fechar

B6606223

Plug header, block 5.08
Produto adicionado a sua lista
PA 6 (UL 94 V-0)
B6802650 Terminal block, block 5.08

B6802650

Terminal block, block 5.08 PCB terminal block, 5.08. 9-pin.

Supply 1 piece

Fechar

B6802650

Terminal block, block 5.08
Produto adicionado a sua lista
PA 68 (UL 94 V-0)
light grey

Accessory

B6802100 Front panel, 3 modules

B6802100

Front panel, 3 modules Snap-in.

Supply 1 front panel

Fechar

B6802100

Front panel, 3 modules
Produto adicionado a sua lista
PC (UL 94 V-0)
light grey
49x42mm
B6802200 Front panel, 3 modules

B6802200

Front panel, 3 modules Snap-in.

Supply 1 front panel

Fechar

B6802200

Front panel, 3 modules
Produto adicionado a sua lista
PC (UL 94 V-0)
transparent
49x42mm

Customising options for B6702104

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Colour
Bottom and top part light grey,
Locking clip black/translucent
Standards
Width
53 mm
Height
90 mm
Depth
58 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
43 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Reino Unido
