Acessórios para Caixas
B6604100
Lid, 6 modules
Locking lid for protecting the display and operating elements.
Supply1 lid
Desenho PDF 2D
Baixar arquivos 3D/2D
Baixar arquivos 3D/2D
Gerar seu Datasheet em PDF para B6604100
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Adicionar ao carrinho
B6504110

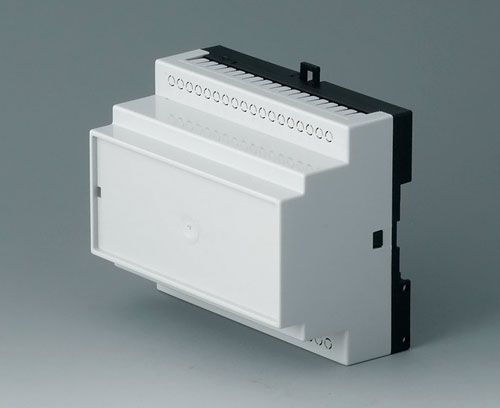

RAILTEC B, 6 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 36 terminal blocks 5.0 or 2 plug headers 18-pin
Supply 1 base part with locking clip, 1 top part
B6504110
RAILTEC B, 6 modules, Vers. VProduto adicionado a sua lista
light grey RAL 7035
105x86x59mm
B6504111
RAILTEC B, 6 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (36 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6504111
RAILTEC B, 6 modules, Vers. IProduto adicionado a sua lista
light grey RAL 7035
105x86x59mm
B6504112
RAILTEC B, 6 modules, Vers. II
Case corresponds to DIN 43880,size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (2 x 18-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6504112
RAILTEC B, 6 modules, Vers. IIProduto adicionado a sua lista
light grey RAL 7035
105x86x59mm
B6504113
RAILTEC B, 6 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6504113
RAILTEC B, 6 modules, Vers. IIIProduto adicionado a sua lista
light grey RAL 7035
105x86x59mm
B6504114
RAILTEC B, 6 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (36 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6504114
RAILTEC B, 6 modules, Vers. IProduto adicionado a sua lista
light grey RAL 7035
105x86x59mm
B6504115
RAILTEC B, 6 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (2 x 18-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6504115
RAILTEC B, 6 modules, Vers. IIProduto adicionado a sua lista
light grey RAL 7035
105x86x59mm

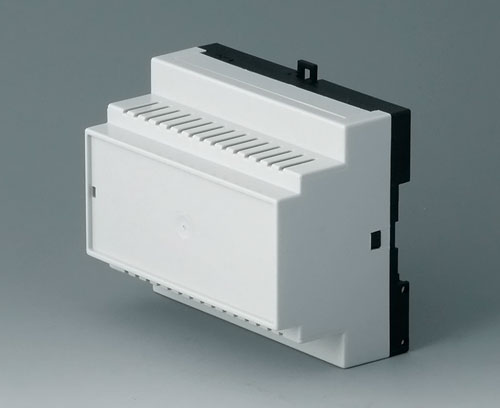

B6504116
RAILTEC B, 6 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6504116
RAILTEC B, 6 modules, Vers. IIIProduto adicionado a sua lista
light grey RAL 7035
105x86x59mm
B6504117

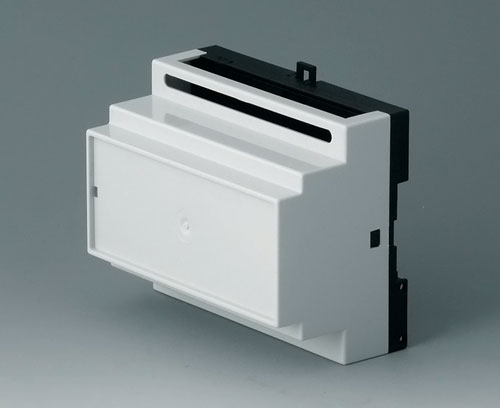

RAILTEC B, 6 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (18 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6504117
RAILTEC B, 6 modules, Vers. IVProduto adicionado a sua lista
light grey RAL 7035
105x86x59mm
B6504118

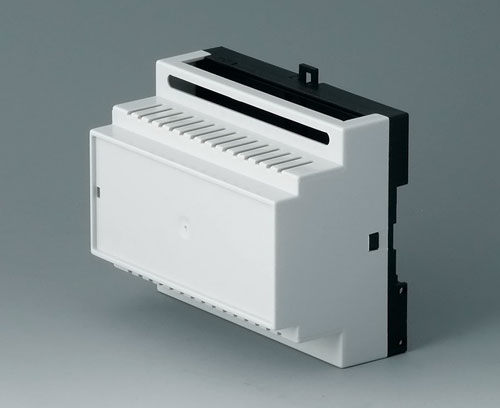

RAILTEC B, 6 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (18 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6504118
RAILTEC B, 6 modules, Vers. IVProduto adicionado a sua lista
light grey RAL 7035
105x86x59mm
B6504119

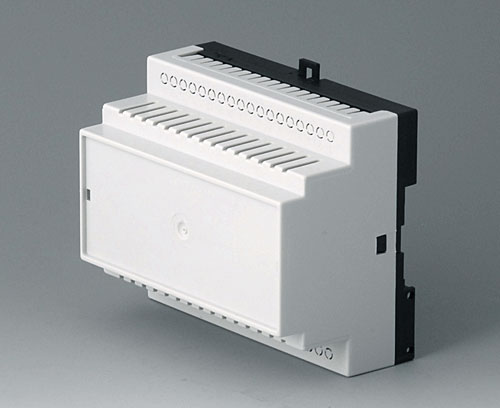

RAILTEC B, 6 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 36 terminal blocks 5.0 or 2 plug headers 18-pin
Supply 1 base part with locking clip, 1 top part
B6504119
RAILTEC B, 6 modules, Vers. VProduto adicionado a sua lista
light grey RAL 7035
105x86x59mm
B6504121

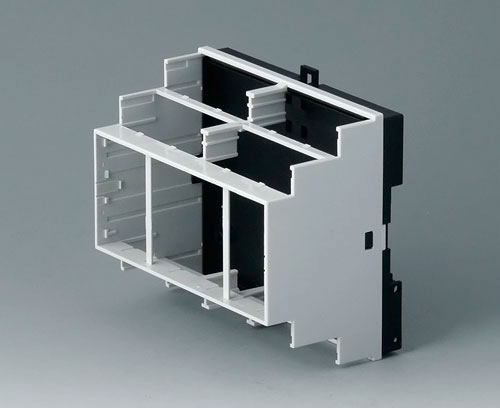

RAILTEC B, 6 modules, Vers. VI
Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6504121
RAILTEC B, 6 modules, Vers. VIProduto adicionado a sua lista
light grey RAL 7035
105x90x58mm
B6514111

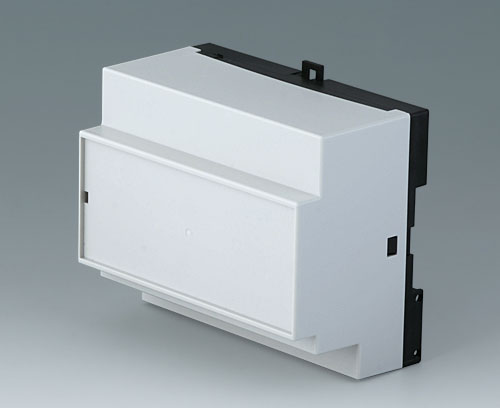

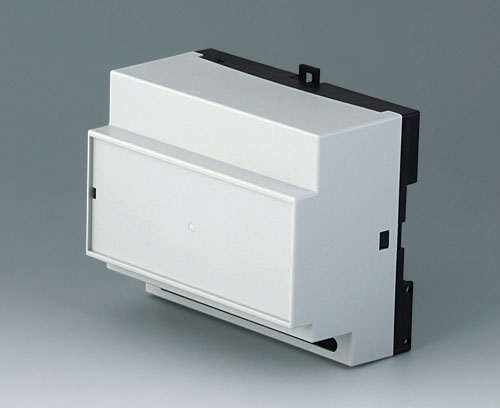

RAILTEC B, 6 modules, Vers. XI
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (18 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6514111
RAILTEC B, 6 modules, Vers. XIProduto adicionado a sua lista
light grey RAL 7035
105x86x59mm
B6514112
RAILTEC B, 6 modules, Vers. XII
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version For plug header (2 x 18-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6514112
RAILTEC B, 6 modules, Vers. XIIProduto adicionado a sua lista
light grey RAL 7035
105x86x59mm
B6514113
RAILTEC B, 6 modules, Vers. XIII
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6514113
RAILTEC B, 6 modules, Vers. XIIIProduto adicionado a sua lista
light grey RAL 7035
105x86x59mm
Customising options for B6604100
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dados técnicos
-
Desenho / Informações
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 82 KB
- AutoCAD DWG-File 252 KB
- AutoCAD DXF-File 711 KB
Weight/1 part
9 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Dinamarca
