B6504112 RAILTEC B, 6 modules, Vers. II

B6504112

RAILTEC B, 6 modules, Vers. II

Case corresponds to DIN 43880,size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version

For plug header (2 x 18-poles) blocks 5.0 / 5.08

Supply

1 base part with locking clip, 1 top part

  • Componentes adequados
  • Veja Opções de personalização

Accessory "wall/holder"

B6600334 Wall suspension elements

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

Fechar

B6600334

Wall suspension elements
Produto adicionado a sua lista
PPO (UL 94 V-0)
black

Accessory "terminals"

B6604222 Plug header, block 5.08

B6604222

Plug header, block 5.08 Male terminal block, 5.08. 18-pin.

Supply 1 piece

Fechar

B6604222

Plug header, block 5.08
Produto adicionado a sua lista
PA 68 (UL 94 V-0)
B6604223 Plug header, block 5.08

B6604223

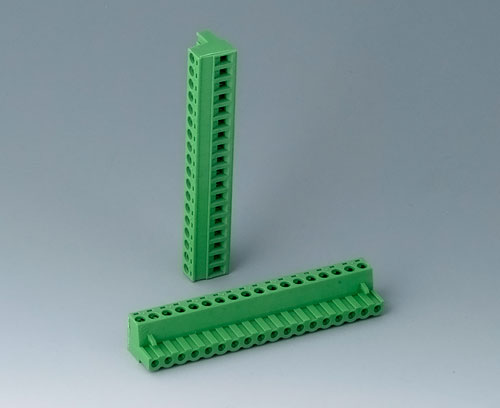

Plug header, block 5.08 Female terminal block, 5.08. 18-pin.

Supply 1 piece

Fechar

B6604223

Plug header, block 5.08
Produto adicionado a sua lista
PA 68 (UL 94 V-0)

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produto adicionado a sua lista

Accessory

B6604100 Lid, 6 modules

B6604100

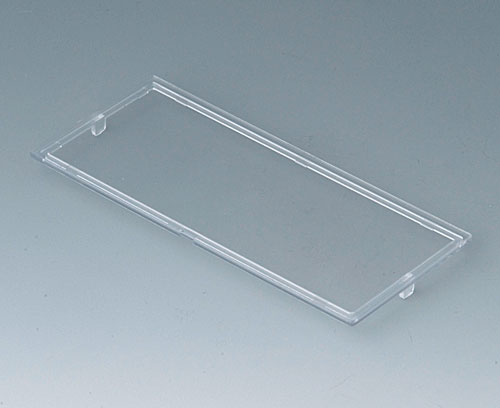

Lid, 6 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Fechar

B6604100

Lid, 6 modules
Produto adicionado a sua lista
PC (UL 94 V-0)
transparent

Customising options for B6504112

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
Colour
Top part light grey RAL 7035,
Bottom part black,
Locking clip black
Standards
RoHS compliant
DIN EN 60715 TH35
DIN VDE 0470-1
DIN 43880 unit 1
REACH compliant
VBG 4
IEC 529
Width
105 mm
Height
86 mm
Depth
59 mm
PCB length, base
82,4 mm
PCB width, base
99,2 mm
Poles
≤ 36
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
72 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Dinamarca
