B3123177

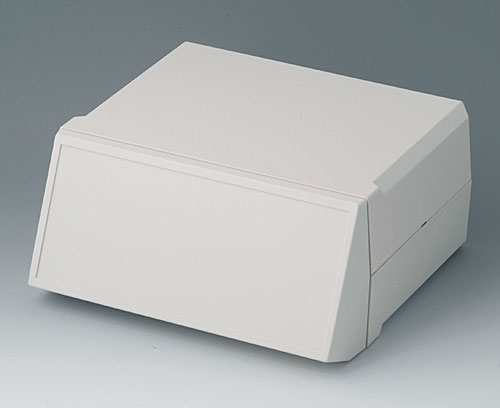

Sloping control panel L, high/high

Suitable for MOTEC L B3023137 with high top and base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply

1 sloping control panel

  • Usado para
  • Veja Opções de personalização
AltText

B3023137

MOTEC L, high/high Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Fechar

B3023137

MOTEC L, high/high
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
235x165x110mm
IP 40

Customising options for B3123177

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Colour
off-white RAL 9002
Keypad length
214,6 mm
Keypad width
90,6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
128 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
