MOTEC

Motec

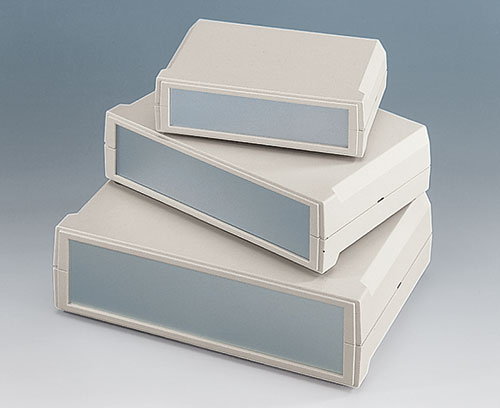

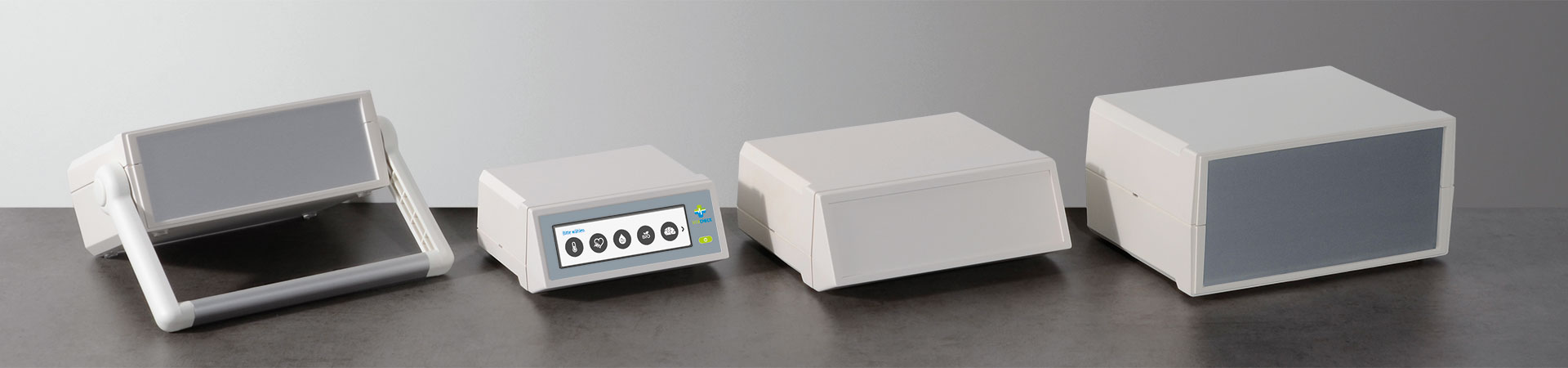

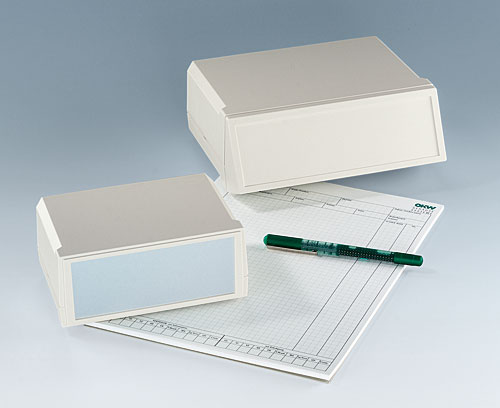

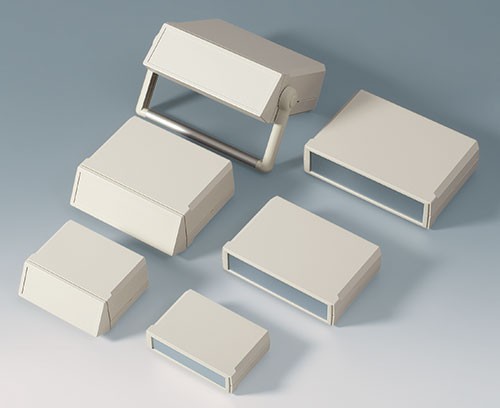

Modernas Caixas de Mesa de Trabalho com Amplos Painéis de Interface

Com dimensões generosas, design elegante e painéis de controle ergonômicos, nossa série MOTEC é projetada para permitir maior destaque aos sistemas mais convencionais.

  • alcance de escala dos instrumentos para caixas
  • três tamanhos planos
  • caixas com alturas diferentes para configurações individuais
  • alta qualidade do material ABS (UL 94 HB)

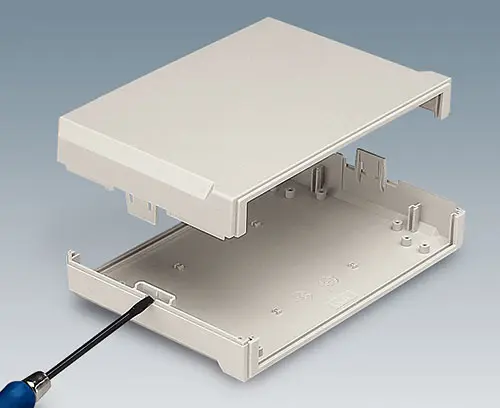

  • robustas travas de conexão para minimizar o trabalho de montagem
  • acesso com chave de fenda única para segurança

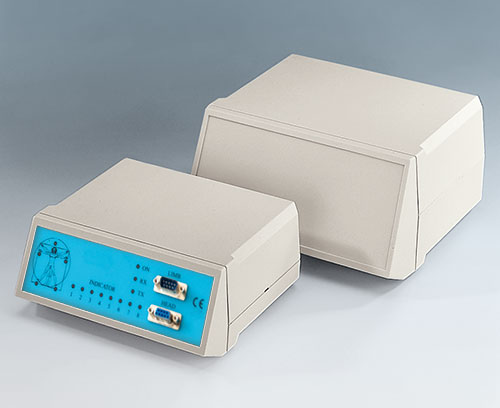

  • ergonômica, painel de controle moldado inclinado com área rebaixada para teclado de membrana

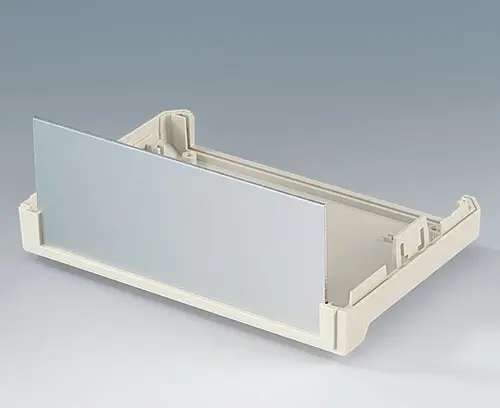

  • painéis de alumínio devem ser solicitados separadamente

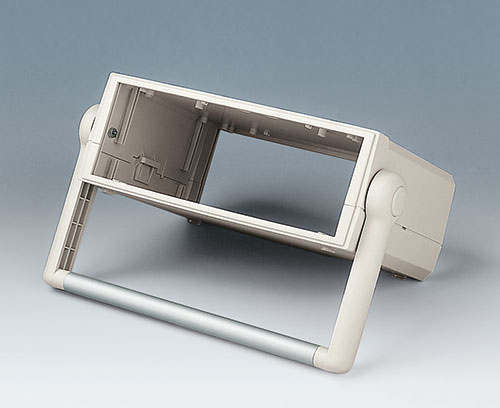

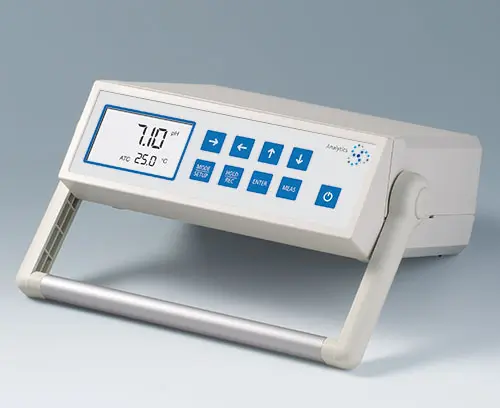

  • versões com alça para posição ergonomicamente inclinada ou para transporte
  • quatro pés autoadesivos antiderrapantes inclusos
  • classe de proteção IP 40
  • guias internas para inserção vertical de divisórias e PCBs
  • pilares internos com parafuso para fixação de PCB e etc.
  • Exemplos de Aplicação

Application fields

  • Medição e tecnologia de controle
  • Controle de feedback
  • Dispositivos periféricos e interfaces, caixas de comutação, modems
  • Equipamento de laboratório

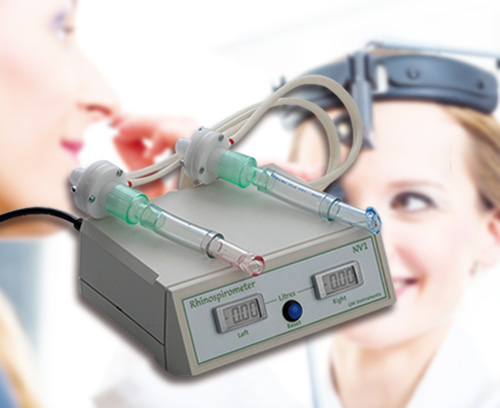

  • Médico e dispositivos de bem-estar
  • Navegue na Lista Completa
  • Acessórios
  • Customizadas
B3015117 MOTEC S, flat/flat

B3015117

MOTEC S, flat/flat Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Fechar

B3015117

MOTEC S, flat/flat
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
155x105x40mm
IP 40

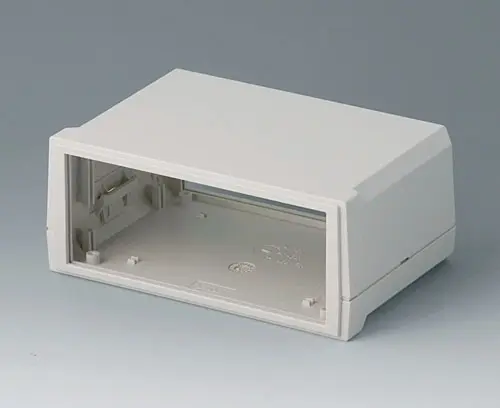

B3015127 MOTEC S, flat/high

B3015127

MOTEC S, flat/high Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Fechar

B3015127

MOTEC S, flat/high
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
155x105x65mm
IP 40

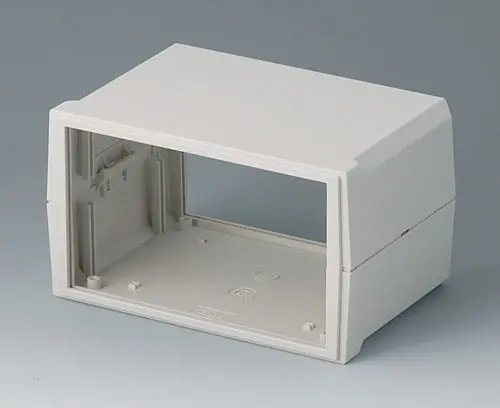

B3015137 MOTEC S, high/high

B3015137

MOTEC S, high/high Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Fechar

B3015137

MOTEC S, high/high
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
155x105x90mm
IP 40

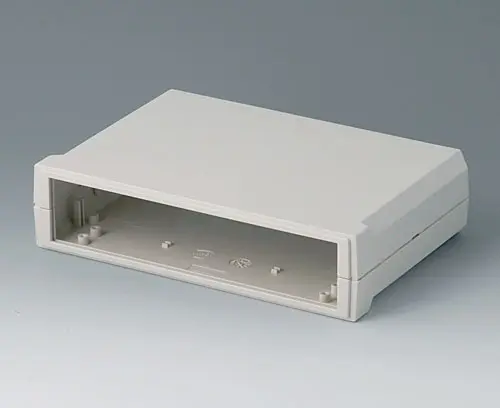

B3020117 MOTEC M, flat/flat

B3020117

MOTEC M, flat/flat Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Fechar

B3020117

MOTEC M, flat/flat
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
205x140x50mm
IP 40

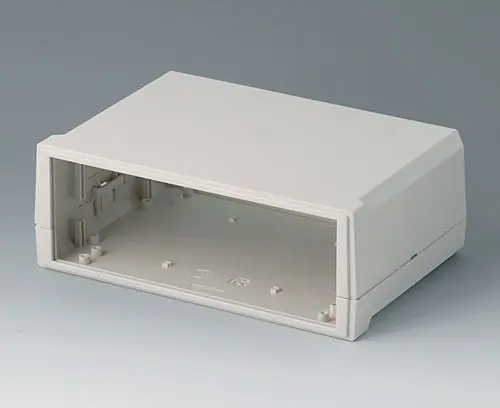

B3020127 MOTEC M, flat/high

B3020127

MOTEC M, flat/high Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Fechar

B3020127

MOTEC M, flat/high
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
205x140x75mm
IP 40

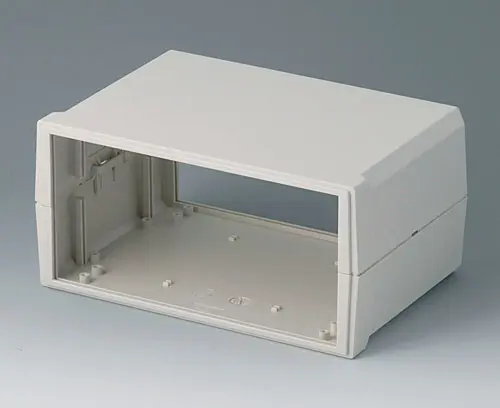

B3020137 MOTEC M, high/high

B3020137

MOTEC M, high/high Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Fechar

B3020137

MOTEC M, high/high
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
205x140x100mm
IP 40

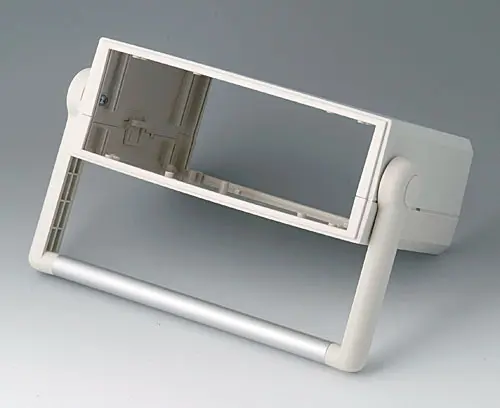

B3020147 MOTEC M, with handle bar

B3020147

MOTEC M, with handle bar Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.

Supply 1 top and base part, handle bar, 4 self-adhesive case feet

Fechar

B3020147

MOTEC M, with handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
205x140x75mm
IP 40

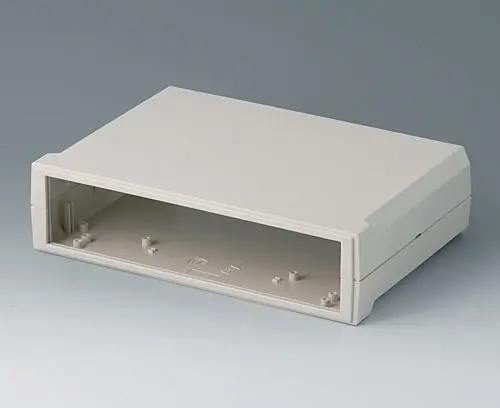

B3023117 MOTEC-L, flat/flat

B3023117

MOTEC-L, flat/flat Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Fechar

B3023117

MOTEC-L, flat/flat
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
235x165x60mm
IP 40

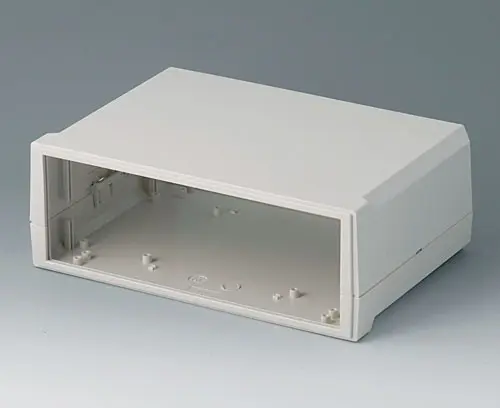

B3023127 MOTEC L, flat/high

B3023127

MOTEC L, flat/high Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Fechar

B3023127

MOTEC L, flat/high
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
235x165x85mm
IP 40

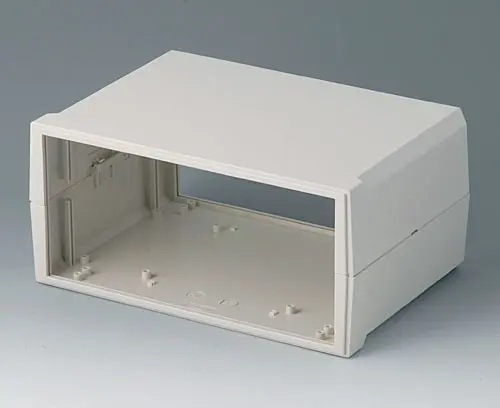

B3023137 MOTEC L, high/high

B3023137

MOTEC L, high/high Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

Fechar

B3023137

MOTEC L, high/high
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
235x165x110mm
IP 40

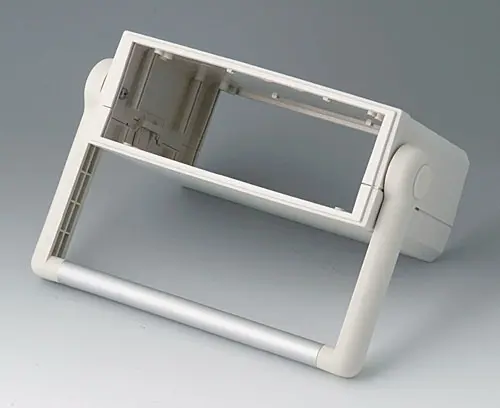

B3023147 MOTEC L, with handle bar

B3023147

MOTEC L, with handle bar Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.

Supply 1 top and base part, handle bar, 4 self-adhesive case feet

Fechar

B3023147

MOTEC L, with handle bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
235x165x85mm
IP 40
A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

Fechar

A9199008

Set of screws
Produto adicionado a sua lista

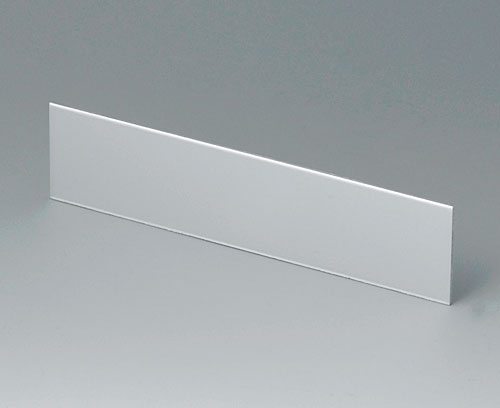

B3115100 Front / rear panel S

B3115100

Front / rear panel S Suitable for MOTEC S B3015117 with flat base and top part.

Supply 1 front panel

Fechar

B3115100

Front / rear panel S
Produto adicionado a sua lista
Aluminium
matt anodised
136x32x1,5mm

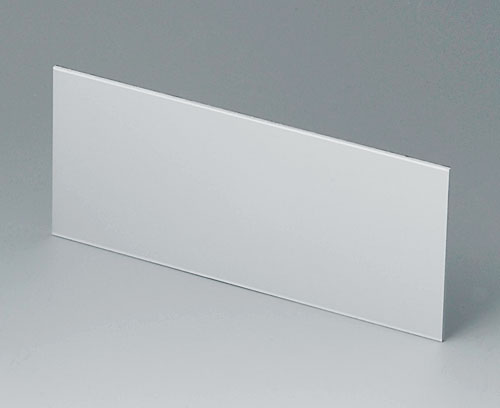

B3115110 Front / rear panel S

B3115110

Front / rear panel S Suitable for MOTEC S B3015127 with flat base and high top part.

Supply 1 front panel

Fechar

B3115110

Front / rear panel S
Produto adicionado a sua lista
Aluminium
matt anodised
136x57x1,5mm

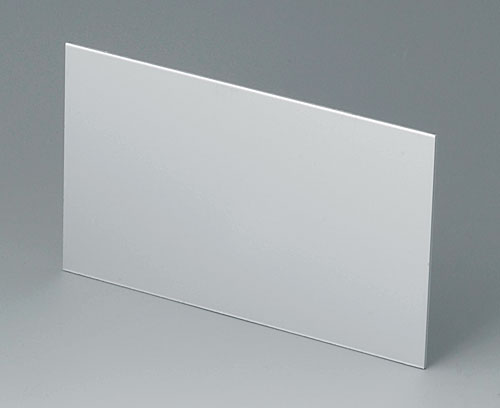

B3115120 Front / rear panel S

B3115120

Front / rear panel S Suitable for MOTEC S B3015137 with high base and top part.

Supply 1 front panel

Fechar

B3115120

Front / rear panel S
Produto adicionado a sua lista
Aluminium
matt anodised
136x82x1,5mm

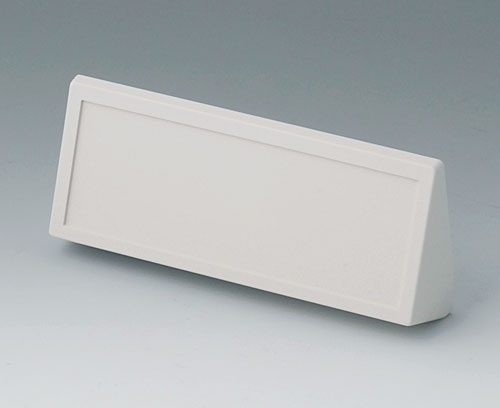

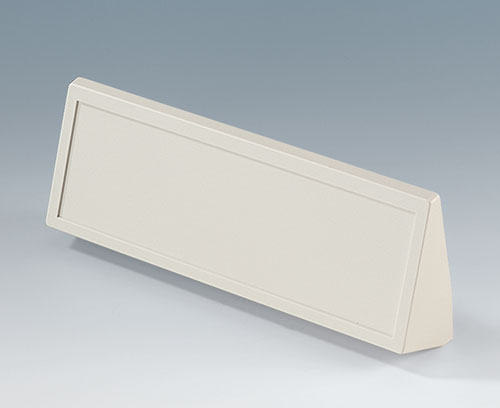

B3115167 Sloping control panel S, flat/high

B3115167

Sloping control panel S, flat/high Suitable for MOTEC S B3015127 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

Fechar

B3115167

Sloping control panel S, flat/high
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

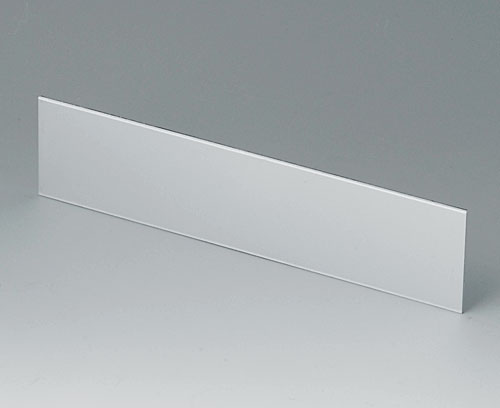

B3120100 Front / rear panel M

B3120100

Front / rear panel M Suitable for MOTEC M B3020117 with flat base and top part.

Supply 1 front panel

Fechar

B3120100

Front / rear panel M
Produto adicionado a sua lista
Aluminium
matt anodised
185x42x1,5mm

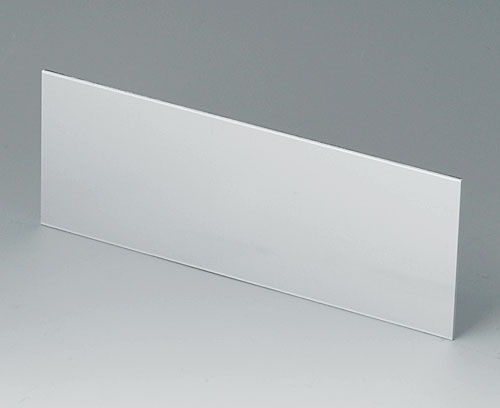

B3120110 Front / rear panel M

B3120110

Front / rear panel M Suitable for MOTEC M B3020127 and B3020147 with flat base and high top part.

Supply 1 front panel

Fechar

B3120110

Front / rear panel M
Produto adicionado a sua lista
Aluminium
matt anodised
185x67x1,5mm

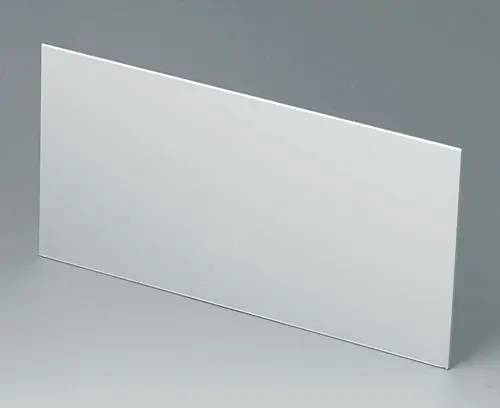

B3120120 Front / rear panel M

B3120120

Front / rear panel M Suitable for MOTEC M B3020137 with high base and top part.

Supply 1 front panel

Fechar

B3120120

Front / rear panel M
Produto adicionado a sua lista
Aluminium
matt anodised
185x92x1,5mm

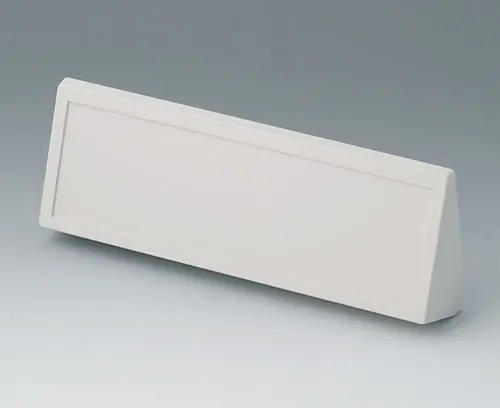

B3120167 Sloping control panel M, flat/high

B3120167

Sloping control panel M, flat/high Suitable for MOTEC M B3020127 and B3020147 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

Fechar

B3120167

Sloping control panel M, flat/high
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

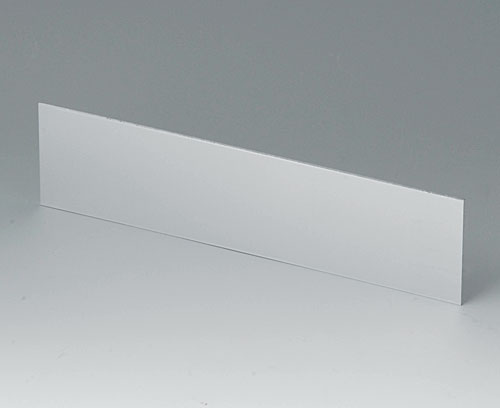

B3123100 Front / rear panel L

B3123100

Front / rear panel L Suitable for MOTEC L B3023117 with flat base and top part.

Supply 1 front panel

Fechar

B3123100

Front / rear panel L
Produto adicionado a sua lista
Aluminium
matt anodised
214x52x1,5mm

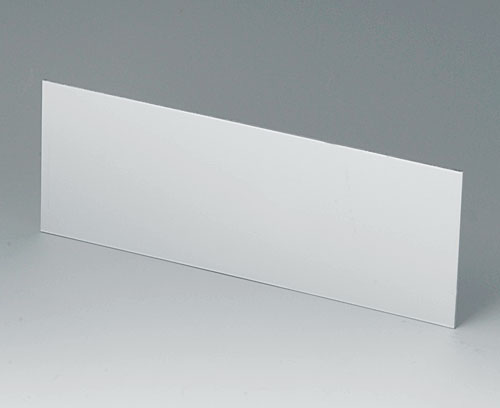

B3123110 Front / rear panel L

B3123110

Front / rear panel L Suitable for MOTEC L B3023127 and B3023147 with flat base and high top part.

Supply 1 front panel

Fechar

B3123110

Front / rear panel L
Produto adicionado a sua lista
Aluminium
matt anodised
214x77x1,5mm

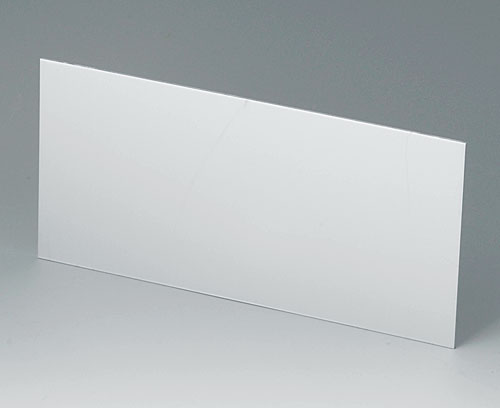

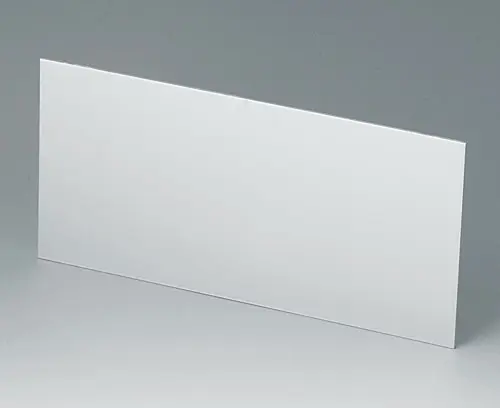

B3123120 Front / rear panel L

B3123120

Front / rear panel L Suitable for MOTEC L B3023137 with high base and top part.

Supply 1 front panel

Fechar

B3123120

Front / rear panel L
Produto adicionado a sua lista
Aluminium
matt anodised
214x102x1,5mm

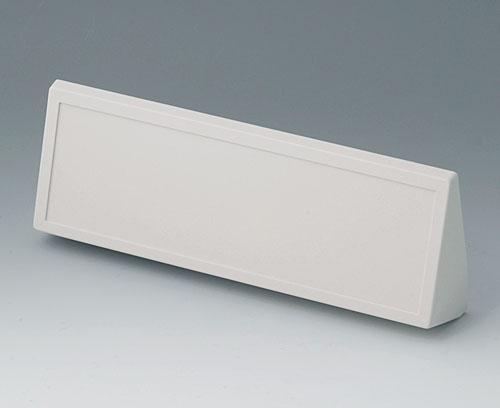

B3123167 Sloping control panel L, flat/high

B3123167

Sloping control panel L, flat/high Suitable for MOTEC L B3023127 and B3023147 with high top and flat base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

Fechar

B3123167

Sloping control panel L, flat/high
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

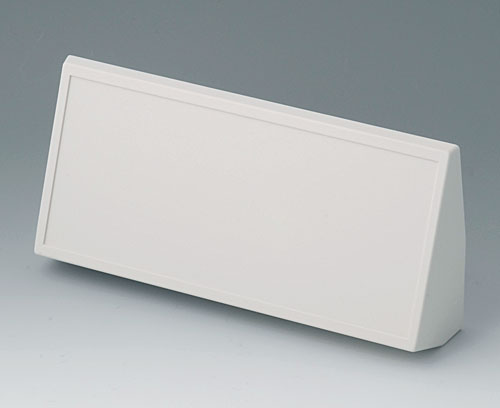

B3123177 Sloping control panel L, high/high

B3123177

Sloping control panel L, high/high Suitable for MOTEC L B3023137 with high top and base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

Fechar

B3123177

Sloping control panel L, high/high
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

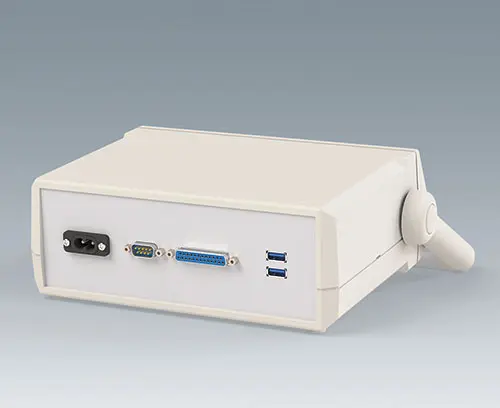

Opções para customizadas Motec

O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
