ROBUST-BOX
Scroll

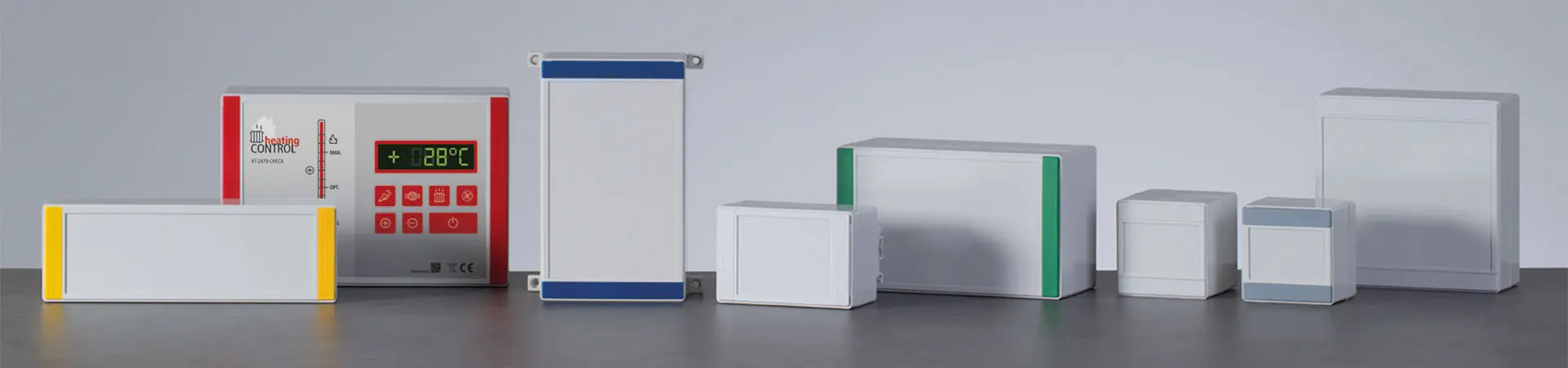

Robust-Box

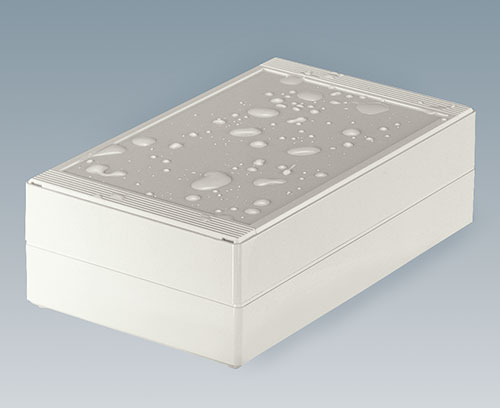

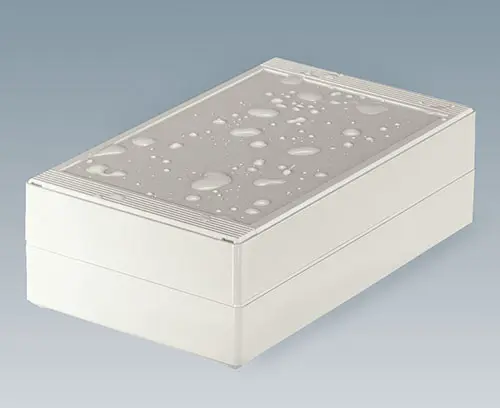

Caixas Universais IP 66

Os dois lados da caixa ROBUST-BOX são equipados com linhas pré-moldadas. Como resultado, os usuários podem escolher se a parte lisa ou a parte alta da caixa devem ser usadas como parte inferior.

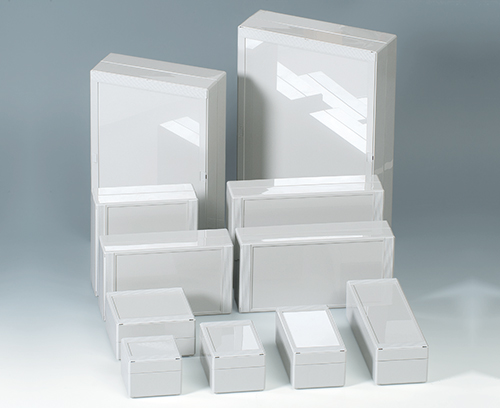

  • versáteis, caixas seladas em onze dimensões básicas com diferentes alturas e dois materiais padrão
  • ABS (UL 94 HB), aprovada como uma caixa para terminal de montagem
  • PC (UL 94 HB), caixa sólida e robusta, com alta resistência ao calor para uso em ambientes agressivos

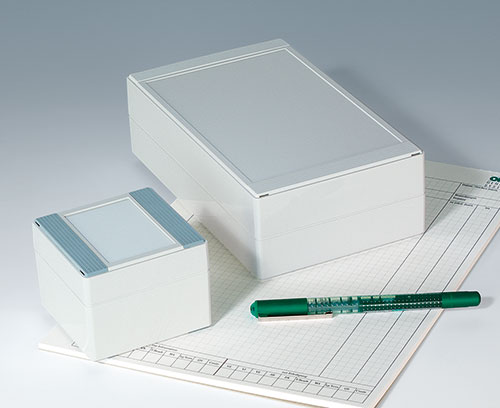

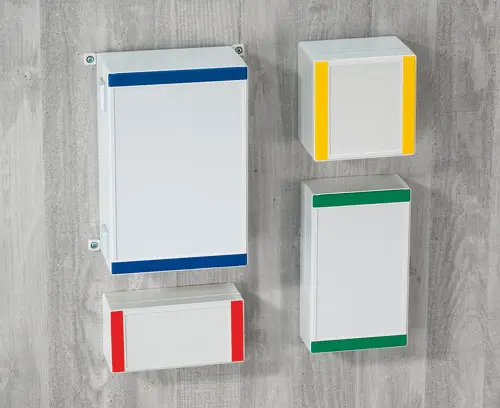

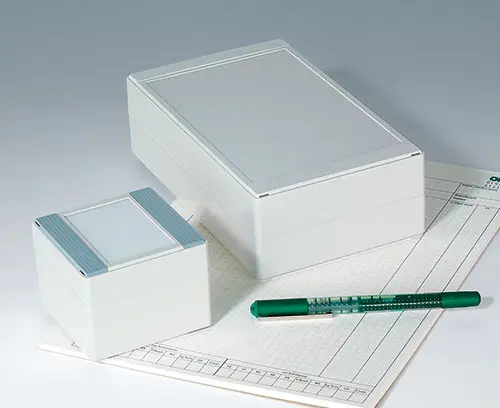

  • uso portátil, mesa de trabalho ou caixa de montagem em parede e também como um caixa trilho DIN (com acessórios para trilho DIN)

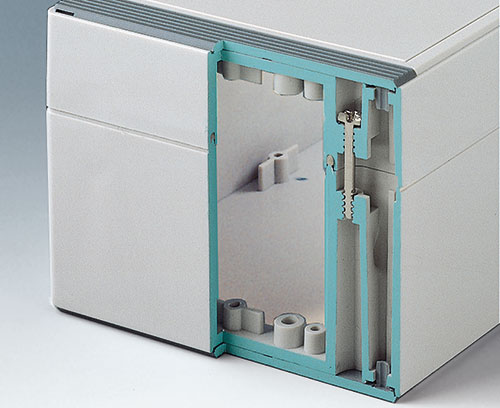

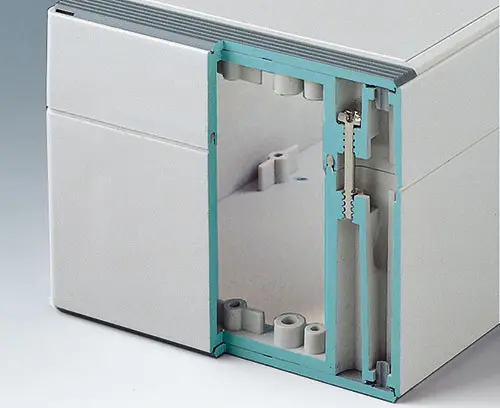

  • fácil montagem; as partes da caixa podem ser usadas como parte superior ou base de secção
  • ambas as partes, com área operacional rebaixada para proteger os teclados de membranas ou etiquetas dos produtos

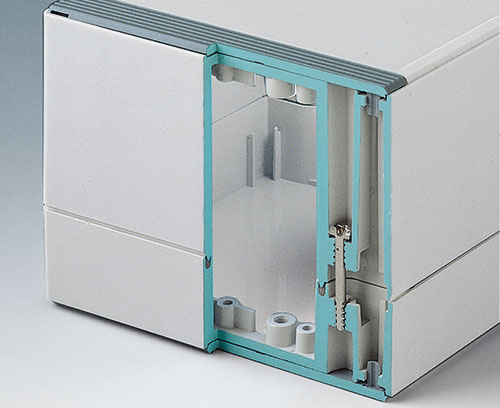

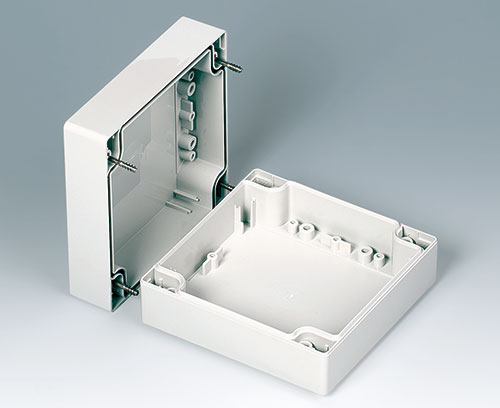

  • as tampas de fixação estão fora da área selada; os parafusos de fixação são à prova de ferrugem e acessados pela parte superior
  • parafusos de eixos ocultos para montagem em parede ou suportes de montagem na parede externa

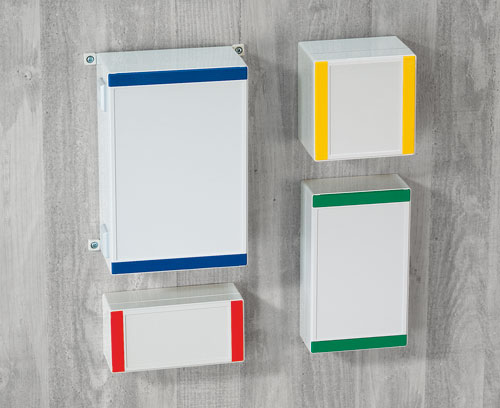

  • tiras coloridas de cobertura para a codificação (como alternativa para a versão padrão em cinza claro)

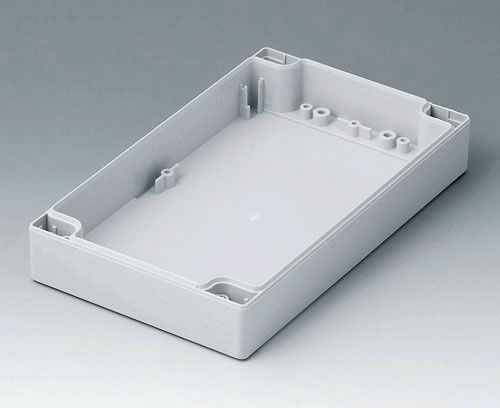

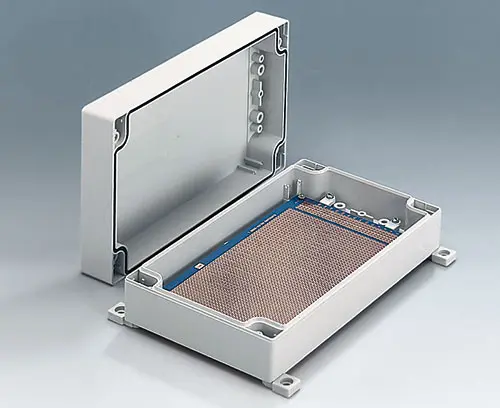

  • pilares internos para fixação PCB e componentes
  • extensa gama de acessórios: pés da caixa, dobradiça, elementos de fixação para trilho DIN, suporte PCB para a montagem de unidades PCB pré-montadas etc.
Generate PDF

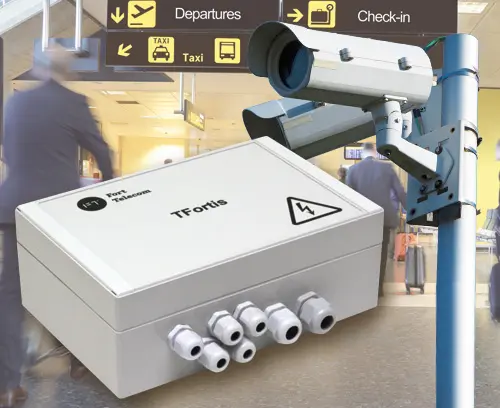

  • Exemplos de Aplicação

Application fields

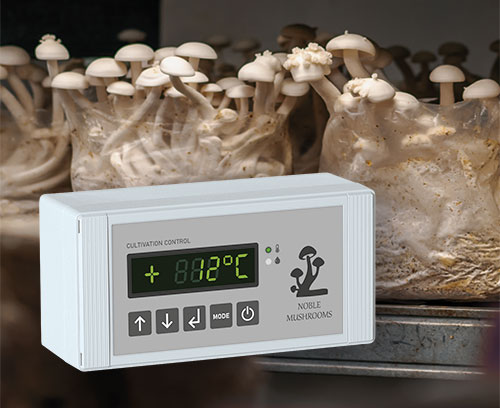

  • Essas robustas caixas podem ser usadas para ambas as instalações elétricas e eletrônicas. Por exemplo aquecimento, climatização, ventilação, construção de máquinas e equipamentos de construção.
  • Além disso, botão de pressão controlador, sensores e equipamento de medição.
  • Selecione Versões
  • Acessórios
  • Customizadas

Selecione a versão desejada / o(s) tamanho(s) desejado(s) ou clique no botão „Selecionar todos os produtos“ no final da lista de produtos.

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produto adicionado a sua lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Produto adicionado a sua lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0308132

Self-tapping screw 3 x 8 mm (T10)
Produto adicionado a sua lista
Stainless steel
C2200801 Cover strips 80, without holes

C2200801

Cover strips 80, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Fechar

C2200801

Cover strips 80, without holes
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035
C2201082 Cover strips 80

C2201082

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2201082

Cover strips 80
Produto adicionado a sua lista
PC (UL 94 HB)
silver grey RAL 7001
C2201084 Cover strips 80

C2201084

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2201084

Cover strips 80
Produto adicionado a sua lista
PC (UL 94 HB)
red RAL 3020
C2201085 Cover strips 80

C2201085

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2201085

Cover strips 80
Produto adicionado a sua lista
PC (UL 94 HB)
yellow RAL 1023
C2201086 Cover strips 80

C2201086

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2201086

Cover strips 80
Produto adicionado a sua lista
PC (UL 94 HB)
green RAL 6024
C2201087 Cover strips 80

C2201087

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2201087

Cover strips 80
Produto adicionado a sua lista
PC (UL 94 HB)
blue RAL 5017

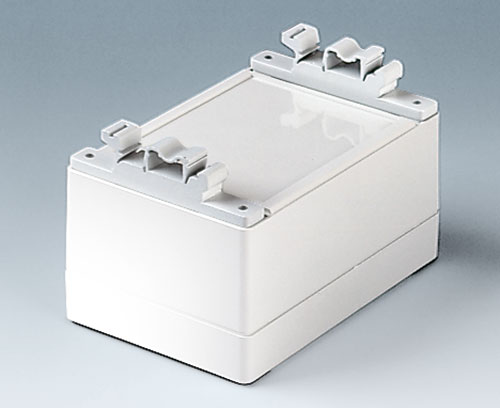

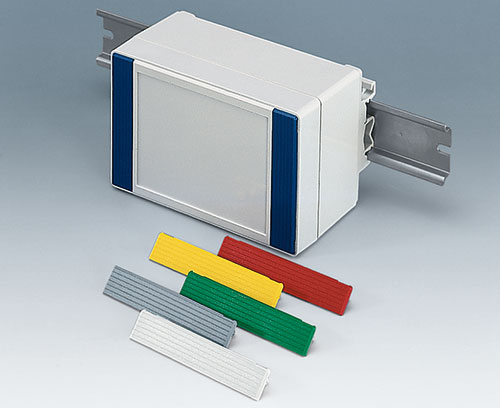

C2201088 Fastening elements to DIN-Rails

C2201088

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60 715 TH35. For ROBUST-BOX width 80.

Supply 2 fastening elements, assembly kit

Fechar

C2201088

Fastening elements to DIN-Rails
Produto adicionado a sua lista
PA 6
light grey RAL 7035
C2201201 Cover strips 120, without holes

C2201201

Cover strips 120, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Fechar

C2201201

Cover strips 120, without holes
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035
C2201601 Cover strips 160, without holes

C2201601

Cover strips 160, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Fechar

C2201601

Cover strips 160, without holes
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035
C2202001 Cover strips 200, without holes

C2202001

Cover strips 200, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Fechar

C2202001

Cover strips 200, without holes
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035
C2202401 Cover strips 240, without holes

C2202401

Cover strips 240, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Fechar

C2202401

Cover strips 240, without holes
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035
C2203123 Cover strips 120

C2203123

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2203123

Cover strips 120
Produto adicionado a sua lista
PC (UL 94 HB)
silver grey RAL 7001
C2203124 Cover strips 120

C2203124

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2203124

Cover strips 120
Produto adicionado a sua lista
PC (UL 94 HB)
red RAL 3020
C2203125 Cover strips 120

C2203125

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2203125

Cover strips 120
Produto adicionado a sua lista
PC (UL 94 HB)
yellow RAL 1023
C2203126 Cover strips 120

C2203126

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2203126

Cover strips 120
Produto adicionado a sua lista
PC (UL 94 HB)
green RAL 6024
C2203127 Cover strips 120

C2203127

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2203127

Cover strips 120
Produto adicionado a sua lista
PC (UL 94 HB)
blue RAL 5017
C2203128 Fastening elements to DIN-Rails

C2203128

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 120.

Supply 2 fastening elements, assembly kit

Fechar

C2203128

Fastening elements to DIN-Rails
Produto adicionado a sua lista
PA 6
light grey RAL 7035
C2204162 Cover strips 160

C2204162

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2204162

Cover strips 160
Produto adicionado a sua lista
PC (UL 94 HB)
silver grey RAL 7001
C2204164 Cover strips 160

C2204164

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2204164

Cover strips 160
Produto adicionado a sua lista
PC (UL 94 HB)
red RAL 3020
C2204165 Cover strips 160

C2204165

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2204165

Cover strips 160
Produto adicionado a sua lista
PC (UL 94 HB)
yellow RAL 1023
C2204166 Cover strips 160

C2204166

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2204166

Cover strips 160
Produto adicionado a sua lista
PC (UL 94 HB)
green RAL 6024
C2204167 Cover strips 160

C2204167

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Fechar

C2204167

Cover strips 160
Produto adicionado a sua lista
PC (UL 94 HB)
blue RAL 5017
C2204168 Fastening elements to DIN-Rails

C2204168

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 160.

Supply 2 fastening elements, assembly kit

Fechar

C2204168

Fastening elements to DIN-Rails
Produto adicionado a sua lista
PA 6
light grey RAL 7035
C2210801 Cover strips 80, with holes

C2210801

Cover strips 80, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Fechar

C2210801

Cover strips 80, with holes
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035
C2211201 Cover strips 120, with holes

C2211201

Cover strips 120, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Fechar

C2211201

Cover strips 120, with holes
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035
C2211601 Cover strips 160, with holes

C2211601

Cover strips 160, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Fechar

C2211601

Cover strips 160, with holes
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035

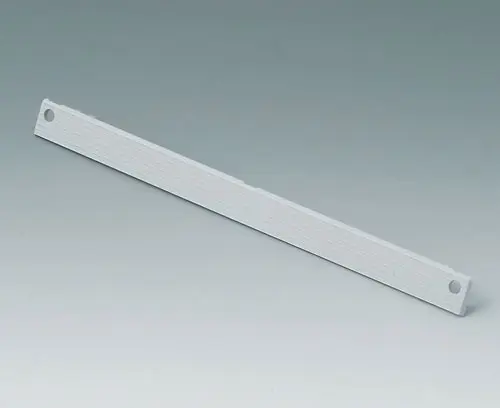

C2212001 Cover strips 200, with holes

C2212001

Cover strips 200, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Fechar

C2212001

Cover strips 200, with holes
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035
C2212401 Cover strips 240, with holes

C2212401

Cover strips 240, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Fechar

C2212401

Cover strips 240, with holes
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035

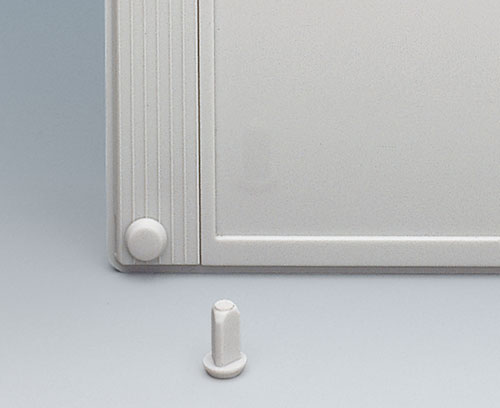

C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Fechar

C2299018

Case feet
Produto adicionado a sua lista
TPE (UL 94 HB)

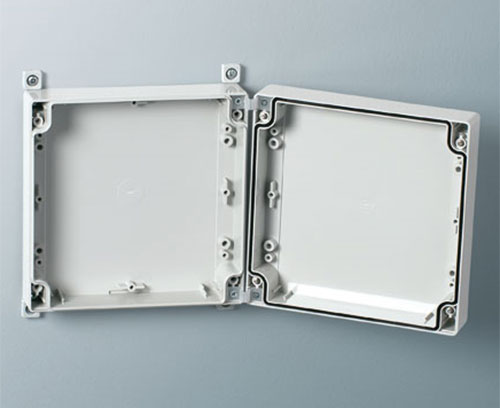

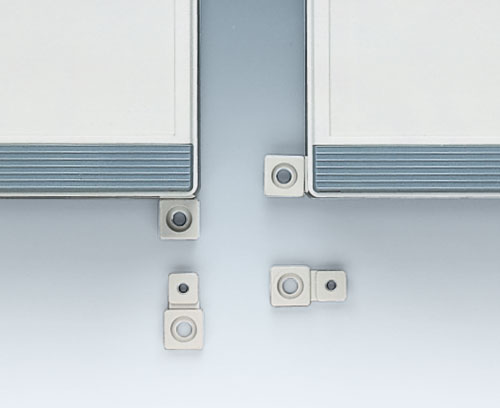

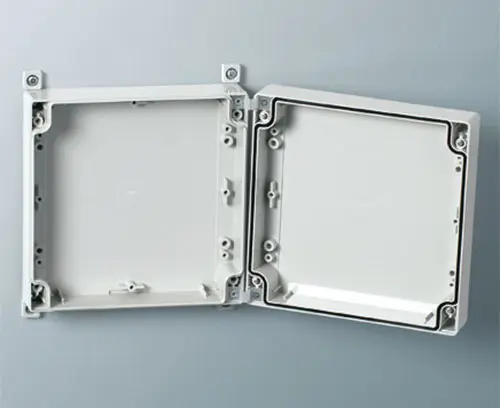

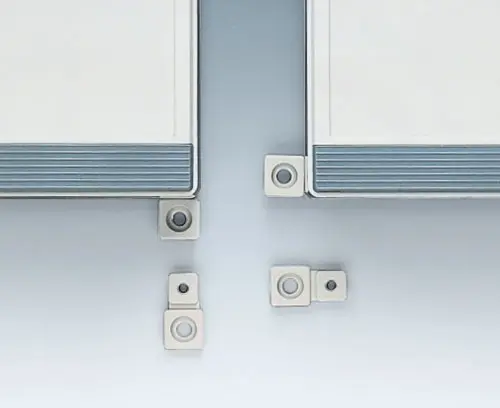

C2299028 Wall mounting brackets

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

Fechar

C2299028

Wall mounting brackets
Produto adicionado a sua lista
PA 6 (UL 94 HB)
light grey RAL 7035

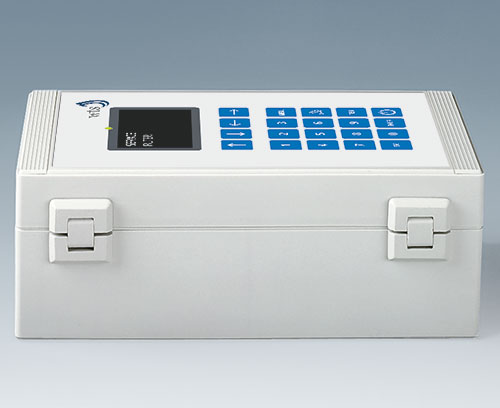

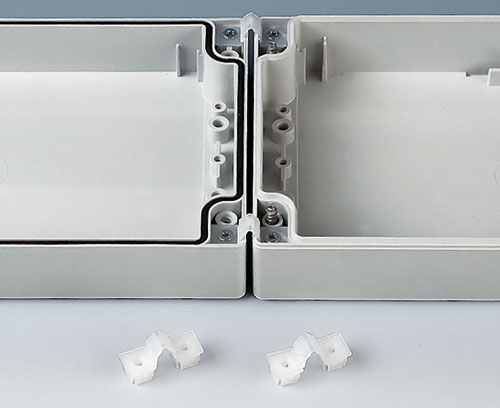

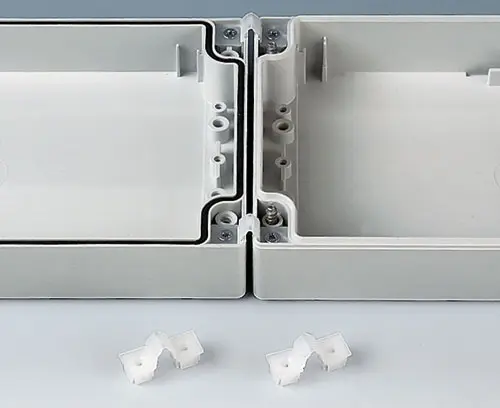

C2299031 Securing hinge for the cover

C2299031

Securing hinge for the cover For securing the cover (top part) when opening the enclosure.

Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 200 x 300 mm and 240 x 360 mm.

Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.

Supply 2 securing hinges

Fechar

C2299031

Securing hinge for the cover
Produto adicionado a sua lista
PP
natural-coloured

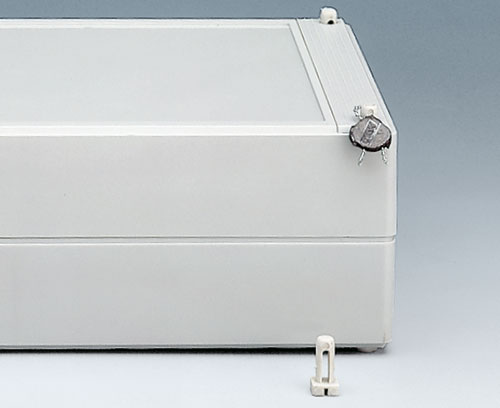

C2299042 Security kit width 120

C2299042

Security kit width 120 For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

Fechar

C2299042

Security kit width 120
Produto adicionado a sua lista
PA 6 (UL 94 HB)
light grey RAL 7035
C2299046 Security kit width 160

C2299046

Security kit width 160 For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

Fechar

C2299046

Security kit width 160
Produto adicionado a sua lista
PA 6 (UL 94 HB)
light grey RAL 7035
C2299048 Security kit width 80

C2299048

Security kit width 80 For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

Fechar

C2299048

Security kit width 80
Produto adicionado a sua lista
PA 6 (UL 94 HB)
light grey RAL 7035
C2299058 PCB support

C2299058

PCB support For mounting pre-assembled PCB units. Suitable for: 200 x 120 mm for Eurocard size and all other cases width 120 mm.

Supply 2 PCB support, assembly kit (threaded bushes, screws)

Fechar

C2299058

PCB support
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035
C2299068 PCB support

C2299068

PCB support For mounting pre-assembled PCB units. Suitable for ROBUST-BOXES width 80 mm and width 160 mm.

Supply 4 PCB support, assembly kit (threaded bushes, screws)

Fechar

C2299068

PCB support
Produto adicionado a sua lista
PC (UL 94 HB)
light grey RAL 7035
C2299088 Hinge

C2299088

Hinge For cases: 120, 160, 200 and 240 mm length or width. Additional machining (drilling) required.

Supply 2 complete hinges

Fechar

C2299088

Hinge
Produto adicionado a sua lista
PA 6
light grey RAL 7035
C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Fechar

C2306917

Pressure equalisation element M6x0.75
Produto adicionado a sua lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Fechar

C2310917

Pressure equalisation element M10x1
Produto adicionado a sua lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2320137

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Fechar

C2320137

Cable grommet
Produto adicionado a sua lista
EPDM
light grey RAL 7035
IP 67

Opções para customizadas Robust-Box

O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
