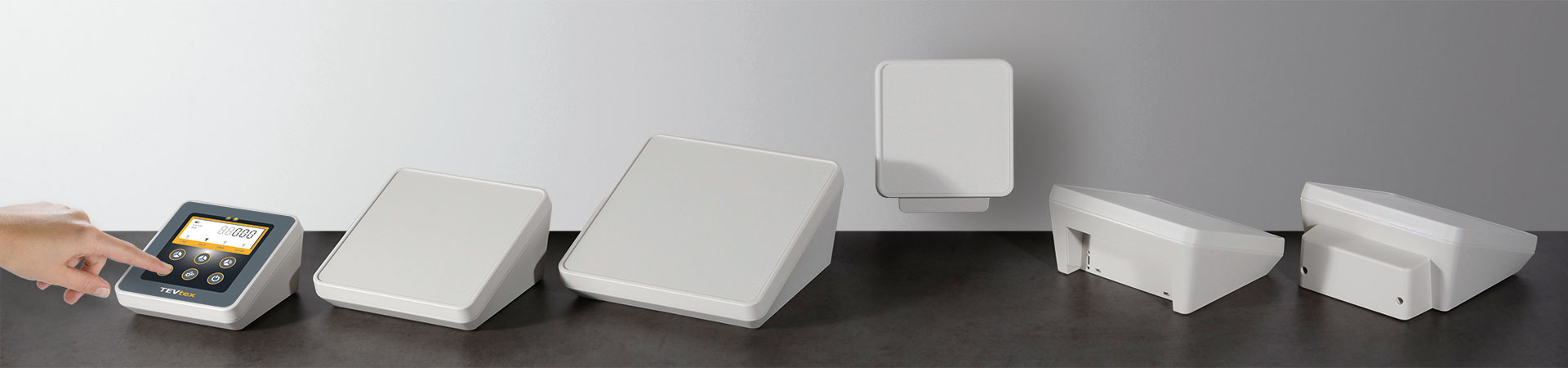

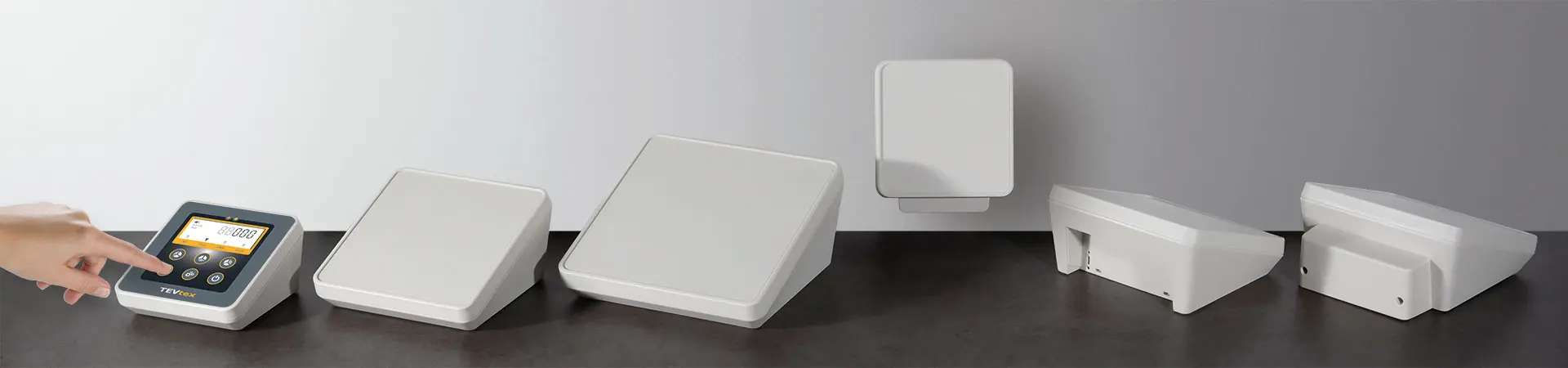

PROTEC gabinete de parede e de mesa

Protec

Comandar em quadrado

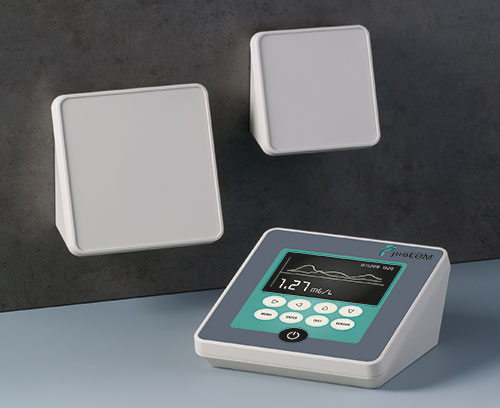

O PROTEC está identificado por uma forma básica quadrada com contornos suaves. Assim, o gabinete de parede e de mesa é ideal para modernas aplicações eletrônicas na área interior e também exterior.

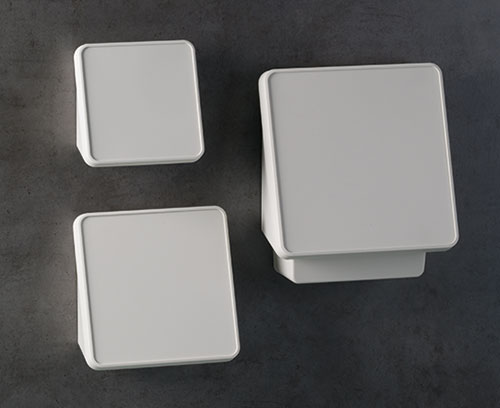

  • três tamanhos 140 / 180 / 220, respectivamente nas seguintes versões:

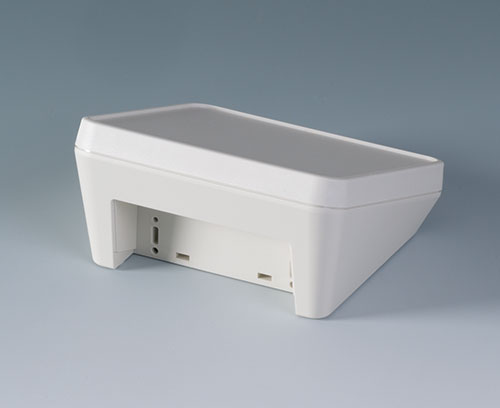

    Modelo I

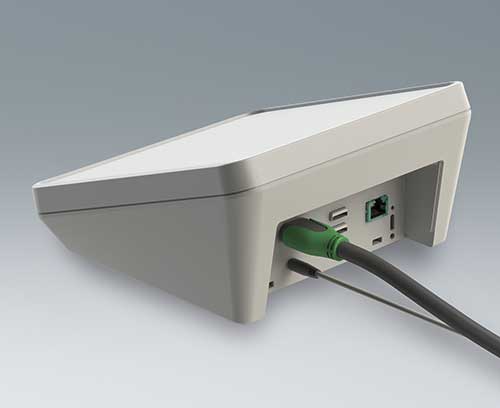

    Dispõe de uma área recuada destinada à montagem e à proteção de interfaces e linhas de alimentação.

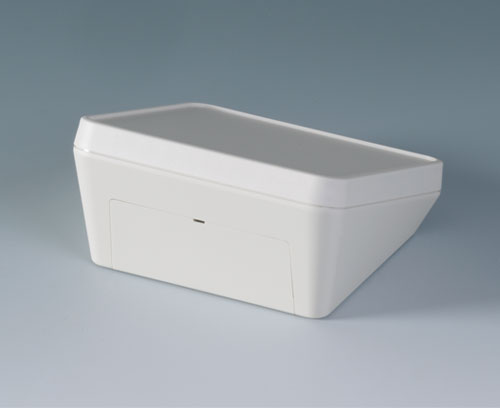

    Modelo II
    Além da parte superior e da parte inferior, o volume de fornecimento integra uma tampa destinada à cobertura alinhada da superfície de interface.

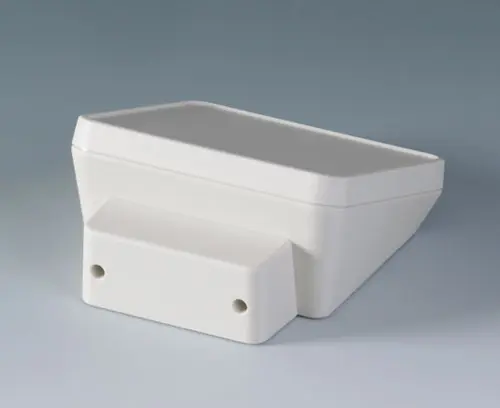

    Modelo III
    Devido à tampa bem alta, existe espaço adicional para a montagem de peças.

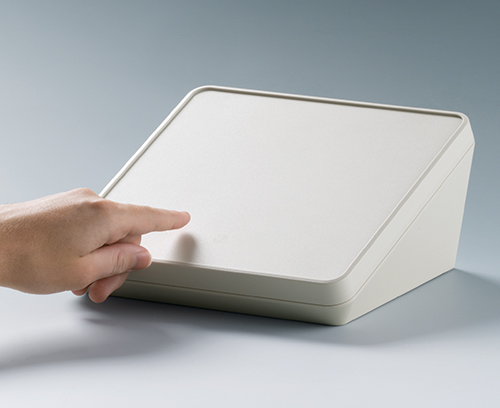

  • superfície operacional ergonomicamente inclinada 20°

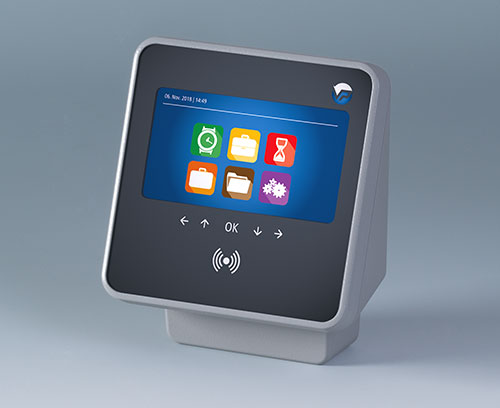

  • painel de operação aprofundado para proteção do teclado de membrana
  • união roscada completa fora do campo de visão
  • material V0 de alta qualidade em branco acinzentado (RAL 9002) e classe de proteção opcional IP 65 (selagem como acessório) para campos de aplicação robustos

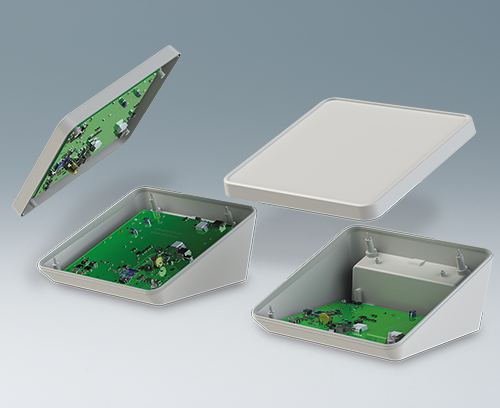

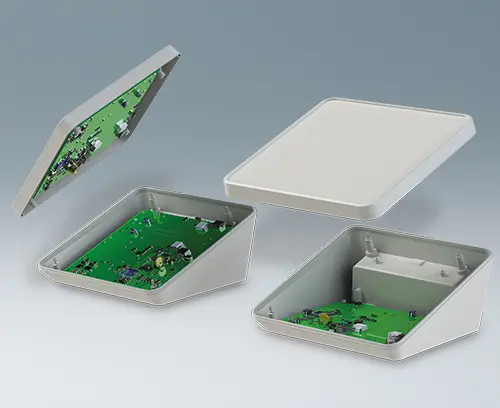

  • espaço eletrônico estanque com 3 níveis de platinas, muito espaço para componentes

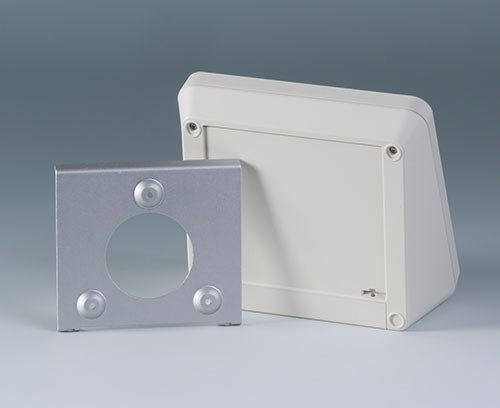

  • montagem mural oculta e alinhada com dispositivo de remoção (suporte de parede no programa de acessórios)
  • parafusos inoxidáveis com acionamento seguro Torx
  • pés de borracha conferem uma boa estabilidade aos dispositivos de mesa
  • Video

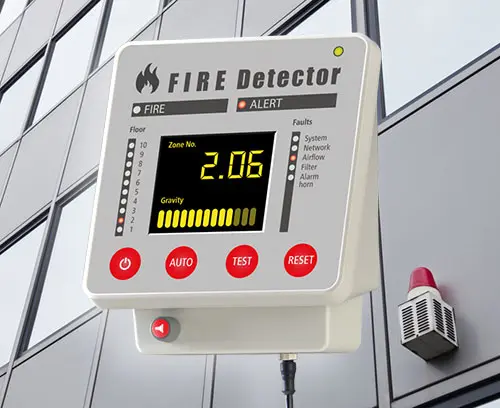

  • Exemplos de Aplicação

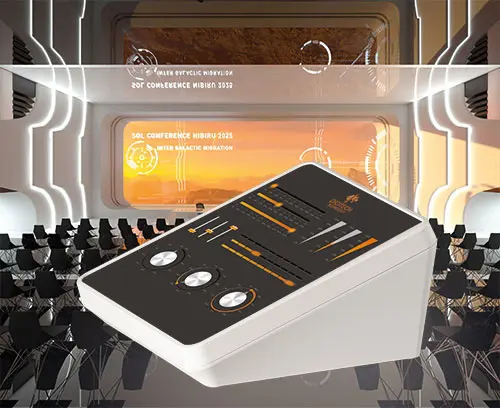

Application fields

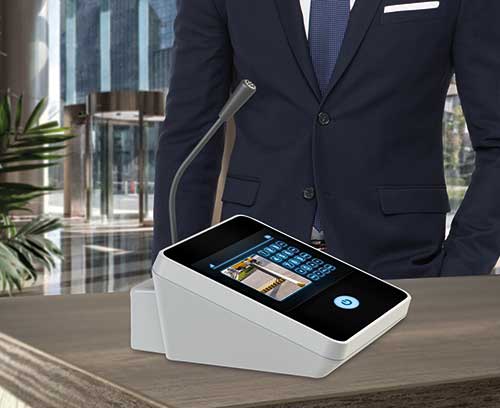

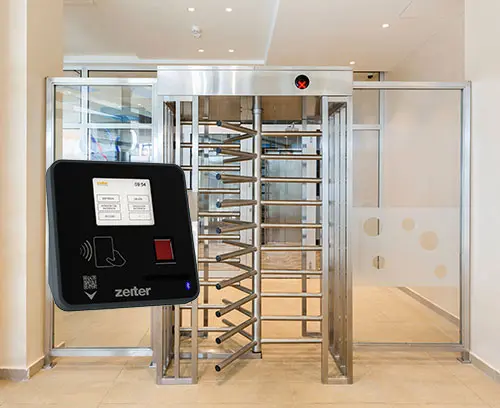

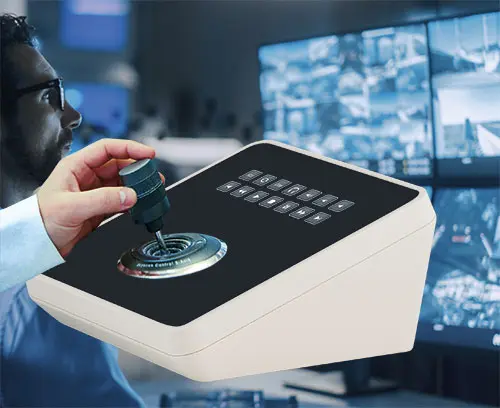

  • Dispositivos de vigilância, controles de acesso
  • Distemas de coleta de dados

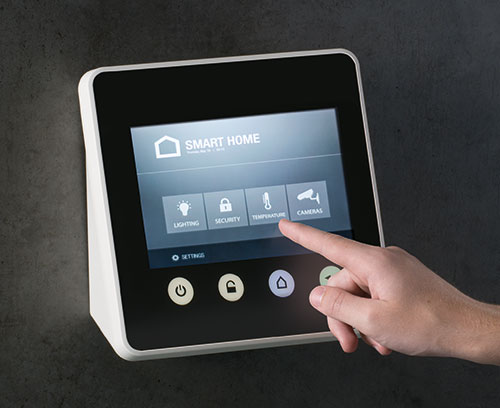

  • Tecnologia predial, centrais de comando
  • Internet das Coisas/Internet Industrial das Coisas
  • Fábrica inteligente
  • Indústria 4.0
  • Equipamentos periféricos
  • Tecnologia de medição e regulação
  • Engenharia médica, Health Care
  • Navegue na Lista Completa
  • Acessórios
  • Customizadas
B4414107 PROTEC 140, Vers. I

B4414107

PROTEC 140, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Fechar

B4414107

PROTEC 140, Vers. I
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
140x140x76mm
IP 65 opt.

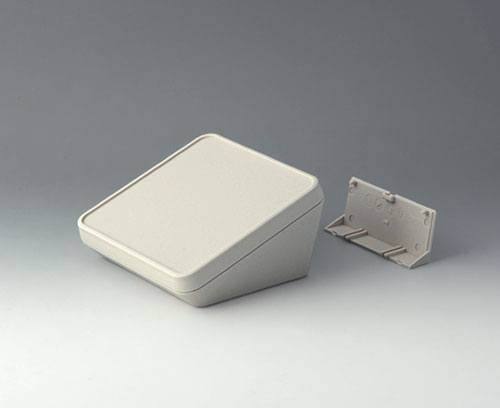

B4414207 PROTEC 140, Vers. II

B4414207

PROTEC 140, Vers. II Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Fechar

B4414207

PROTEC 140, Vers. II
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
140x140x76mm
IP 65 opt.
B4414307 PROTEC 140, Vers. III

B4414307

PROTEC 140, Vers. III Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Fechar

B4414307

PROTEC 140, Vers. III
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
140x160x76mm
IP 65 opt.
B4418107 PROTEC 180, Vers. I

B4418107

PROTEC 180, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Fechar

B4418107

PROTEC 180, Vers. I
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
180x180x92mm
IP 65 opt.
B4418207 PROTEC 180, Vers. II

B4418207

PROTEC 180, Vers. II Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Fechar

B4418207

PROTEC 180, Vers. II
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
180x180x92mm
IP 65 opt.
B4418307 PROTEC 180, Vers. III

B4418307

PROTEC 180, Vers. III Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Fechar

B4418307

PROTEC 180, Vers. III
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
180x201x92mm
IP 65 opt.

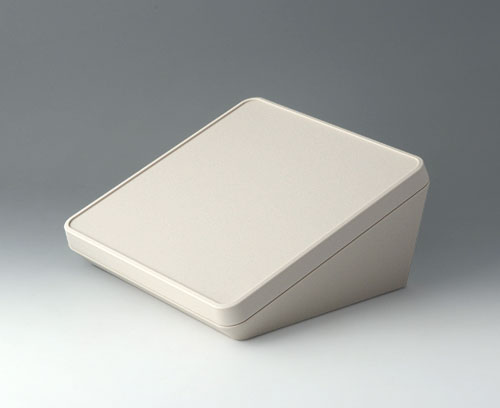

B4422107 PROTEC 220, Vers. I

B4422107

PROTEC 220, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Fechar

B4422107

PROTEC 220, Vers. I
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
220x220x108mm
IP 65 opt.

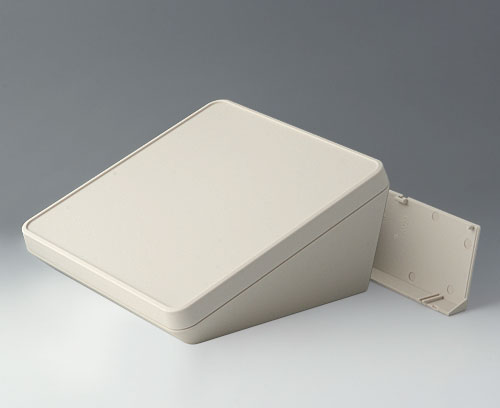

B4422207 PROTEC 220, Vers. II

B4422207

PROTEC 220, Vers. II Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Fechar

B4422207

PROTEC 220, Vers. II
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
220x220x108mm
IP 65 opt.
B4422307 PROTEC 220, Vers. III

B4422307

PROTEC 220, Vers. III Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Fechar

B4422307

PROTEC 220, Vers. III
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
220x243x108mm
IP 65 opt.
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Fechar

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produto adicionado a sua lista
A0325060 Self-tapping screw 3 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastening PCBs, boards and components as well as for assembling case.

Supply 1 self-tapping screw

Fechar

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Produto adicionado a sua lista
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Fechar

A0399T08

Torx T8 screwdriver
Produto adicionado a sua lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Fechar

A0399T10

Torx T10 screwdriver
Produto adicionado a sua lista
B4514030 Sealing 140

B4514030

Sealing 140

Application: for increasing the protection class, of PROTEC 140. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Fechar

B4514030

Sealing 140
Produto adicionado a sua lista
B4514101 Wall suspension element 140

B4514101

Wall suspension element 140

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Fechar

B4514101

Wall suspension element 140
Produto adicionado a sua lista
Aluminium
B4518030 Sealing 180

B4518030

Sealing 180

Application: for increasing the protection class, of PROTEC 180. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Fechar

B4518030

Sealing 180
Produto adicionado a sua lista

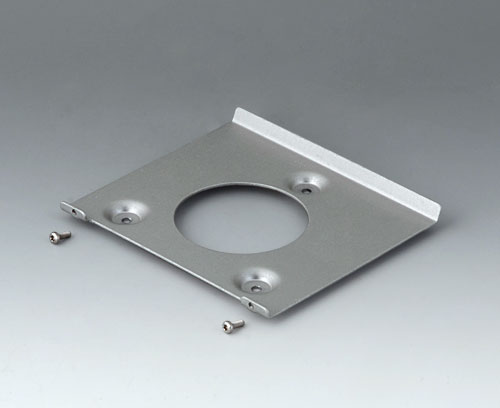

B4518101 Wall suspension element 180

B4518101

Wall suspension element 180

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Fechar

B4518101

Wall suspension element 180
Produto adicionado a sua lista
Aluminium

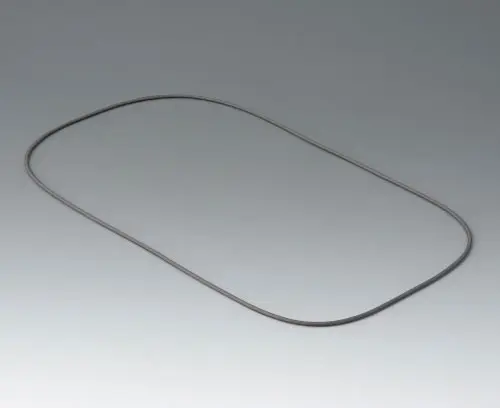

B4522030 Sealing 220

B4522030

Sealing 220

Application: for increasing the protection class, of PROTEC 220. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Fechar

B4522030

Sealing 220
Produto adicionado a sua lista

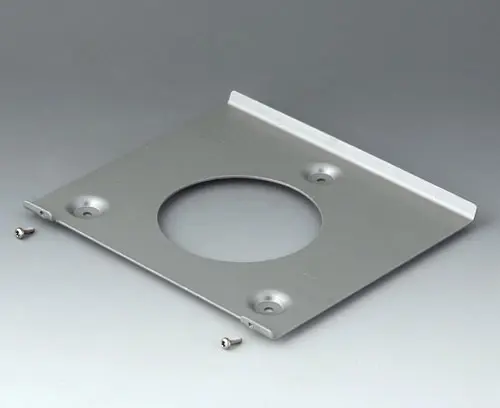

B4522101 Wall suspension element 220

B4522101

Wall suspension element 220

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Fechar

B4522101

Wall suspension element 220
Produto adicionado a sua lista
Aluminium

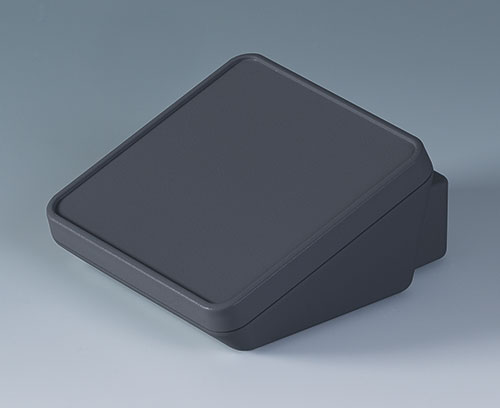

Opções para customizadas Protec

O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
