Acessórios para Caixas
Connect
Caixa para a conexão ideal

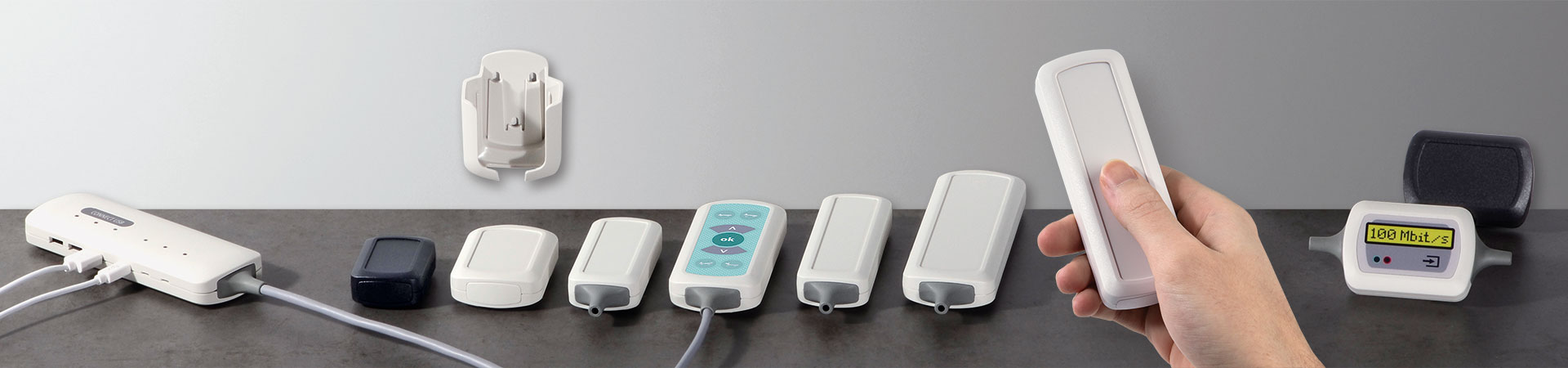

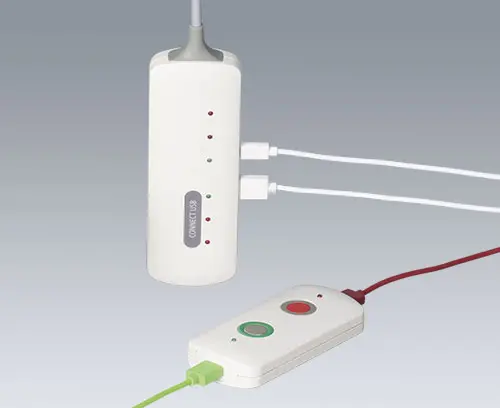

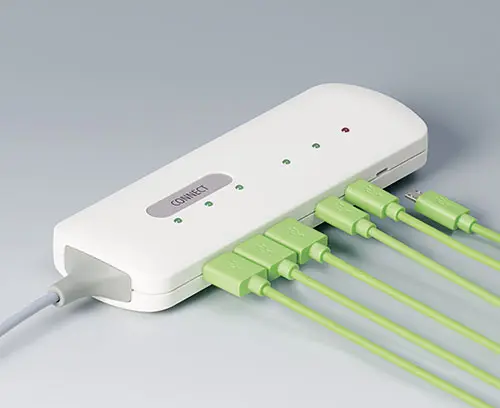

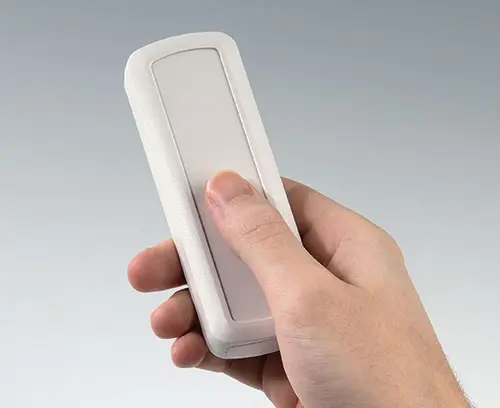

A série de gabinetes CONNECT é predestinada para aplicações com cabos, bem como para aplicações com funcionamento com bateria.

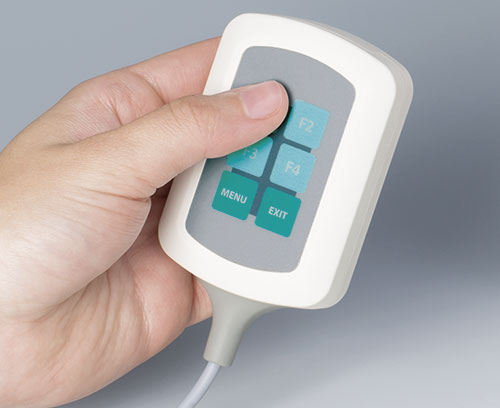

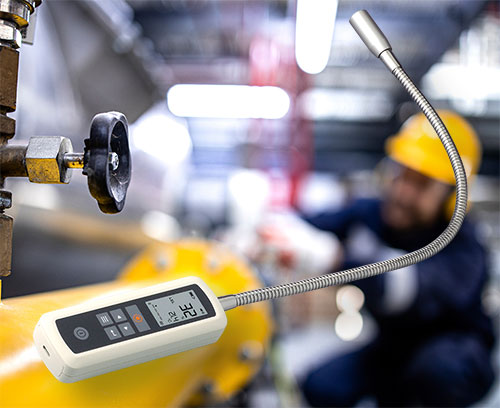

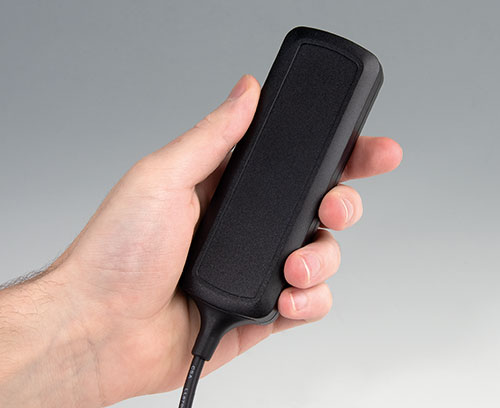

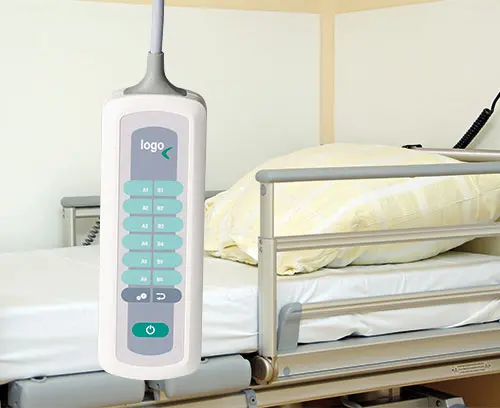

- Novo: CONNECT S com uma largura de gabinete de somente 42 mm especialmente apropriado para pegar, ideal para comandos à distância, aparelhos de medição, instrumentos de ensaio etc., ou como gabinete de interface sem/com conexão por cabo
- dois lados de gabinete, convexo e achatado com um painel com área recessada
- os dois lados encaixam um no outro sem a necessidade de parafusos, isso economiza tempo de montagem e você também pode escolher o lado da frente do dispositivo
- recortes em ambas as extremidades; completam a caixa, peças finais e/ou prensa-cabos podem ser montados

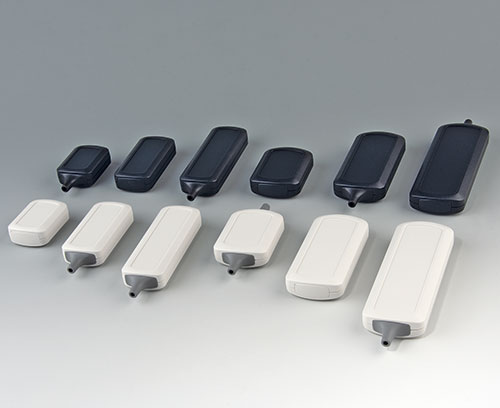

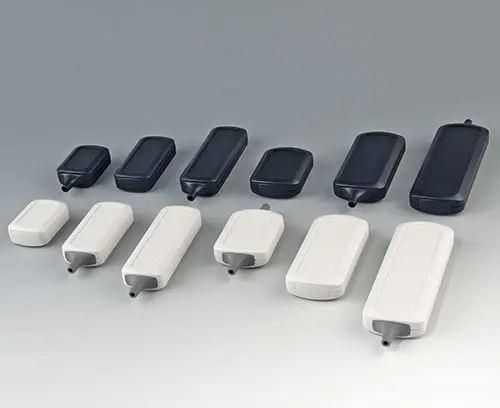

- CONNECT S & M respectivamente em três comprimentos de gabinetes com vista a um ajuste exato à aplicação
- os lados da caixa e as partes finais são feitas de material V-0 estabilizado aos raios UV
- classe de proteção IP 40 (com peças finais)

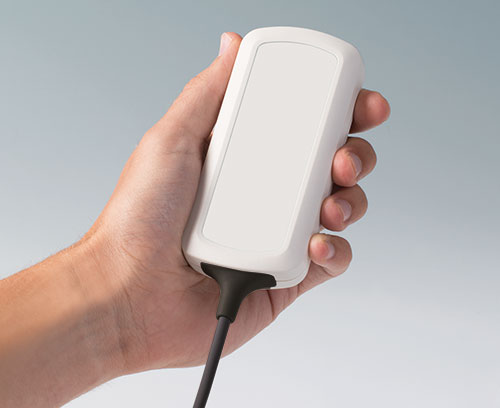

- aliviador de tensão integrado com kit de prensa cabos

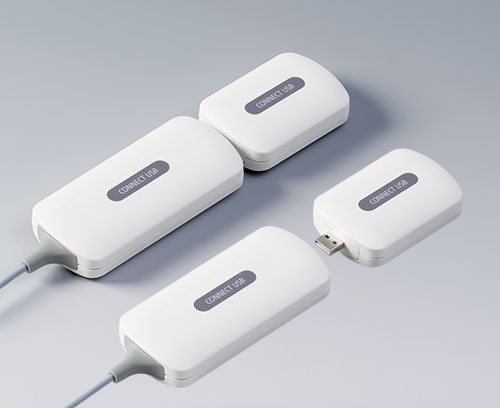

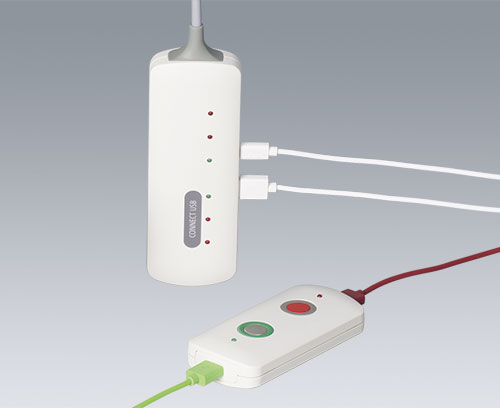

- espaço suficiente para a instalação de displays compactos, LEDs e conectores USB e sondas de medição
- superfície rebaixada para proteger o teclado de membrana, decoração folha ou etiqueta

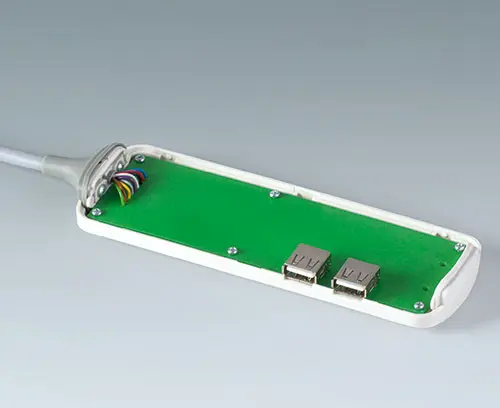

- pilares de fixação para PCBs e componentes na caixa plana

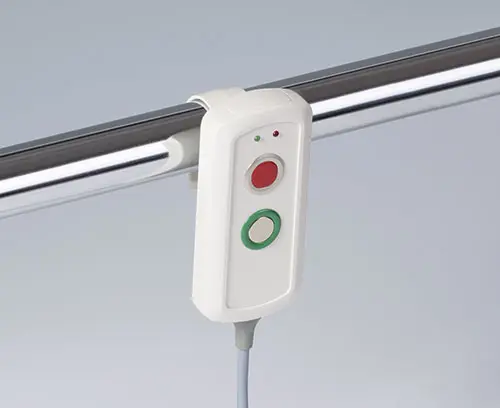

- fixando abraçadeira para tubos redondos até ø 32 mm disponíveis como acessórios (CONNECT S: 90/120 mm de comprimento, CONNECT M: 116/156 mm de comprimento)

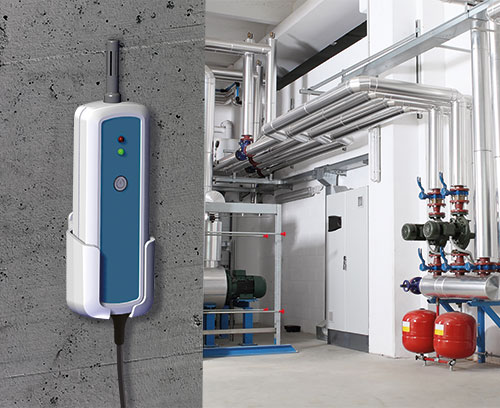

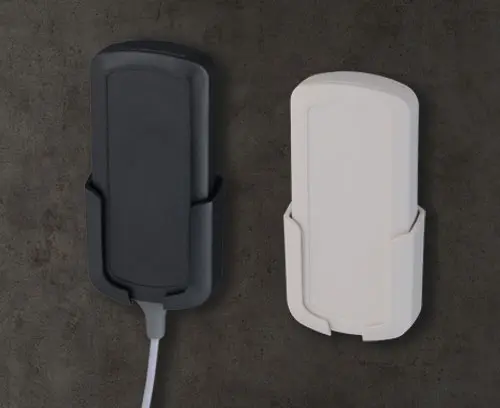

- suporte para colocação segura nomeadamente na parede, como acessório
Learn more!
Read our blog posts on connect View blog posts >>
Application Fields

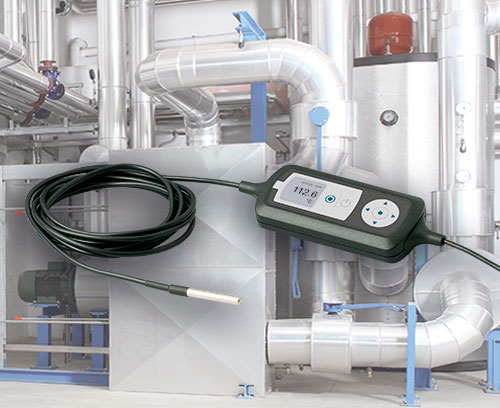

Sistemas de engenharia de dados, tecnologia de rede, sistemas de serviços de construção, engenharia de segurança, IoT/ IIoT, aplicações médicas e terapêuticas, instrumentos de análise em laboratório, técnica de medição, nomeadamente detectores com sonda de medição, sistemas/instrumentos de teste, registrador de dados na tecnologia ambiental, sistema de sensores, etc.

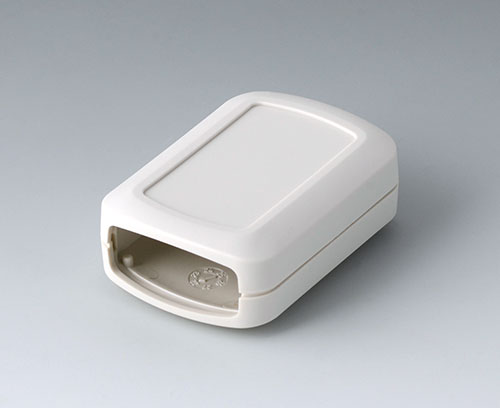

B2822107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2822107
CONNECT SProduto adicionado a sua lista
off-white RAL 9002
60x42x22mm

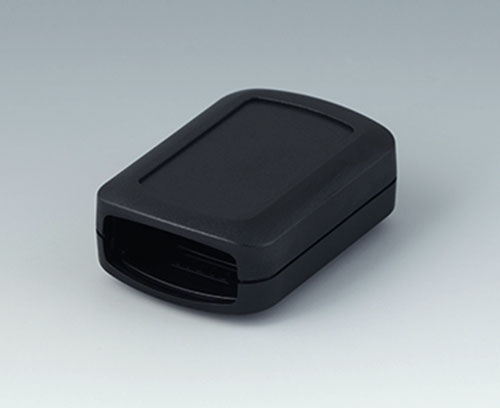

B2822109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2822109
CONNECT SProduto adicionado a sua lista
black RAL 9005
60x42x22mm

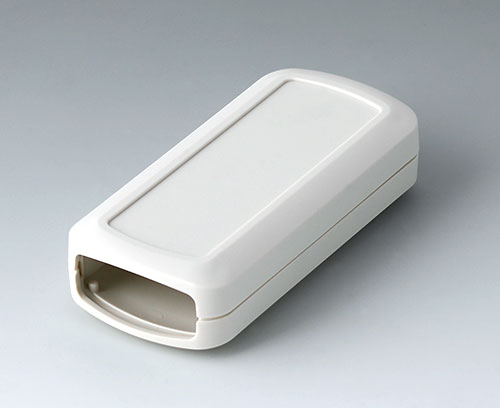

B2823107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2823107
CONNECT SProduto adicionado a sua lista
off-white RAL 9002
90x42x22mm

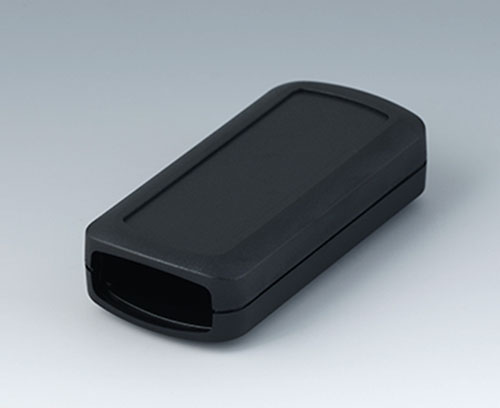

B2823109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2823109
CONNECT SProduto adicionado a sua lista
black RAL 9005
90x42x22mm

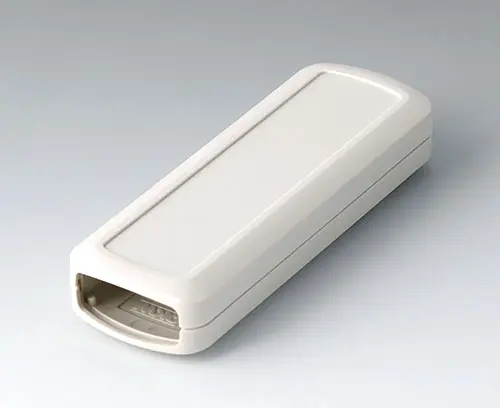

B2824107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2824107
CONNECT SProduto adicionado a sua lista
off-white RAL 9002
120x42x22mm

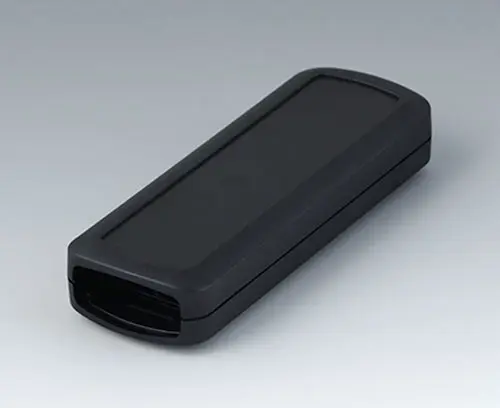

B2824109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2824109
CONNECT SProduto adicionado a sua lista
black RAL 9005
120x42x22mm

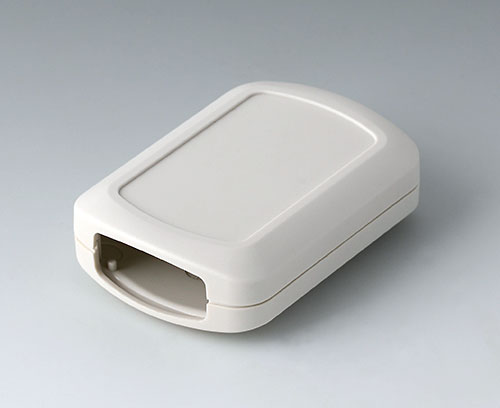

B2832107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2832107
CONNECT MProduto adicionado a sua lista
off-white RAL 9002
76x54x22mm

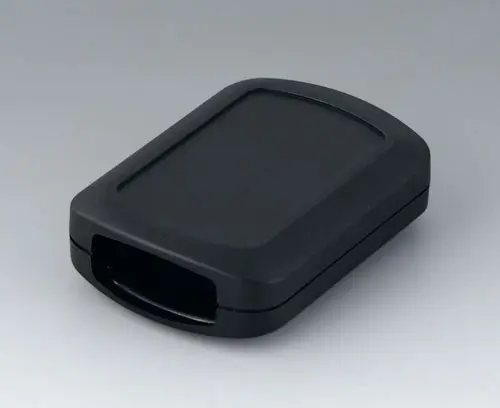

B2832109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2832109
CONNECT MProduto adicionado a sua lista
black RAL 9005
76x54x22mm
B2833107

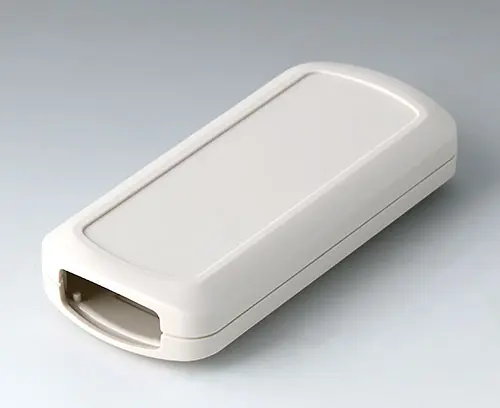

CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2833107
CONNECT MProduto adicionado a sua lista
off-white RAL 9002
116x54x22mm

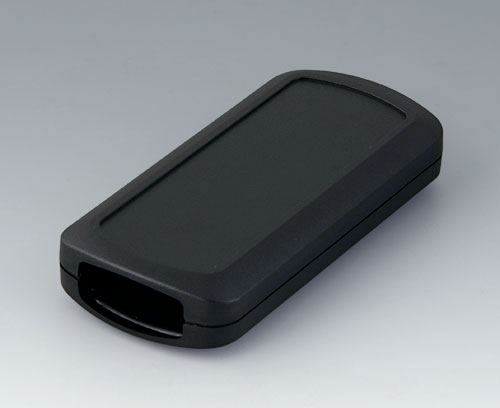

B2833109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2833109
CONNECT MProduto adicionado a sua lista
black RAL 9005
116x54x22mm

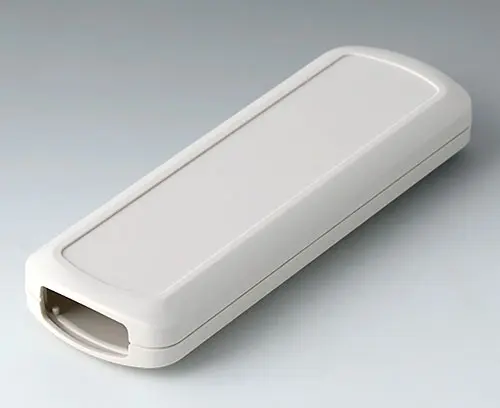

B2834107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2834107
CONNECT MProduto adicionado a sua lista
off-white RAL 9002
156x54x22mm

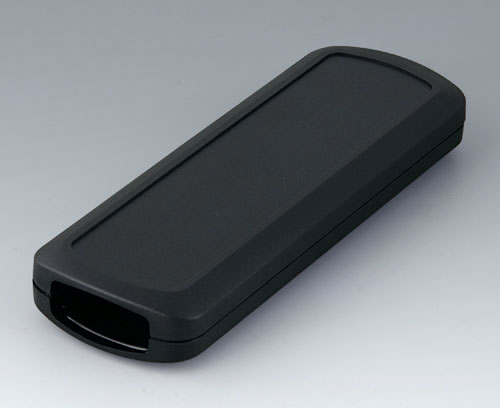

B2834109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2834109
CONNECT MProduto adicionado a sua lista
black RAL 9005
156x54x22mm
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Produto adicionado a sua lista
A9167027

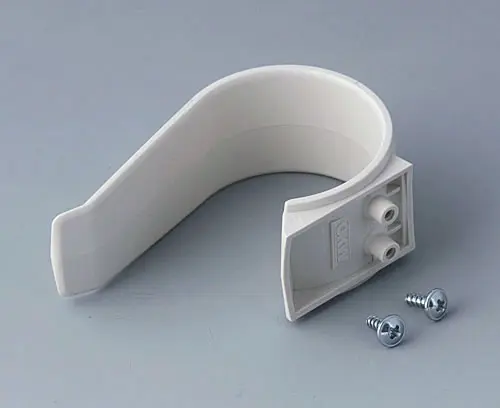

Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167027
Holding clampProduto adicionado a sua lista
off-white RAL 9002

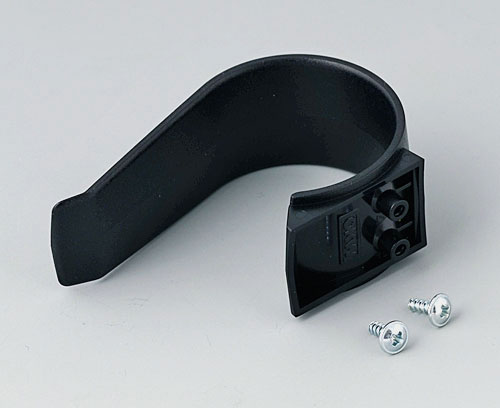

A9167029
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167029
Holding clampProduto adicionado a sua lista
black RAL 9005

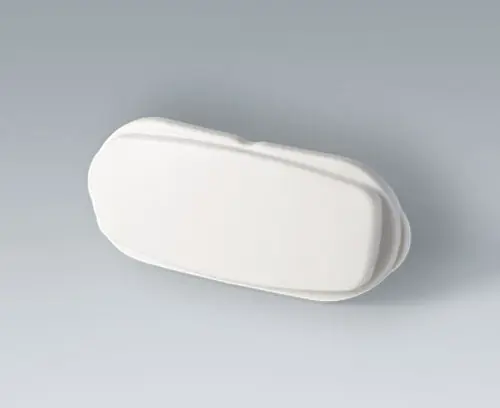

B2811207
End part
Universal plug-in component.
Supply 1 piece
B2811207
End partProduto adicionado a sua lista
off-white RAL 9002

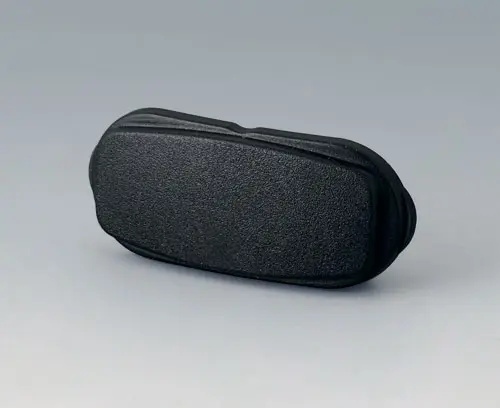

B2811209
End part
Universal plug-in component.
Supply 1 piece
B2811209
End partProduto adicionado a sua lista
black RAL 9005

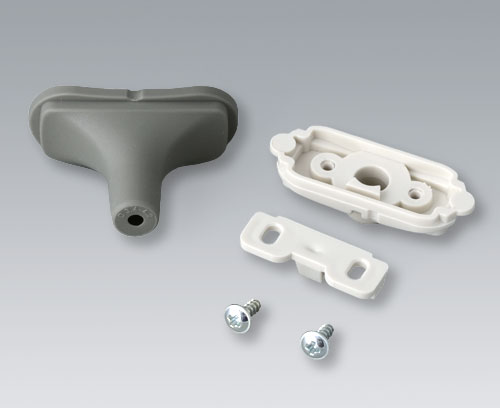

B2911308
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911308
Cable gland kit, 3.4 - 4.2Produto adicionado a sua lista
volcano

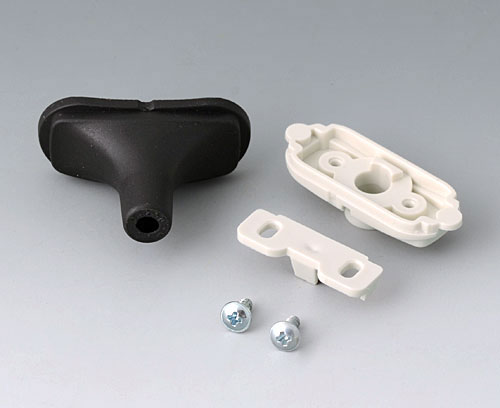

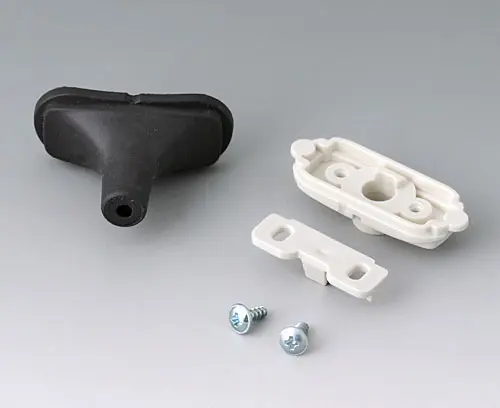

B2911309
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911309
Cable gland kit, 3.4 - 4.2Produto adicionado a sua lista
black RAL 9005
B2911318
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911318
Cable gland kit, 4.2 - 5.0Produto adicionado a sua lista
volcano
B2911319
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911319
Cable gland kit, 4.2 - 5.0Produto adicionado a sua lista
black RAL 9005

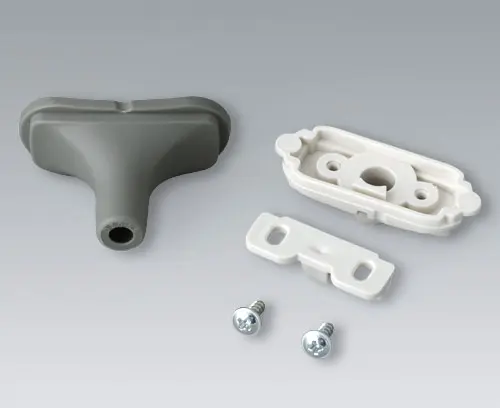

B2911328
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911328
Cable gland kit, 5.0 - 5.9Produto adicionado a sua lista
volcano

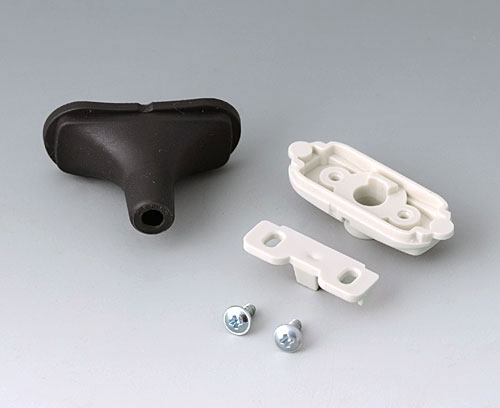

B2911329
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911329
Cable gland kit, 5.0 - 5.9Produto adicionado a sua lista
black RAL 9005
B2921507

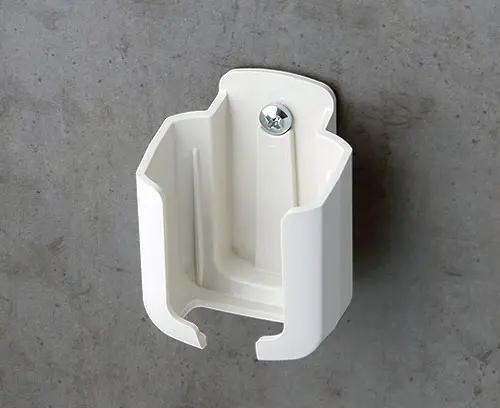

Holder S

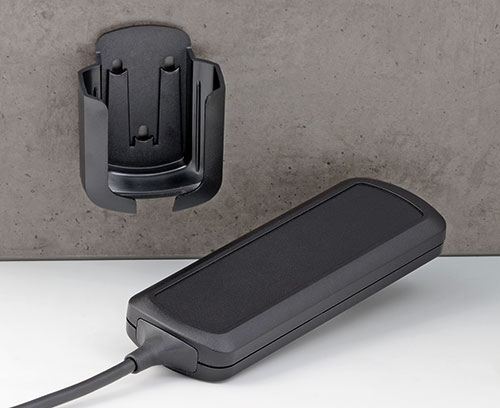

Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2921507
Holder SProduto adicionado a sua lista
off-white RAL 9002

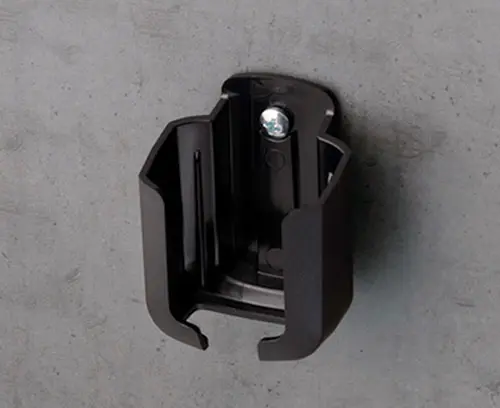

B2921509
Holder S
Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2921509
Holder SProduto adicionado a sua lista
black RAL 9005
B2931507

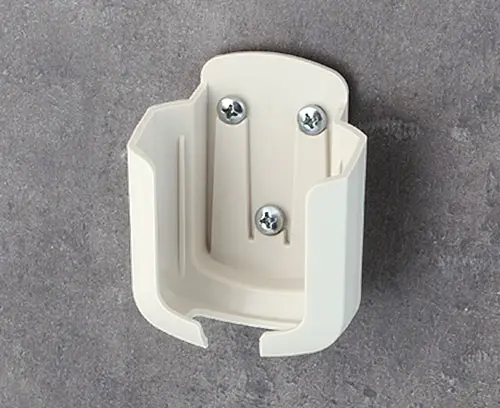

Holder M
Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2931507
Holder MProduto adicionado a sua lista
off-white RAL 9002

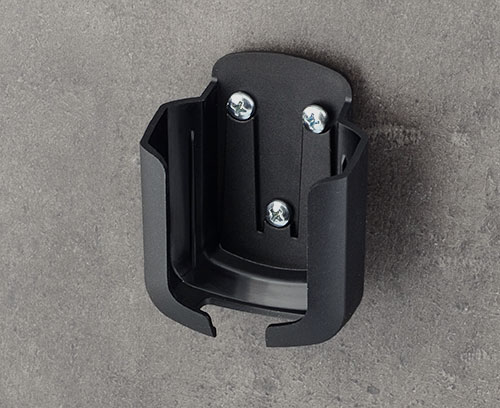

B2931509
Holder M
Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2931509
Holder MProduto adicionado a sua lista
black RAL 9005
Opções para customizadas Connect
O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
