Compart. de bateria e suportes e botão p/ baterias de célula

Compart. de bateria e suportes e botão p/ baterias de célula

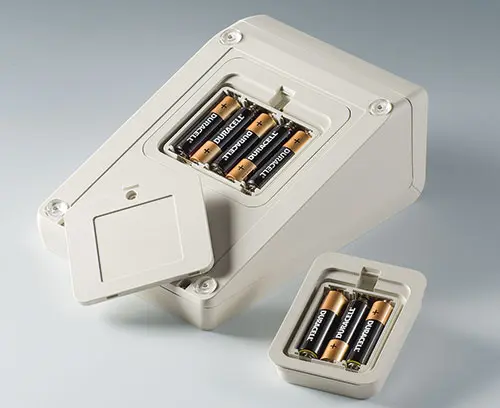

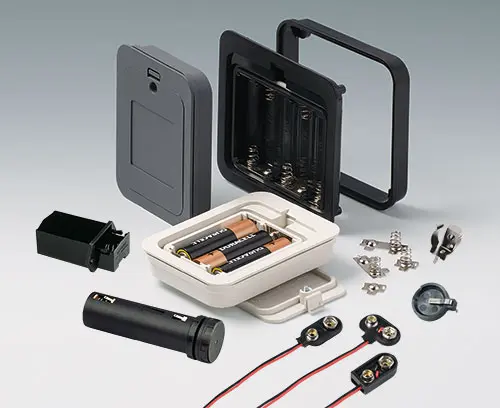

  • Compartimentos de bateria universal e suportes para pilhas tamanho AAA, AA, C e 9V para instalação direta em painéis frontais ou paredes da caixa.

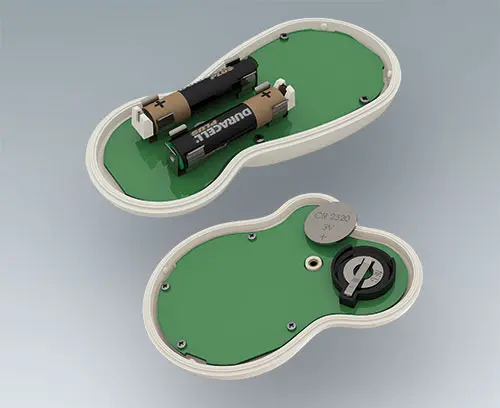

  • Além disso, os titulares da célula do botão para instalação em PCBs.
  • Navegue na Lista Completa
  • Customizadas
A9156001 Battery holder, 2 x AA

A9156001

Battery holder, 2 x AA For 2 x 1.5 V mignon-cells (AA). Contacts suitable for plug-in contact (sep. asseccory).

Supply 1 battery holder

Fechar

A9156001

Battery holder, 2 x AA
Produto adicionado a sua lista
PP
black RAL 9005

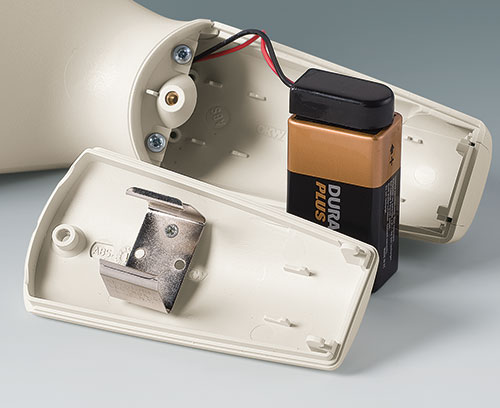

A9156003 Battery holder, 1 x 9 V (PP3)

A9156003

Battery holder, 1 x 9 V (PP3) For 1 x 9 V flat battery (PP3).

Supply 1 battery holder, 2 self-tapping screws

Fechar

A9156003

Battery holder, 1 x 9 V (PP3)
Produto adicionado a sua lista
Steel
nickel-plated
A9174004 Battery compartment, 4 x AA

A9174004

Battery compartment, 4 x AA Application: for 4 x 1.5 V mignon-cells (AA).

Suitable for COMTEC 150/200, DATEC-CONTROL S, DATEC-MOBIL-BOX M, ERGO-CASE M/L and HAND-TERMINAL M. As an alternative to battery compartment kit A9345217.

Supply 1 battery compartment, assembly kit

Fechar

A9174004

Battery compartment, 4 x AA
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9193037 Button cell holder, Ø 20 mm

A9193037

Button cell holder, Ø 20 mm For button cells with Ø 20 mm, e.g. CR2016, CR2025, CR2032. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Fechar

A9193037

Button cell holder, Ø 20 mm
Produto adicionado a sua lista
A9193038 Button cell holder, Ø 23 mm

A9193038

Button cell holder, Ø 23 mm For button cells with Ø 23 mm, e.g. CR2320, CR2325, CR2354. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Fechar

A9193038

Button cell holder, Ø 23 mm
Produto adicionado a sua lista
A9193039 Button cell holder, Ø 12 mm

A9193039

Button cell holder, Ø 12 mm For button cells with Ø 12 mm, e.g. CR1216, CR1220. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Fechar

A9193039

Button cell holder, Ø 12 mm
Produto adicionado a sua lista
A9193040 Button cell holder, Ø 16 mm

A9193040

Button cell holder, Ø 16 mm For button cells with Ø 16 mm, e.g. CR1612, CR1620. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Fechar

A9193040

Button cell holder, Ø 16 mm
Produto adicionado a sua lista
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Fechar

A9250250

Battery spacer
Produto adicionado a sua lista
PE foam
50x25x4mm
A9250251 Battery spacer

A9250251

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-POCKET-BOX L.

Supply 1 spacer

Fechar

A9250251

Battery spacer
Produto adicionado a sua lista
PE foam
50x25x3mm

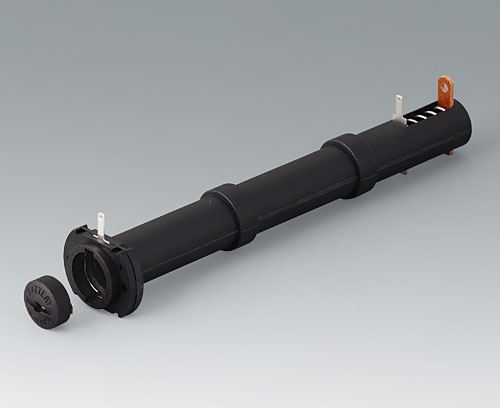

A9301330 Battery holder, 3 x AA

A9301330

Battery holder, 3 x AA Battery holder for direct installation in front and rear panels. Battery replacement is considerably easier - housings need not be opened.

Version For 3 mignon cells 1.5 V (AA), mounting lenght 169.5 mm

Supply 1 battery holder

Fechar

A9301330

Battery holder, 3 x AA
Produto adicionado a sua lista
PA
black RAL 9005

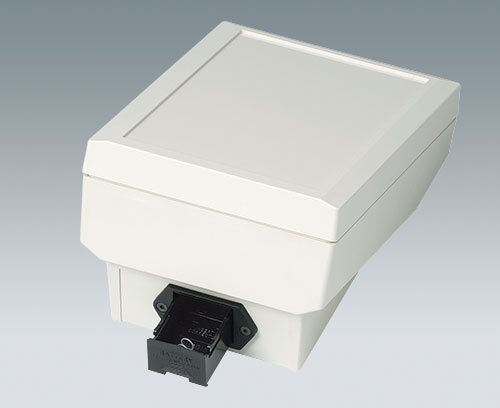

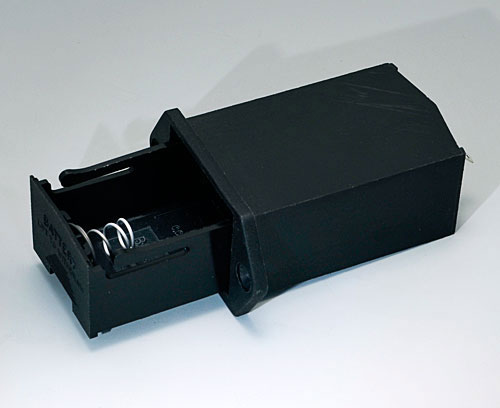

A9302510 Battery holder, 1 x 9 V (PP3)

A9302510

Battery holder, 1 x 9 V (PP3) Battery holder with pull-out drawer. Snap-in system permits safe opening by hand. Direct contact system with rear soldering contacts in the housing.

Version For 1 flat battery 9 V (PP3)

Supply 1 battery holder, 1 drawer

Fechar

A9302510

Battery holder, 1 x 9 V (PP3)
Produto adicionado a sua lista
PA
black RAL 9005
A9302540 Battery holder, 4 x AA

A9302540

Battery holder, 4 x AA Battery holder with pull-out drawer. Snap-in system permits safe opening by hand. Direct contact system with rear soldering contacts in the housing.

Version For 4 mignon cells 1.5 V (AA)

Supply 1 battery holder, 1 drawer

Fechar

A9302540

Battery holder, 4 x AA
Produto adicionado a sua lista
PA
black RAL 9005

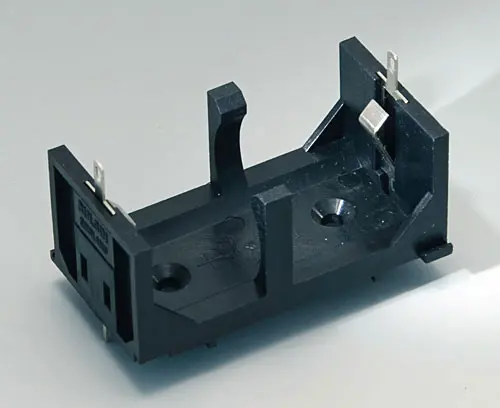

A9303210 Battery holder, 1 x C

A9303210

Battery holder, 1 x C Insert battery holder. With direct line connection - can be soldered or used with plugs 2.8 x 0.3 mm. With pins for boards.

Version For 1 baby cell 1.5 V (C/LR14)

Supply 1 battery holder

Fechar

A9303210

Battery holder, 1 x C
Produto adicionado a sua lista
PA
black RAL 9005

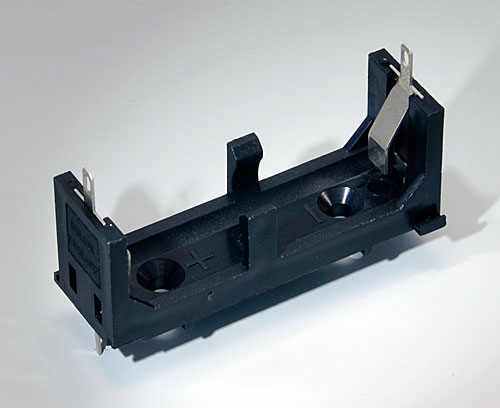

A9303310 Battery holder, 1 x AA

A9303310

Battery holder, 1 x AA Insert battery holder. With direct line connection - can be soldered or used with plugs 2.8 x 0.3 mm. With pins for boards.

Version For 1 mignon cell 1.5 V (AA/LR6)

Supply 1 battery holder

Fechar

A9303310

Battery holder, 1 x AA
Produto adicionado a sua lista
PA
black RAL 9005

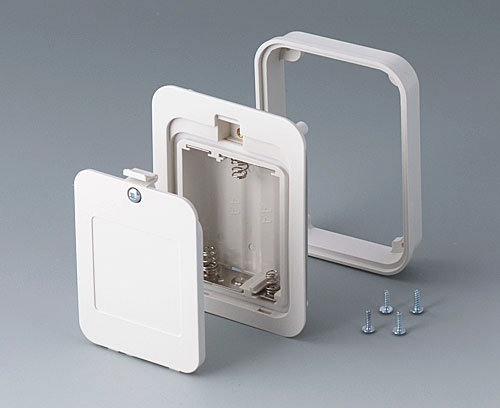

A9336117 Battery compartment kit, 3 x AA

A9336117

Battery compartment kit, 3 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Fechar

A9336117

Battery compartment kit, 3 x AA
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
93x69mm
IP 54

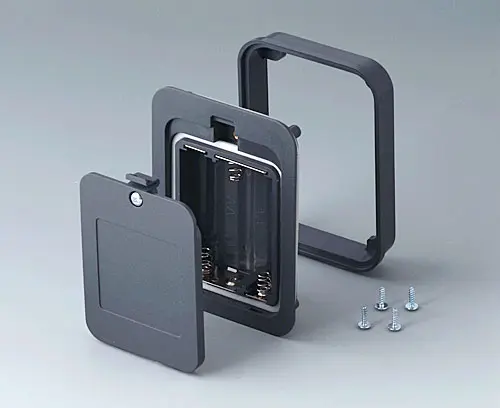

A9336118 Battery compartment kit, 3 x AA

A9336118

Battery compartment kit, 3 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Fechar

A9336118

Battery compartment kit, 3 x AA
Produto adicionado a sua lista
ABS (UL 94 HB)
lava
93x69mm
IP 54

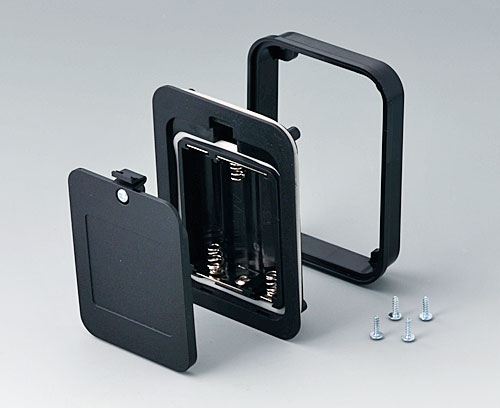

A9336119 Battery compartment kit, 3 x AA

A9336119

Battery compartment kit, 3 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Fechar

A9336119

Battery compartment kit, 3 x AA
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
93x69mm
IP 54
A9338117 Battery compartment kit, 5 x AA

A9338117

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Fechar

A9338117

Battery compartment kit, 5 x AA
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
93x98mm
IP 54

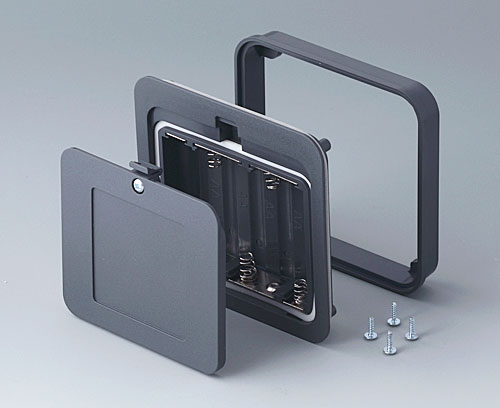

A9338118 Battery compartment kit, 5 x AA

A9338118

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Fechar

A9338118

Battery compartment kit, 5 x AA
Produto adicionado a sua lista
ABS (UL 94 HB)
lava
93x98mm
IP 54

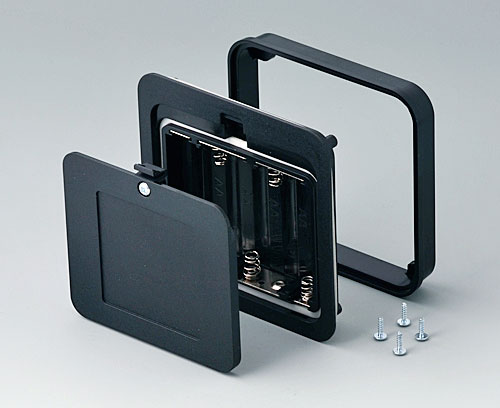

A9338119 Battery compartment kit, 5 x AA

A9338119

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Fechar

A9338119

Battery compartment kit, 5 x AA
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
93x98mm
IP 54
A9338218 Battery compartment kit, 5 x AA

A9338218

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Fechar

A9338218

Battery compartment kit, 5 x AA
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
lava
93x98mm
IP 54
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Fechar

A9345217

Set of battery compartment, 4 x AA
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

Opções para customizadas Compart. de bateria e suportes e botão p/ baterias de célula

O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
