Acessórios para Caixas
B4116116
Front panel MH

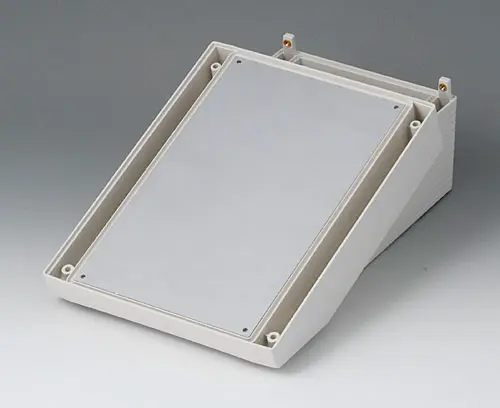

Front panel MH used when case is fitted with a cover. Suitable for mounting of all kinds of operating elements under the cover.
Supply1 front panel, 4 screws diameter 3 mm
Gerar seu Datasheet em PDF para B4116116
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
B4016117
Version Basic housing, unmachined
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit
B4016117
DATEC-TERMINAL M, Vers. Ioff-white RAL 9002
168x272x101mm
B4016217
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.
Suitable for the installation of Eurocards 100 x 160 mm.
Version Machined for assembly of hinge and quick-action lock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock
B4016217
DATEC-TERMINAL M, Vers. IIoff-white RAL 9002
168x272x101mm
B4016317
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.
Suitable for the installation of Eurocards 100 x 160 mm.
Version Machined for assembly of hinge, quick-action lock and keylock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock
B4016317
DATEC-TERMINAL M, Vers. IIIoff-white RAL 9002
168x272x101mm
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 170 KB
- AutoCAD DWG-File 319 KB
- AutoCAD DXF-File 980 KB
- Visualização PDF 3D (Acrobat Reader) (gira o produto 360°, pode ocultar parte do desenho selecionado pelo mouse, acessórios...) 2 834 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012833.x_t 2 663 KB
- 00012833.STEP 7 075 KB
- 00012833.SAT 8 030 KB
(OKW product)
