Acessórios para Caixas
B4016317

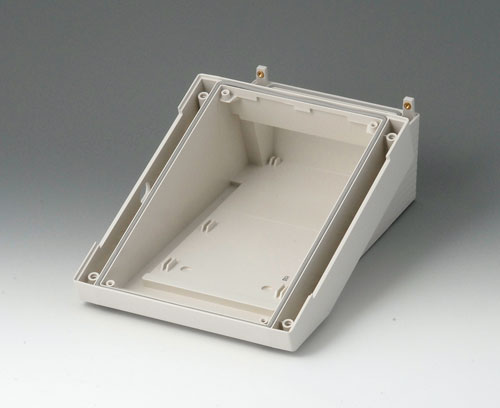

DATEC-TERMINAL M, Vers. III
Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.

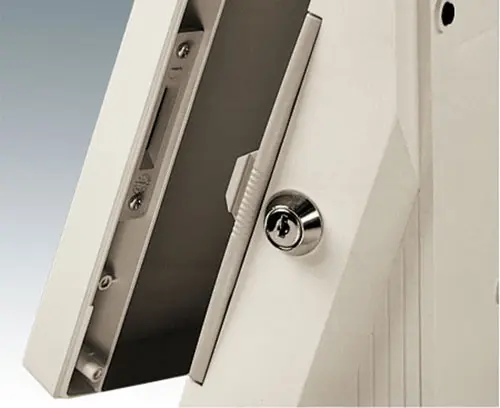

Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.
Suitable for the installation of Eurocards 100 x 160 mm.
Machined for assembly of hinge, quick-action lock and keylock
Supply1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock
Gerar seu Datasheet em PDF para B4016317
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Accessory to complete

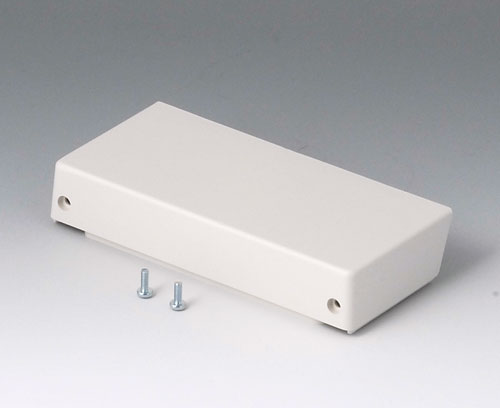

B4016417
Supply 1 lid, 2 screws M3
B4016417
Lid M closed, flatoff-white RAL 9002
134x62x24mm
B4016457
Supply 1 lid, 2 screws M3
B4016457
Lid M closed, highoff-white RAL 9002
134x67x38mm
B4016617
Supply 1 cover, assembly kit
B4016617
Cover M, flatoff-white RAL 9002
168x220x29mm

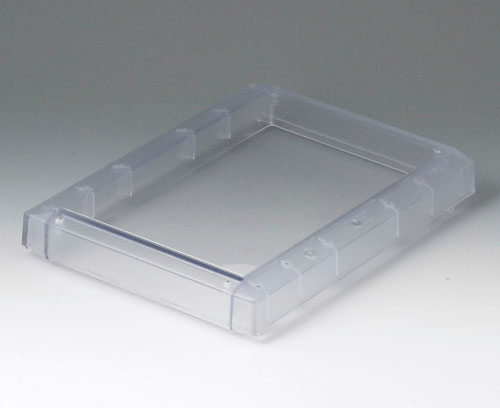

B4016621
Supply 1 cover, assembly kit
B4016621
Cover M, flattransparent
168x220x29mm

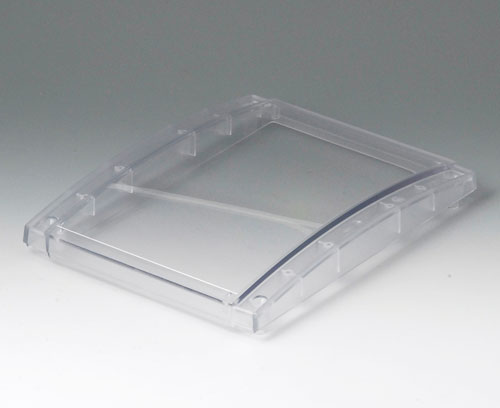

B4016631
Supply 1 cover, assembly kit
B4016631
Cover M, convextransparent
168x220x29mm

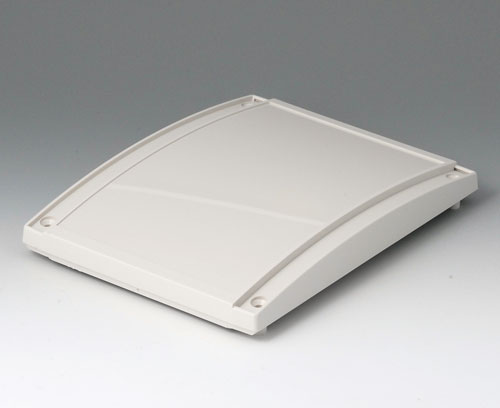

B4016637
Supply 1 cover, assembly kit
B4016637
Cover M, convexoff-white RAL 9002
168x220x29mm

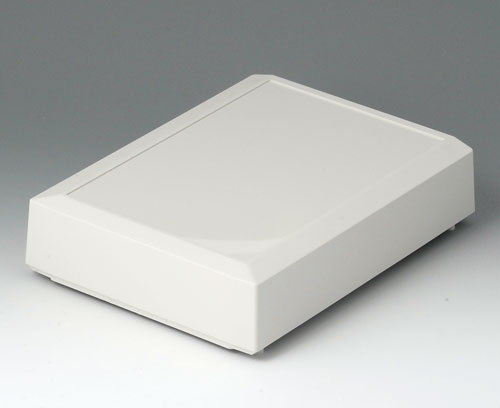

B4016657
Supply 1 cover, assembly kit
B4016657
Cover M, highoff-white RAL 9002
168x220x50mm
B4016671
Supply 1 cover strip
B4016671
Cover strip M / Ltransparent

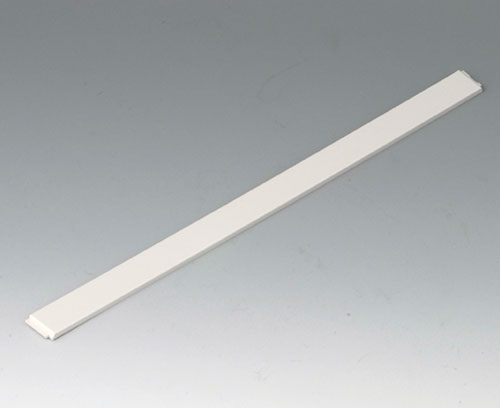

B4016677
Supply 1 cover strip
B4016677
Cover strip M / Loff-white RAL 9002

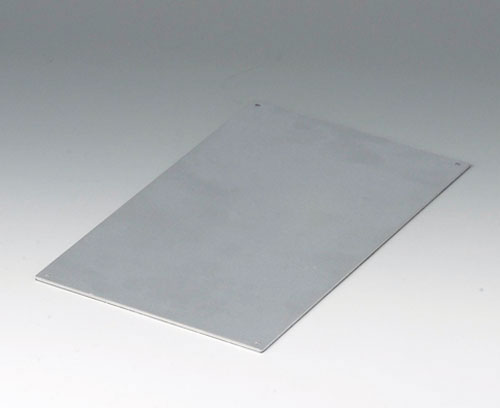

B4116116
Supply 1 front panel, 4 screws diameter 3 mm
B4116116
Front panel MHmatt anodised
128x209x2mm
Accessory "wall/holder"

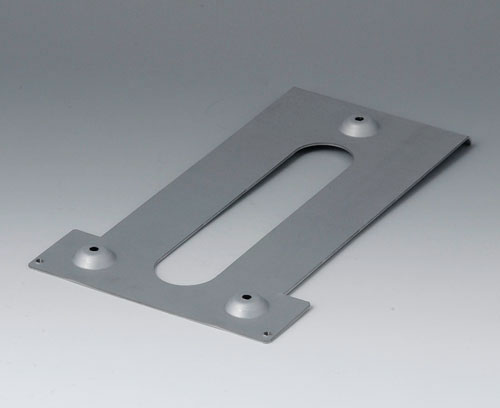

B4116147
Supply 1 wall suspension element, 2 screws M3
B4116147
Wall suspension element Mgalvanized
214x126x12mm
Necessary accessories: cover / cover convex and closed lid
Assembly Instructions (Part)
- Hinge/quick-action lock/keylock, DATEC-TERMINAL M/L vers. II + III, assembly instruction (English) 2 644 KB
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 259 KB
- AutoCAD DWG-File 574 KB
- AutoCAD DXF-File 2 079 KB
- Visualização PDF 3D (Acrobat Reader) (gira o produto 360°, pode ocultar parte do desenho selecionado pelo mouse, acessórios...) 3 939 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008191.x_t 5 471 KB
- 00008191.STEP 13 002 KB
- 00008191.SAT 14 850 KB
(OKW product)
Serviço de customização: Podemos modificar nossos gabinetes para atender às suas necessidades específicas. Os gabinetes serão entregues totalmente finalizados e prontos para uso. Tudo o que você precisa fazer é instalar seu equipamento no interior. Veja as opções de customização para B4016317 e não se esqueça de solicitar uma cotação!
