SPINDLE-SHAPED KNOB 23, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Supply1 spindle-shaped knob
Gerar seu Datasheet em PDF para A2423068
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
System components to complete
A5023000
Supply 1 cover
A5023000

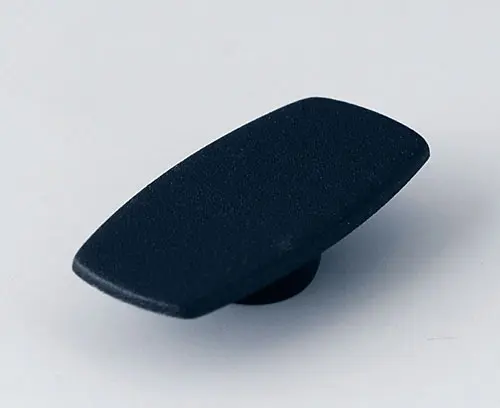

Cover 23, without lineblack RAL 9005
A5023008
Supply 1 cover
A5023008

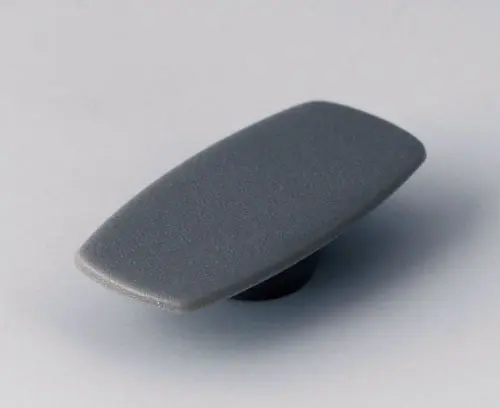

Cover 23, without linedusty grey RAL 7037
A5023100
Supply 1 cover
A5023100

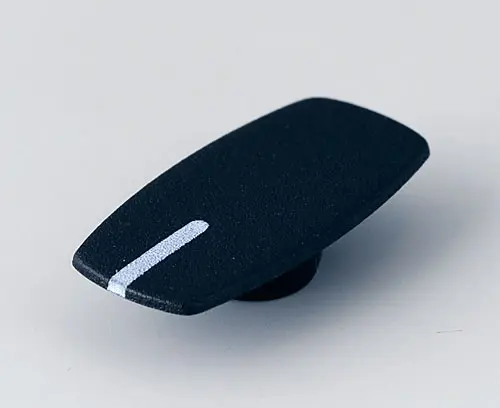

Cover 23, with lineblack RAL 9005
A5023108
Supply 1 cover
A5023108
Cover 23, with linedusty grey RAL 7037
Accessory "screws"
A5123000
Supply 1 nut cover
A5123000
Nut cover 23, without lineblack RAL 9005
A5123008
Supply 1 nut cover
A5123008
Nut cover 23, without linedusty grey RAL 7037
A6207009
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6207009
Round nut M7 x 0.75
A6210009
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6210009
Round nut M10 x 0.75
A6295009
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6295009
Round nut 3/8"-32G
A6300000
Supply 1 spanner
A6300000
SpannerDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 110 KB
- AutoCAD DWG-File 178 KB
- AutoCAD DXF-File 615 KB
- Visualização PDF 3D (Acrobat Reader) (gira o produto 360°, pode ocultar parte do desenho selecionado pelo mouse, acessórios...) 457 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027224.x_t 401 KB
- 00027224.step 912 KB
- 00027224.sat 1 033 KB
(OKW product)
