A5023008

Cover 23, without line

Suitable for spindle-shaped knob 23. Cover simply to pin up.

Supply

1 cover

Desenho PDF 2D
Baixar arquivos 3D/2D

Gerar seu Datasheet em PDF para A5023008

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho

System components to complete

A2423040 SPINDLE-SHAPED KNOB 23, with line

A2423040

SPINDLE-SHAPED KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,0 Nm, function = 0,8 Nm.

Supply 1 spindle-shaped knob

A2423040

SPINDLE-SHAPED KNOB 23, with line
Produto adicionado a sua lista

black RAL 9005
23x16mm
Bore hole 4mm
A2423060 SPINDLE-SHAPED KNOB 23, with line

A2423060

SPINDLE-SHAPED KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 spindle-shaped knob

A2423060

SPINDLE-SHAPED KNOB 23, with line
Produto adicionado a sua lista

black RAL 9005
23x16mm
Bore hole 6mm

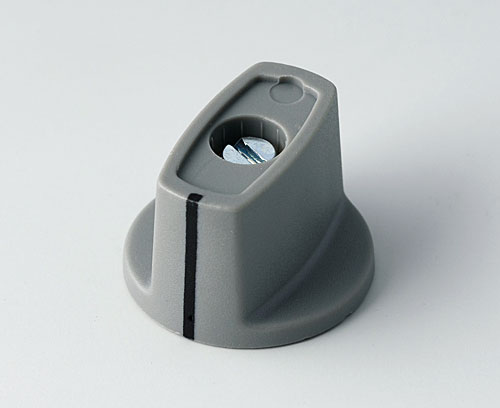

A2423068 SPINDLE-SHAPED KNOB 23, with line

A2423068

SPINDLE-SHAPED KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.

Supply 1 spindle-shaped knob

A2423068

SPINDLE-SHAPED KNOB 23, with line
Produto adicionado a sua lista

dusty grey RAL 7037
23x16mm
Bore hole 6mm

Customising options for A5023008

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
dusty grey RAL 7037
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
0,25 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Alemanha
