Acessórios para Caixas
B5111309

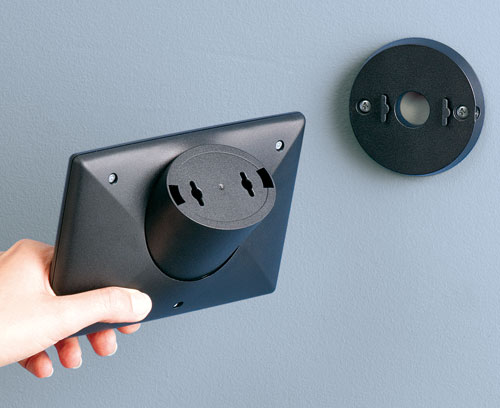

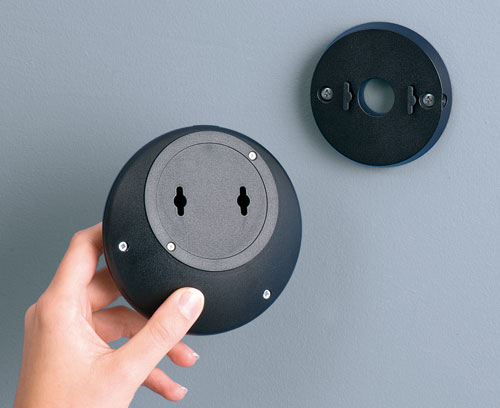

Wall mounting set
Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).
SupplyWall mounting set, incl. safety screws
Gerar seu Datasheet em PDF para B5111309
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Adicionar ao carrinho
B5010009
Bottom and top part R110F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version Bottom part "level"
Supply 1 top and bottom part R110 F, assembly kit
B5010009
Bottom and top part R110FProduto adicionado a sua lista
black RAL 9005
⌀110x30mm
B5010109
Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version Bottom part "level"
Supply 1 top and bottom part R110 H, assembly kit
B5010109
Bottom and top part R110 HProduto adicionado a sua lista
black RAL 9005
⌀110x38mm
B5010209
Bottom and top part R110 F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part R110 F, assembly kit
B5010209
Bottom and top part R110 FProduto adicionado a sua lista
black RAL 9005
⌀110x38mm
B5010309
Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part R110 H, assembly kit
B5010309
Bottom and top part R110 HProduto adicionado a sua lista
black RAL 9005
⌀110x41mm
B5011119
Base
Assembly unit: suitable for all bottom parts. Spacer for ceiling / wall mounting. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.). Locators for 2 x AA and strain relief (acc.) in the base.
Supply 1 base
B5011119
BaseProduto adicionado a sua lista
black RAL 9005
B5011219
Base 30°
Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).
Supply 1 base 30°
B5011219
Base 30°Produto adicionado a sua lista
black RAL 9005
B5011319
Base 55°
Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).
Supply 1 base 55°
B5011319
Base 55°Produto adicionado a sua lista
black RAL 9005
B5011849
Lid
Assembly unit: suitable for all bottom parts, screw-down (not suitable for use with battery compartment).
Supply 1 lid, assembly kit
B5011849
LidProduto adicionado a sua lista
black RAL 9005
B5011859
Battery compartment lid
Assembly unit: suitable for all bottom parts when using battery compartment 2 x AAA (acc.), screw-down.
Supply 1 battery compartment lid, assembly kit
B5011859
Battery compartment lidProduto adicionado a sua lista
black RAL 9005
B5012209
Bottom and top part S110 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.
Version Bottom part "inclinded"
Supply 1 top and bottom part S110 F, assembly kit
B5012209
Bottom and top part S110 FProduto adicionado a sua lista
black RAL 9005
110x110x38mm
B5015009
Bottom and top part O160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version Bottom part "level"
Supply 1 top and bottom part O160 F, assembly kit
B5015009
Bottom and top part O160 FProduto adicionado a sua lista
black RAL 9005
160x110x30mm
B5015109
Bottom and top part O160 H
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version Bottom part "level"
Supply 1 top and bottom part O160 H, assembly kit
B5015109
Bottom and top part O160 HProduto adicionado a sua lista
black RAL 9005
160x110x38mm
B5015209
Bottom and top part O160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part O160 F, assembly kit
B5015209
Bottom and top part O160 FProduto adicionado a sua lista
black RAL 9005
160x110x38mm
B5015309
Bottom and top part O160 H
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part O160 H, assembly kit
B5015309
Bottom and top part O160 HProduto adicionado a sua lista
black RAL 9005
160x110x41mm
B5017209
Bottom and top part E160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part E160 F, assembly kit
B5017209
Bottom and top part E160 FProduto adicionado a sua lista
black RAL 9005
160x110x38mm
Customising options for B5111309
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
18 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Alemanha
Serviço de customização: Podemos modificar nossos gabinetes para atender às suas necessidades específicas. Os gabinetes serão entregues totalmente finalizados e prontos para uso. Tudo o que você precisa fazer é instalar seu equipamento no interior. Veja as opções de customização para B5111309 e não se esqueça de solicitar uma cotação!
