Componentes Mínimos
1 parte inferior e parte superior R110.
1 tampa de compartimento para bateria / tampa / base / base de 30° ou base 55° (dependendo da versão da parte inferior e uso de compartimento para bateria).
System components to complete
B5010009
Bottom and top part R110F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version
Bottom part "level"
Supply
1 top and bottom part R110 F, assembly kit
Fechar
Bottom and top part R110F
Produto adicionado a sua lista
ABS
(UL 94 HB)
black RAL 9005
⌀110x30mm
B5010109
Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version
Bottom part "level"
Supply
1 top and bottom part R110 H, assembly kit
Fechar
Bottom and top part R110 H
Produto adicionado a sua lista
ABS
(UL 94 HB)
black RAL 9005
⌀110x38mm
B5010209
Bottom and top part R110 F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part R110 F, assembly kit
Fechar
Bottom and top part R110 F
Produto adicionado a sua lista
ABS
(UL 94 HB)
black RAL 9005
⌀110x38mm
B5010309
Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part R110 H, assembly kit
Fechar
Bottom and top part R110 H
Produto adicionado a sua lista
ABS
(UL 94 HB)
black RAL 9005
⌀110x41mm
Accessory "wall/holder"
B5111309

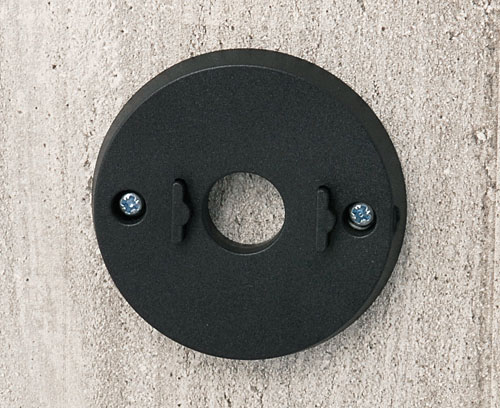

Wall mounting set
Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screws
Fechar
Wall mounting set
Produto adicionado a sua lista
ABS
(UL 94 HB)
black RAL 9005
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Fechar
Set of screws
Produto adicionado a sua lista
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Fechar
Anti-slide feet 6.5 x 2 mm
Produto adicionado a sua lista
transparent
Componentes Mínimos
1 parte inferior e parte superior S110.
1 tampa de compartimento para bateria / tampa / base / base de 30° ou base 55° (dependendo da versão da parte inferior e uso de compartimento para bateria).
System components to complete
B5012209
Bottom and top part S110 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclinded"
Supply
1 top and bottom part S110 F, assembly kit
Fechar
Bottom and top part S110 F
Produto adicionado a sua lista
ABS
(UL 94 HB)
black RAL 9005
110x110x38mm
Accessory "wall/holder"
B5111309
Wall mounting set
Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screws
Fechar
Wall mounting set
Produto adicionado a sua lista
ABS
(UL 94 HB)
black RAL 9005
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Fechar
Set of screws
Produto adicionado a sua lista
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Fechar
Anti-slide feet 6.5 x 2 mm
Produto adicionado a sua lista
transparent
Componentes Mínimos
1 parte inferior e parte superior O160.
1 tampa / tampa de compartimento para bateria / base / base 30° ou base 55° (dependendo da versão da parte inferior e uso de compartimento para bateria).
System components to complete
B5015009
Bottom and top part O160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version
Bottom part "level"
Supply
1 top and bottom part O160 F, assembly kit
Fechar
Bottom and top part O160 F
Produto adicionado a sua lista
ABS
(UL 94 HB)
black RAL 9005
160x110x30mm
B5015109
Bottom and top part O160 H
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version
Bottom part "level"
Supply
1 top and bottom part O160 H, assembly kit
Fechar
Bottom and top part O160 H
Produto adicionado a sua lista
ABS
(UL 94 HB)
black RAL 9005
160x110x38mm
B5015209
Bottom and top part O160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part O160 F, assembly kit
Fechar
Bottom and top part O160 F
Produto adicionado a sua lista
ABS
(UL 94 HB)
black RAL 9005
160x110x38mm
B5015309
Bottom and top part O160 H
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part O160 H, assembly kit
Fechar
Bottom and top part O160 H
Produto adicionado a sua lista
ABS
(UL 94 HB)
black RAL 9005
160x110x41mm
Accessory "wall/holder"
B5111309
Wall mounting set
Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screws
Fechar
Wall mounting set
Produto adicionado a sua lista
ABS
(UL 94 HB)
black RAL 9005
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Fechar
Set of screws
Produto adicionado a sua lista
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Fechar
Anti-slide feet 6.5 x 2 mm
Produto adicionado a sua lista
transparent
Componentes Mínimos
1 parte inferior e parte superior E160.
1 tampa / tampa de compartimento para bateria / base / base 30° ou base 55° (dependendo da versão da parte inferior e uso de compartimento para bateria).
System components to complete
B5017209
Bottom and top part E160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part E160 F, assembly kit
Fechar
Bottom and top part E160 F
Produto adicionado a sua lista
ABS
(UL 94 HB)
black RAL 9005
160x110x38mm
Accessory "wall/holder"
B5111309
Wall mounting set
Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screws
Fechar
Wall mounting set
Produto adicionado a sua lista
ABS
(UL 94 HB)
black RAL 9005
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Fechar
Set of screws
Produto adicionado a sua lista
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Fechar
Anti-slide feet 6.5 x 2 mm
Produto adicionado a sua lista
transparent
Customising options for B5011849
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
