Akcesoria do obudów
B4308237

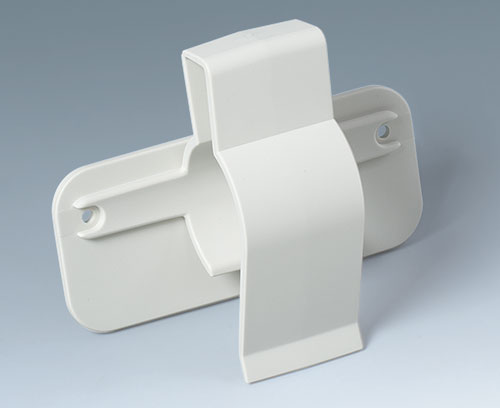

Holding clamps

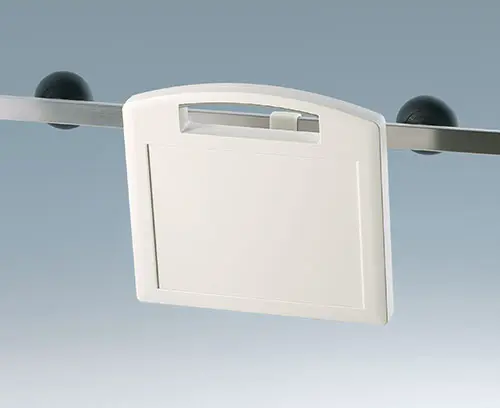

For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.
Supply1 holding clamp, assembly kit
Generate Your PDF Datasheet for B4308237
Please select the product details you would like to include in the PDF.
Dodaj do koszyka
B4208107
CARRYTEC S
Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4208107
CARRYTEC Sprodukt został dodany do twojej listy
off-white RAL 9002
222x205x80mm
B4210107
CARRYTEC M
Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4210107
CARRYTEC Mprodukt został dodany do twojej listy
off-white RAL 9002
270x247x91mm
B4210127

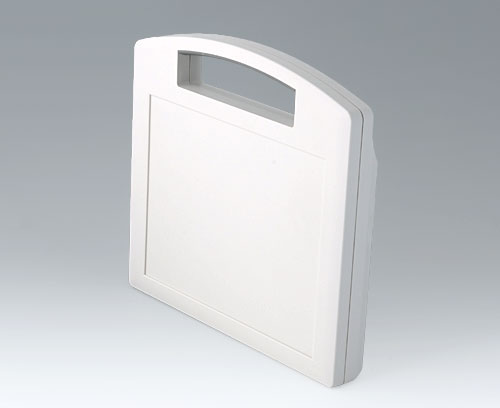

CARRYTEC M slim version
Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4210127
CARRYTEC M slim versionprodukt został dodany do twojej listy
off-white RAL 9002
270x247x42mm
B4213107
CARRYTEC L
Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4213107
CARRYTEC Lprodukt został dodany do twojej listy
off-white RAL 9002
348x303x117mm
Opcje dostosowywania dla B4308237
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
50 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
