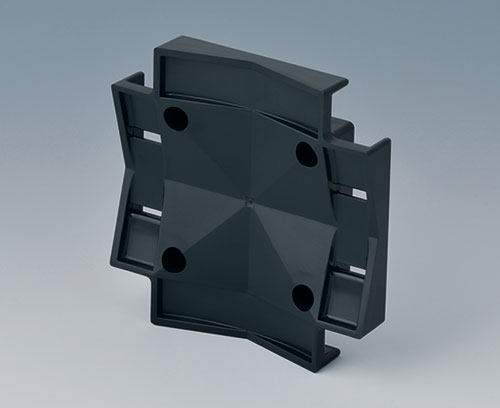

A9325018 Pole/mast mounting bracket
Przewiń

A9325018

Pole/mast mounting bracket

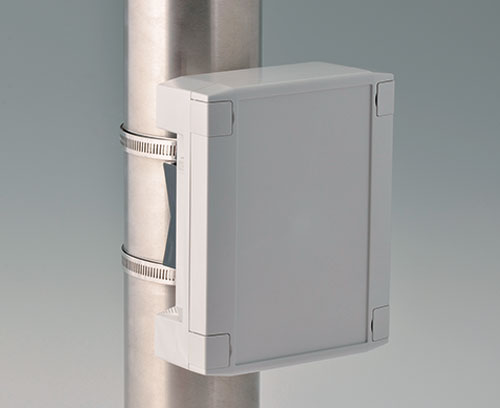

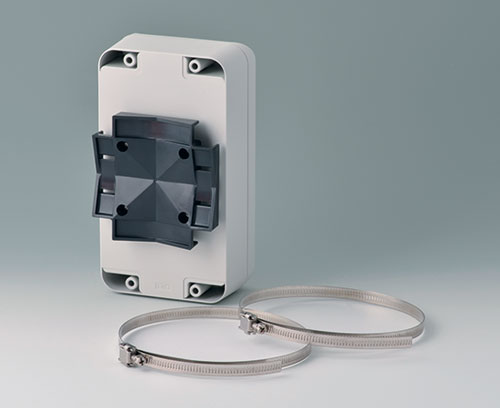

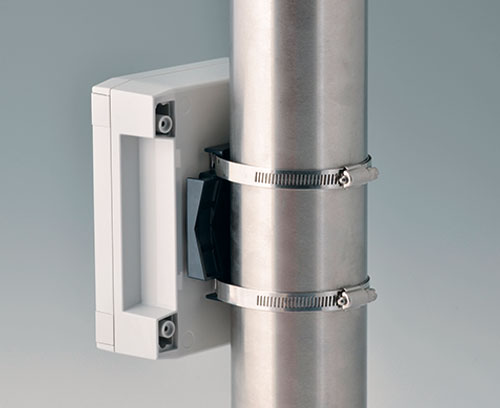

For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.

Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.

Supply

1 pole/mast mounting bracket

Rysunek 2D w formacie PDF
3D/2D download

Generate Your PDF Datasheet for A9325018

Please select the product details you would like to include in the PDF.

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
  • To be used for
A9413331 SHELL-TYPE CASES G 190, Vers. I

A9413331

SHELL-TYPE CASES G 190, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9413331

SHELL-TYPE CASES G 190, Vers. I
produkt został dodany do twojej listy

off-white RAL 9002
138x190x45mm
A9413341 SHELL-TYPE CASES G 190, Vers. I

A9413341

SHELL-TYPE CASES G 190, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9413341

SHELL-TYPE CASES G 190, Vers. I
produkt został dodany do twojej listy

off-white RAL 9002
138x190x68mm
A9413351 SHELL-TYPE CASES G 190, Vers. I

A9413351

SHELL-TYPE CASES G 190, Vers. I Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9413351

SHELL-TYPE CASES G 190, Vers. I
produkt został dodany do twojej listy

off-white RAL 9002
138x190x45,5mm
A9413441 SHELL-TYPE CASES G 190, Vers. I

A9413441

SHELL-TYPE CASES G 190, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9413441

SHELL-TYPE CASES G 190, Vers. I
produkt został dodany do twojej listy

off-white RAL 9002
138x190x91mm
A9461107 EVOTEC 200, Vers. I

A9461107

EVOTEC 200, Vers. I 2-part plastic enclosure with flat top part. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

A9461107

EVOTEC 200, Vers. I
produkt został dodany do twojej listy

off-white RAL 9002
200x124x45mm
,
A9465107 EVOTEC 200, Vers. II

A9465107

EVOTEC 200, Vers. II 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Desktop" without recess

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

A9465107

EVOTEC 200, Vers. II
produkt został dodany do twojej listy

off-white RAL 9002
200x124x45mm
,
A9466107 EVOTEC 200, Vers. III

A9466107

EVOTEC 200, Vers. III 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Desktop", operating area recessed by 1 mm

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

A9466107

EVOTEC 200, Vers. III
produkt został dodany do twojej listy

off-white RAL 9002
200x124x45mm
,
A9481107 EVOTEC 250, Vers. I

A9481107

EVOTEC 250, Vers. I 2-part plastic enclosure with flat top part. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

A9481107

EVOTEC 250, Vers. I
produkt został dodany do twojej listy

off-white RAL 9002
250x155x54mm
,
A9485107 EVOTEC 250, Vers. II

A9485107

EVOTEC 250, Vers. II 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Desktop" without recess

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

A9485107

EVOTEC 250, Vers. II
produkt został dodany do twojej listy

off-white RAL 9002
250x155x54mm
,
A9486107 EVOTEC 250, Vers. III

A9486107

EVOTEC 250, Vers. III 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Desktop", operating area recessed by 1 mm

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

A9486107

EVOTEC 250, Vers. III
produkt został dodany do twojej listy

off-white RAL 9002
250x155x54mm
,
B1070465 TOPTEC 194 H, Vers. II

B1070465

TOPTEC 194 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

B1070465

TOPTEC 194 H, Vers. II
produkt został dodany do twojej listy

off-white RAL 9002
194x115x68mm
B1075465 TOPTEC 194 F, Vers. II

B1075465

TOPTEC 194 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

B1075465

TOPTEC 194 F, Vers. II
produkt został dodany do twojej listy

off-white RAL 9002
194x115x46mm
B3214101 NET-BOX 140, Vers. I

B3214101

NET-BOX 140, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

B3214101

NET-BOX 140, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
140x140x46,5mm
,
B3218101 NET-BOX 180, Vers. I

B3218101

NET-BOX 180, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

B3218101

NET-BOX 180, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
180x180x48,5mm
,
B3222101 NET-BOX 220, Vers. I

B3222101

NET-BOX 220, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

B3222101

NET-BOX 220, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
220x220x50,5mm
,
B3407011 SMART-TERMINAL 160

B3407011

SMART-TERMINAL 160

Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in green and lava grey plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in green, set of side covers, assembly kit

B3407011

SMART-TERMINAL 160
produkt został dodany do twojej listy

matt anodised
202x170x50mm
B3407012 SMART-TERMINAL 160

B3407012

SMART-TERMINAL 160

Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in volcano and lava grey plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in volcano, set of side covers, assembly kit

B3407012

SMART-TERMINAL 160
produkt został dodany do twojej listy

matt anodised
202x170x50mm
B3407013 SMART-TERMINAL 160

B3407013

SMART-TERMINAL 160

Robust enclosure with two-part aluminium profile (glass bead-blasted and anodised) and aluminium end plates.
Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, 2 aluminium end plates, assembly kit incl. 4 anti-slide feet

B3407013

SMART-TERMINAL 160
produkt został dodany do twojej listy

matt anodised
164x170x50mm
B3407021 SMART-TERMINAL 200

B3407021

SMART-TERMINAL 200 Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in green and lava grey plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in green, set of side covers, assembly kit

B3407021

SMART-TERMINAL 200
produkt został dodany do twojej listy

matt anodised
242x170x50mm
B3407022 SMART-TERMINAL 200

B3407022

SMART-TERMINAL 200 Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in volcano and lava grey plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in volcano, set of side covers, assembly kit

B3407022

SMART-TERMINAL 200
produkt został dodany do twojej listy

matt anodised
242x170x50mm
B3407023 SMART-TERMINAL 200

B3407023

SMART-TERMINAL 200

Robust enclosure with two-part aluminium profile (glass bead-blasted and anodised) and aluminium end plates.
Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, 2 aluminium end plates, assembly kit incl. 4 anti-slide feet

B3407023

SMART-TERMINAL 200
produkt został dodany do twojej listy

matt anodised
204x170x50mm
B3407031 SMART-TERMINAL 240

B3407031

SMART-TERMINAL 240 Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in green and lava grey plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in green, set of side covers, assembly kit

B3407031

SMART-TERMINAL 240
produkt został dodany do twojej listy

matt anodised
282x170x50mm
B3407032 SMART-TERMINAL 240

B3407032

SMART-TERMINAL 240 Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in volcano and lava grey plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, set of designer seals in volcano, set of side covers, assembly kit

B3407032

SMART-TERMINAL 240
produkt został dodany do twojej listy

matt anodised
282x170x50mm
B3407033 SMART-TERMINAL 240

B3407033

SMART-TERMINAL 240

Robust enclosure with two-part aluminium profile (glass bead-blasted and anodised) and aluminium end plates.
Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply Top profile, base profile, 2 aluminium end plates, assembly kit incl. 4 anti-slide feet

B3407033

SMART-TERMINAL 240
produkt został dodany do twojej listy

matt anodised
244x170x50mm
C2012121 ROBUST-BOX WIDTH 120, Vers. I

C2012121

ROBUST-BOX WIDTH 120, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2012121

ROBUST-BOX WIDTH 120, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
120x120x60mm
C2012122 ROBUST-BOX WIDTH 120, Vers. II

C2012122

ROBUST-BOX WIDTH 120, Vers. II Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2012122

ROBUST-BOX WIDTH 120, Vers. II
produkt został dodany do twojej listy

light grey RAL 7035
120x120x60mm
C2012201 ROBUST-BOX WIDTH 120, Vers. I

C2012201

ROBUST-BOX WIDTH 120, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2012201

ROBUST-BOX WIDTH 120, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
200x120x60mm
C2012202 ROBUST-BOX WIDTH 120, Vers. II

C2012202

ROBUST-BOX WIDTH 120, Vers. II Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2012202

ROBUST-BOX WIDTH 120, Vers. II
produkt został dodany do twojej listy

light grey RAL 7035
200x120x60mm
C2012241 ROBUST-BOX WIDTH 120, Vers. I

C2012241

ROBUST-BOX WIDTH 120, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2012241

ROBUST-BOX WIDTH 120, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
240x120x60mm
C2012242 ROBUST-BOX WIDTH 120, Vers, II

C2012242

ROBUST-BOX WIDTH 120, Vers, II Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2012242

ROBUST-BOX WIDTH 120, Vers, II
produkt został dodany do twojej listy

light grey RAL 7035
240x120x60mm
C2016161 ROBUST-BOX WIDTH 160, Vers. I

C2016161

ROBUST-BOX WIDTH 160, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2016161

ROBUST-BOX WIDTH 160, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
160x160x60mm
C2016162 ROBUST-BOX WIDTH 160, Vers. II

C2016162

ROBUST-BOX WIDTH 160, Vers. II Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2016162

ROBUST-BOX WIDTH 160, Vers. II
produkt został dodany do twojej listy

light grey RAL 7035
160x160x60mm
C2016241 ROBUST-BOX WIDTH 160, Vers. I

C2016241

ROBUST-BOX WIDTH 160, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2016241

ROBUST-BOX WIDTH 160, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
240x160x60mm
C2016242 ROBUST-BOX WIDTH 160, Vers. II

C2016242

ROBUST-BOX WIDTH 160, Vers. II Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2016242

ROBUST-BOX WIDTH 160, Vers. II
produkt został dodany do twojej listy

light grey RAL 7035
240x160x60mm
C2112121 ROBUST-BOX WIDTH 120, Vers. I

C2112121

ROBUST-BOX WIDTH 120, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2112121

ROBUST-BOX WIDTH 120, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
120x120x90mm
C2112122 ROBUST-BOX WIDTH 120, Vers. II

C2112122

ROBUST-BOX WIDTH 120, Vers. II Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2112122

ROBUST-BOX WIDTH 120, Vers. II
produkt został dodany do twojej listy

light grey RAL 7035
120x120x90mm
C2112201 ROBUST-BOX WIDTH 120, Vers. I

C2112201

ROBUST-BOX WIDTH 120, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2112201

ROBUST-BOX WIDTH 120, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
200x120x90mm
C2112202 ROBUST-BOX WIDTH 120, Vers. II

C2112202

ROBUST-BOX WIDTH 120, Vers. II Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2112202

ROBUST-BOX WIDTH 120, Vers. II
produkt został dodany do twojej listy

light grey RAL 7035
200x120x90mm
C2112241 ROBUST-BOX WIDTH 120, Vers. I

C2112241

ROBUST-BOX WIDTH 120, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2112241

ROBUST-BOX WIDTH 120, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
240x120x90mm
C2112242 ROBUST-BOX WIDTH 120, Vers. II

C2112242

ROBUST-BOX WIDTH 120, Vers. II Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2112242

ROBUST-BOX WIDTH 120, Vers. II
produkt został dodany do twojej listy

light grey RAL 7035
240x120x90mm
C2116161 ROBUST-BOX WIDTH 160, Vers. I

C2116161

ROBUST-BOX WIDTH 160, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2116161

ROBUST-BOX WIDTH 160, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
160x160x90mm
C2116162 ROBUST-BOX WIDTH 160, Vers. II

C2116162

ROBUST-BOX WIDTH 160, Vers. II Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2116162

ROBUST-BOX WIDTH 160, Vers. II
produkt został dodany do twojej listy

light grey RAL 7035
160x160x90mm
C2116241 ROBUST-BOX WIDTH 160, Vers. I

C2116241

ROBUST-BOX WIDTH 160, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2116241

ROBUST-BOX WIDTH 160, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
240x160x90mm
C2116242 ROBUST-BOX WIDTH 160, Vers. II

C2116242

ROBUST-BOX WIDTH 160, Vers. II Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2116242

ROBUST-BOX WIDTH 160, Vers. II
produkt został dodany do twojej listy

light grey RAL 7035
240x160x90mm
C2120301 ROBUST-BOX WIDTH 200, Vers. I

C2120301

ROBUST-BOX WIDTH 200, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2120301

ROBUST-BOX WIDTH 200, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
300x200x80mm
C2124361 ROBUST-BOX WIDTH 240, Vers. I

C2124361

ROBUST-BOX WIDTH 240, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2124361

ROBUST-BOX WIDTH 240, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
360x240x80mm
C2416241 ROBUST-BOX WIDTH 160, Vers. I

C2416241

ROBUST-BOX WIDTH 160, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2416241

ROBUST-BOX WIDTH 160, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
240x160x120mm
C2416242 ROBUST-BOX WIDTH 160, Vers. II

C2416242

ROBUST-BOX WIDTH 160, Vers. II Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2416242

ROBUST-BOX WIDTH 160, Vers. II
produkt został dodany do twojej listy

light grey RAL 7035
240x160x120mm
C2420301 ROBUST-BOX WIDTH 200, Vers. I

C2420301

ROBUST-BOX WIDTH 200, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2420301

ROBUST-BOX WIDTH 200, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
300x200x120mm
C2424361 ROBUST-BOX WIDTH 240, Vers. I

C2424361

ROBUST-BOX WIDTH 240, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2424361

ROBUST-BOX WIDTH 240, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
360x240x120mm
C2520301 ROBUST-BOX WIDTH 200, Vers. I

C2520301

ROBUST-BOX WIDTH 200, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Lid fixing outside of sealed area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2520301

ROBUST-BOX WIDTH 200, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
300x200x160mm
C2524361 ROBUST-BOX WIDTH 240, Vers. I

C2524361

ROBUST-BOX WIDTH 240, Vers. I Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.

Supply 2 case shells with sealing, cover strips top and bottom, assembly kit

C2524361

ROBUST-BOX WIDTH 240, Vers. I
produkt został dodany do twojej listy

light grey RAL 7035
360x240x160mm
C6011141 SMART-BOX WIDTH 110

C6011141

SMART-BOX WIDTH 110 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

C6011141

SMART-BOX WIDTH 110
produkt został dodany do twojej listy

light grey RAL 7035
140x110x60mm
C6011201 SMART-BOX WIDTH 110

C6011201

SMART-BOX WIDTH 110 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

C6011201

SMART-BOX WIDTH 110
produkt został dodany do twojej listy

light grey RAL 7035
200x110x60mm
C6013161 SMART-BOX WIDTH 130

C6013161

SMART-BOX WIDTH 130 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

C6013161

SMART-BOX WIDTH 130
produkt został dodany do twojej listy

light grey RAL 7035
160x130x60mm
C6013221 SMART-BOX WIDTH 130

C6013221

SMART-BOX WIDTH 130 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

C6013221

SMART-BOX WIDTH 130
produkt został dodany do twojej listy

light grey RAL 7035
220x130x60mm
C6015181 SMART-BOX WIDTH 150

C6015181

SMART-BOX WIDTH 150 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims (hinged), assembly kit incl. cover retention

C6015181

SMART-BOX WIDTH 150
produkt został dodany do twojej listy

light grey RAL 7035
180x150x60mm
C6017281 SMART-BOX WIDTH 170

C6017281

SMART-BOX WIDTH 170 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

C6017281

SMART-BOX WIDTH 170
produkt został dodany do twojej listy

light grey RAL 7035
280x170x60mm
C7013031 IN-BOX

C7013031

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7013031

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
124x122x55mm
, ,
C7013032 IN-BOX

C7013032

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7013032

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
124x122x55mm
, ,
C7013034 IN-BOX

C7013034

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7013034

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
124x122x55mm
, ,
C7013035 IN-BOX

C7013035

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7013035

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
124x122x55mm
, ,
C7013051 IN-BOX

C7013051

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7013051

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
124x122x85mm
, ,
C7013054 IN-BOX

C7013054

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7013054

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
124x122x85mm
, ,
C7013055 IN-BOX

C7013055

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7013055

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
124x122x85mm
, ,
C7016061 IN-BOX

C7016061

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7016061

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
162x122x90mm
, ,
C7016062 IN-BOX

C7016062

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7016062

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
162x122x90mm
, ,
C7016064 IN-BOX

C7016064

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7016064

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
162x122x90mm
, ,
C7016065 IN-BOX

C7016065

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7016065

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
162x122x90mm
, ,
C7020041 IN-BOX

C7020041

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7020041

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
202x122x75mm
, ,
C7020042 IN-BOX

C7020042

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7020042

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
202x122x75mm
, ,
C7020044 IN-BOX

C7020044

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7020044

IN-BOX
produkt został dodany do twojej listy

transparent
202x122x75mm
, ,
C7020045 IN-BOX

C7020045

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7020045

IN-BOX
produkt został dodany do twojej listy

transparent
202x122x75mm
, ,
C7020061 IN-BOX

C7020061

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7020061

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
202x122x90mm
, ,
C7020064 IN-BOX

C7020064

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7020064

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
202x122x90mm
, ,
C7020065 IN-BOX

C7020065

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7020065

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
202x122x90mm
, ,
C7021071 IN-BOX

C7021071

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7021071

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
202x152x90mm
, ,
C7021072 IN-BOX

C7021072

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7021072

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
202x152x90mm
, ,
C7021075 IN-BOX

C7021075

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7021075

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
202x152x90mm
, ,
C7025081 IN-BOX

C7025081

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7025081

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
252x162x90mm
, ,
C7025082 IN-BOX

C7025082

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7025082

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
252x162x90mm
, ,
C7025084 IN-BOX

C7025084

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7025084

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
252x162x90mm
, ,
C7025085 IN-BOX

C7025085

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7025085

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
252x162x90mm
, ,
C7025091 IN-BOX

C7025091

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7025091

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
252x162x120mm
, ,
C7025094 IN-BOX

C7025094

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7025094

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
252x162x120mm
, ,
C7025095 IN-BOX

C7025095

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7025095

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
252x162x120mm
, ,
C7030101 IN-BOX

C7030101

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7030101

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
302x232x90mm
, ,
C7030102 IN-BOX

C7030102

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7030102

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
302x232x90mm
, ,
C7030104 IN-BOX

C7030104

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7030104

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
302x232x90mm
, ,
C7030105 IN-BOX

C7030105

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7030105

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
302x232x90mm
, ,
C7030111 IN-BOX

C7030111

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7030111

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
302x232x110mm
, ,
C7030112 IN-BOX

C7030112

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7030112

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
302x232x110mm
, ,
C7030114 IN-BOX

C7030114

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7030114

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
302x232x110mm
, ,
C7030115 IN-BOX

C7030115

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

C7030115

IN-BOX
produkt został dodany do twojej listy

light grey RAL 7035
302x232x110mm
, ,
C8014181 SOLID-BOX 145

C8014181

SOLID-BOX 145 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

C8014181

SOLID-BOX 145
produkt został dodany do twojej listy

anthracite grey RAL 7016
180x145x60mm
, ,
C8014182 SOLID-BOX 145

C8014182

SOLID-BOX 145 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

C8014182

SOLID-BOX 145
produkt został dodany do twojej listy

light grey RAL 7035
180x145x60mm
, ,
C8017221 SOLID-BOX 175

C8017221

SOLID-BOX 175 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

C8017221

SOLID-BOX 175
produkt został dodany do twojej listy

anthracite grey RAL 7016
225x175x70mm
, ,
C8017222 SOLID-BOX 175

C8017222

SOLID-BOX 175 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

C8017222

SOLID-BOX 175
produkt został dodany do twojej listy

light grey RAL 7035
225x175x70mm
, ,
  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał

Kolor
anthracite grey RAL 7016
Standards
RoHS compliant
REACH compliant
Szerokość
100 mm
Wysokość
100 mm
Głębokość
20 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
47 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
China
