B8241061 STAR-KNOBS 41

B8241061

STAR-KNOBS 41

Suitable for rotary potentiometer or rotary pulse generators with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer. Can be illuminated: recommended for the flush-fitting version, please order LED illumination separately.

Supply

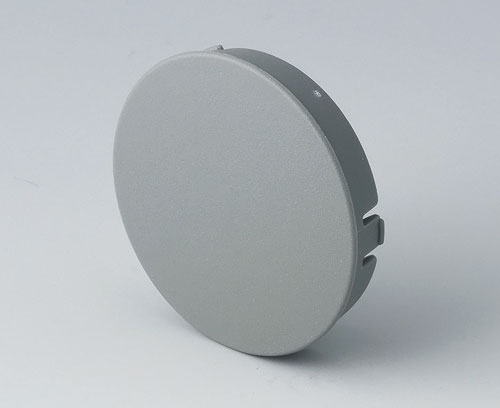

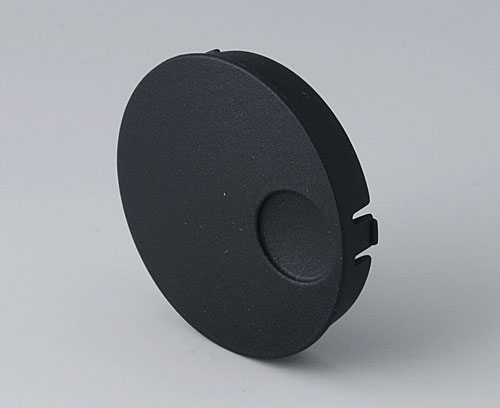

1 knob (Minimum components for 1 STAR-KNOB: 1 knob, 1 cover and 1 assembly kit)

  • Komponenty / Akcesoria
  • Opcje dostosowywania

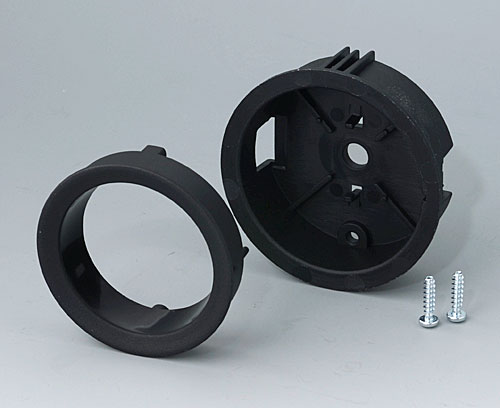

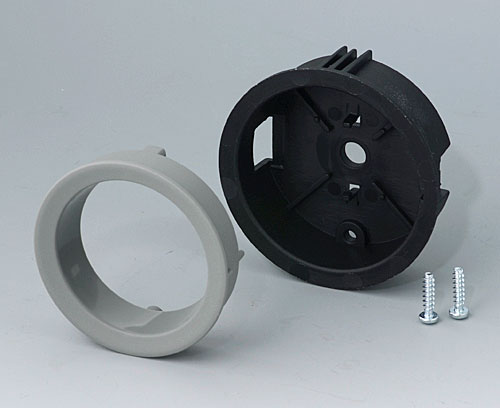

Zlicowany, podświetlany LED

Zlicowany, bez podświetlenia

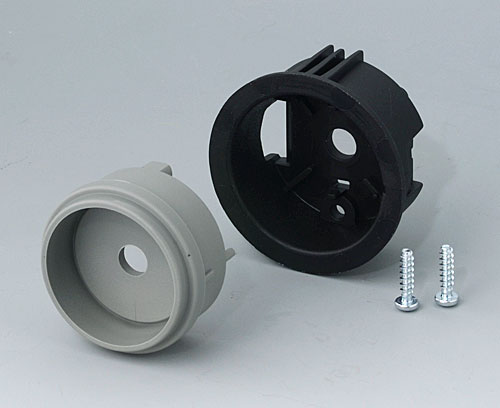

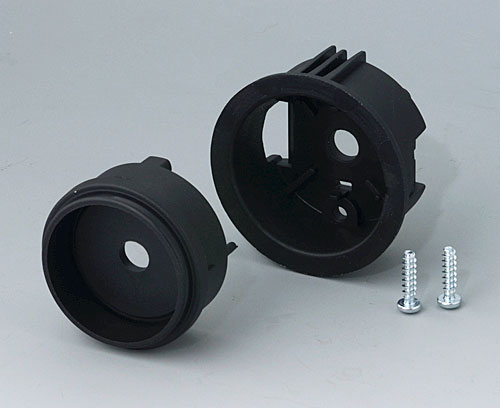

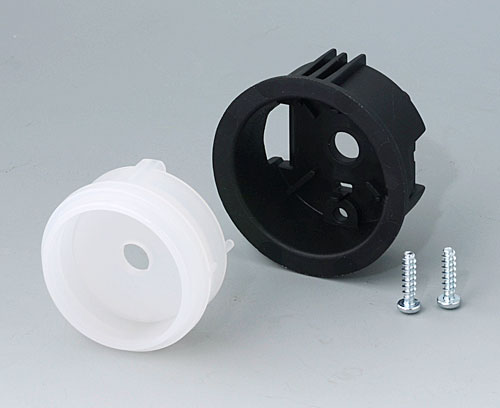

Montaż powierzchniowy z podświetleniem LED

Montaż powierzchniowy bez podświetlenia

Opcje dostosowywania dla B8241061

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
Kolor
diamond
Diameter
41 mm
Height
14 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
16 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
