A9153011
Intermediate ring XL
Sophisticated feature in metallic finish (RoHS compliant). 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
Rysunek 2D w formacie PDF
Widok 3D PDF
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9153011
Please select the product details you would like to include in the PDF.
Dodaj do koszyka
A9053107
SOFT-CASE XL
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9053107
SOFT-CASE XLprodukt został dodany do twojej listy
off-white RAL 9002
92x150x28mm

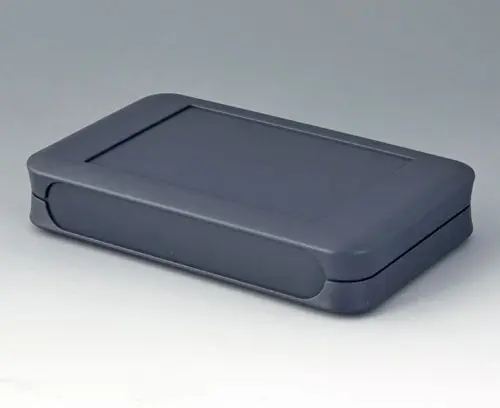

A9053108
SOFT-CASE XL
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9053108
SOFT-CASE XLprodukt został dodany do twojej listy
lava
92x150x28mm
A9053117
SOFT-CASE XL
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
Version With battery compartment for 4 x AA, accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9053117
SOFT-CASE XLprodukt został dodany do twojej listy
off-white RAL 9002
92x150x28mm

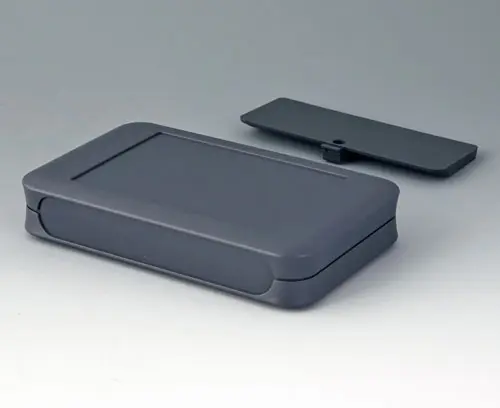

A9053118
SOFT-CASE XL
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
Version With battery compartment for 4 x AA, accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9053118
SOFT-CASE XLprodukt został dodany do twojej listy
lava
92x150x28mm

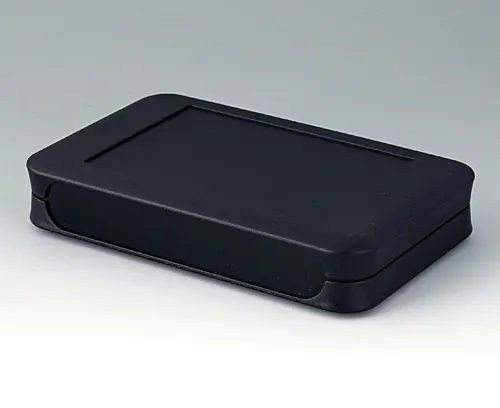

A9053209
SOFT-CASE XL
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9053209
SOFT-CASE XLprodukt został dodany do twojej listy
black RAL 9005
92x150x28mm

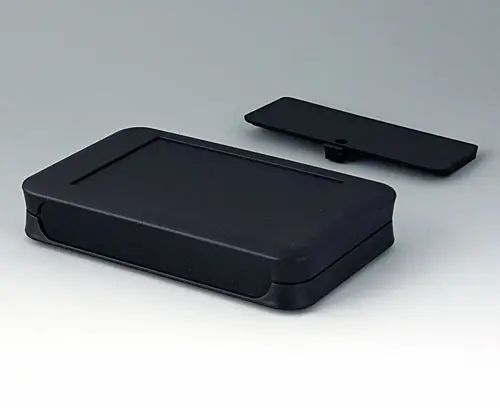

A9053219
SOFT-CASE XL
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Version With battery compartment for 4 x AA, accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9053219
SOFT-CASE XLprodukt został dodany do twojej listy
black RAL 9005
92x150x28mm
Opcje dostosowywania dla A9153011
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Informacje techniczne
-
Rysunki / Informacje
- Dane zakupowe
Długość
96 mm
Szerokość
154 mm
Wysokość
26 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 606 KB
- AutoCAD DWG-File 370 KB
- AutoCAD DXF-File 1 203 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 2 028 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00009272.x_t 6 863 KB
- 00009272.STEP 16 447 KB
- 00009272.SAT 13 416 KB
Weight/1 part
38 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
