Akcesoria do obudów
A9150018
Intermediate ring S
For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply1 intermediate ring
Rysunek 2D w formacie PDF
Widok 3D PDF
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9150018
Please select the product details you would like to include in the PDF.
Dodaj do koszyka
A9050107

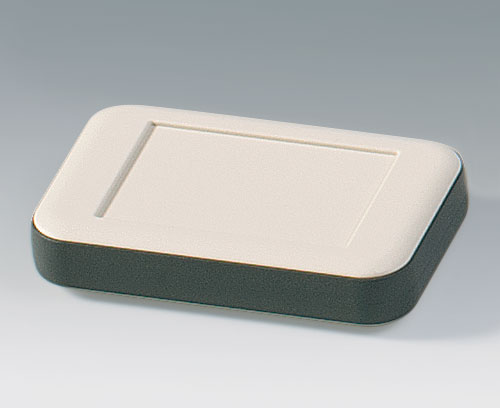

SOFT-CASE S
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards.Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9050107
SOFT-CASE Sprodukt został dodany do twojej listy
off-white RAL 9002
51x82x14mm
,
A9050108
SOFT-CASE S
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9050108
SOFT-CASE Sprodukt został dodany do twojej listy
lava
51x82x14mm
,
A9050209
SOFT-CASE S
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9050209
SOFT-CASE Sprodukt został dodany do twojej listy
black RAL 9005
51x82x14mm
,
Opcje dostosowywania dla A9150018
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Informacje techniczne
-
Rysunki / Informacje
- Dane zakupowe
Długość
54 mm
Szerokość
85 mm
Wysokość
12 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 313 KB
- AutoCAD DWG-File 351 KB
- AutoCAD DXF-File 1 120 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 1 212 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008010.x_t 5 433 KB
- 00008010.STEP 12 636 KB
- 00008010.SAT 13 861 KB
Weight/1 part
8 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
