Akcesoria do obudów
A9066109
SMART-CASE M, Vers. I
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).
VersionCase-top without recessed operating area
SupplyBase and top part, 1 screw
Rysunek 2D w formacie PDF
Widok 3D PDF
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9066109
Please select the product details you would like to include in the PDF.
Dodaj do koszyka
Accessory "battery"
A9166001
Set of battery clips, 2 x AAA
For contacting the batteries.
Supply 4 single contacts
A9166001
Set of battery clips, 2 x AAAprodukt został dodany do twojej listy
tin-plated
A9166002
Battery contact, 2 x AAA
In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.
Supply 1 battery contact
A9166002
Battery contact, 2 x AAAprodukt został dodany do twojej listy
tin-plated
A9166003
Battery holder, 2 x AAA
The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.
Supply 1 battery holder, 1 self-tapping screw
A9166003
Battery holder, 2 x AAAprodukt został dodany do twojej listy
black RAL 9005
Accessory "station"
A9166004
Set of pull-relief
For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.
Supply 2 preshaped pull-relief clamps, 2 self-tapping screws
A9166004
Set of pull-reliefprodukt został dodany do twojej listy
volcano
A9166039
Station M
Attractive and practical station for holding your SMART CASE M with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9166039
Station Mprodukt został dodany do twojej listy
black RAL 9005
A9193032
Spring contact
Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.
Supply 1 spring contact
A9193032
Spring contactprodukt został dodany do twojej listy
Accessory "wall/holder"
A9166005
Adhesive foil M
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
A9166005
Adhesive foil Mprodukt został dodany do twojej listy
A9166309
Holder M
Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.
Supply 1 holder
A9166309
Holder Mprodukt został dodany do twojej listy
black RAL 9005
A9167029
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167029
Holding clampprodukt został dodany do twojej listy
black RAL 9005
Accessory "carrying"
A9100001
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.
Supply 1 ring eyelet
A9100001
Ring eyeletprodukt został dodany do twojej listy
volcano
A9167019
Belt/pocket clip
Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 Clip, assembly kit
A9167019
Belt/pocket clipprodukt został dodany do twojej listy
black RAL 9005
Accessory "screws"
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)produkt został dodany do twojej listy
Accessory
A9193030
Contact pin
Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.
Supply 1 contact pin
A9193030
Contact pinprodukt został dodany do twojej listy
Opcje dostosowywania dla A9066109
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Informacje techniczne
-
Rysunki / Informacje

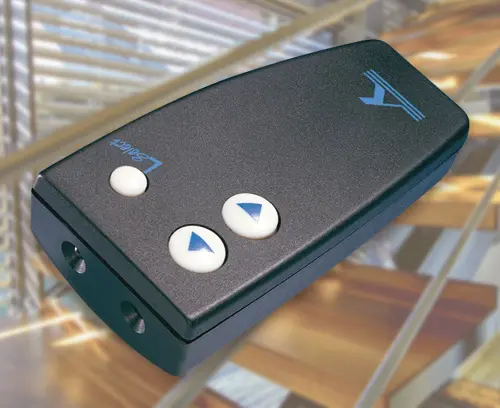

- Przykłady aplikacji
- Dane zakupowe
Materiał
Protection class
Kolor
black RAL 9005
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Długość
96 mm
Szerokość
47 mm
Wysokość
24 mm
PCB length, base
28 mm
PCB width, base
38 mm
PCB length, top
61 mm
PCB width, top
40 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 365 KB
- AutoCAD DWG-File 909 KB
- AutoCAD DXF-File 3 508 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 814 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00010041.x_t 4 030 KB
- 00010041.STEP 6 446 KB
- 00010041.SAT 6 711 KB
Weight/1 part
31 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
