A9413443
SHELL-TYPE CASES V 190, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
VersionWithout battery compartment
Supply1 top and base part, assembly kit
Generate Your PDF Datasheet for A9413443
Please select the product details you would like to include in the PDF.
Accessory to complete

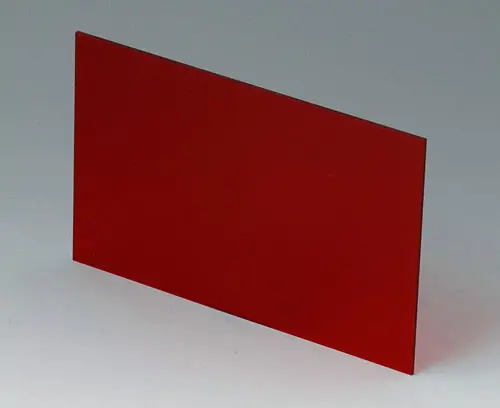

A9113223
Supply 1 front panel
A9113223
Front / rear panel V, O 190red transparent
124,2x79,6x1,5mm

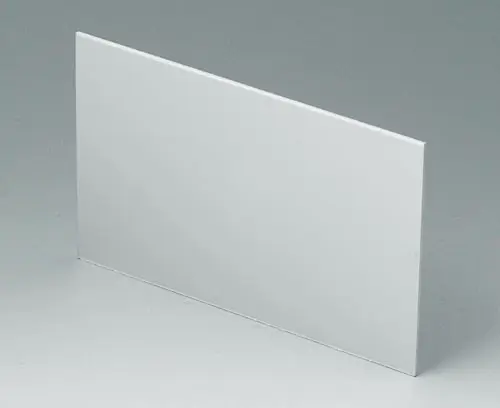

A9114221
Supply 1 front panel
A9114221
Front / rear panel V, O 190matt anodised
124,2x79,6x1,5mm
Accessory "protection"

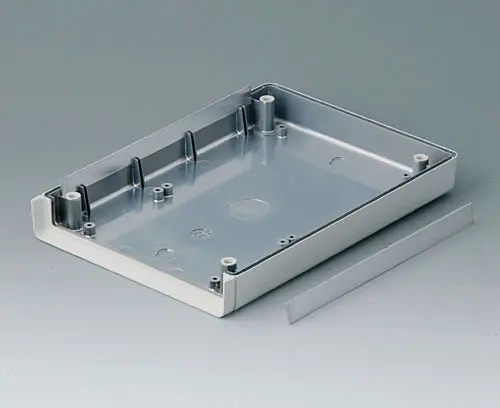

A9113150
Supply 1 contact-strip
A9113150
Contact-strips V, O, G 190Accessory "wall/holder"
A9204108
Supply 4 wall mounting brackets
A9204108
Wall mounting bracketspebble grey RAL 7032
B1360048
Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit
B1360048
Wall suspension elementspebble grey RAL 7032
Accessory "screws"
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Accessory
A9210290
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 291 KB
- AutoCAD DWG-File 684 KB
- AutoCAD DXF-File 2 505 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 1 534 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008521.x_t 3 537 KB
- 00008521.STEP 12 205 KB
- 00008521.SAT 13 543 KB
(OKW product)
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
