A9406342

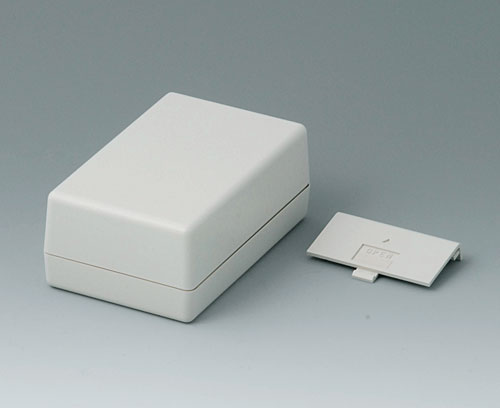

SHELL-TYPE CASES G 110, Vers. II
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
VersionWith battery compartment for 1 x 9 V flat battery (PP3)
Supply1 top and base part, battery compartment lid, assembly kit
Generate Your PDF Datasheet for A9406342
Please select the product details you would like to include in the PDF.
Accessory "battery"
A9160003
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)Accessory "protection"
A9106095
Supply 1 contact-strip
A9106095
Contact-strips V, G 110Accessory "carrying"
A9100002
Supply 1 ring eyelet
A9100002
Ring eyeletvolcano
Accessory "screws"
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Accessory
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 254 KB
- AutoCAD DWG-File 558 KB
- AutoCAD DXF-File 1 914 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 968 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008484.x_t 3 051 KB
- 00008484.STEP 9 464 KB
- 00008484.SAT 9 324 KB
(OKW product)
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
