C1203001 Case shell 200, with tongue

C1203001

Case shell 200, with tongue

Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply

1 case shell with tongue

  • Komponenty / Akcesoria
  • Opcje dostosowywania

System components to complete

C2203001 Case shell 200, with groove

C2203001

Case shell 200, with groove Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply 1 case shell with groove

Zamknij

C2203001

Case shell 200, with groove
produkt został dodany do twojej listy
ABS (UL 94 HB)
light grey RAL 7035
300x200x40mm
C2299002 Assembly kit

C2299002

Assembly kit 6 screws for case assembly, 8 screws for mounting PCBs, center cover.

Supply 1 assembly kit

Zamknij

C2299002

Assembly kit
produkt został dodany do twojej listy
C5203001 Case shell 200, with groove

C5203001

Case shell 200, with groove Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply 1 case shell with groove

Zamknij

C5203001

Case shell 200, with groove
produkt został dodany do twojej listy
ABS (UL 94 HB)
light grey RAL 7035
300x200x80mm

Accessory to complete

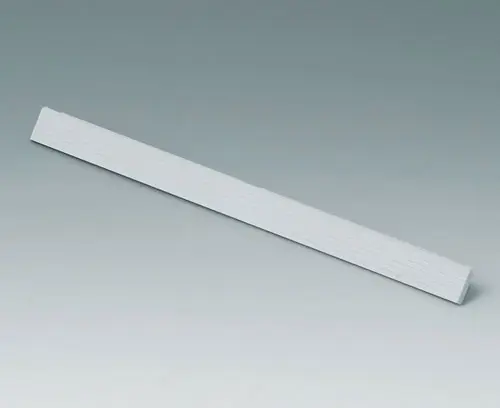

C2202001 Cover strips 200, without holes

C2202001

Cover strips 200, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Zamknij

C2202001

Cover strips 200, without holes
produkt został dodany do twojej listy
PC (UL 94 HB)
light grey RAL 7035

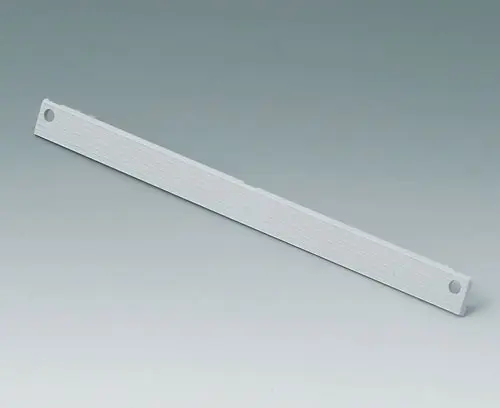

C2212001 Cover strips 200, with holes

C2212001

Cover strips 200, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Zamknij

C2212001

Cover strips 200, with holes
produkt został dodany do twojej listy
PC (UL 94 HB)
light grey RAL 7035

Accessory "protection"

C2299040 Security plug

C2299040

Security plug For use with lead tags.

Supply 1 plug

Zamknij

C2299040

Security plug
produkt został dodany do twojej listy
PA 6 (UL 94 HB)
light grey RAL 7035
C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Zamknij

C2306917

Pressure equalisation element M6x0.75
produkt został dodany do twojej listy
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Zamknij

C2310917

Pressure equalisation element M10x1
produkt został dodany do twojej listy
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56

Accessory "wall/holder"

C2299028 Wall mounting brackets

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

Zamknij

C2299028

Wall mounting brackets
produkt został dodany do twojej listy
PA 6 (UL 94 HB)
light grey RAL 7035
C2299088 Hinge

C2299088

Hinge For cases: 120, 160, 200 and 240 mm length or width. Additional machining (drilling) required.

Supply 2 complete hinges

Zamknij

C2299088

Hinge
produkt został dodany do twojej listy
PA 6
light grey RAL 7035

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
produkt został dodany do twojej listy
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
produkt został dodany do twojej listy
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0308132

Self-tapping screw 3 x 8 mm (T10)
produkt został dodany do twojej listy
Stainless steel

Accessory

C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Zamknij

C2299018

Case feet
produkt został dodany do twojej listy
TPE (UL 94 HB)
C2299068 PCB support

C2299068

PCB support For mounting pre-assembled PCB units. Suitable for ROBUST-BOXES width 80 mm and width 160 mm.

Supply 4 PCB support, assembly kit (threaded bushes, screws)

Zamknij

C2299068

PCB support
produkt został dodany do twojej listy
PC (UL 94 HB)
light grey RAL 7035

Opcje dostosowywania dla C1203001

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Kolor
light grey RAL 7035
Length
300 mm
Width
200 mm
Height
40 mm
PCB length, base
266 mm
PCB width, base
167 mm
Keypad length
262,6 mm
Keypad width
171,5 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
407 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
