B6724441

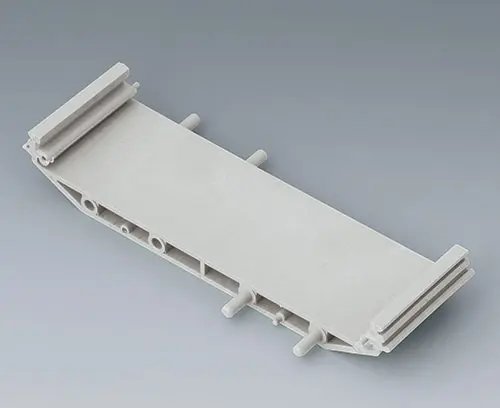

RAILTEC SUP. 107, intermediate part

Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply

1 intermediate part

Rysunek 2D w formacie PDF
Widok 3D PDF
3D/2D download

Generate Your PDF Datasheet for B6724441

Please select the product details you would like to include in the PDF.

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka

System components to complete

B6724444 RAILTEC SUP. 107, end section

B6724444

RAILTEC SUP. 107, end section Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 end section

B6724444

RAILTEC SUP. 107, end section
produkt został dodany do twojej listy

light grey
118x11,5x17,5mm

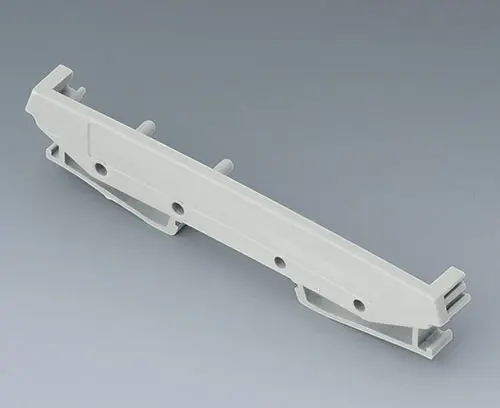

B6724445 RAILTEC SUP. 107, end section with foot

B6724445

RAILTEC SUP. 107, end section with foot Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35).

Supply 1 end section with foot

B6724445

RAILTEC SUP. 107, end section with foot
produkt został dodany do twojej listy

light grey
118x11,5x27,5mm

Opcje dostosowywania dla B6724441

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiał

Kolor
light grey
Standards
RoHS compliant
REACH compliant
Długość
118 mm
Szerokość
35 mm
Wysokość
17,5 mm
PCB length, base
107 mm
PCB width, base
35 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
27 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
UK
