B6724440

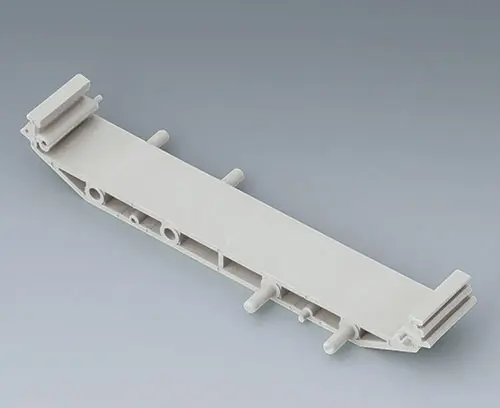

RAILTEC SUP. 107, intermediate part
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.
Supply1 intermediate part
Generate Your PDF Datasheet for B6724440
Please select the product details you would like to include in the PDF.
System components to complete
B6724444
Supply 1 end section
B6724444
RAILTEC SUP. 107, end sectionlight grey
118x11,5x17,5mm
B6724445
Supply 1 end section with foot
B6724445
RAILTEC SUP. 107, end section with footlight grey
118x11,5x27,5mm
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 164 KB
- AutoCAD DWG-File 339 KB
- AutoCAD DXF-File 949 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 34 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00006812.x_t 157 KB
- 00006812.STEP 392 KB
- 00006812.SAT 262 KB
(OKW product)
