B6700104
RAILTEC C, 1 module, Vers. III

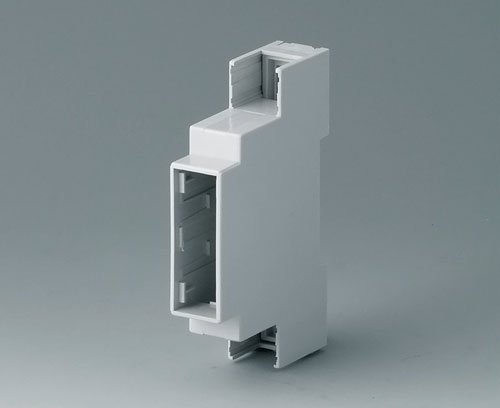

Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Front panel see accessories.
VersionFront open, connection side with extended case wall
Supply1 bottom part, 2 clips, 1 top part
Generate Your PDF Datasheet for B6700104
Please select the product details you would like to include in the PDF.
Accessory "wall/holder"
B6811542
Supply 1 piece
B6811542
Adapterlight grey
Accessory "terminals"
B6606222
Supply 1 piece
B6606222

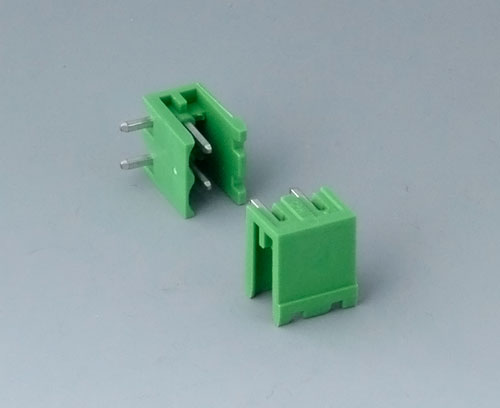

Plug header, block 5.08
B6606223
Supply 1 piece
B6606223
Plug header, block 5.08
B6800650
Supply 1 piece
B6800650
Terminal block, block 5.08light grey
Accessory
B6800100
Supply 1 front panel
B6800100

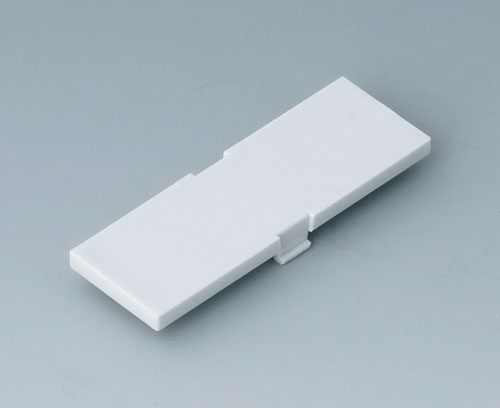

Front panel, 1 modulelight grey
14x42mm
B6800200
Supply 1 front panel
B6800200
Front panel, 1 moduletransparent
14x42mm
Locking clip black/translucent
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 279 KB
- AutoCAD DWG-File 679 KB
- AutoCAD DXF-File 2 593 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 439 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00011193.x_t 1 750 KB
- 00011193.STEP 3 637 KB
- 00011193.SAT 2 958 KB
Miscellaneous information
- Max. size of PCB in mm 285 KB
(OKW product)
