PROTEC 140, Vers. I

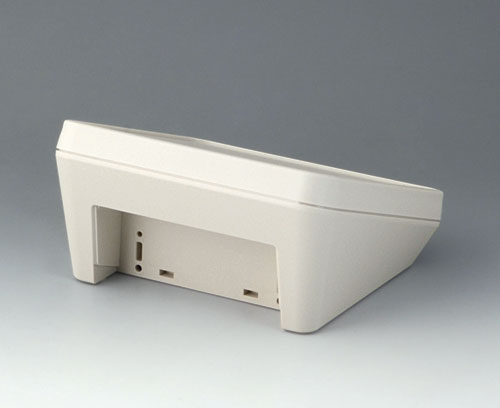

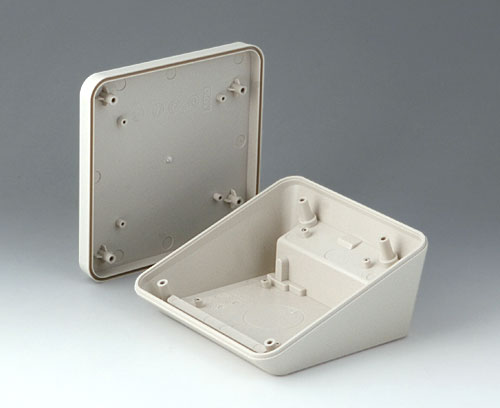

Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
SupplyTop and bottom parts, assembly kit including 4 self-adhesive rubber feet
Rysunek 2D w formacie PDF
Widok 3D PDF
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B4414107
Please select the product details you would like to include in the PDF.
Dodaj do koszyka
Accessory "protection"
B4514030
Sealing 140
Application: for increasing the protection class, of PROTEC 140. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4514030
Sealing 140produkt został dodany do twojej listy
Accessory "wall/holder"
B4514101
Wall suspension element 140
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4514101
Wall suspension element 140produkt został dodany do twojej listy
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)produkt został dodany do twojej listy
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)produkt został dodany do twojej listy
Opcje dostosowywania dla B4414107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Informacje techniczne
-
Rysunki / Informacje
- Przykłady aplikacji
- Dane zakupowe
Materiał
Protection class
Necessary accessories: sealing
Kolor
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Szerokość
140 mm
Głębokość
140 mm
Wysokość
76 mm
PCB length, base
68 mm
PCB width, base
120 mm
PCB length, top
130 mm
PCB width, top
130 mm
Keypad length
130,9 mm
Keypad width
130,9 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 306 KB
- AutoCAD DWG-File 1 082 KB
- AutoCAD DXF-File 3 836 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 549 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00023914.x_t 4 251 KB
- 00023914.STEP 10 843 KB
- 00023914.SAT 10 837 KB
Weight/1 part
205 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
