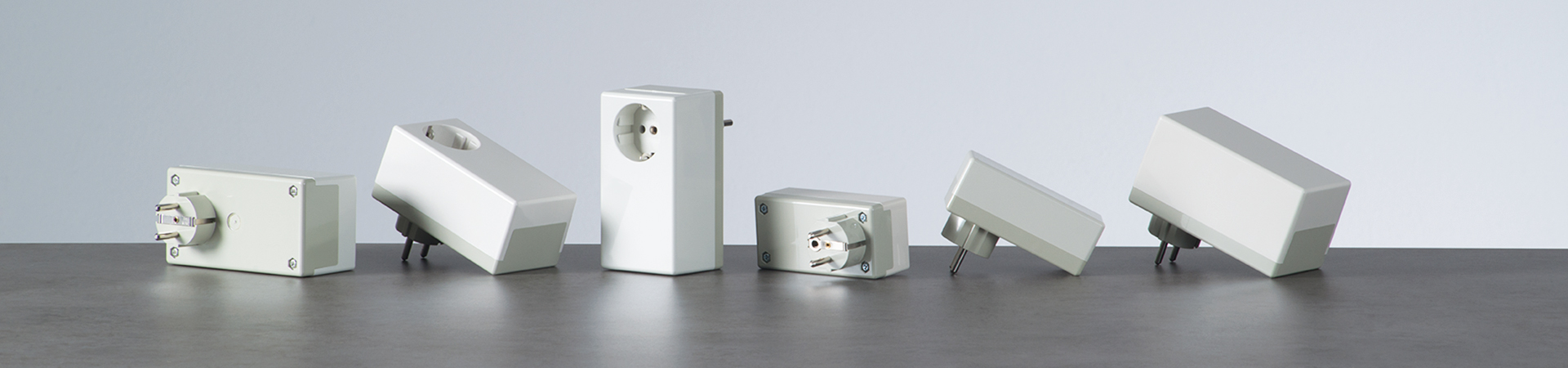

Plug Cases

Obudowy z zintegrowaną wtyczką

PLUG CASES to bardzo funkcjonalne rozwiązanie dla elektroniki: wytrzymałe i odporne na uderzenia.

  • trudnopalny materiał (UL 94 V-0)
  • typ niemiecki lub francuski
  • niemiecka wersja z zintegrowanym gniazdem
  • wytrzymały i odporna na uderzenia materiał; test twardości wykonany w temperaturze 125 ° C
  • wewnętrzne słupki do montażu PCB; cztery wkręty załączone w zestawie
  • klasa szczelności IP 40

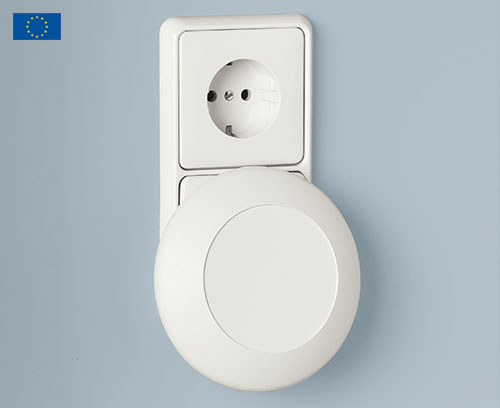

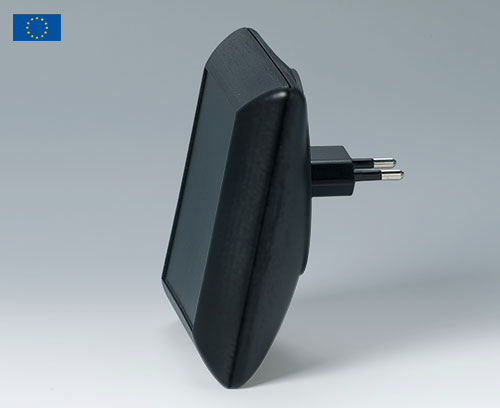

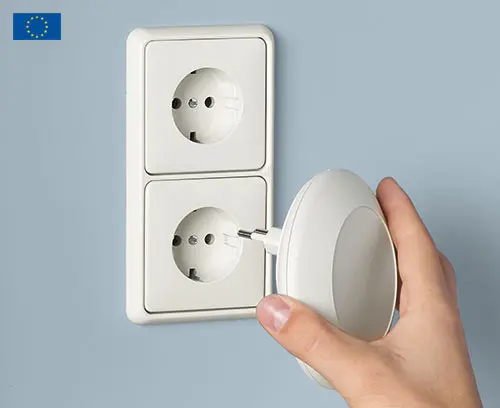

Dla obudów z zintegrowaną wtyczką euro prosimy zajrzeć do oferty ART-CASE

Obszary zastosowań

  • Jednostki do przesyłu danych przez sieć zasilającą, kontrolery, sygnalizacja, przełączniki itd.
  • Przeglądaj pełną listę
  • Akcesoria
  • Opcje dostosowywania
AltText

A9011665

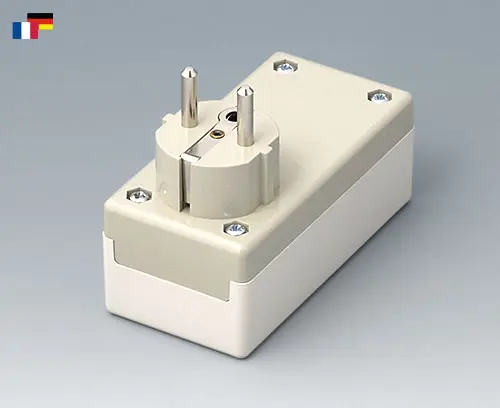

PLUG CASE F / D, Vers. I Two-part plug case, French / German version. Fixing towers for the PCB assembly.

Version Without integrated socket, plug according to DIN 49441 R2

Supply 1 top part and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing

Zamknij

A9011665

PLUG CASE F / D, Vers. I
produkt został dodany do twojej listy
PC+ABS (UL 94 V-0)
off-white RAL 9002
100x50x40mm
AltText

A9021665

PLUG CASE F / D, Vers. I Two-part plug case, French / German version. Fixing towers for the PCB assembly.

Version Without integrated socket, plug according to DIN 49441 R2

Supply 1 top part and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing

Zamknij

A9021665

PLUG CASE F / D, Vers. I
produkt został dodany do twojej listy
PC+ABS (UL 94 V-0)
pebble grey RAL 7032
120x65x65mm
AltText

A9022465

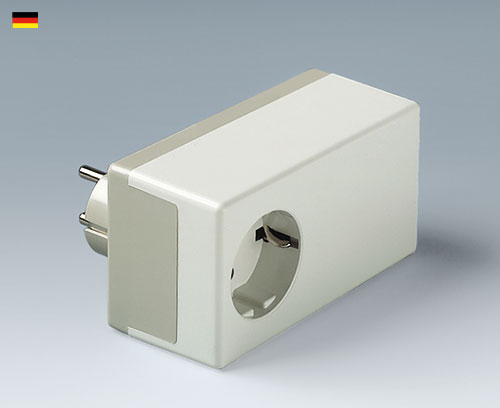

PLUG CASE D, Vers. II Two-part plug case, German version. Fixing towers for the PCB assembly.

Version With integrated socket DIN 49440 and plug section DIN 49441 R2

Supply 1 top part with integrated socket and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing

Zamknij

A9022465

PLUG CASE D, Vers. II
produkt został dodany do twojej listy
PC+ABS (UL 94 V-0)
pebble grey RAL 7032
120x65x55mm
AltText

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
produkt został dodany do twojej listy
AltText

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
produkt został dodany do twojej listy
AltText

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0308132

Self-tapping screw 3 x 8 mm (T10)
produkt został dodany do twojej listy
Stainless steel

Opcje dostosowywania dla Plug Cases

Czego potrzebujesz do spersonalizowania, swojego produktu? Dostarczamy obudowy i pokrętła wraz ze wszystkimi niezbędnymi wymaganymi modyfikacjami.
