B2210315

MEDITEC D 220, with handle bar

Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply

2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet, 1 handle bar

Rysunek 2D w formacie PDF
Widok 3D PDF
3D/2D download

Generate Your PDF Datasheet for B2210315

Please select the product details you would like to include in the PDF.

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka

Accessory to complete

B2129007 Sloping control panel D

B2129007

Sloping control panel D Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.

Version D (for MEDITEC D160 or D220)

Supply 1 angle, 1 cover, assembly kit

B2129007

Sloping control panel D
produkt został dodany do twojej listy

off-white RAL 9002
B2129407 Front / rear panel Z1

B2129407

Front / rear panel Z1 For cases with 1 side panel per side.

Supply 1 front panel Z1

B2129407

Front / rear panel Z1
produkt został dodany do twojej listy

off-white RAL 9002
271,6x105,6x3mm

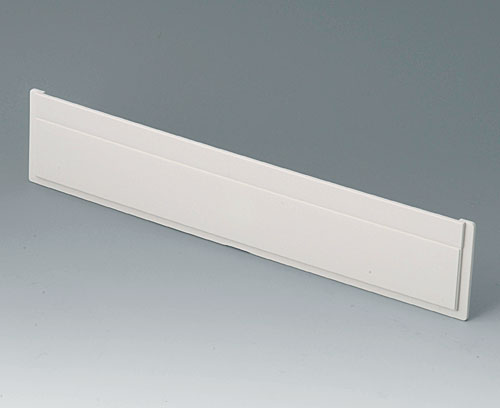

B2129707 Infill panel D

B2129707

Infill panel D When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.

Version D

Supply 1 front cover (for locking)

B2129707

Infill panel D
produkt został dodany do twojej listy

off-white RAL 9002
272x55x5mm

Accessory "screws"

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

A9199008

Set of screws
produkt został dodany do twojej listy

Accessory

B2134012 Stacking elements

B2134012

Stacking elements Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.

Supply 4 stacking elements

B2134012

Stacking elements
produkt został dodany do twojej listy

volcano

Opcje dostosowywania dla B2210315

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiał

Protection class
Kolor
Enclosure off-white RAL 9002,
Side trims lagoon
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Szerokość
290 mm
Głębokość
260 mm
Wysokość
124 mm
PCB length, base
260 mm
PCB width, base
245 mm
Keypad length
262 mm
Keypad width
96 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
1485 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
