Akcesoria do obudów
C7114056
Mounting plate
Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.
Supply1 mounting plate
Generate Your PDF Datasheet for C7114056
Please select the product details you would like to include in the PDF.
Dodaj do koszyka
System components to complete
C7016061
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7016061
IN-BOXprodukt został dodany do twojej listy
light grey RAL 7035
162x122x90mm
, ,

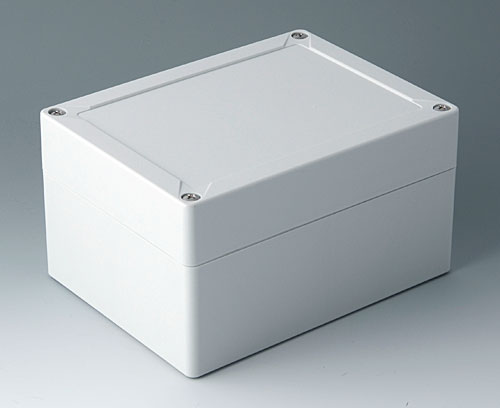

C7016062
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7016062
IN-BOXprodukt został dodany do twojej listy
light grey RAL 7035
162x122x90mm
, ,

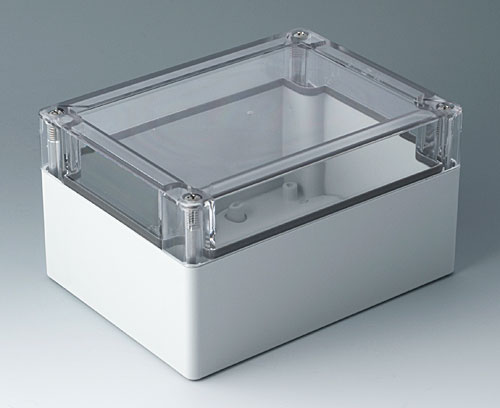

C7016064
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7016064
IN-BOXprodukt został dodany do twojej listy
light grey RAL 7035
162x122x90mm
, ,
C7016065
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7016065
IN-BOXprodukt został dodany do twojej listy
light grey RAL 7035
162x122x90mm
, ,
Accessory "screws"
C7100167
Screw 3.9 x 9 mm
For fitting standard DIN rails, mounting plates, PCBs, components etc.
Supply 1 self-tapping screw
C7100167
Screw 3.9 x 9 mmprodukt został dodany do twojej listy
Opcje dostosowywania dla C7114056
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Standards
Długość
131 mm
Szerokość
113 mm
Thickness
2,5 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Weight/1 part
55 g
Customs tariff number
(OKW product)
(OKW product)
39219090
Country of manufacture
Other country
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
