A9446107

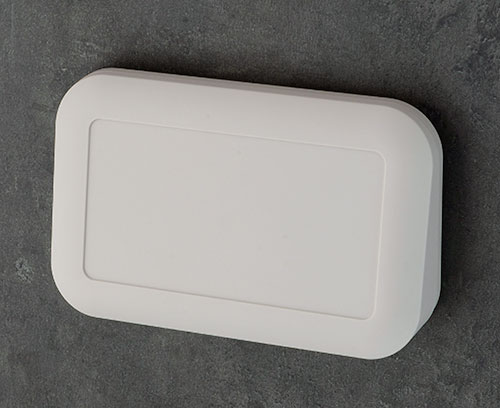

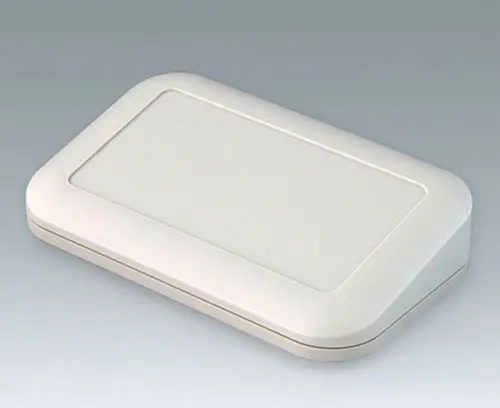

EVOTEC 150, Vers. III
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.
VersionTop part "Desktop", operating area recessed by 1 mm
SupplyTop and bottom parts, assembly kit incl. 4 self-adhesive rubber feet
Generate Your PDF Datasheet for A9446107
Please select the product details you would like to include in the PDF.
Accessory "protection"
A9504030
Supply 1 seal
A9504030
Sealing 150Accessory "wall/holder"
B1300017
Supply 1 piece incl, assembly kit
B1300017
Fastening element for DIN-Railsoff-white RAL 9002
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 225 KB
- AutoCAD DWG-File 472 KB
- AutoCAD DXF-File 1 495 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 432 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027265.x_t 3 588 KB
- 00027265.STEP 8 862 KB
- 00027265.SAT 8 940 KB
(OKW product)
