A9431107

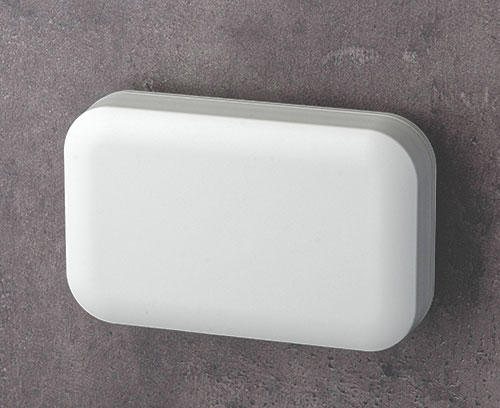

EVOTEC 125, Vers. I
2-part plastic enclosure with flat top part, height 30. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.
VersionTop part "Flat"
SupplyTop and bottom parts, assembly kit incl. 4 self-adhesive rubber feet
Generate Your PDF Datasheet for A9431107
Please select the product details you would like to include in the PDF.
Accessory "protection"
A9503030
Supply 1 seal
A9503030
Sealing 125Accessory "wall/holder"
B1300017
Supply 1 piece incl, assembly kit
B1300017
Fastening element for DIN-Railsoff-white RAL 9002
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 191 KB
- AutoCAD DWG-File 404 KB
- AutoCAD DXF-File 1 228 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 411 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027982.x_t 3 204 KB
- 00027982.step 7 839 KB
- 00027982.sat 10 164 KB
(OKW product)
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
