Akcesoria do obudów
A0234670
EURO CASE 42 TE, with handle
Modular construction without screws with handle. Fixing support in the shells and side panels.
Supply2 shells, 2 side panels 2 HE with hole, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet, 1 handle
Generate Your PDF Datasheet for A0234670
Please select the product details you would like to include in the PDF.
Accessory to complete
A0334270
Supply 1 front panel
A0334270

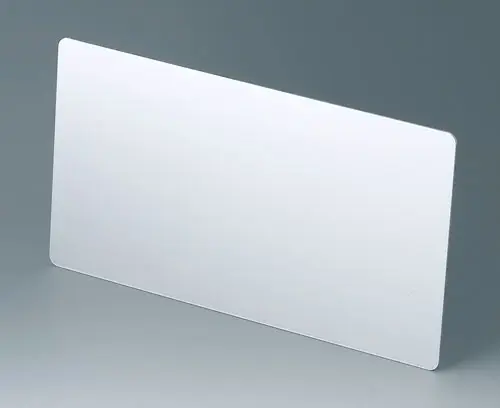

Front / rear panel 42 TE 3 HEmatt anodised
250,8x135,2x2mm
Accessory "screws"
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
A0308031
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
A0308132
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 437 KB
- AutoCAD DWG-File 1 058 KB
- AutoCAD DXF-File 4 214 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 6 163 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00009836.x_t 8 590 KB
- 00009836.STEP 17 740 KB
- 00009836.SAT 45 647 KB
(OKW product)
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
