EURO CASE 42 TE, without handle
Modular construction without screws. Fixing support in the shells and side panels.
Supply2 shells, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet
Generate Your PDF Datasheet for A0214070
Please select the product details you would like to include in the PDF.
Accessory to complete
A0314270
Supply 1 front panel

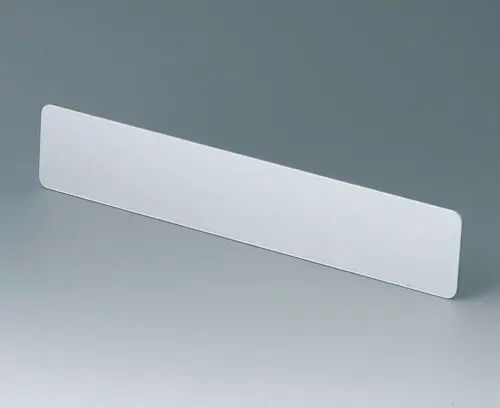

A0314270
Front / rear panel 42 TE 1 HEmatt anodised
250,8x46,3x2mm
Accessory "screws"
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
A0308031
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
A0308132
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)Accessory
A0350007
Supply 1 tilt foot
A0350007
Tilt footoff-white RAL 9002
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 368 KB
- AutoCAD DWG-File 872 KB
- AutoCAD DXF-File 3 408 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 2 017 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00009220.x_t 5 833 KB
- 00009220.STEP 12 103 KB
- 00009220.SAT 34 244 KB
(OKW product)
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
