Akcesoria do obudów
B4116147

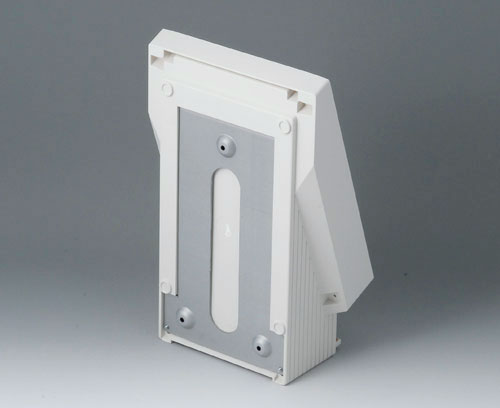

Wall suspension element M
Wall suspension element M for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.
Supply1 wall suspension element, 2 screws M3
Generate Your PDF Datasheet for B4116147
Please select the product details you would like to include in the PDF.
B4016117
Version Basic housing, unmachined
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit
B4016117
DATEC-TERMINAL M, Vers. Ioff-white RAL 9002
168x272x101mm
B4016217
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.
Suitable for the installation of Eurocards 100 x 160 mm.
Version Machined for assembly of hinge and quick-action lock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock
B4016217
DATEC-TERMINAL M, Vers. IIoff-white RAL 9002
168x272x101mm
B4016317
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.
Suitable for the installation of Eurocards 100 x 160 mm.
Version Machined for assembly of hinge, quick-action lock and keylock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock
B4016317
DATEC-TERMINAL M, Vers. IIIoff-white RAL 9002
168x272x101mm
(OKW product)
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
